1、Description：

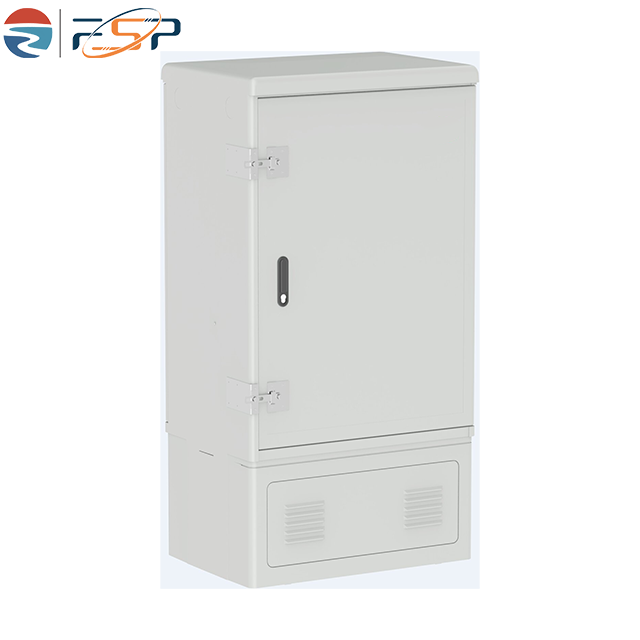

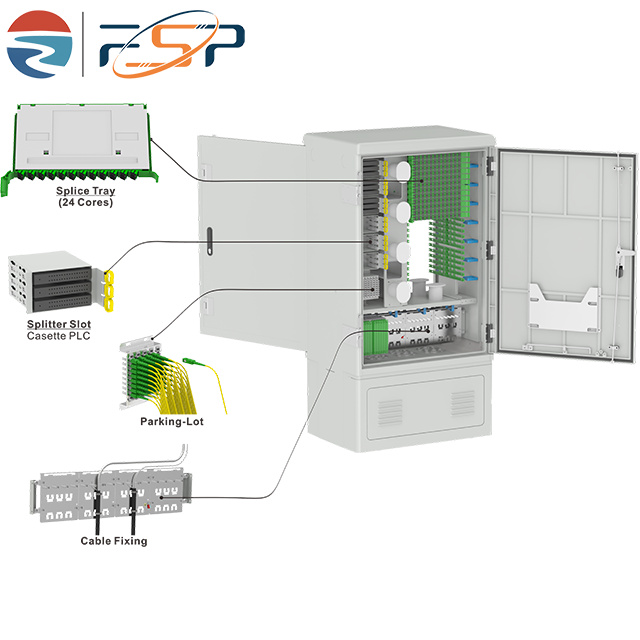

FSP-FDC-S1-576D Fiber Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for telecommunication network.
2、Specification：
1) Anti-UV (Ultraviolet)
2) Grounding device included
3) Protection Class: IP65
4) Flexible configuration changes
3、Applications
1) FTTH Access Network
2) Telecommunication Network
3) Data Communications Network
4) Local Area Networks
5) Ground-mounted
4、Configuration Table：
Model | FSP-FDC-S1-576D |
Installation Method | Ground-mounted |
Protection Grade | IP65 |
Color | Gray ( Default RAL 7035 ) |
Shell Material | SMC |
Structure material | SECC |
Adaptor Type | SC/APC |
Pigtail Type | SC/APC, G652D, L1.5M, Φ0.9MM |
Splittert Type | Box Type, SC/APC, G657A1, L1.5~2.0M, Φ2.0MM |
Splice Tray Capacity | 48 Pcs |
Splice Tray Type | 24 Cores |
Splitter Capacity | 36 Pcs |

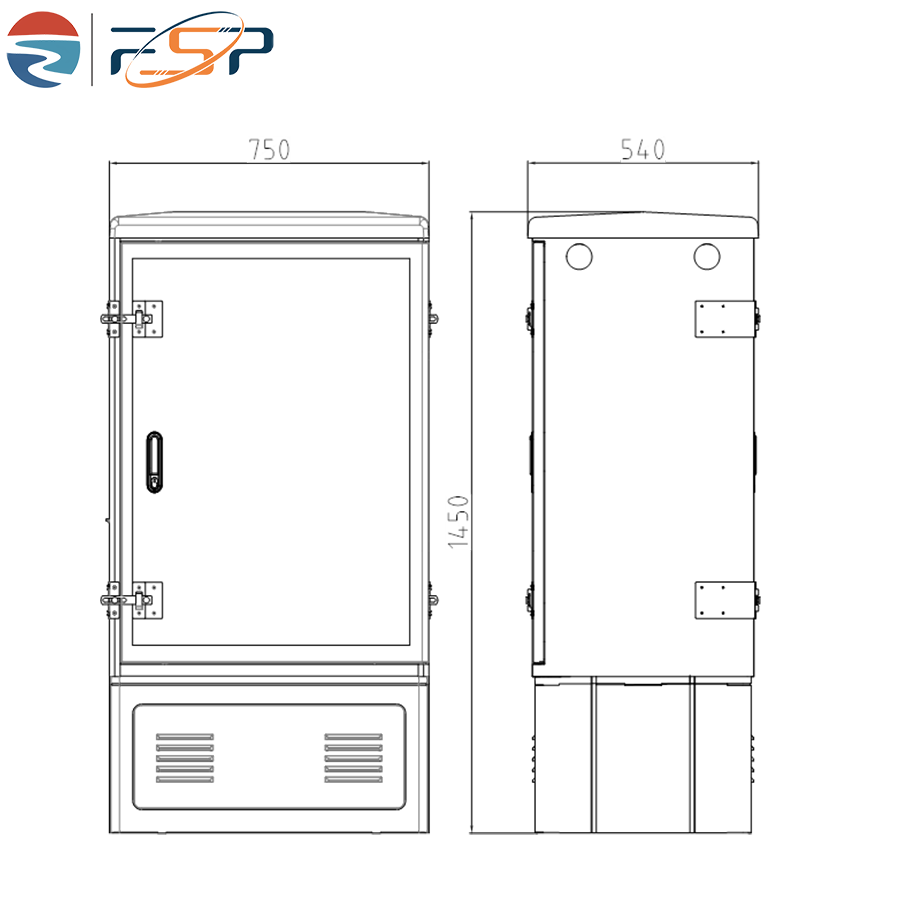

Size: (Pic 1) | H×W×D = 1450×750×540 (mm) |

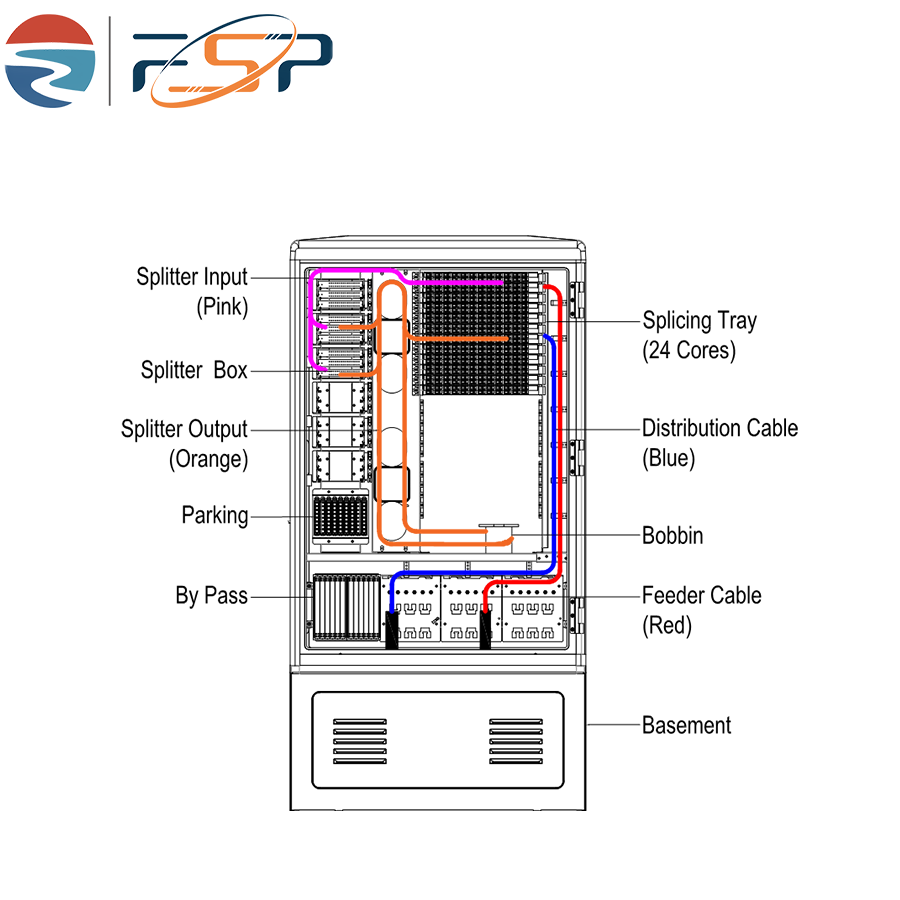

5.Fiber Routing（Pic2）

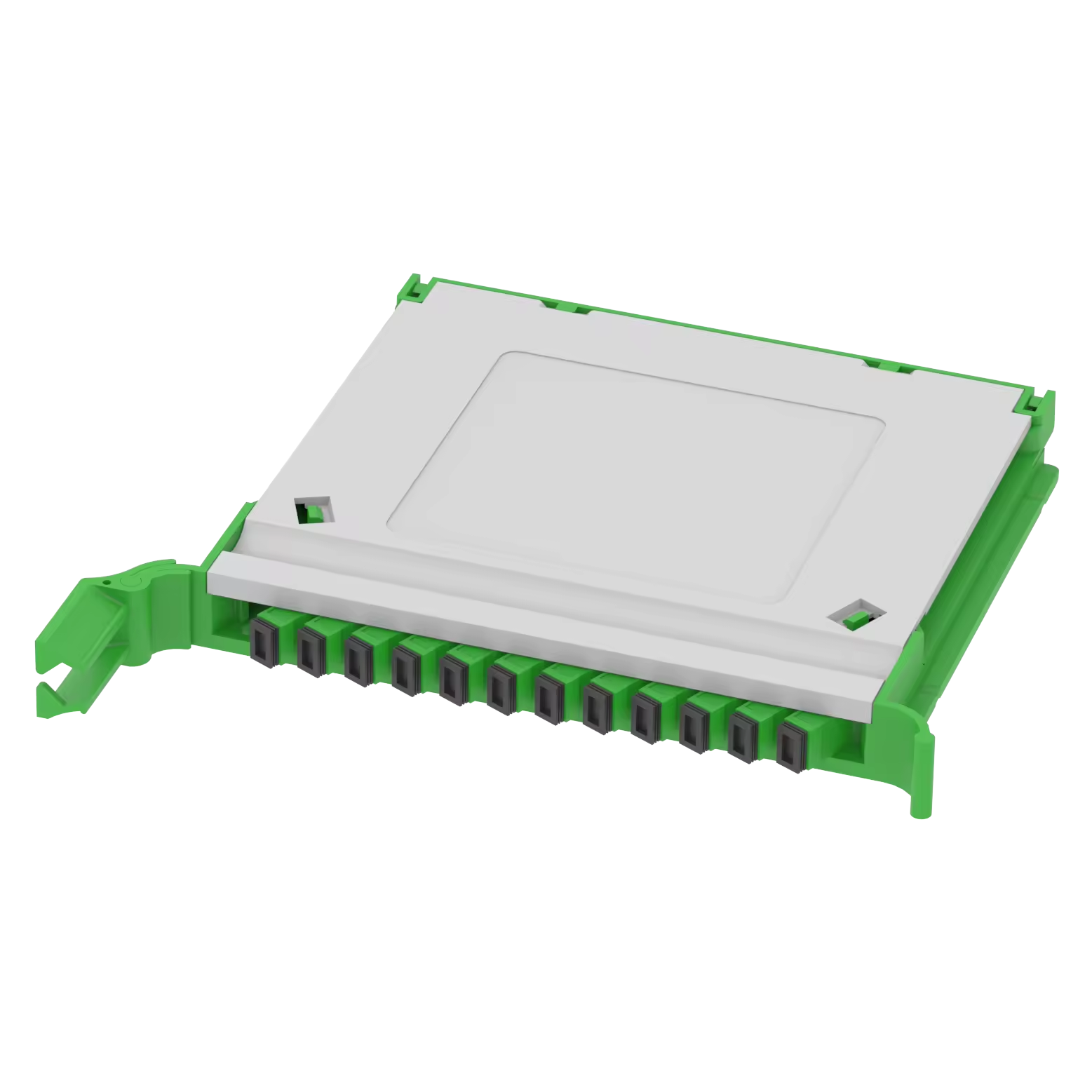

6、Splice Tray
Used for splicing and termination of optical cables,capacity is 24 cores per tray,support adaptors installation (Pic3).

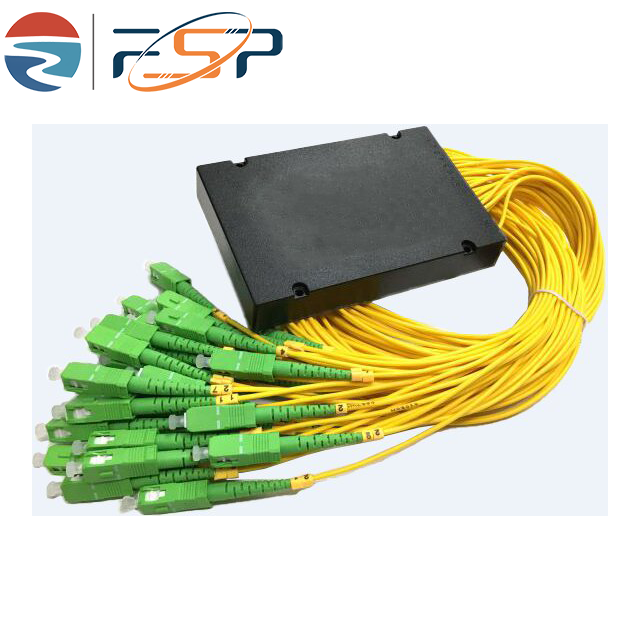

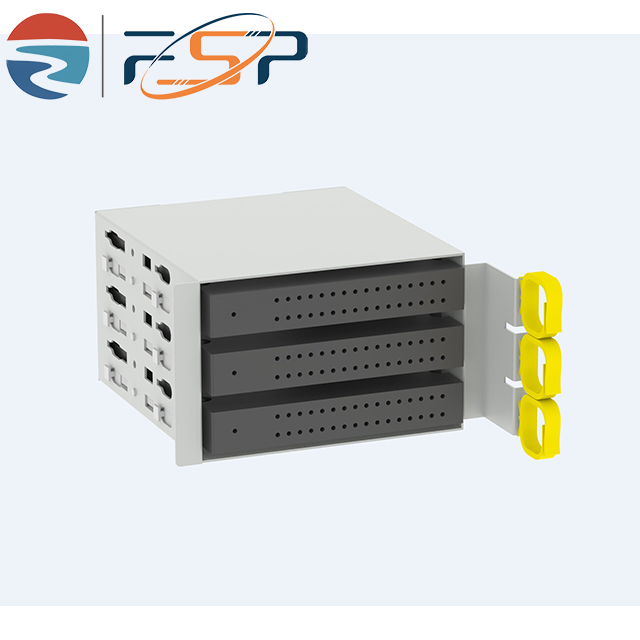

7、Splitter
Used for connection and fixing of splitters and adaptors (Pic4 ).

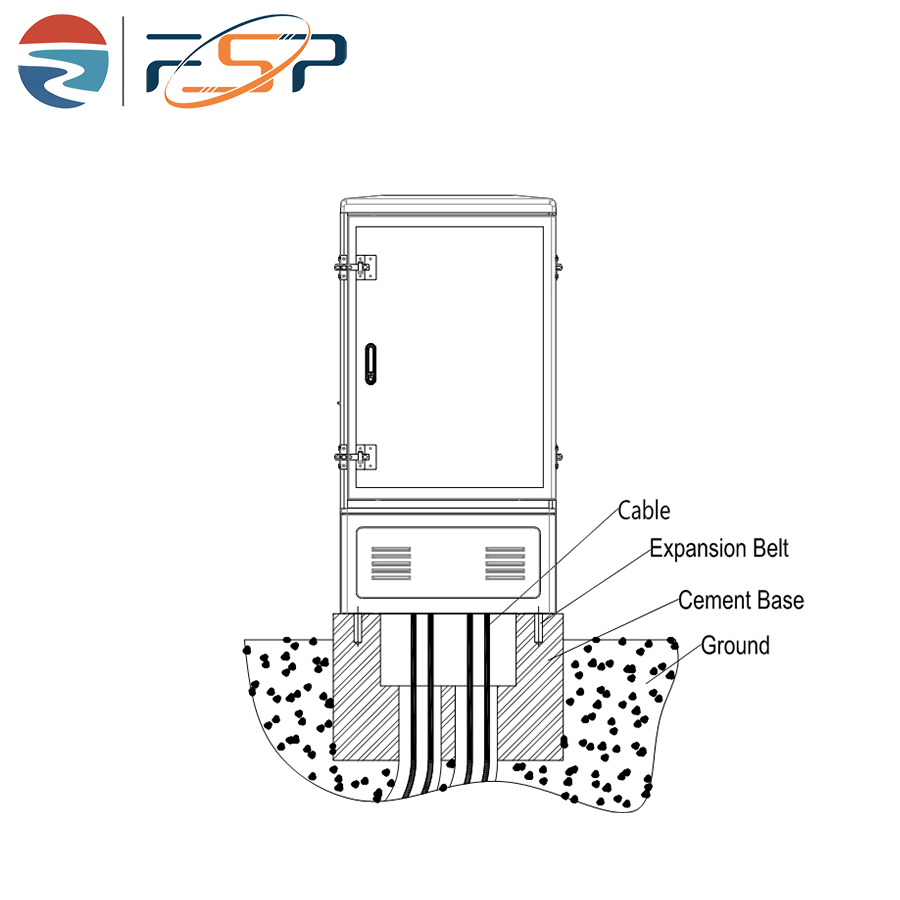

8、Installation (Ground-mounted ) :
Use expansion bolts to connect and fix the cabinet base and the cement base（Pic5) .
