FSP-FDC-06-432 details

1Description

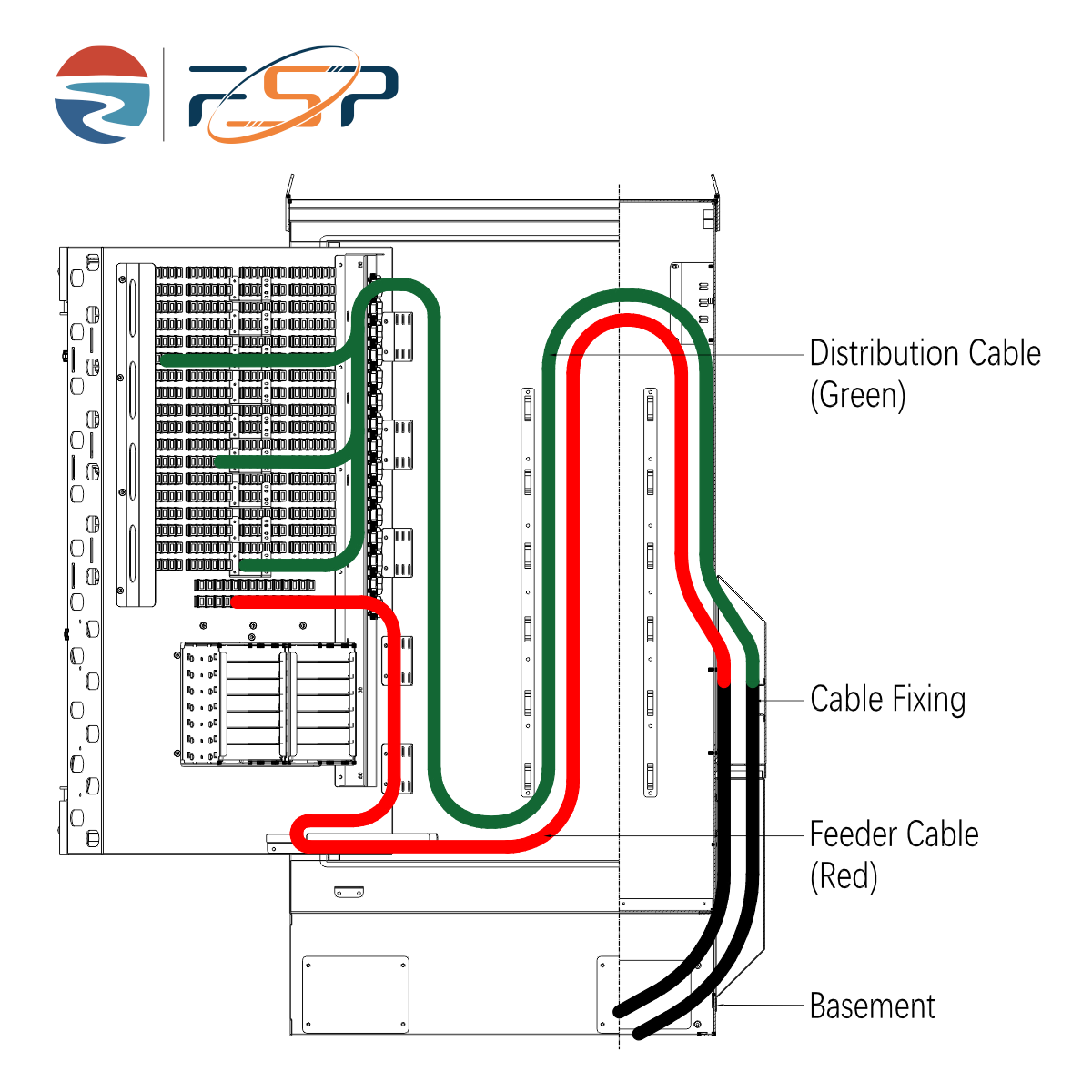

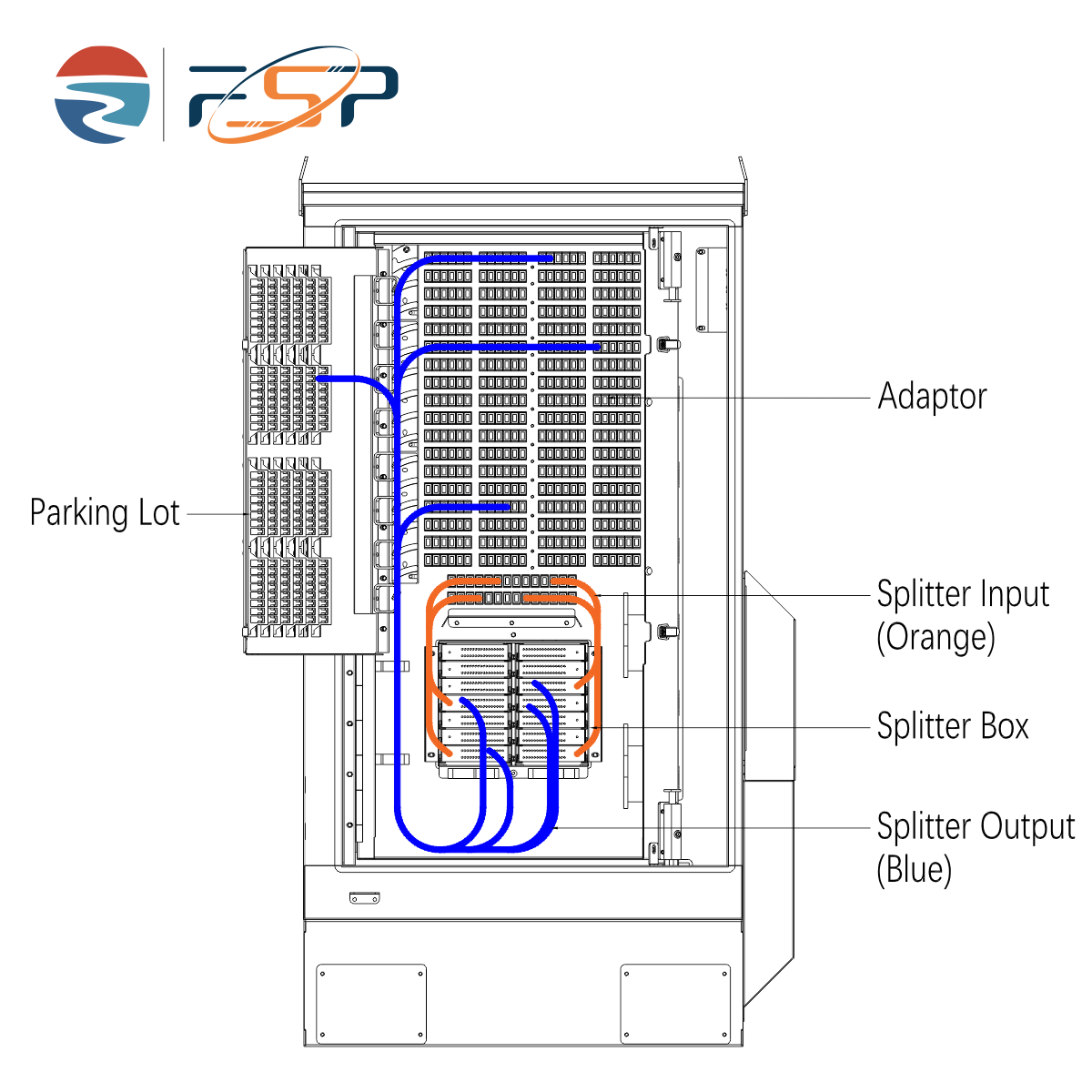

FSP-FDC-06-432 Optic Fiber Splitter Cabinet is used for optic splitting .Genrally 2 pcs 24 cores feeder cables come into this cabinet and 2 pcs 216 cores distribution cables go out of the cabinet.The input cable of splitters connect to the feeder cable and the output cable of splitters connect to the distribution cables.And usually there is a splicing closure locate not far away from the cabinet used to splice the cables with the others .The cabinet and the splicing closure usually used in pairs.



2、Specification

Housing made of stainless with painting good anti-rusty performance

Incoming and outgoing cables installed before shipment

Reasonable wiring routing.



3.Configuration Table

Model

FSP-FDC-06-432

Installation Method

Ground-mounting

Color

Gray (Default RAL 7035)

Material

Stainless Steel

IP Grade

IP 65

Cable Fixing Place

5 Places

Adaptor Type

SC/APC

Adaptor Port

460 Ports  (28 Ports For Input , 432 Ports For Output)

Cable Type

Feeder Cable: 24 Cores,SC/APC,L31M. (1 Set)

Distribution Cable: 216 Cores,SC/APC,L31M. (2 Sets)

Splitter Type

1:32 , Box Type

Splitter Capacity

18 Pcs

Parking Lot Capacity

192 Ports

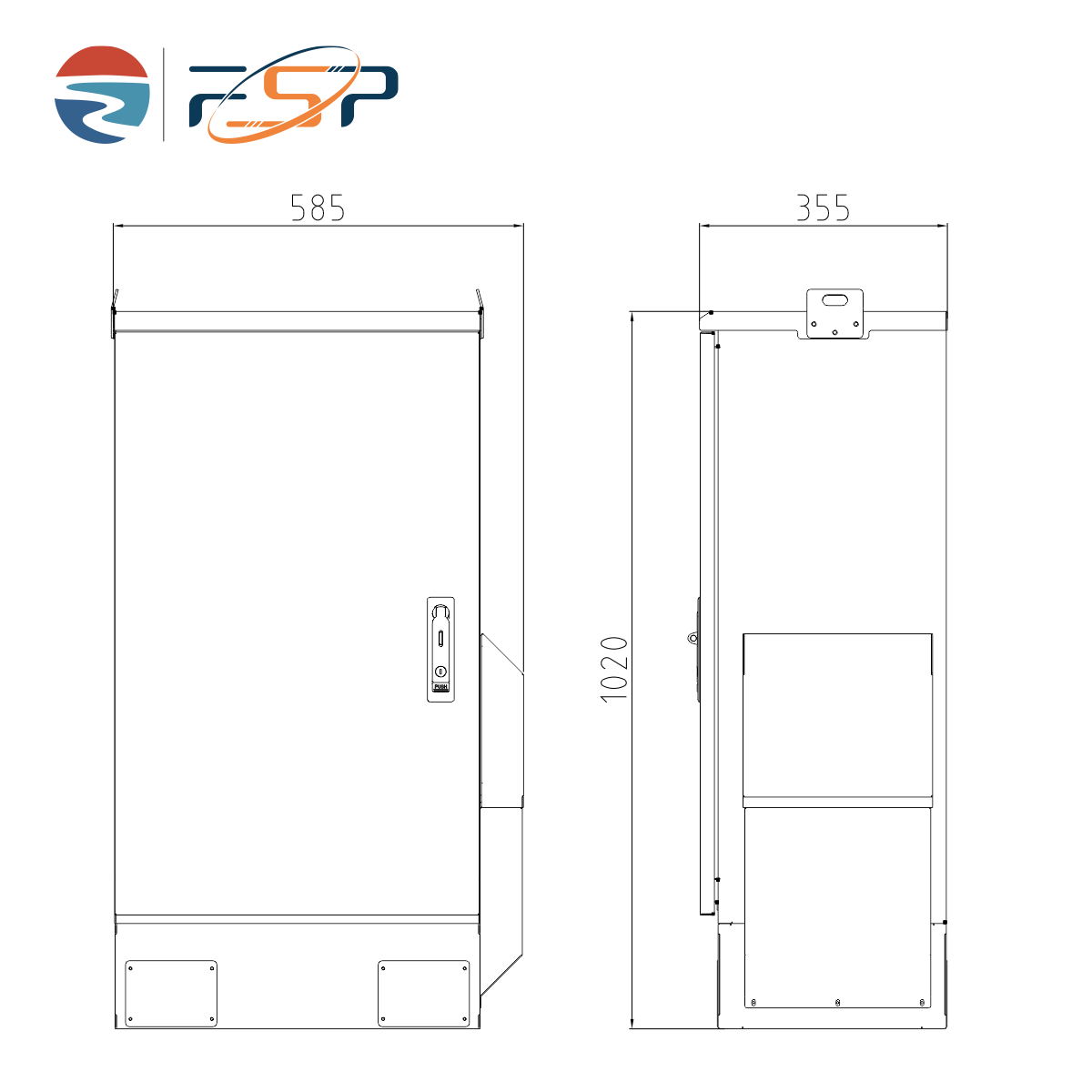

Size (Pic 1) :

H×W×D = 1020×585×355 (mm)

Table 1 Model and configuration
