FSP-FDC-02 Series details

1、Description:

The outdoor Fiber Optic Distribution Cabinet (FSP-FDC-02 Series) is designed to handle fiber optic cross connections and accommodate passive optical splitters in PON FTTx networks, but can also be used for by pass splicing applications or combinations of the both. The FDC is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. It has the functions of fiber cable fixation and protection, optical cable termination function, splitting one core fiber into multiple cores and cross connection. There are also some other tags for this kind of products:FDP fiber optic, fiber distribution cabinet,FTTH cabinet,ODF cabinet, outdoor fiber optic distribution cabinet, outdoor ODF cabinet,fiber distribution hub,fiber cabinet.

FSP-FDC-02 Series Fiber Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for telecommunication network.


2、Specification:

1) Anti-UV (Ultraviolet)

2) Grounding device included

3) Protection Class: IP65

4) Flexible configuration changes



3、Applications

1) FTTH Access Network

2) Telecommunication Network

3) Data Communications Network

4) Local Area Networks

5) Ground-mounted or Pole-mounted



4、Configuration Table:


Model

FSP-FDC-02 Series

Installation Method

Ground-mounted Or Pole-mounted(144 Only)

Protection Grade

IP65

Color

Gray ( Default RAL 7035 )

Shell Material

SMC

Structure material

Cold rolled steel & Stainless Steel

Specification

144

384

576

Splice Tray Capacity(SC)

7

13

18

Splitter Tray Capacity(LC)

9

19

28

Patchcord Capacity(SC-LC)

135

285

420

Size: H×W×D (mm)

1035×550×310

1590×750×320

1450×750×540

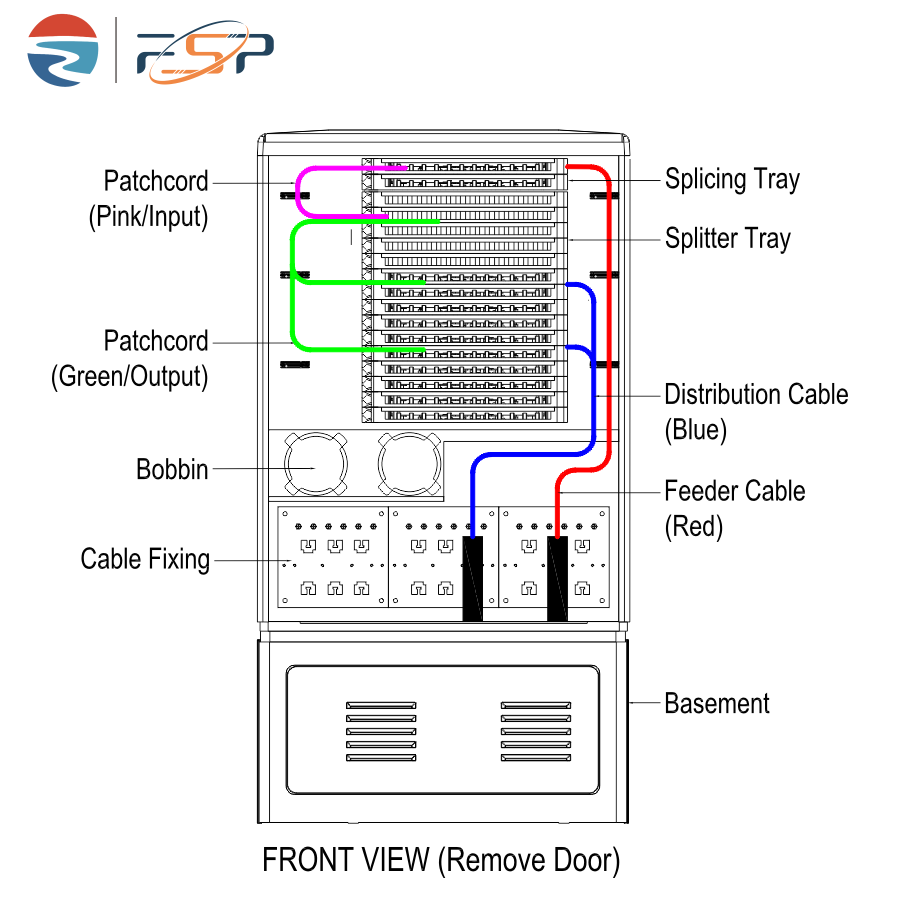

5、Fiber Routing (Pic 1)


Pic 1



6、Splice Tray

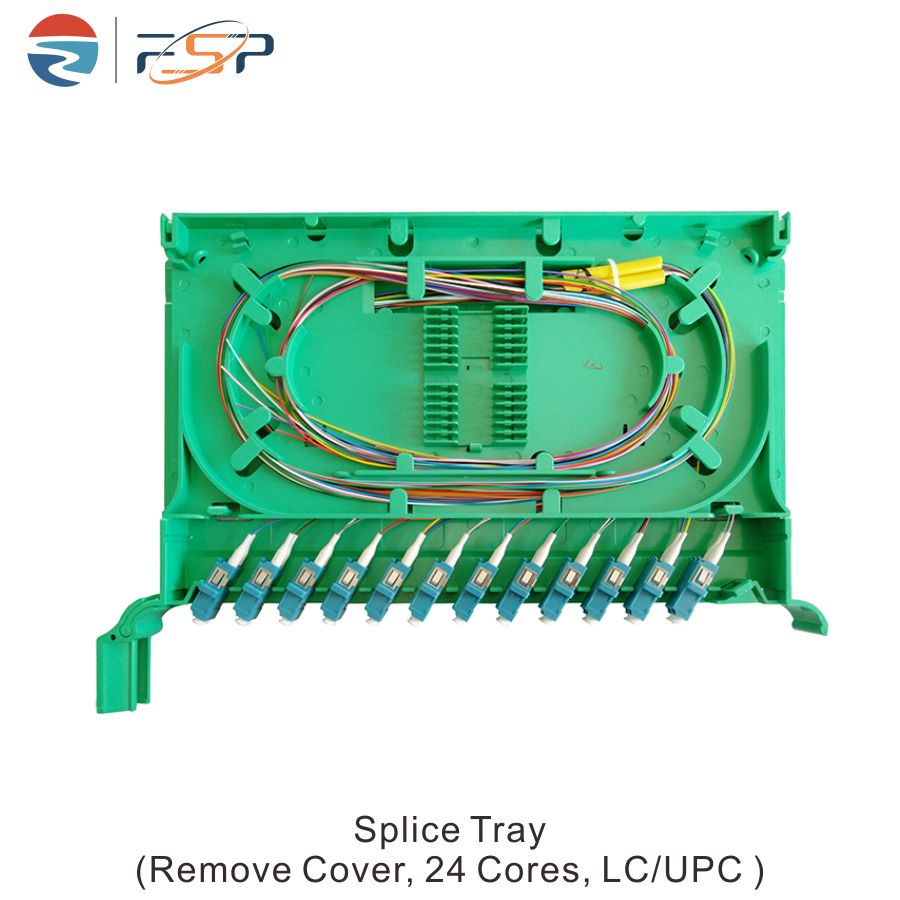

  Used for splicing and termination of optical cables,capacity is 12 or 24 cores per tray,support adaptors installation of FCSCLC etc (Pic 2).


Pic 2

7、Splitter Tray

  Used for connection and fixing of splitters and adaptors,support adaptors installation of FCSCLC etc (Pic 3).


Pic 3
