FSP-FDC-03-144A details

1Description

The outdoor Fiber Optic Distribution Cabinet (FSP-FDC-03-144A) is designed to handle fiber optic cross connections and accommodate passive optical splitters in PON FTTx networks, but can also be used for by pass splicing applications or combinations of the both. The FDC is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. It has the functions of fiber cable fixation and protection, optical cable termination function, splitting one core fiber into multiple cores and cross connection. There are also some other tags for this kind of products:FDP fiber optic, fiber distribution cabinet,FTTH cabinet,ODF cabinet, outdoor fiber optic distribution cabinet, outdoor ODF cabinet,fiber distribution hub,fiber cabinet.

FSP-FDC-03 Series Fiber Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for telecommunication network.


2、Specification

1) Anti-UV (Ultraviolet)

2) Grounding device included

3) Protection Class: IP65

4) Flexible configuration changes



3、Applications

1) FTTH Access Network

2) Telecommunication Network

3) Data Communications Network

4) Local Area Networks

5) Ground-mounted or Pole-mounted



4、Configuration Table


Model

FSP-FDC-03-144

Installation Method

Ground-mounted

Protection Grade

IP65

Color

Gray ( Default RAL 7035 )

Shell Material

SMC

Structure Material

Stainless Steel

Number Of Splice Tray

14 PCS

Adaptor Type

SC

Number Of Adaptor Port

168 Ports

Splitter Type

Cassette Type

Splitter Capacity

24 Slots

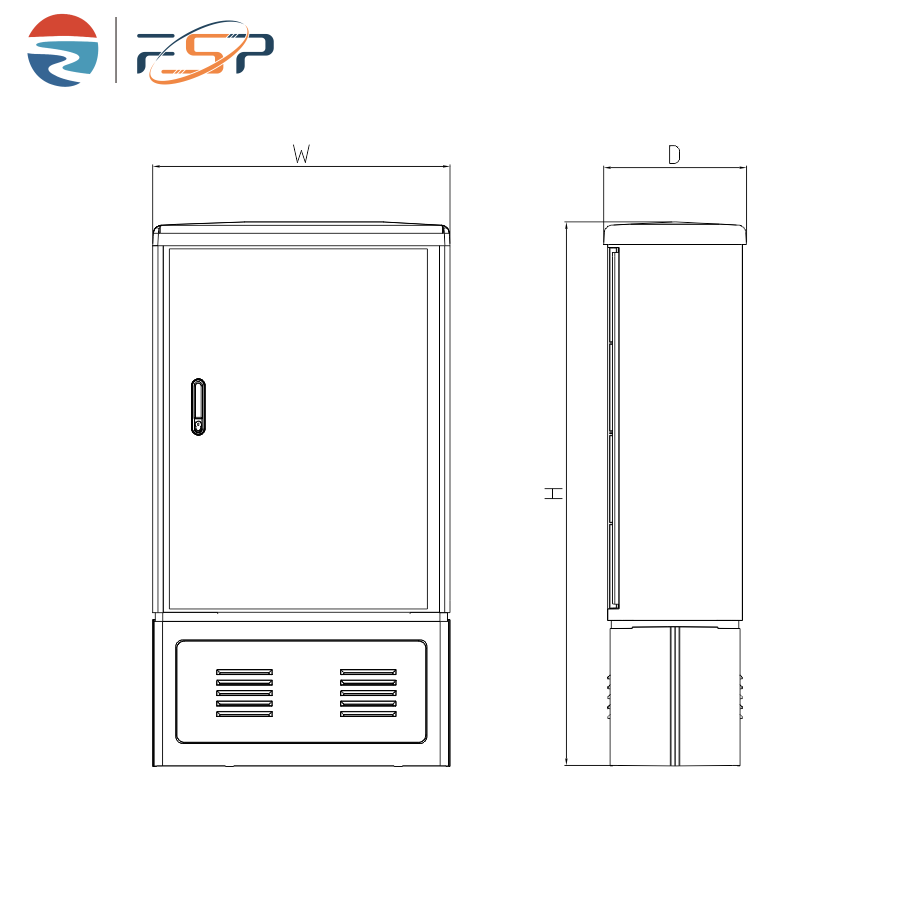

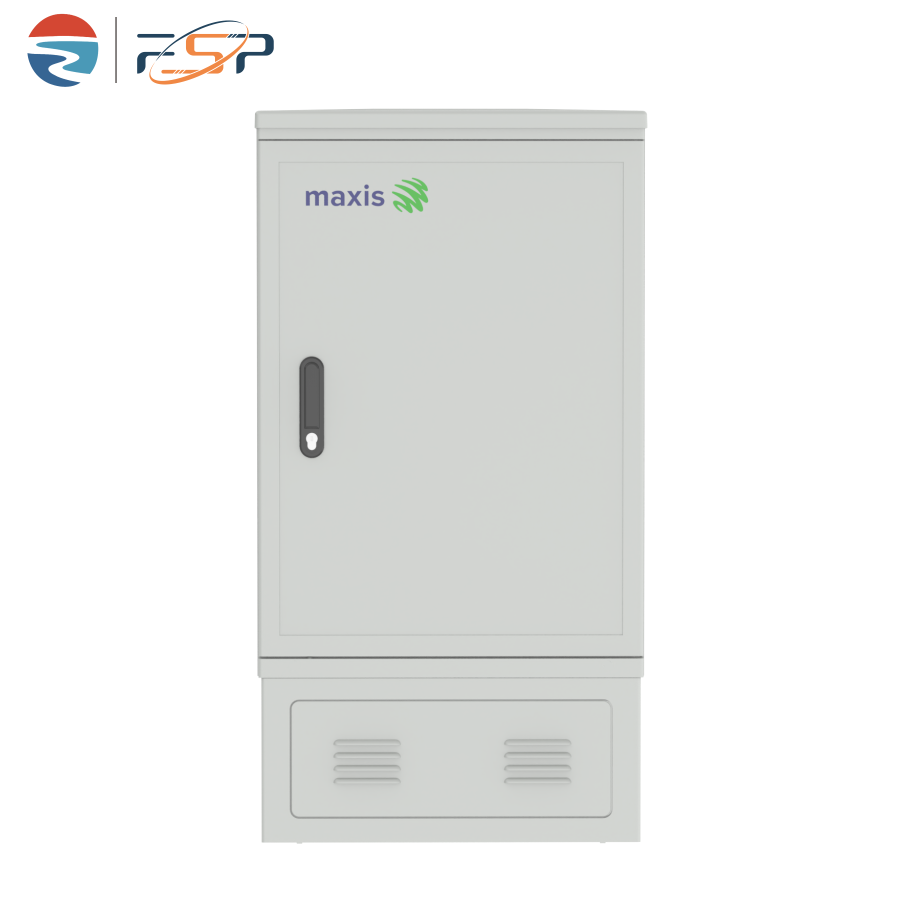

Size: H×W×D (mm) (Pic 1)

1035×550×310

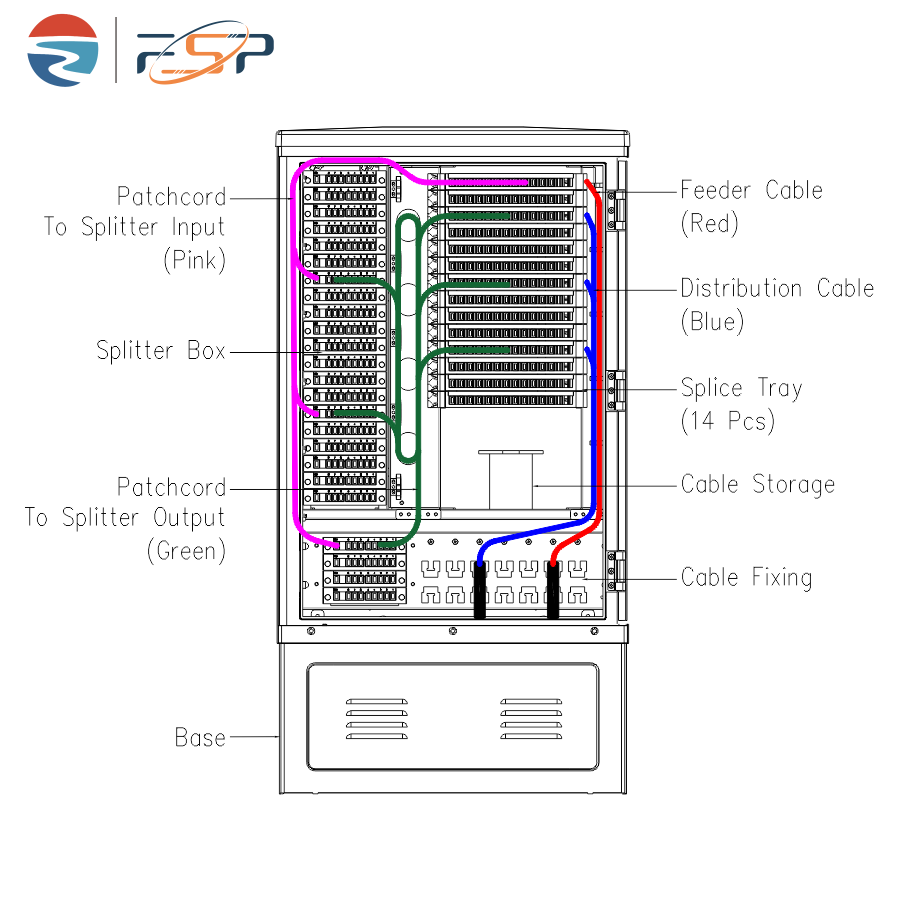

5、Fiber Routing (Pic 2




6、Splice Tray

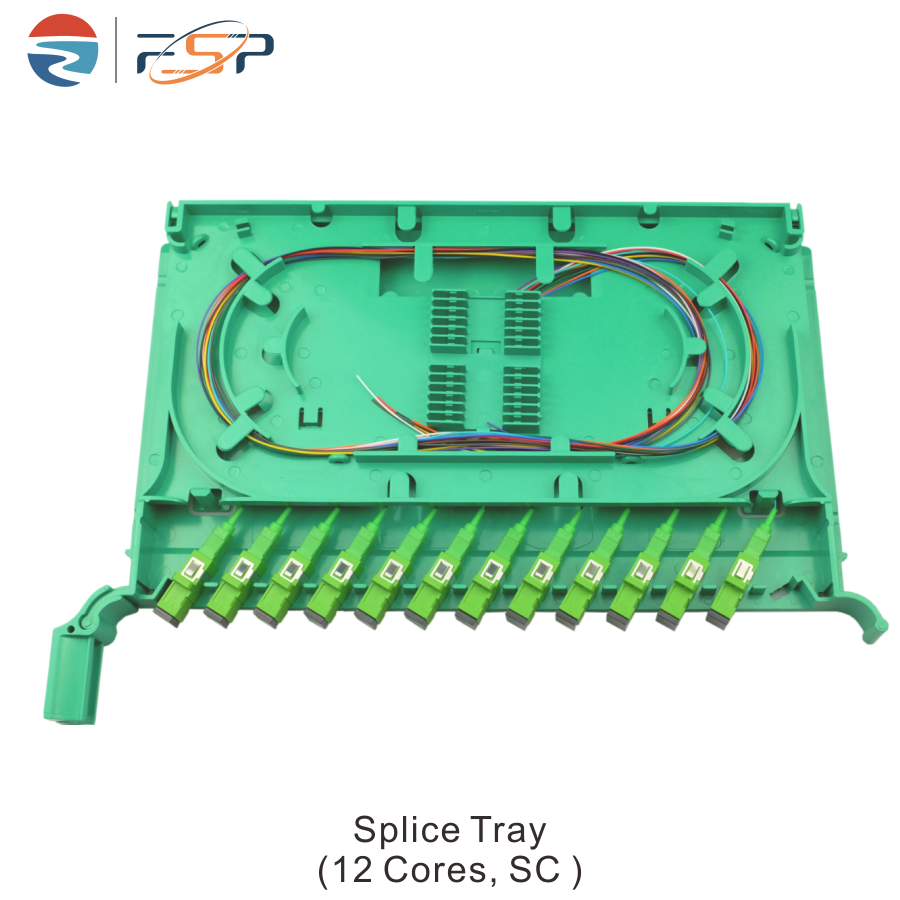

  Used for splicing and termination of optical cables,capacity is 12 or 24 cores per tray (Pic ).







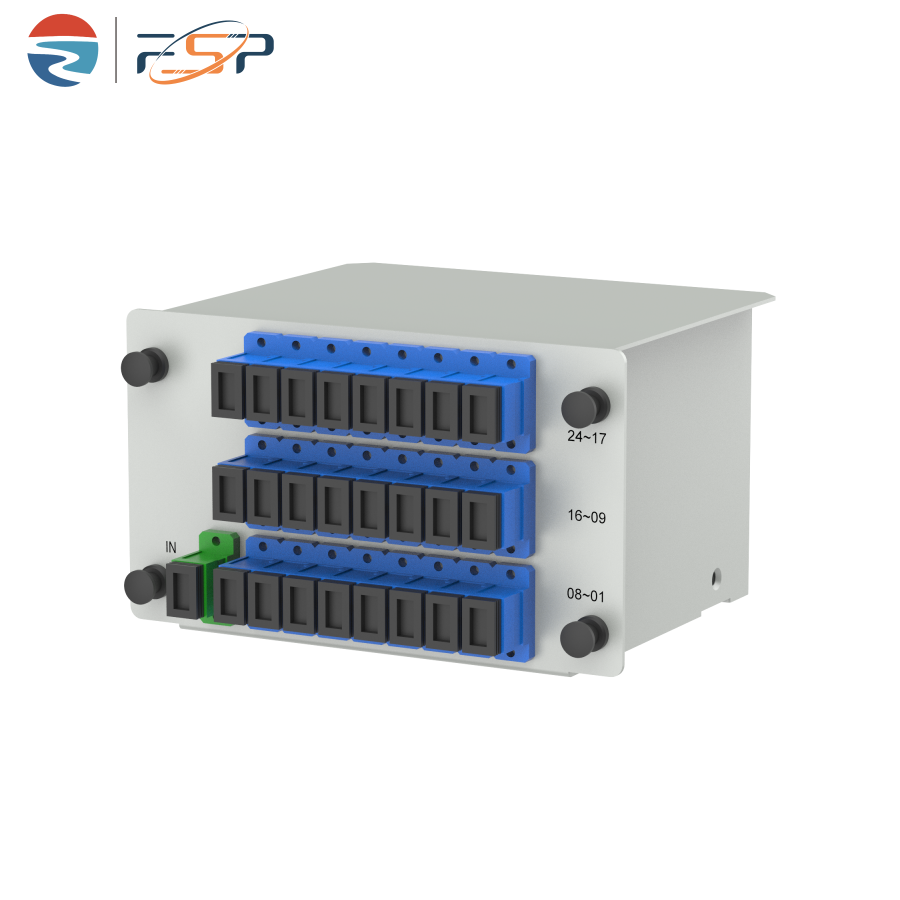

7、Splitter (Pic 4 ).
