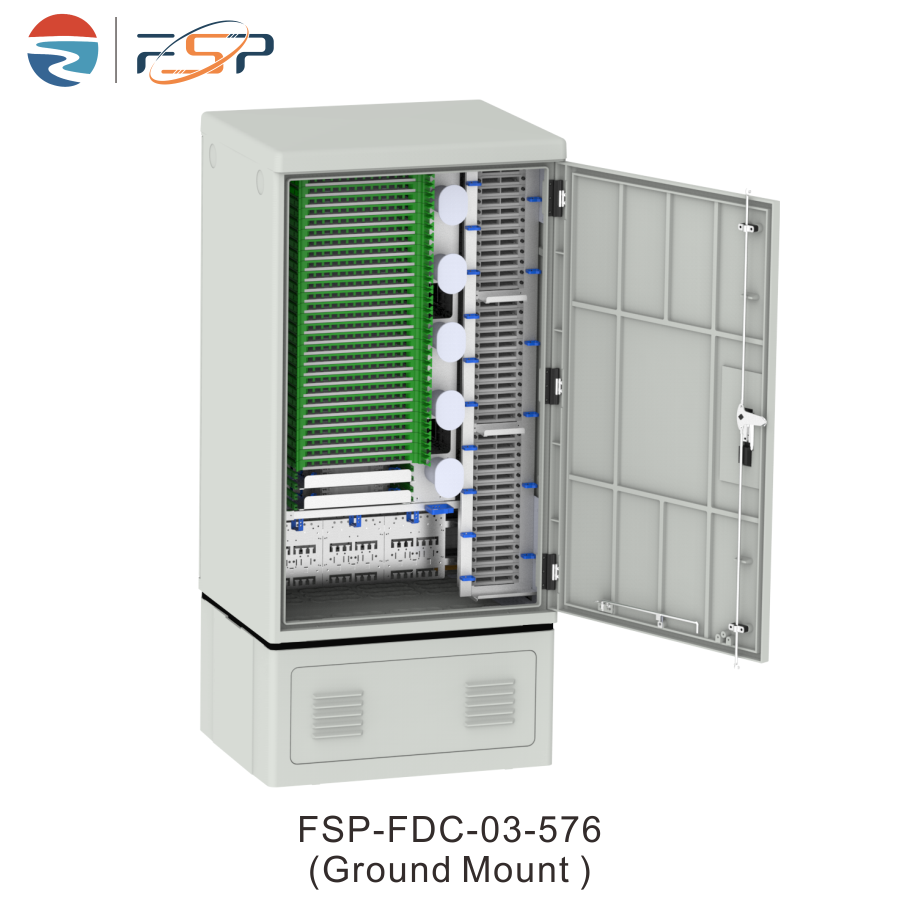

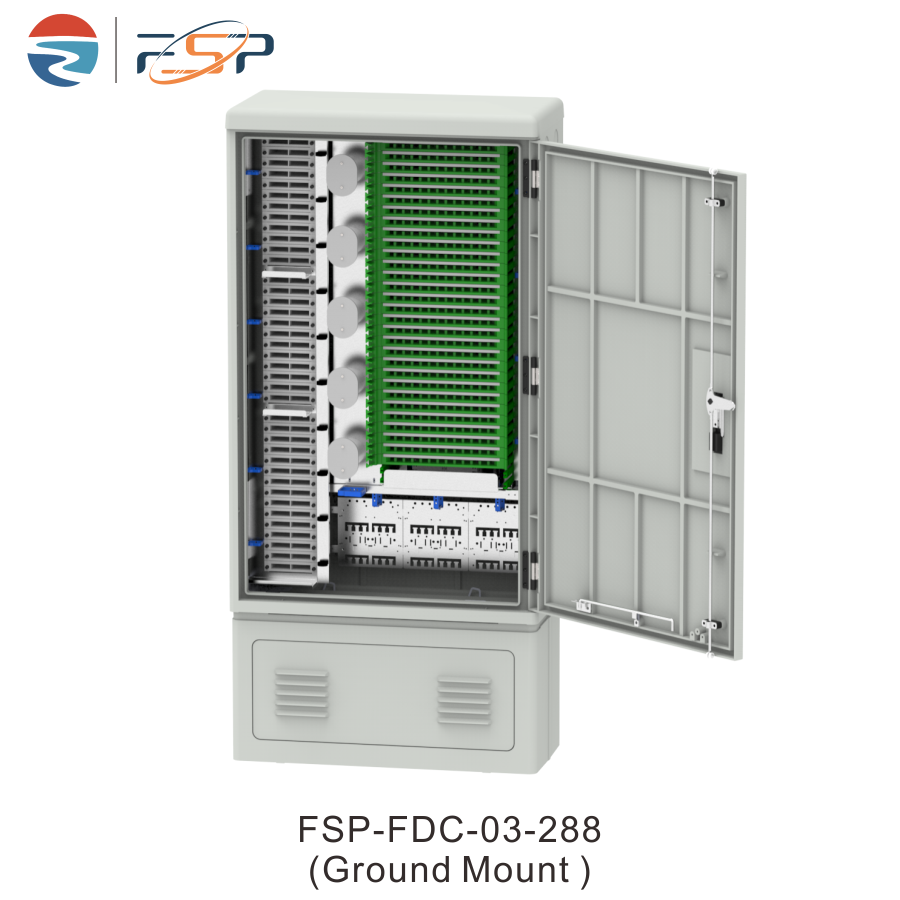

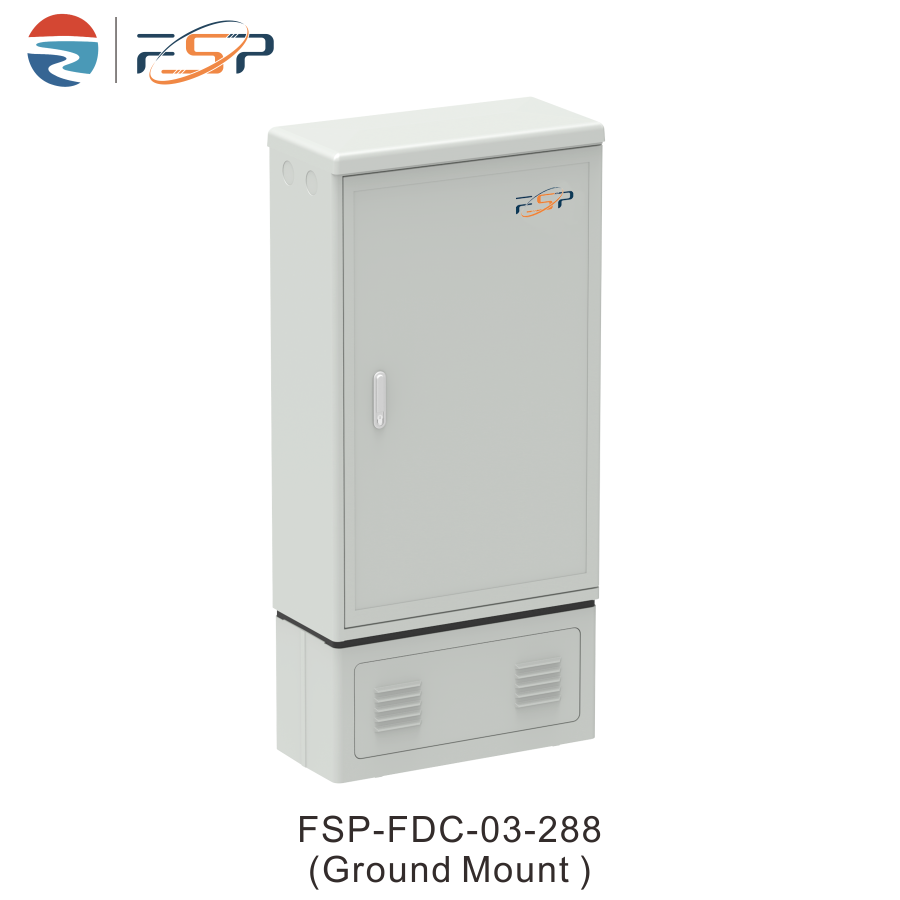

1、Description：

The outdoor Fiber Optic Distribution Cabinet (FSP-FDC-03 Series) is designed to handle fiber optic cross connections and accommodate passive optical splitters in PON FTTx networks, but can also be used for by pass splicing applications or combinations of the both. The FDC is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. It has the functions of fiber cable fixation and protection, optical cable termination function, splitting one core fiber into multiple cores and cross connection. There are also some other tags for this kind of products:FDP fiber optic, fiber distribution cabinet,FTTH cabinet,ODF cabinet, outdoor fiber optic distribution cabinet, outdoor ODF cabinet,fiber distribution hub,fiber cabinet.

FSP-FDC-03 Series Fiber Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for telecommunication network.

2、Specification：

1) Anti-UV (Ultraviolet)

2) Grounding device included

3) Protection Class: IP65

4) Flexible configuration changes

3、Applications

1) FTTH Access Network

2) Telecommunication Network

3) Data Communications Network

4) Local Area Networks

5) Ground-mounted or Pole-mounted

4、Configuration Table：

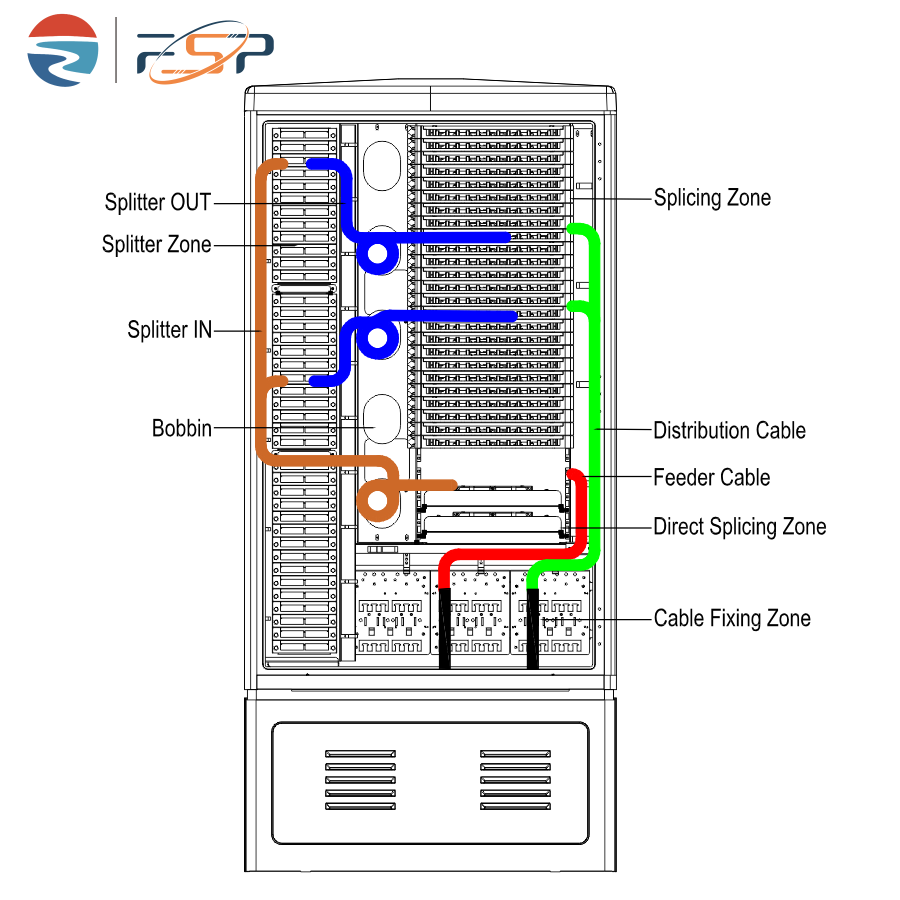

5、Fiber Routing （Pic 2）

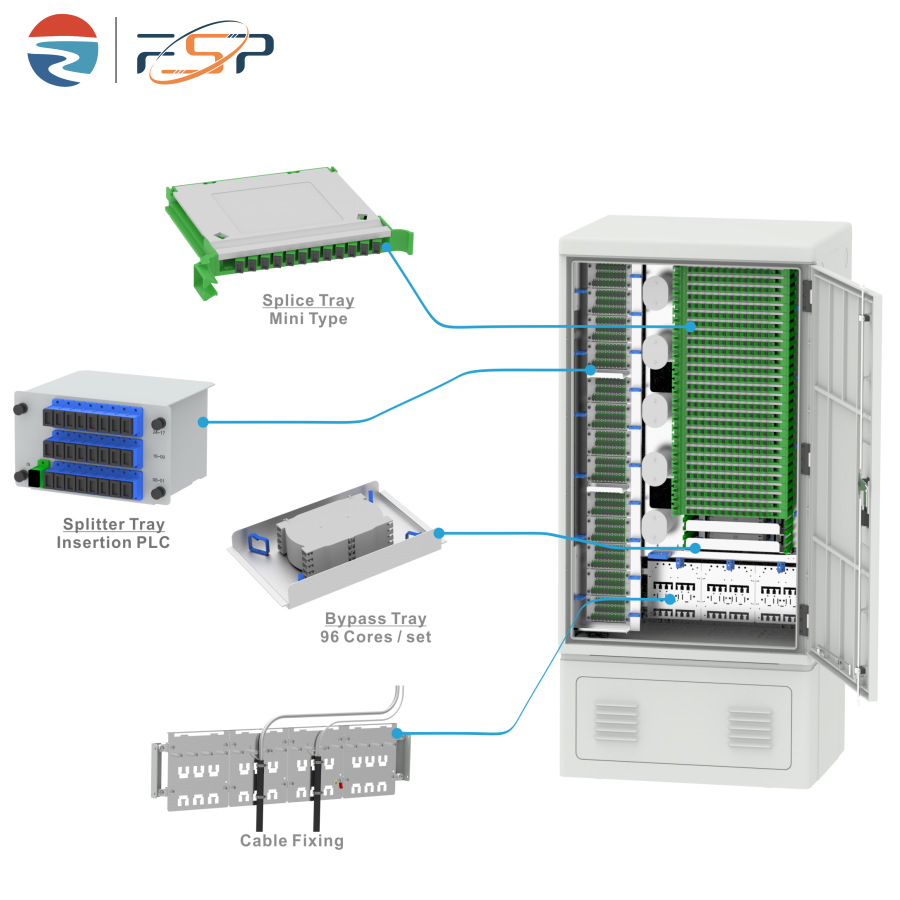

6、Splice Tray

  Used for splicing and termination of optical cables,capacity is 12 or 24 cores per tray (Pic 3 ).

7、Splitter (Pic 4 ).

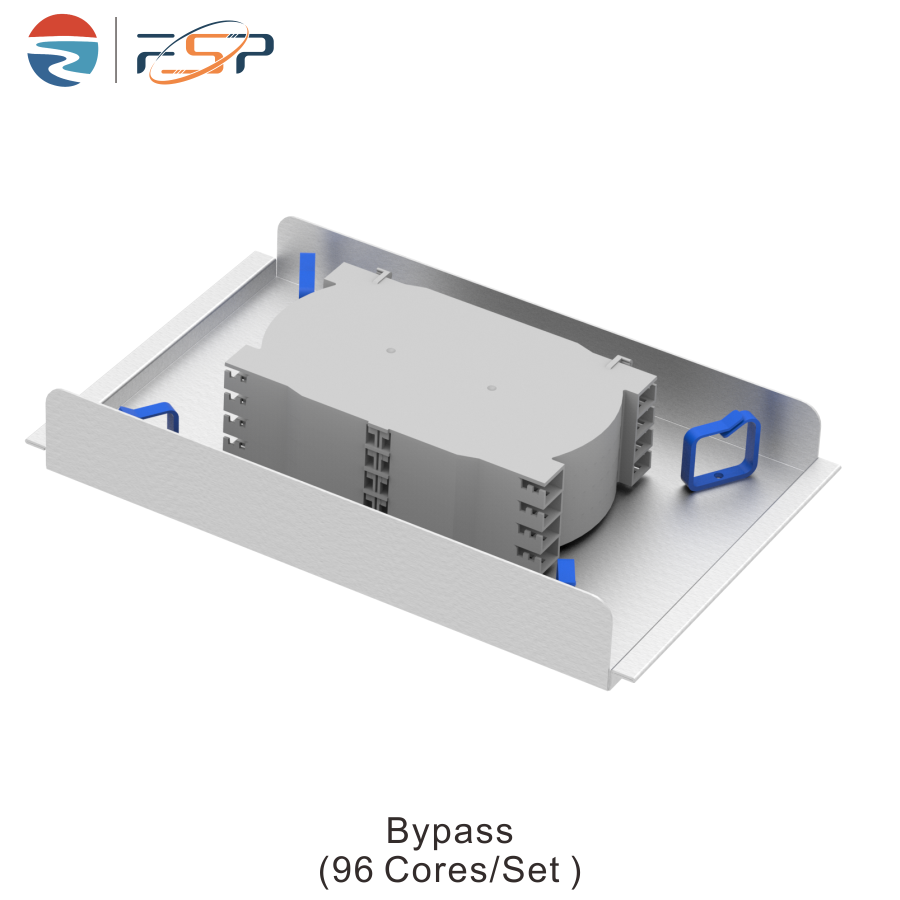

8、Bypass Tray：

Used for splicing of optical cables,capacity is 24 cores per tray (Pic 5 ).
