1、Description
FSP-P-32A Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx
communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides
solid protection and management for the FTTx network building.
2、Specification
1) Anti-UV (Ultraviolet).
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
4) Easy to maintain and extend the capacity.
5) Suitable for the fusion splice or mechanical splice.
6) Fiber bend radius controlled more than 40mm.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
Model | FSP-P-32A |
Installation Method | Wall-mounted / Pole-mounted |
Color | Gray (Default) |
Material | PC+ABS |
Capacity Of Splicing | 48 Cores |
Adapter Ports | 32 Pcs (Up to 48 ports) |
Adapter Type | SC/ FC / LC etc. |
Splitter Type | 1:8 / 1:16 / 1:32 Mini PLC |

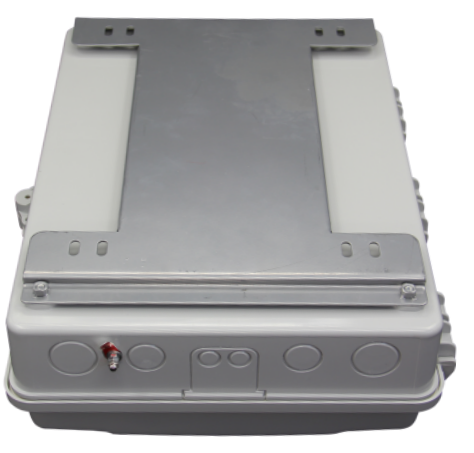

Size: H×W×D (mm) (Pic 1) | 420×320×130 |
IP Grade | IP 55 |
Working Temperature | -40℃～+85℃ |
Relative Humidity | ≤85% (+30℃) |
Atmospheric Pressure | 70KPa~106Kpa |
pic1

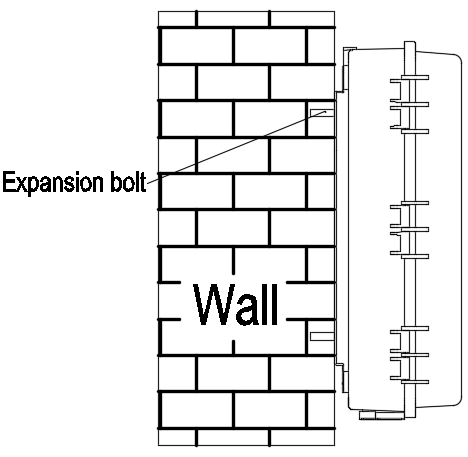

5、Routing (Pic 2)
pic2
6、Installation

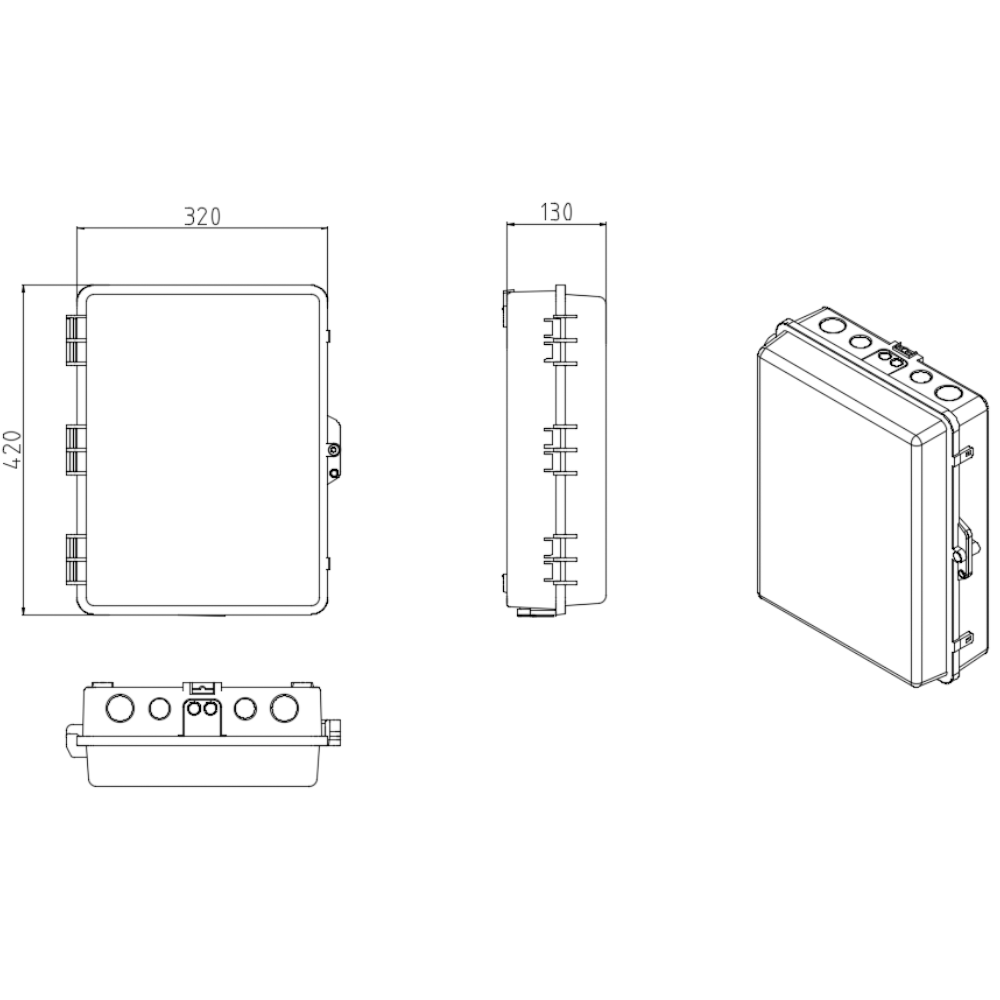

The box supports pole mounting and wall mounting. All are fixed by the mounting plate on the back of the box(Pic3).
pic3
The specific installation method is as follows:
6.1 Wall-mounted installation

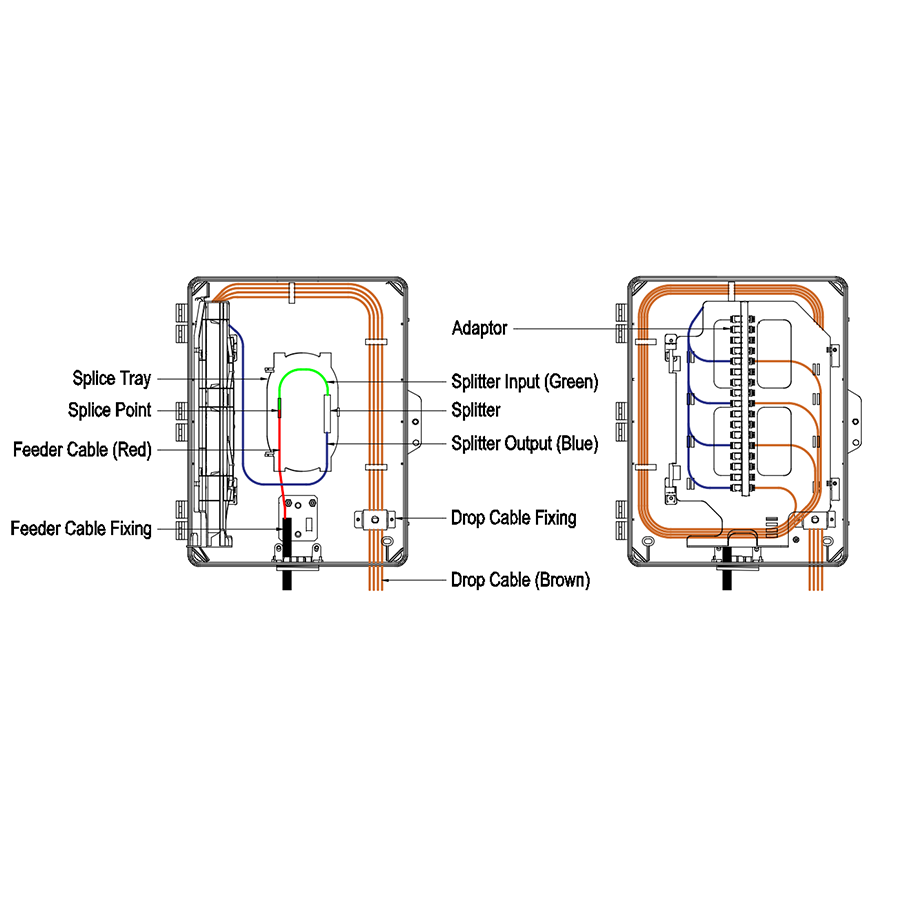

Drill 4 holes in the wall according to the installation size, place the expansion bolt, place the mounting plate to match up the
holes and use bolt to fasten. Fix the box and the mounting plate with screws from the inside of the box (Pic 4) .
pic4
6.2 Pole-mounted installation

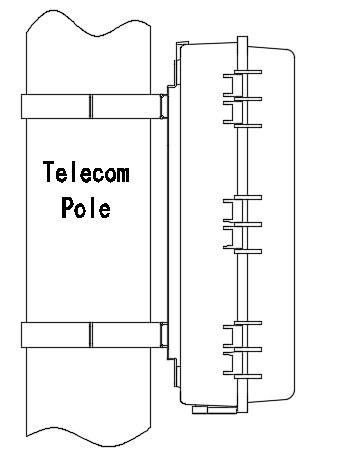

Fix 1 set of the hose clamps to the telecom pole .（Pic 5）
pic5
