1、Description：

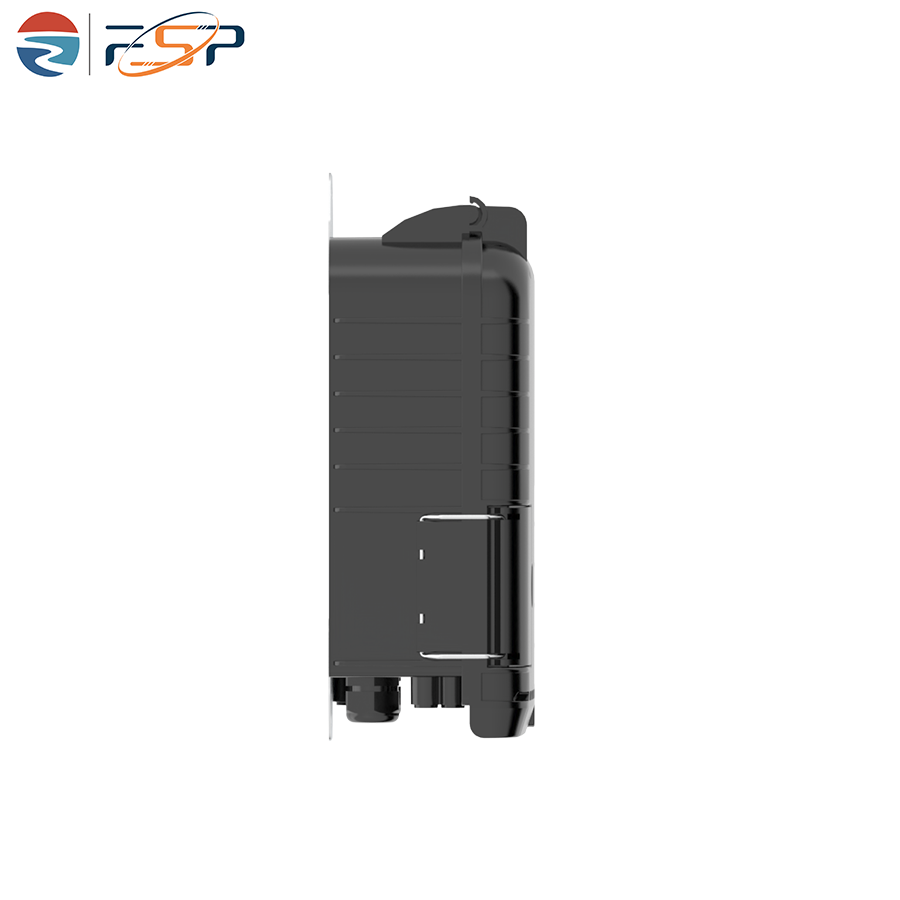

FSP-09-16A/24A Fiber Distribution Box provides a high density wall mounted solution for next generation
networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.
It is normally installed in the way of wall mounting or pole mounting.
2、Specification：
1)Water-proof design with IP65 Protection grade.

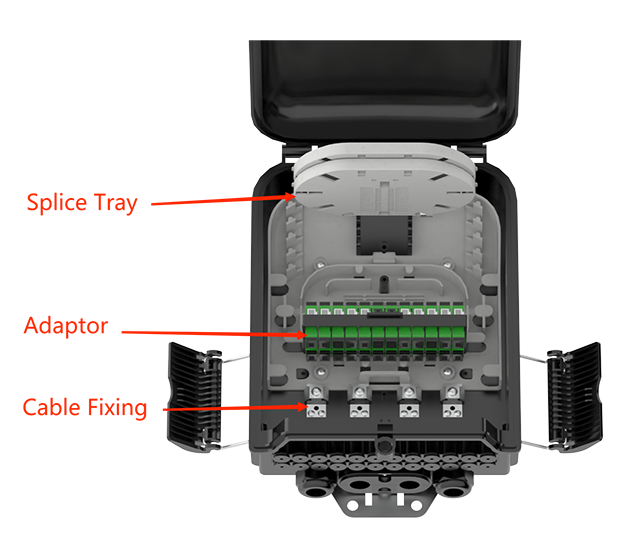

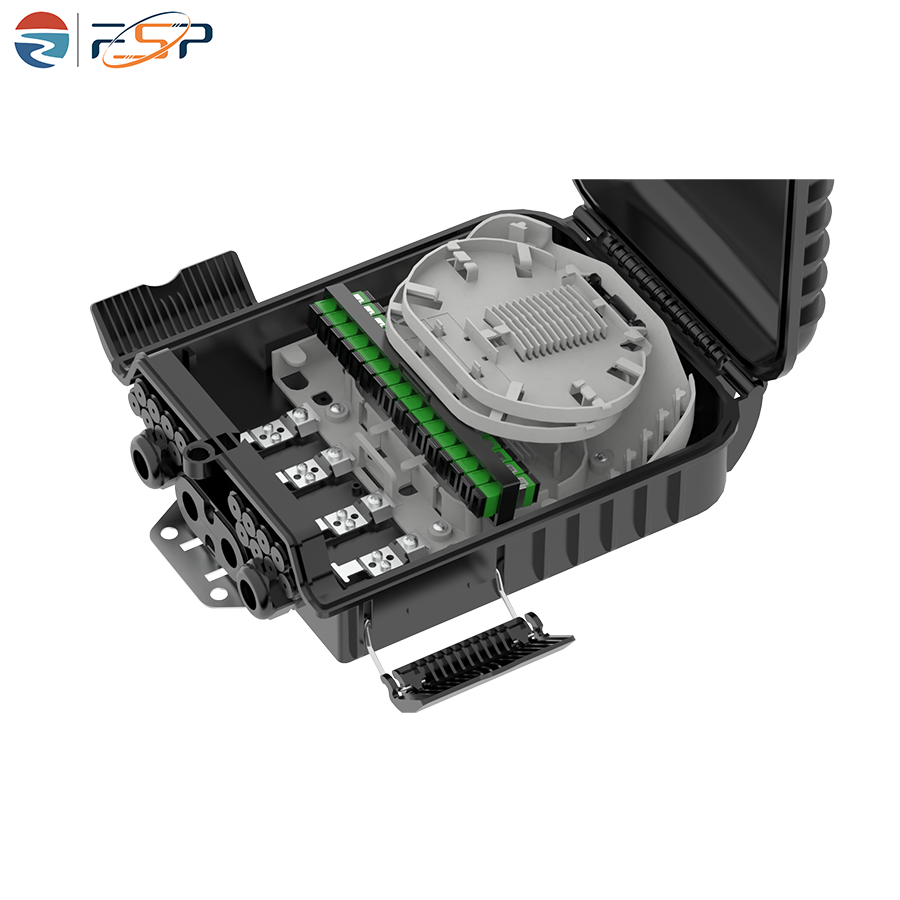

2)Integrated with splice cassette and cable management system.
3)Manage fibers in a reasonable fiber radius condition.
4)Fiber bend radius control more than 35mm.5)1 uncut cable port for feeder cables.
3、Applications :
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table:

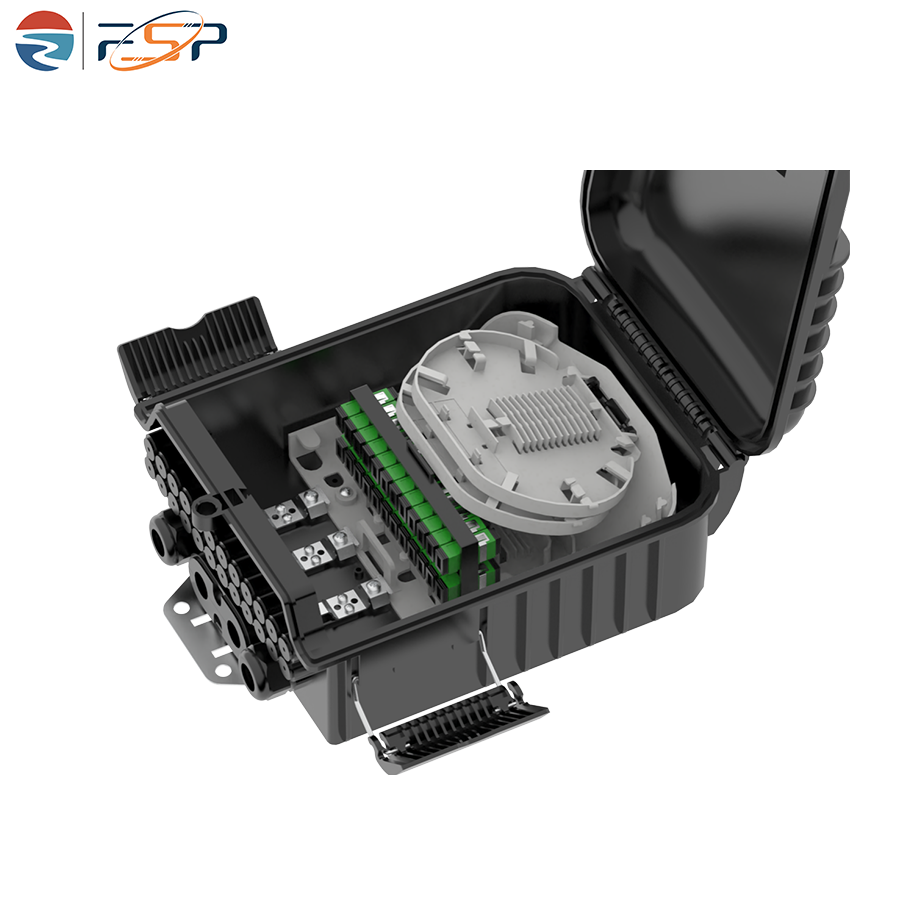

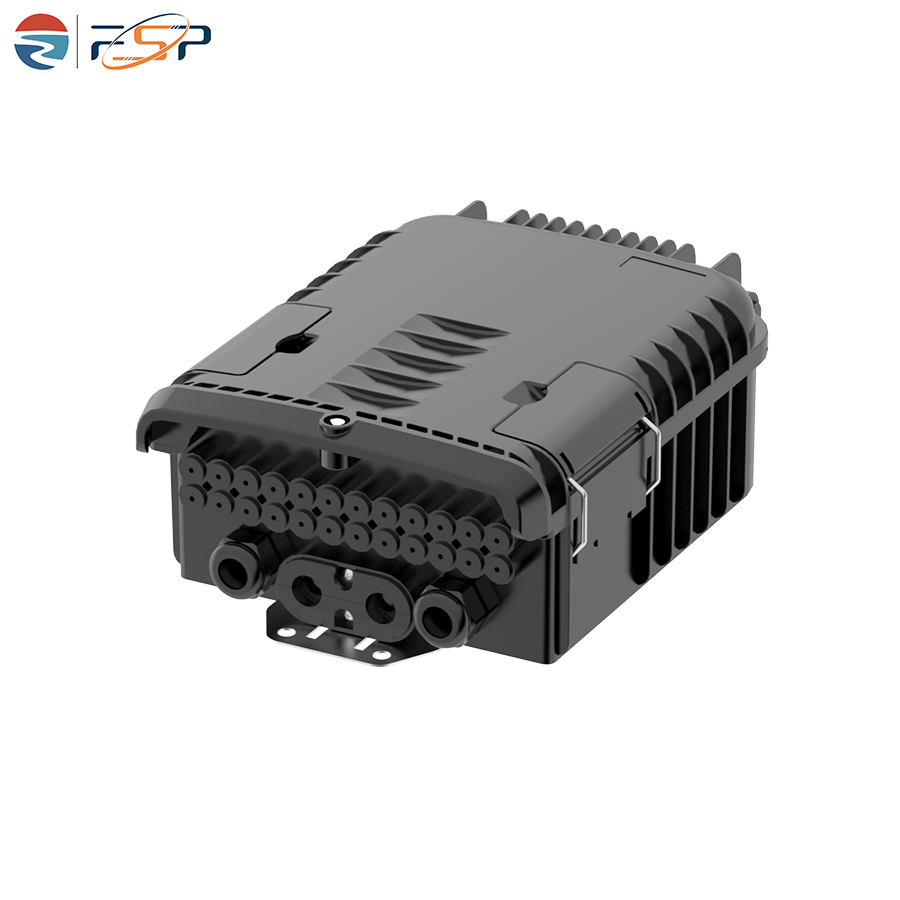

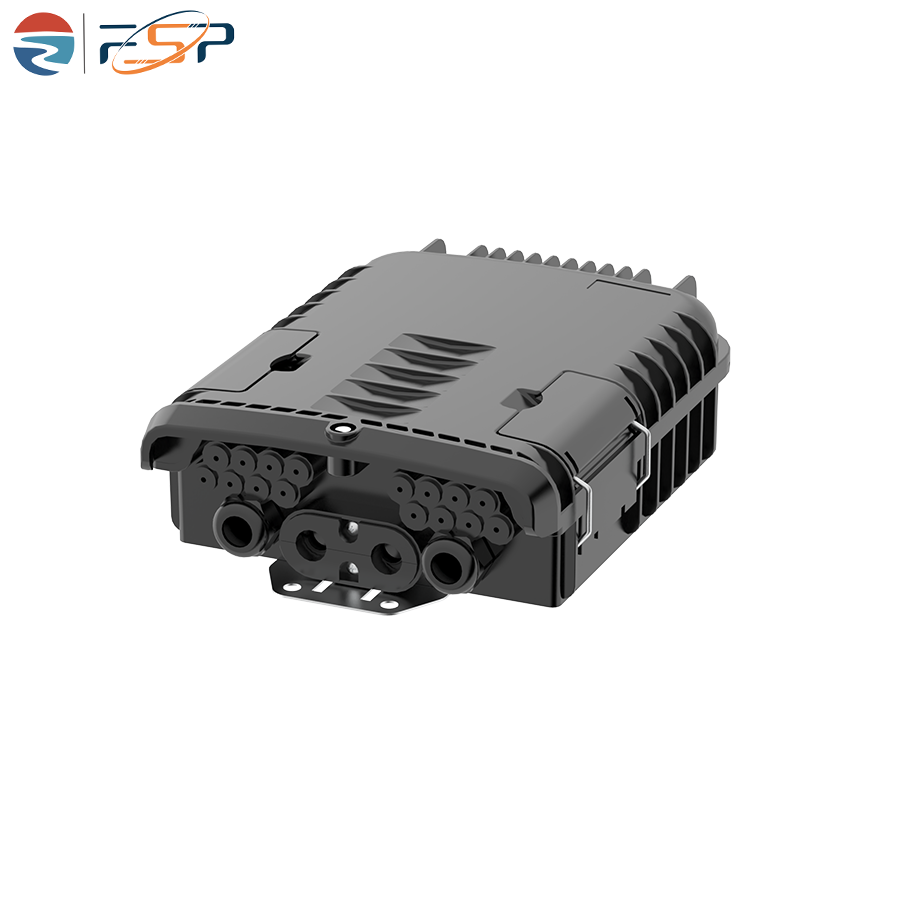

Model | FSP-09-24A |
Size (Pic 1) | H×W×D = 292×210×112 (MM) |
Material | PC+ABS |
Color | Black |
Splice Capacity | 24 Cores |
Adapter Type | SC |
Adaptor Capacity | 24 Pcs |
Incoming Cable Port | 4 Pcs |
Outcoming Cable Port | 24 Pcs |
Installation Method | Wall / Pole Mounted |
Model | FSP-09-16A |

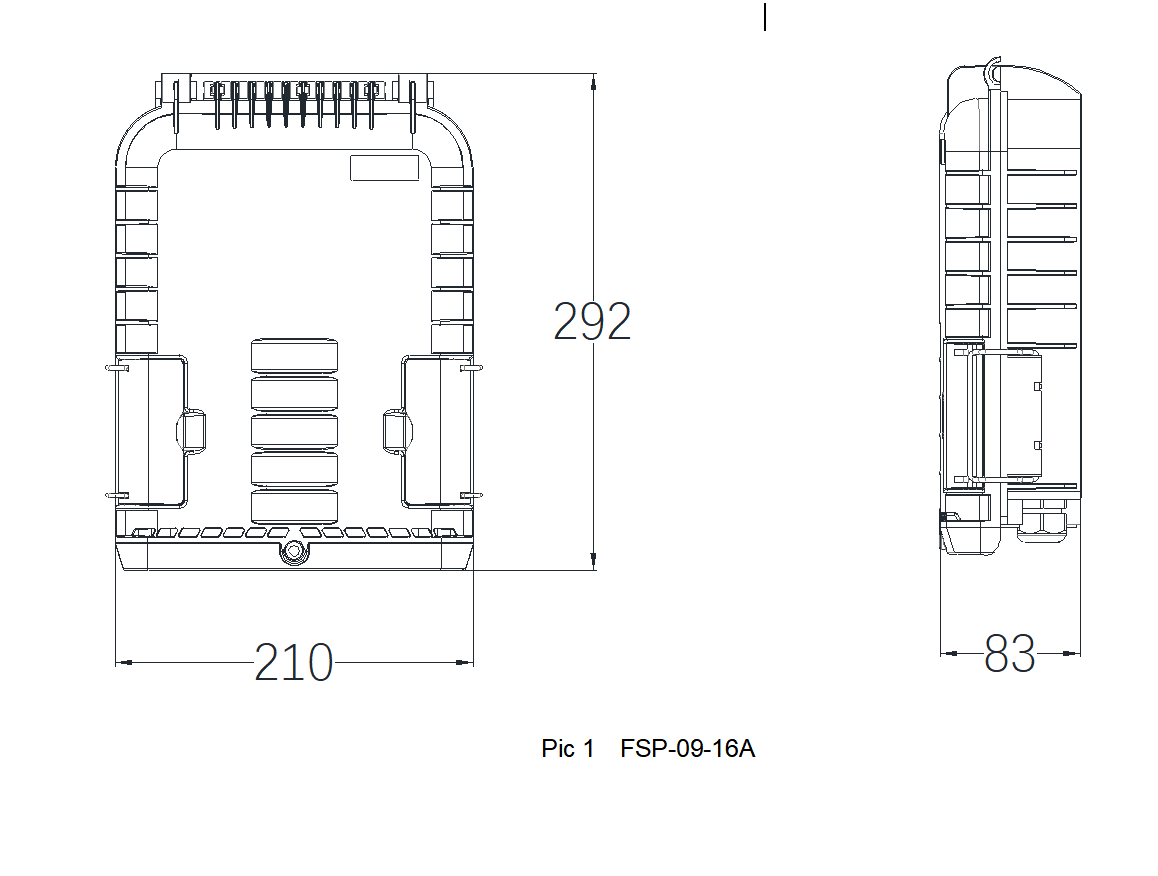

Size (Pic 1) | H×W×D = 292×210×83 (MM) |
Material | PC+ABS |
Color | Black |
Splice Capacity | 16Cores |
Adapter Type | SC |
Adaptor Capacity | 16 Pcs |
Incoming Cable Port | 4 Pcs |
Outcoming Cable Port | 16 Pcs |
Installation Method | Wall / Pole Mounted |
Table 2 Model and configuration

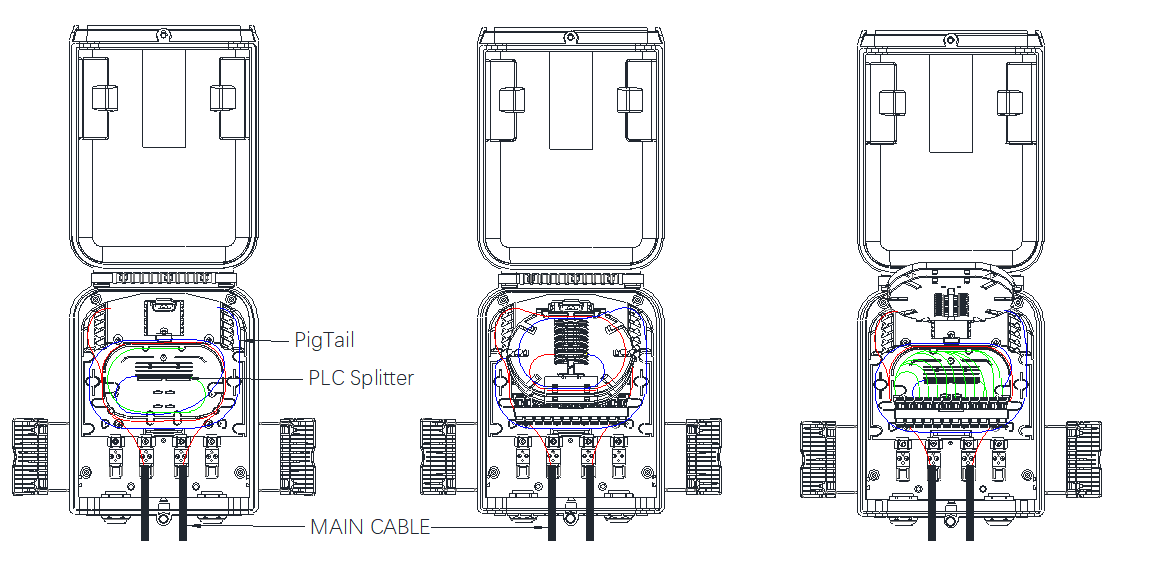

5.Routing
Pic 3

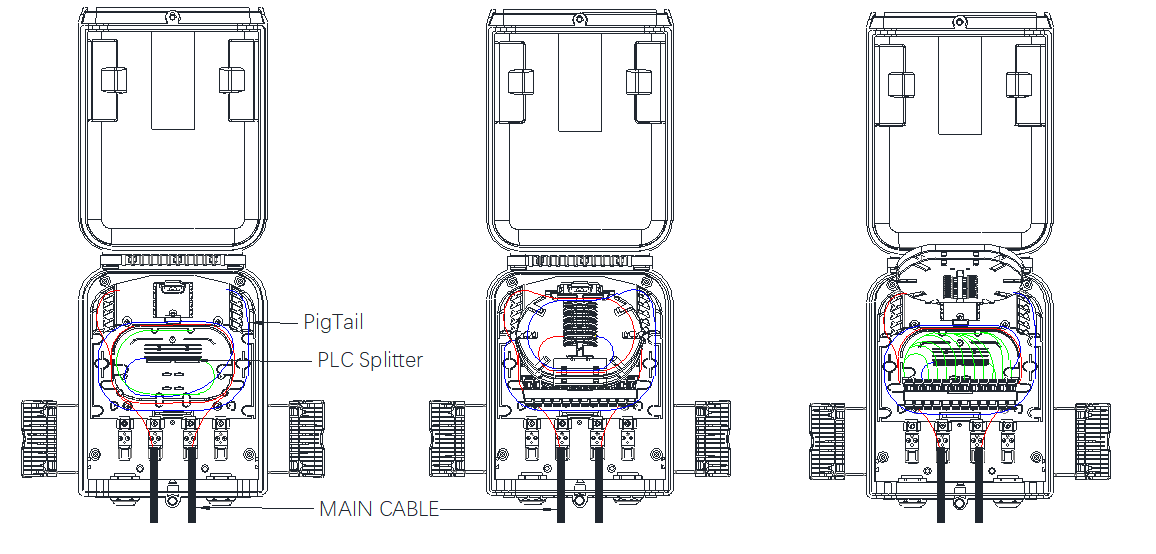

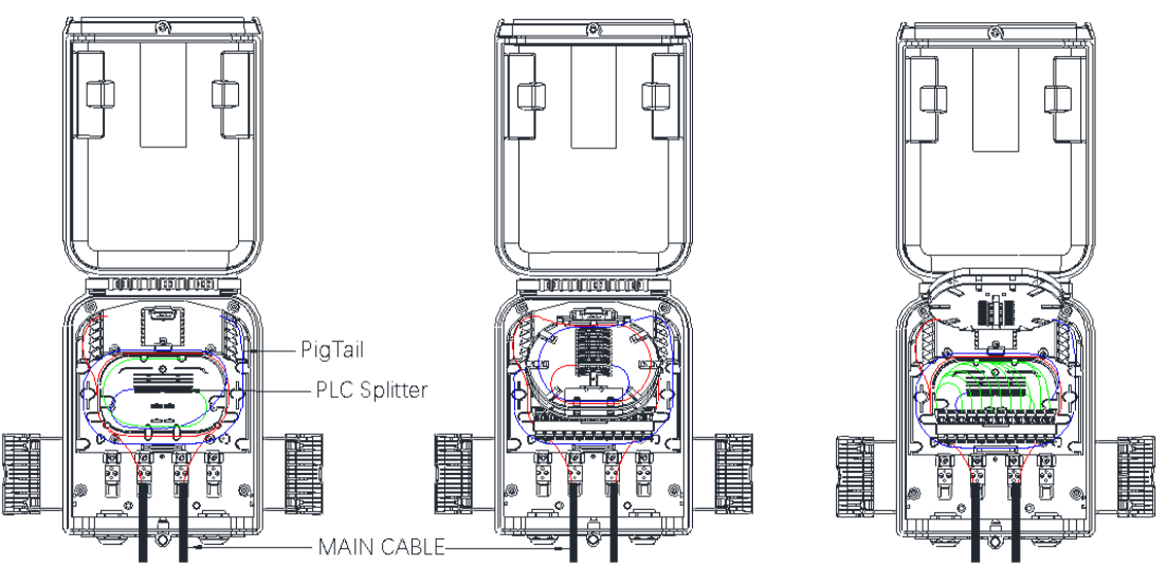

Pic 4 Splitter Type

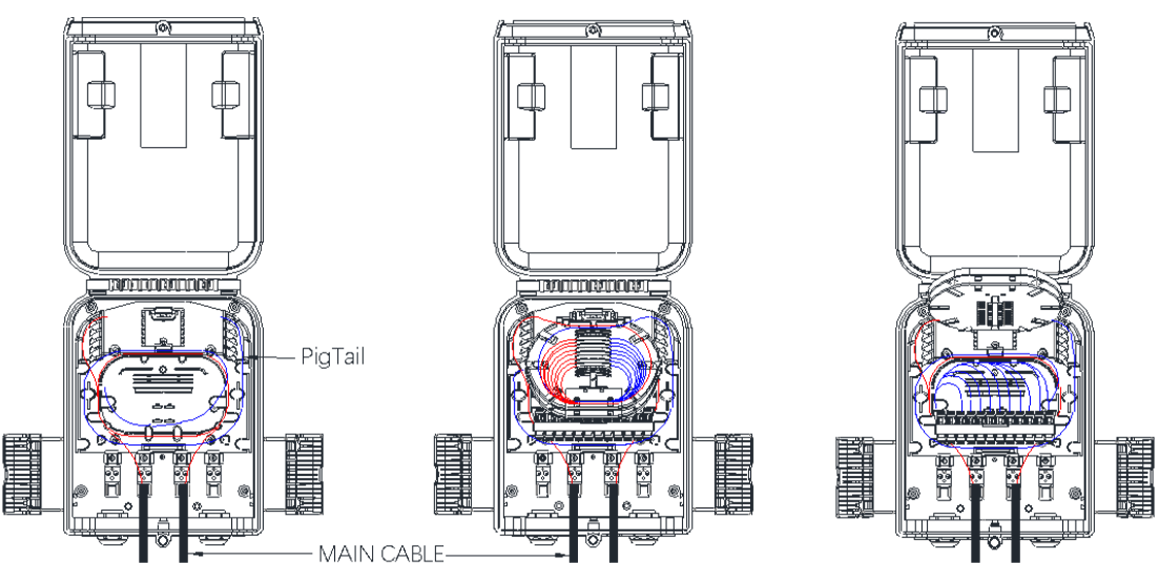

Pic 5 Distrubution Type
6、Installation
6.1 Wall-mounted installation

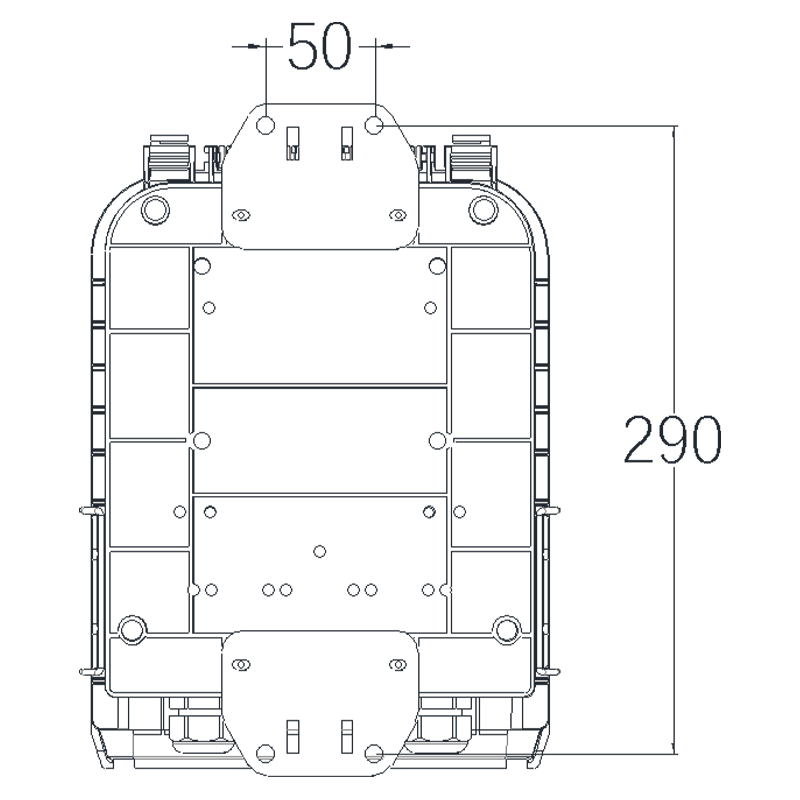

Drill 4 holes in the wall according to the installation size，place the expansion bolt，
place the box to match up the holes and use bolt to fasten (Pic 6,7) .
Pic 6
6.2 Pole-mounted installation
Fix 2 set of the hose clamps to the telecom pole .（Pic 8）

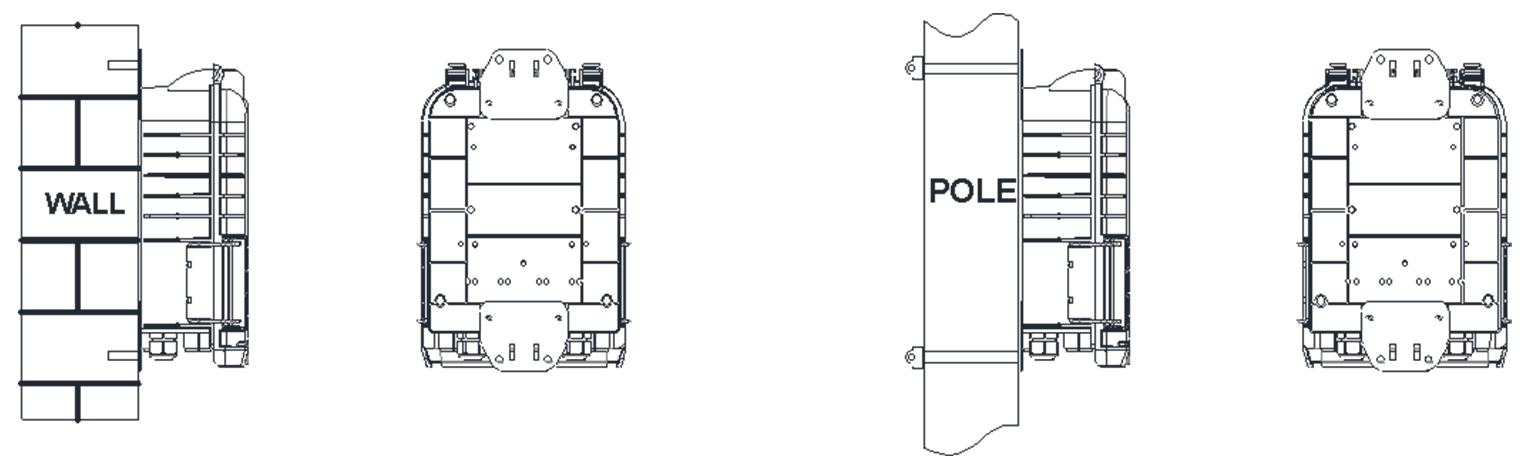

Pic 7 WALL MOUNTING Pic8 POLE MOUNTING
