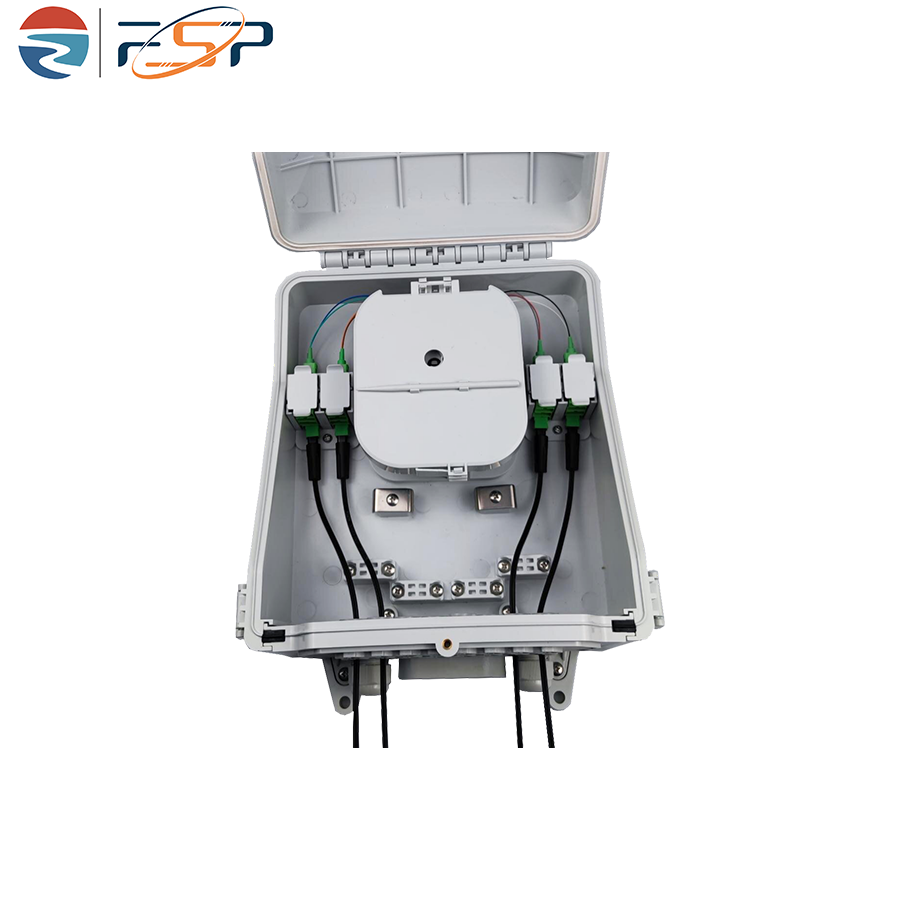

FSP-P-16M/24M details

1Description

FSP-P-16M/24MFiber Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in

telecommunication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides

protection and management for the FTTx network building.Especially the bottom plate is changeable.



2、Specification

1) The cable entry uses cable gland to provide protection at the bottom.

2) 16/24 cores fibre termination capacity

3) Support wall,pole mounting.

4) Protection Grade : IP65

5) All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.



3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks



4、Configuration Table

Model

FSP-P-16M/24M

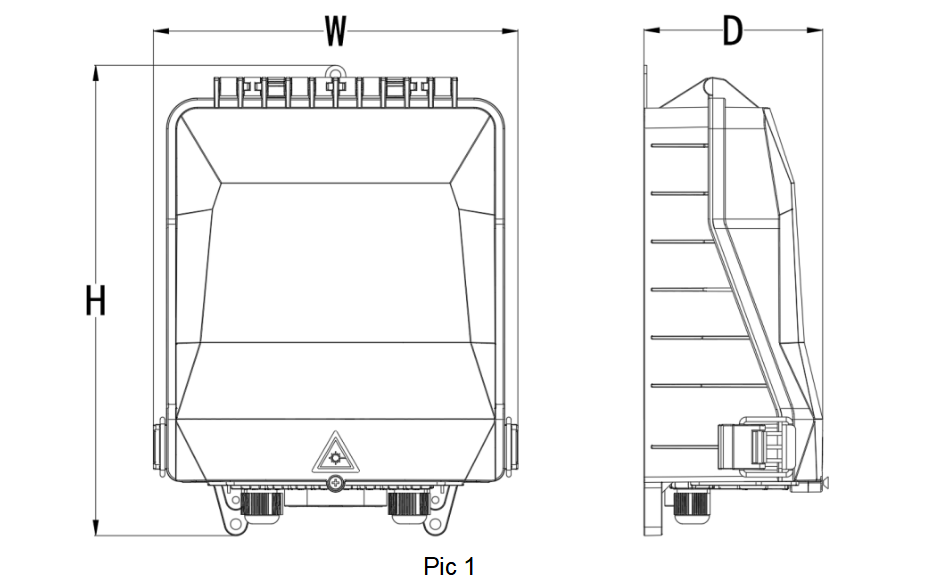

Size (Pic 1)

H×W×D = 306×237×116 (MM)

Material

PC+ABS

Color

Black /Gray

Splice Capacity

24 Cores

Minimum fiber bending

≧ 30mm

Adapter Type

SC

Adaptor Capacity

16/24 Pcs

Installation Method

Wall / Pole-mounted

                  Table 1 Model and configuration

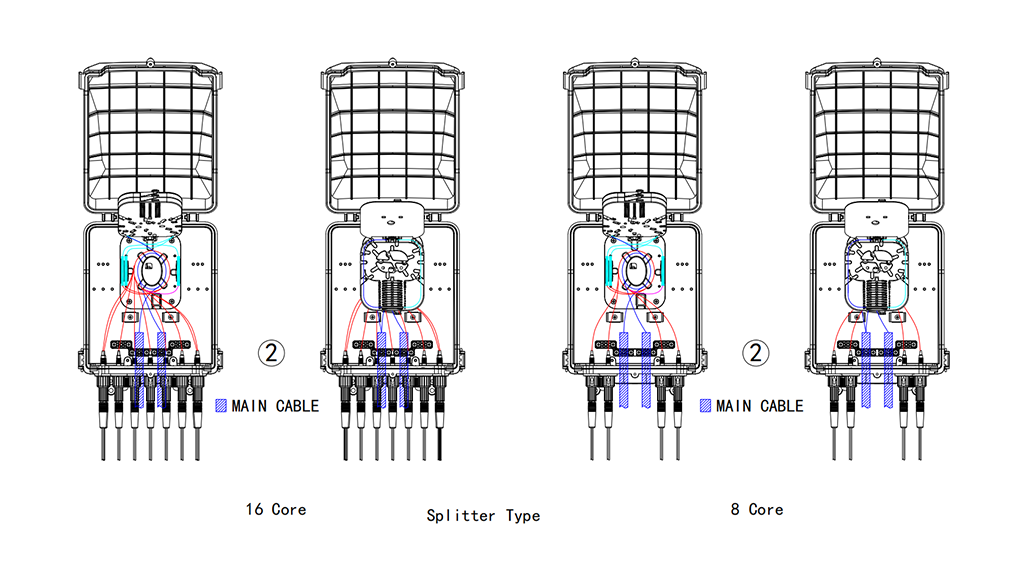

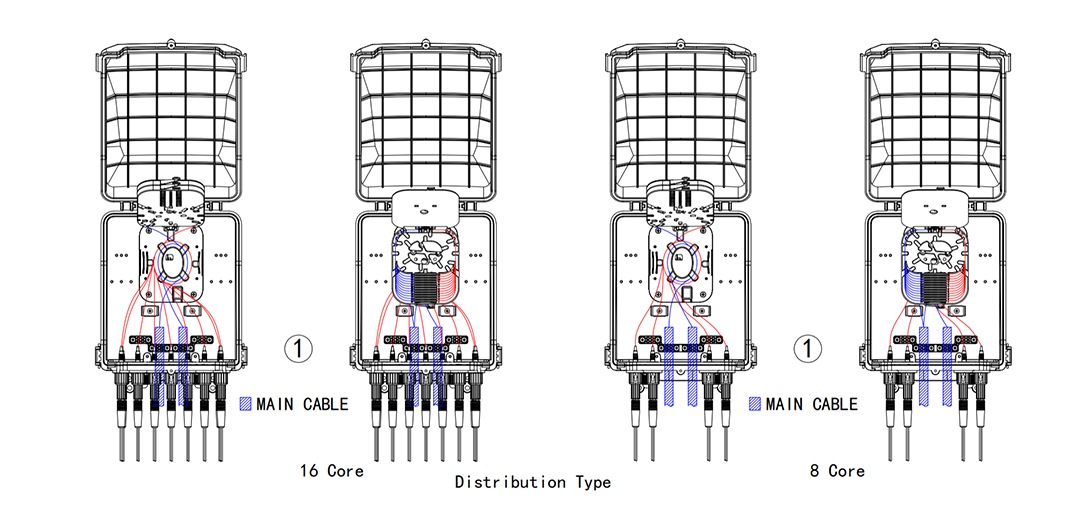

5RoutingPic 2,3


                                                                                                  Pic2



FSP-P-8L&16L-4 .png

                                                                                                    Pic3

6、Installation

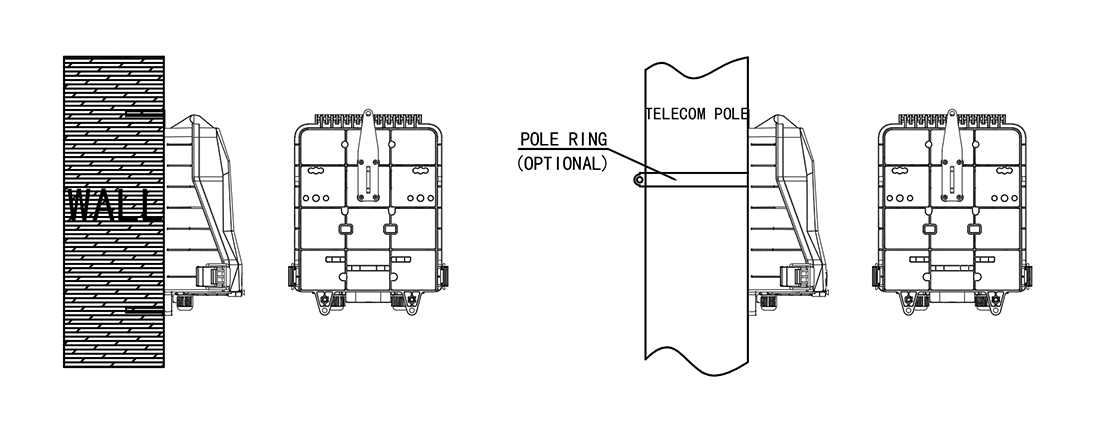

  6.1 Wall-mounted installation

Drill 3 holes in the wall according to the installation size,place the expansion bolt,place the box to match up the holes and use bolt to fasten (Pic 4,5) .


                                                                                                 Pic4

6.2 Pole-mounted installation

     Fix 1 set of the hose clamps to the telecom pole .(Pic 6)


                                                                           Pic5                                          Pic6
