1、Description

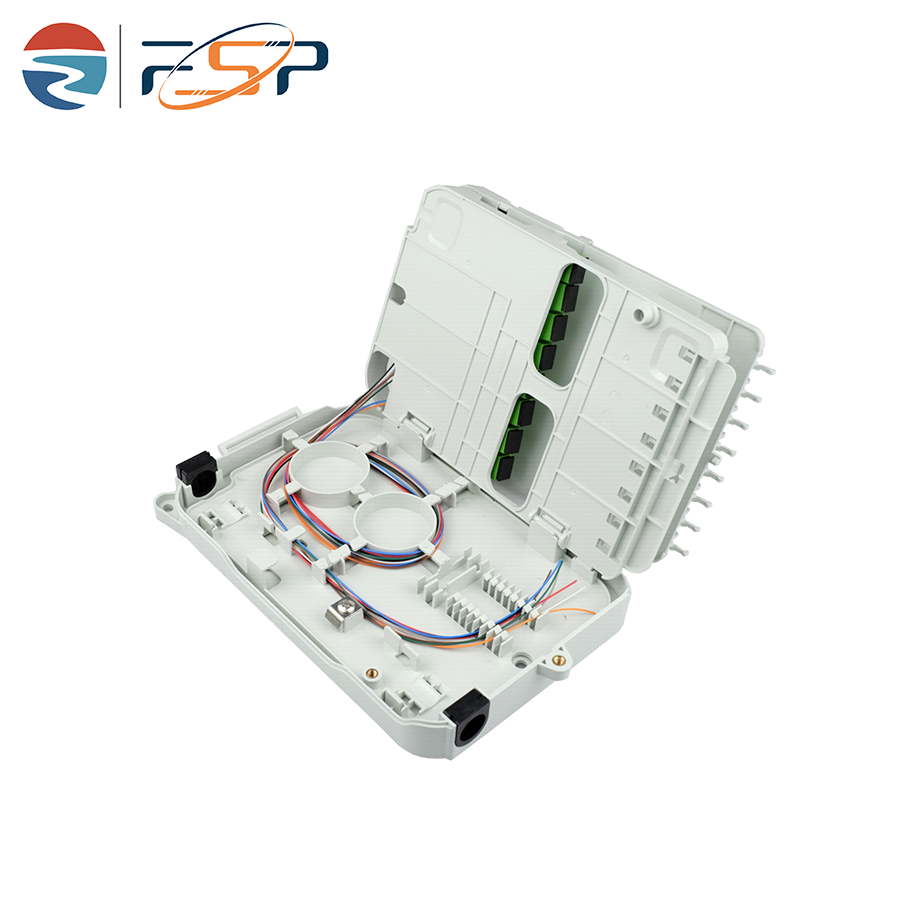

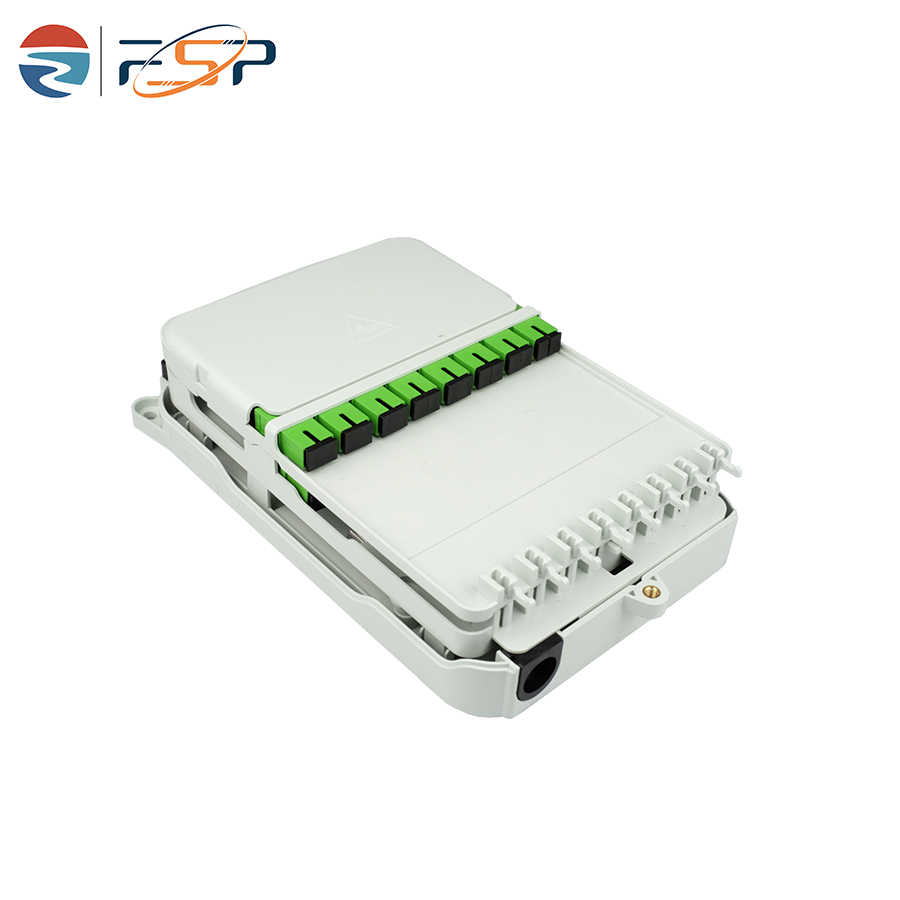

FSP-P-16DFiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx

communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides

solid protection and management for the FTTx network building.

2、Specification

1) Anti-UV (Ultraviolet)

2) Multi-layer flip design, compact structure.

3) Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

4) Box can be installed by the way of wall-mounted , suitable for indoor use.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

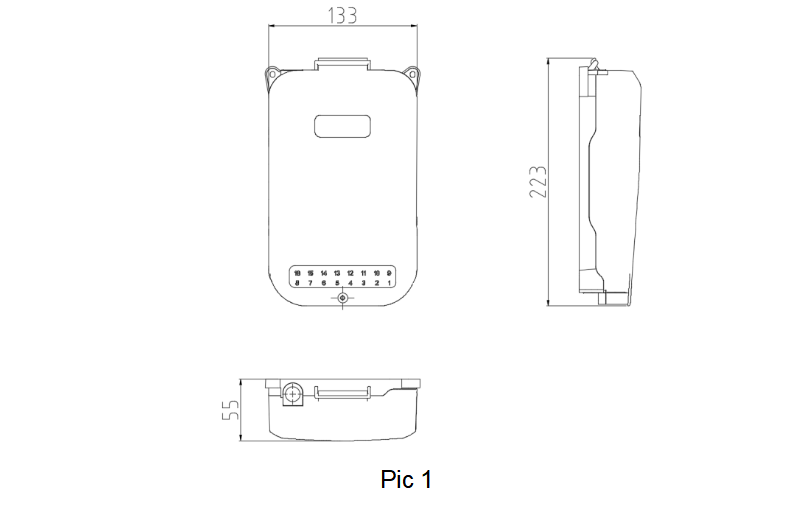

4、Configuration Table

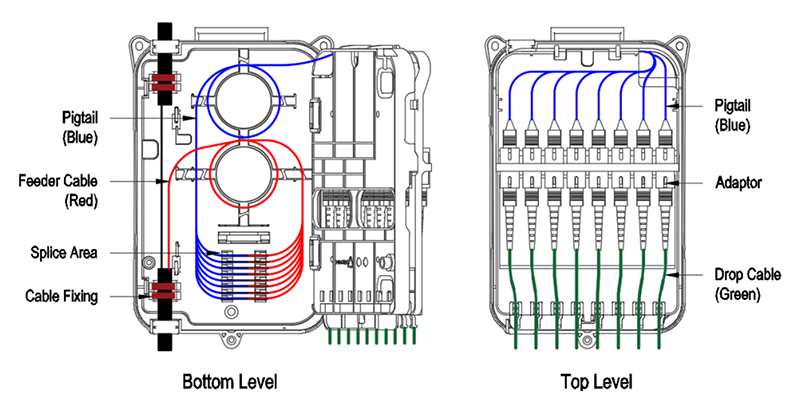

5、Routing (Pic 2)

                                                                                        Pic2

6、

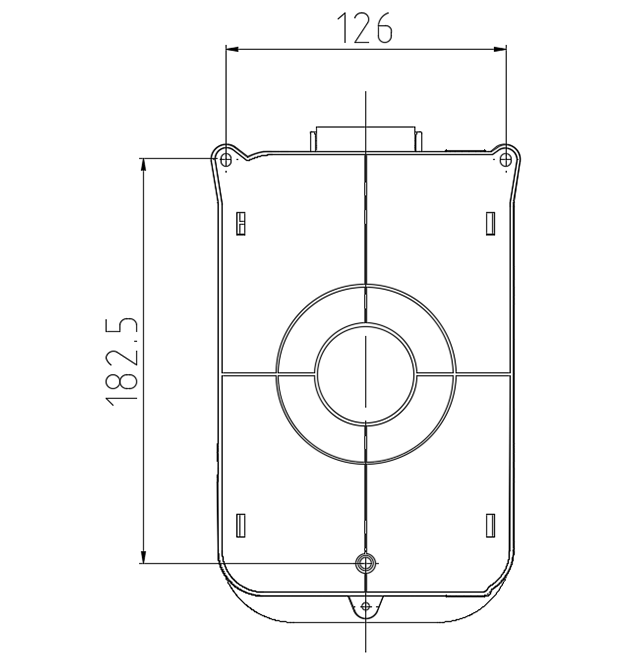

Drill 3 holes into the wall based on the size in table (Pic 3), place the expansion bolt,

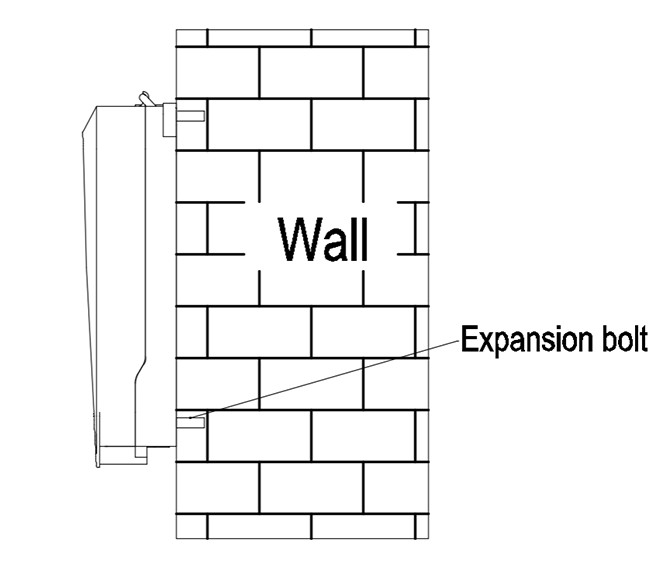

place the box to match up the holes and use bolt to fasten. (Pic 4) .

                                                         Pic3                                                                                      Pic4
