1、Description：
FSP-P-07-16A Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to
provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting
or pole mounting.
2、Specification：
1) Water-proof design with IP65 Protection grade.
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
4) Fiber bend radius control more than 35mm.
5) 1 uncut cable port for feeder cables.
6) Fixed hermetic seals in all its grooves
7) The entire fiber route protected by transport tube
8) Complete opening of the hinges with stop included
9) Protected and organized pigtail space
10) Support customized services such as logo screen printing.
3、Configuration Table
Model | FSP-P-07-16A |

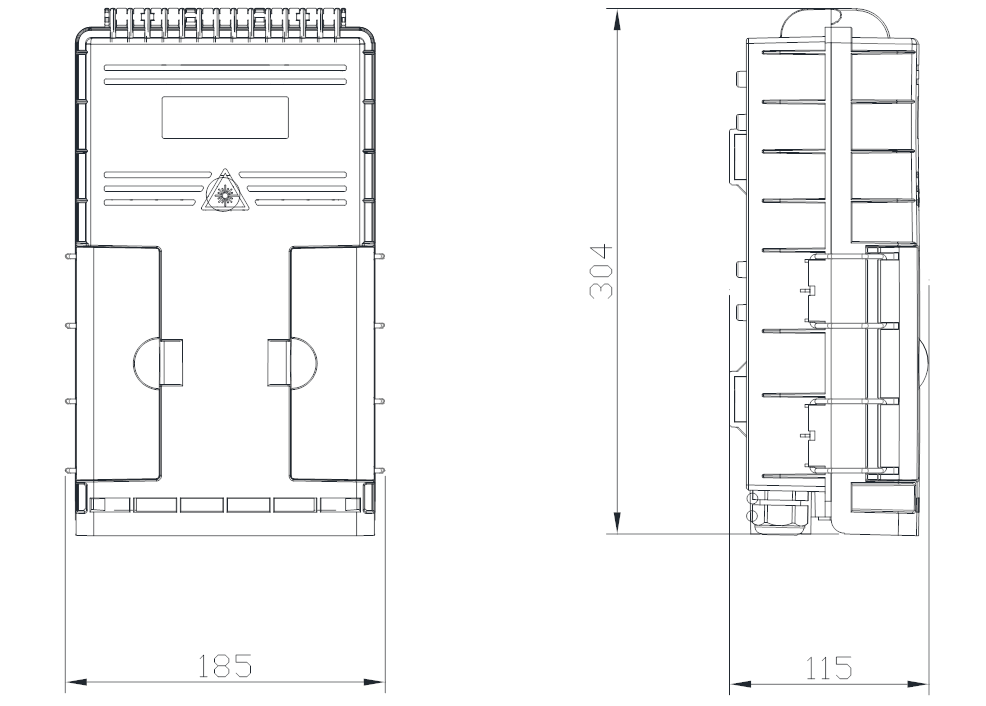

Size (Pic 1) | H×W×D = 304×185×115 (MM) |
Material | PC+ABS |
Color | Black/White/Gray(Customizable) |
Splice Capacity | 36 Cores |
Splitter Capacity | 2 Sets |
Splitter Type | SC, Mini Type, 1:2 / 1:4 / 1:8 |
Adapter Type | SC/APC |
Adaptor Capacity | 18 Pcs |
Incoming Cable Port | 2x(Φ10~14mm), 1x Mid-span 10~14mm |
Drop Cable Port | 16 Ports |
Installation Method | Wall, Pole Mounted |
Operating tempertaure | -10~+70℃ |
Life time | 25 years |

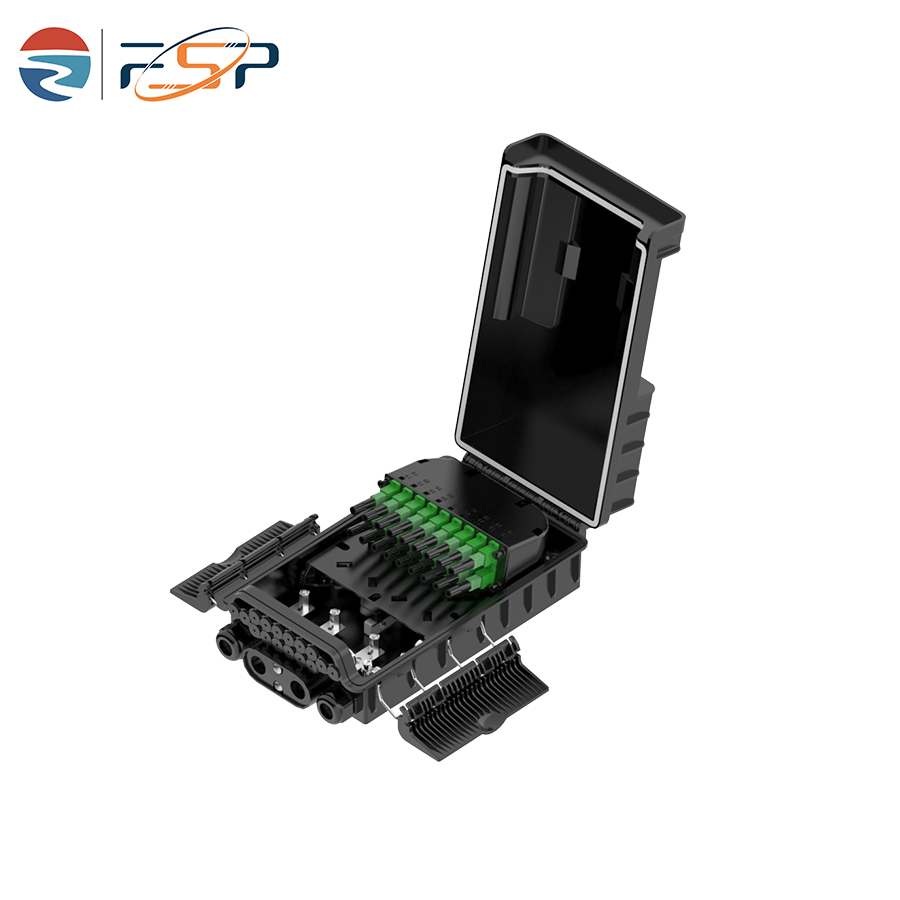

Pic 1

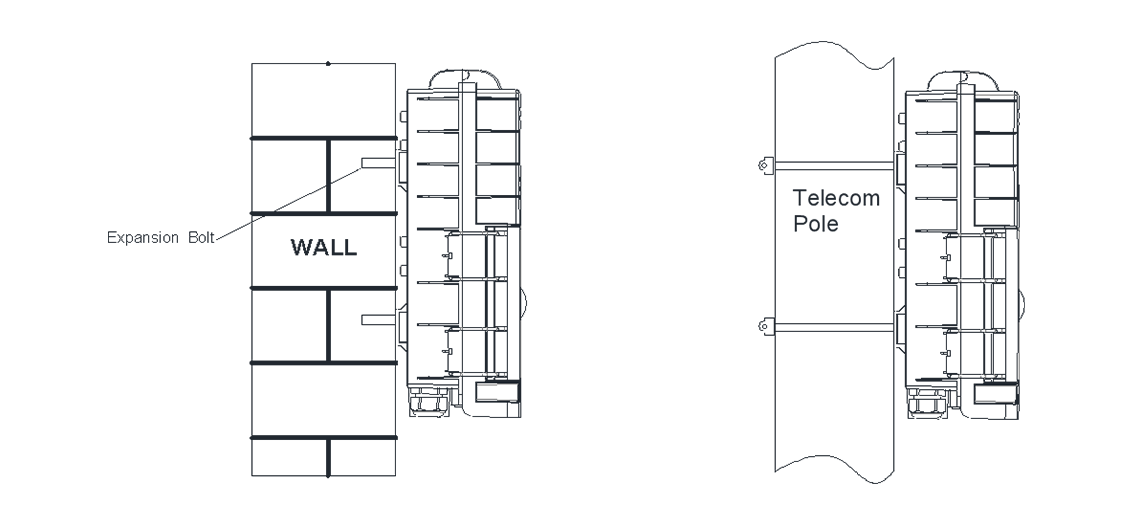

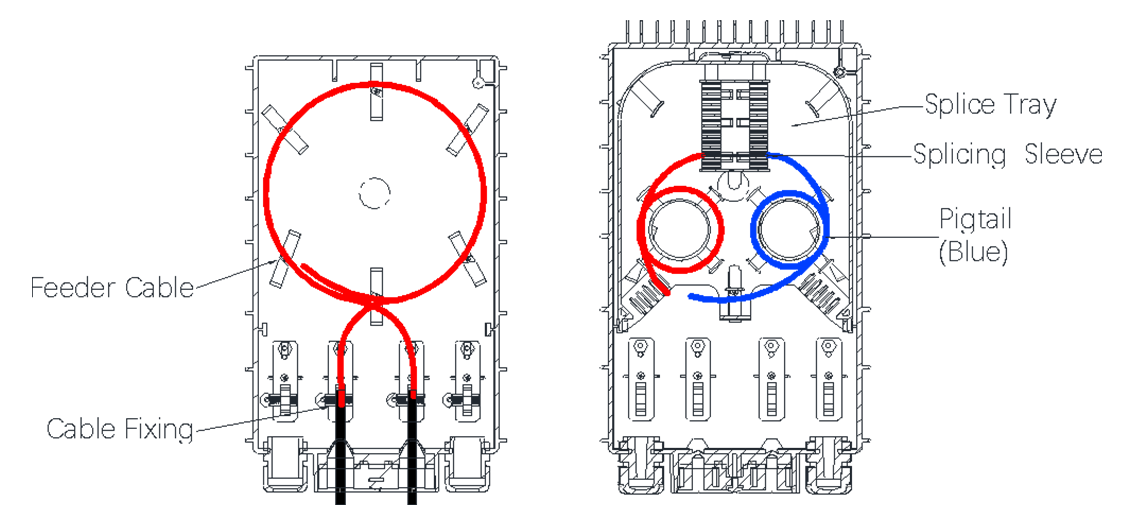

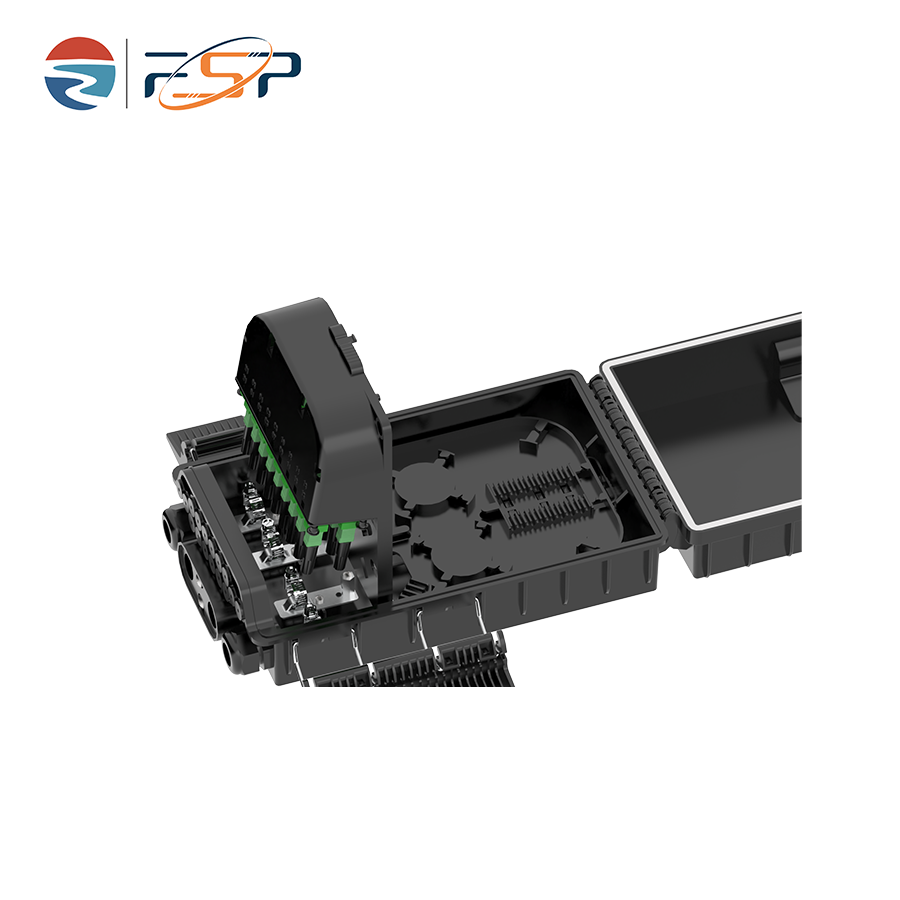

4.Routing（Pic 2~3）
Pic2
Pic3
5.Installation
5.1 Wall-mounted installation

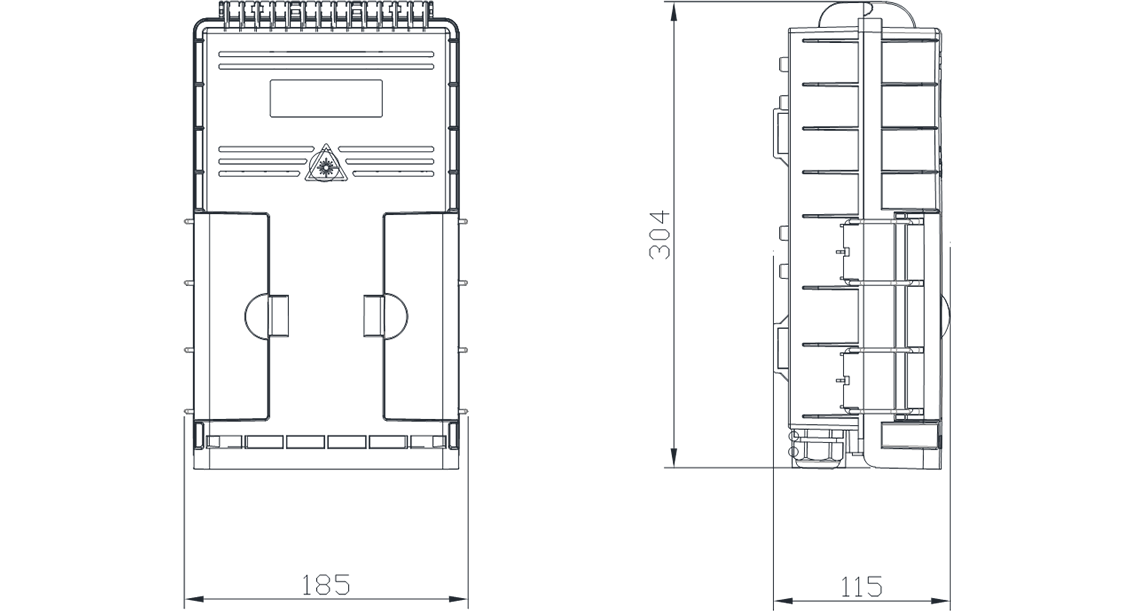

Drill 4 holes in the wall according to the installation size,placethe expansion bolt,
place the box to match up the holes and usebolt to fasten (Pic 4) .
5.2 Pole-mounted installation
Fix 2 set of the hose clamps to the telecom pole .（Pic 5）
Pic4 Pic5
