FSP-P-07-16B details

1Description

FSP-P-07-16B Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to

provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting

or pole mounting.



2、Specification

1) Water-proof design with IP65 Protection grade.

2) Integrated with splice cassette and cable management system.

3) Manage fibers in a reasonable fiber radius condition.

4) Fiber bend radius control more than 35mm.

5) 1 uncut cable port for feeder cables.

6) Fixed hermetic seals in all its grooves

7) The entire fiber route protected by transport tube

8) Complete opening of the hinges with stop included

9) Protected and organized pigtail space

10) Protection of Splitters and Pigtails

11) Support customized services such as logo screen printing.

3、Configuration Table

Model

FSP-P-07-16B

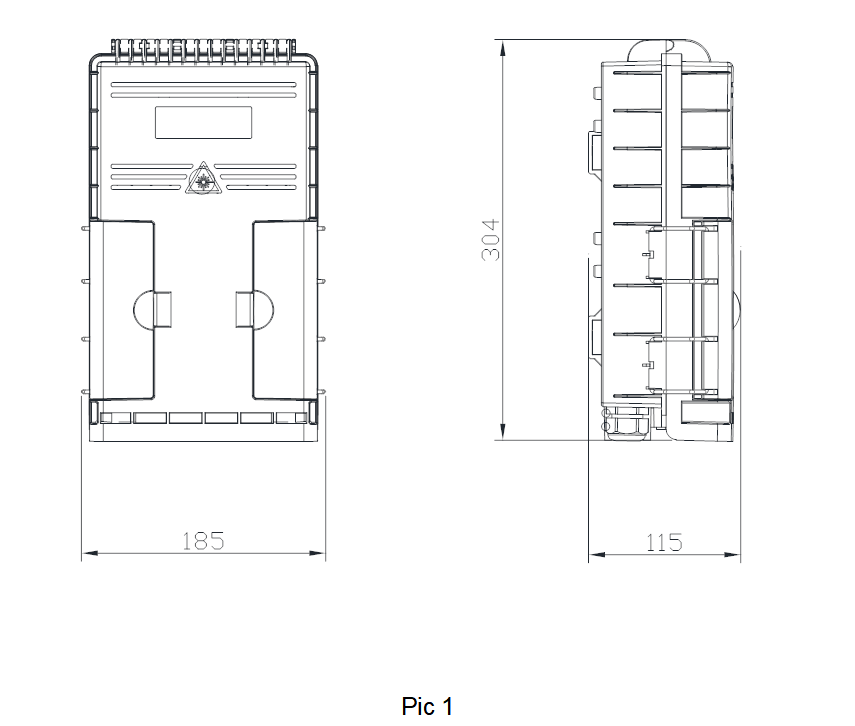

Size (Pic 1)

H×W×D = 304×185×115 (MM)

Material

PC+ABS

Color

Black/White/Gray(Customizable)

Splice Capacity

36 Cores

Splitter Capacity

2 Sets

Splitter Type

SC, Mini Type, 1:2 / 1:4 / 1:8/1:16

Adapter Type

SC

Adaptor Capacity

18 Pcs

Incoming Cable Port

2x(Φ10~14mm), 1x Mid-span 10~14mm

Drop Cable Port

16 Ports

Installation Method

Wall, Pole Mounted

Operating tempertaure

-10~+70℃

Life time

25 years

              Table 1 Model and configuration

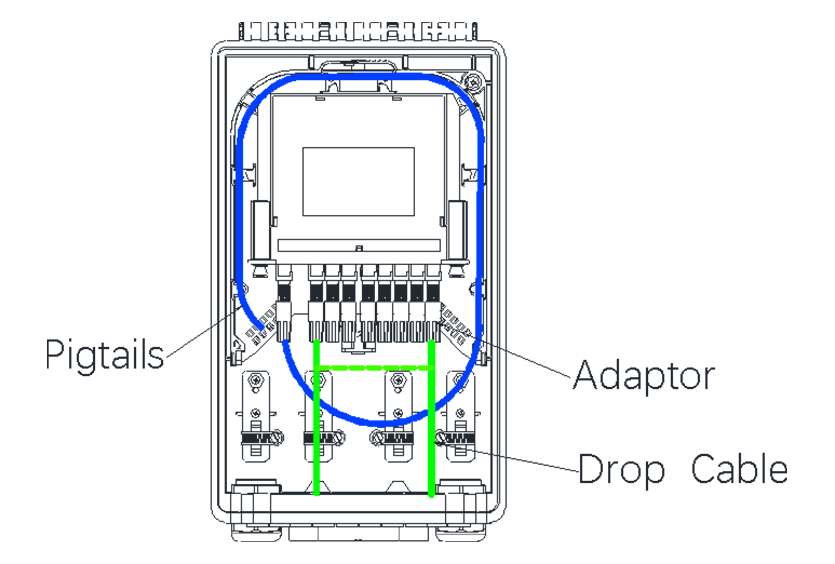

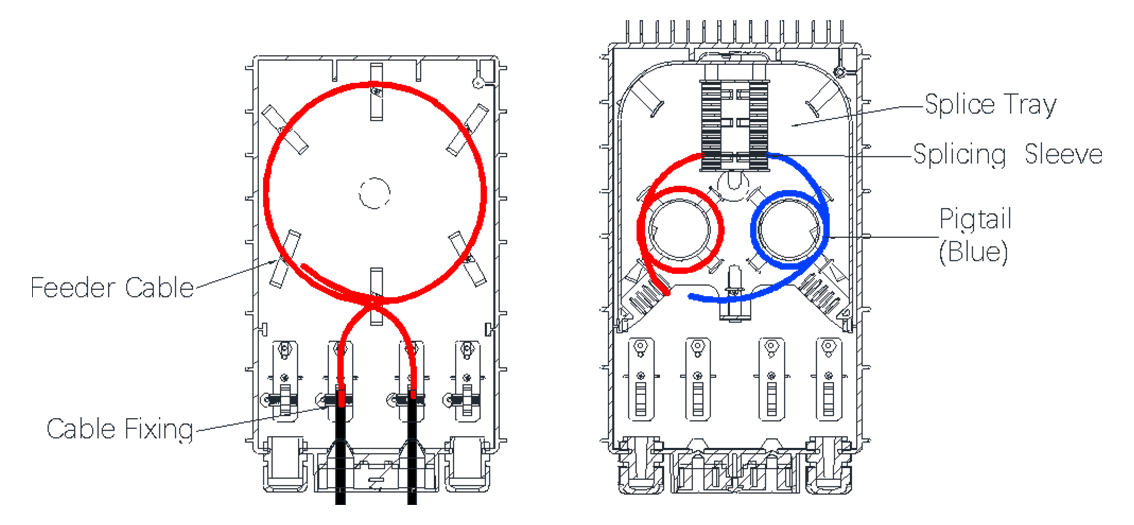

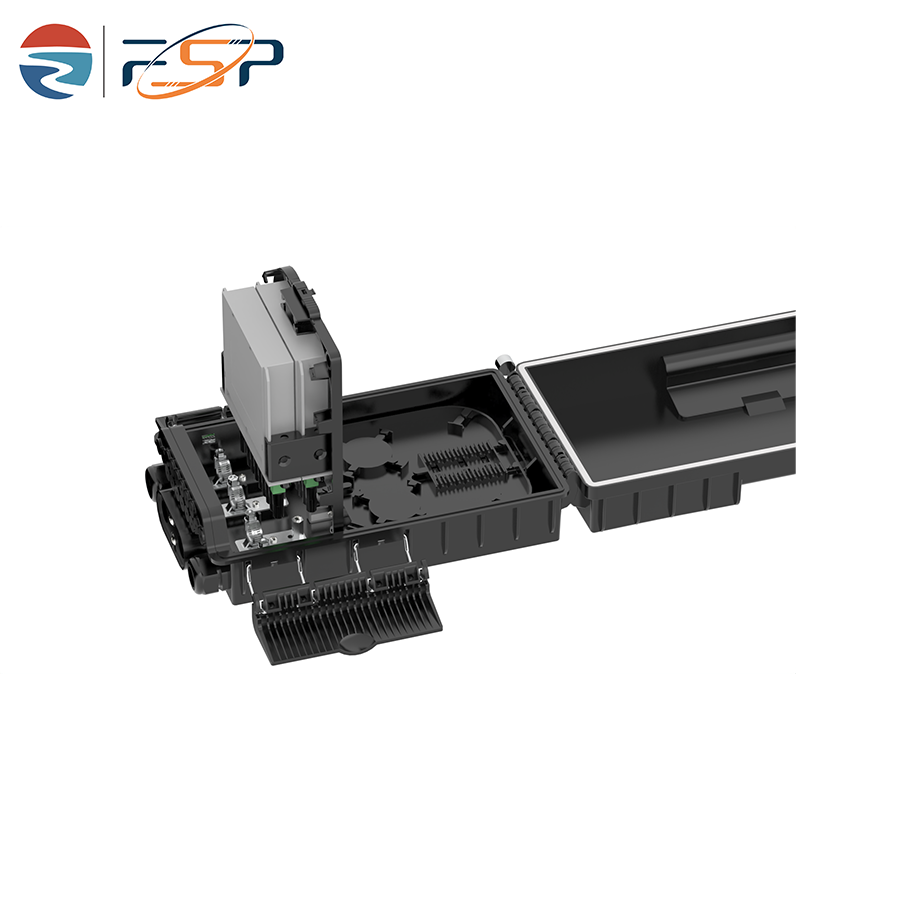

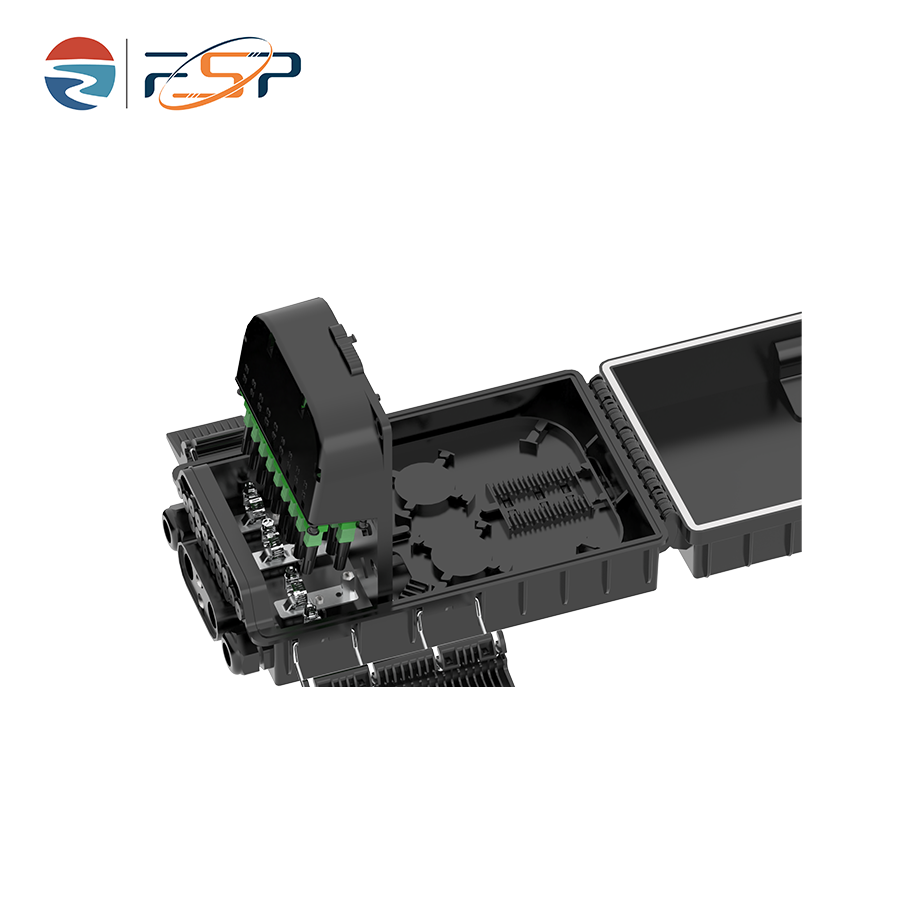

4、RoutingPic 2~3)


                                                                                                 Pic2

FSP-P-07-16B .png

                                                                                                 Pic3

5、Installation

  5.1 Wall-mounted installation

Drill 4 holes in the wall according to the installation size,place the expansion bolt,place the box to match up the holes and use bolt to fasten (Pic 4) .

5.2 Pole-mounted installation

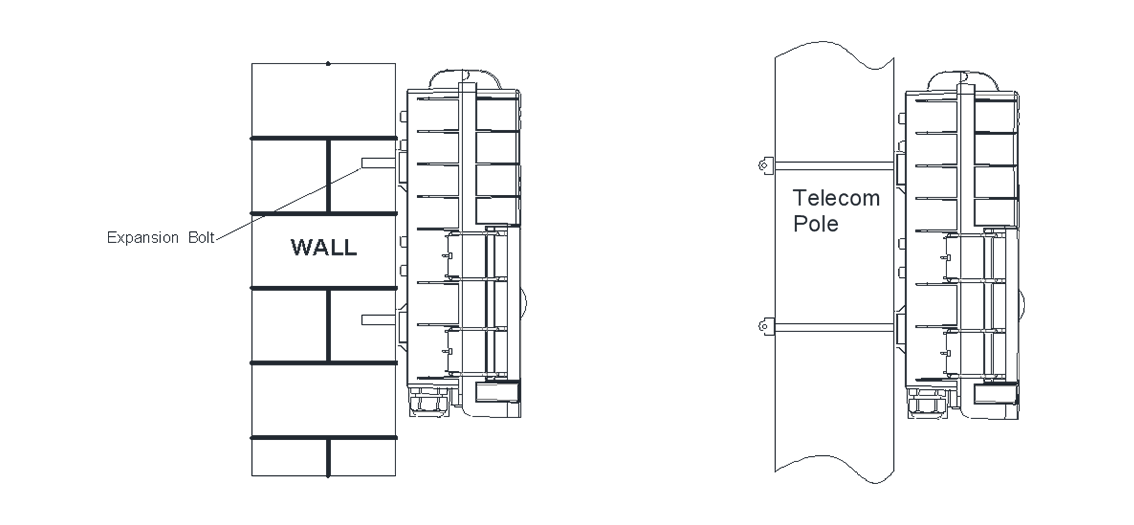

     Fix 2 set of the hose clamps to the telecom pole .(Pic 5


                                                                  Pic4                                        Pic5
