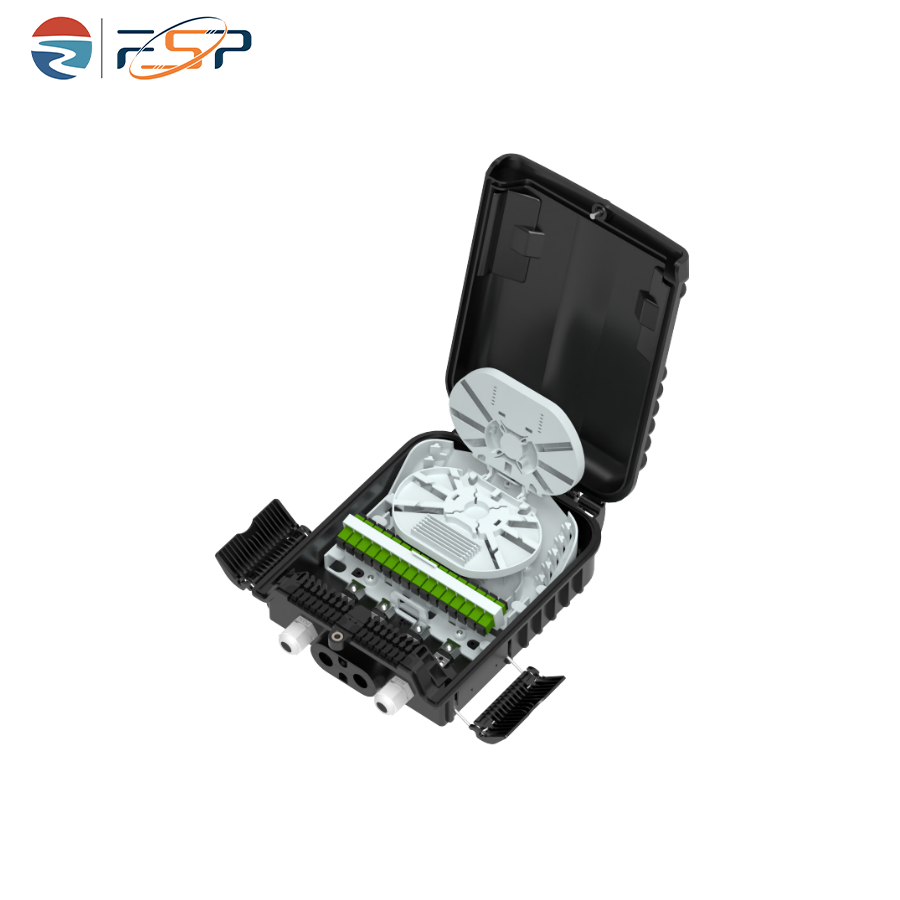

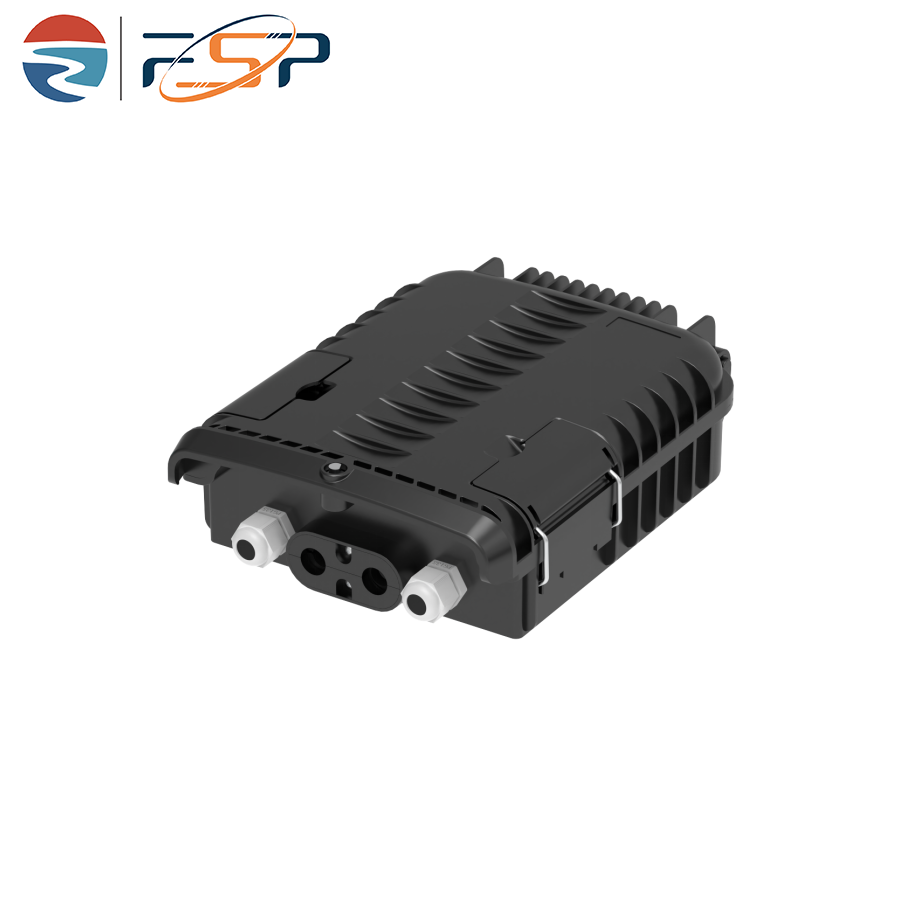

1、Description：
FSP-P-16-S Series Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims
to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall
mounting or pole mounting.
2、Specification：
1) Water-proof design with IP65 Protection grade.
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
4) Fiber bend radius control more than 35mm.
5) 1 uncut cable port for feeder cables.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
Model | FSP-P-16-S |

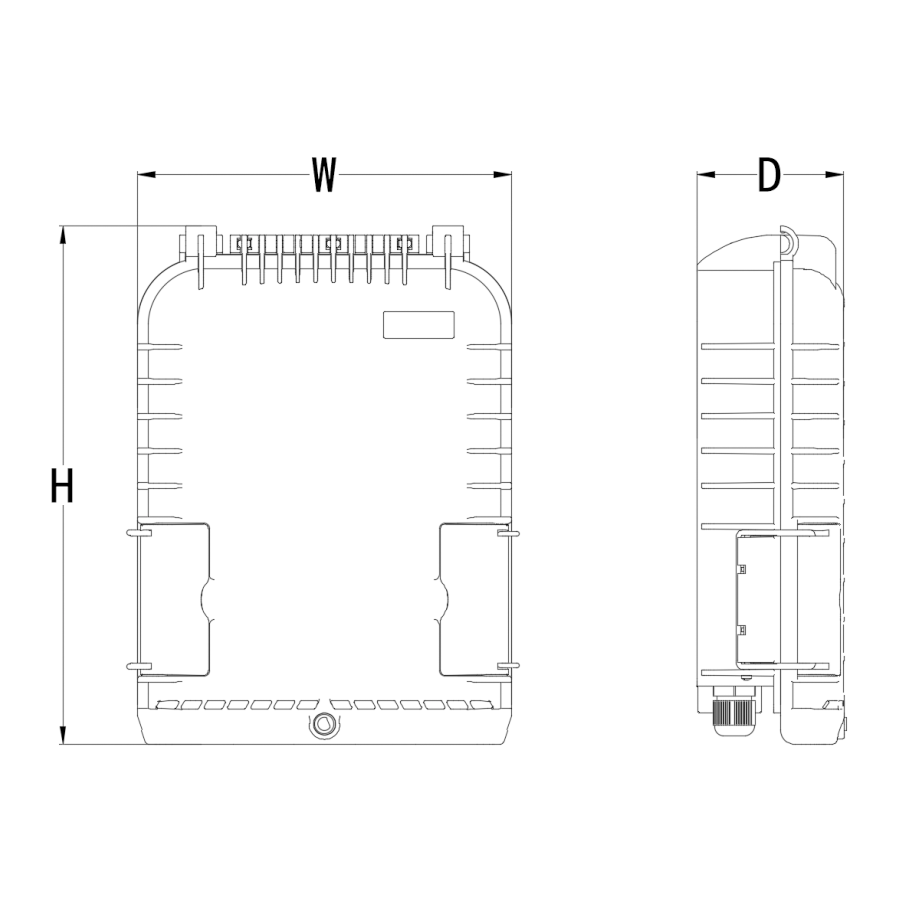

Size (Pic 1) | H×W×D = 290×210×85 (MM) |
Material | PC+ABS |
Color | Black |
Splice Capacity | 24 Cores |
Adapter Type | SC |
Adaptor Capacity | 16 Pcs |
Incoming Cable Port | 2 Incoming Cables + 1 Uncut Cable |
Outcoming Cable Port | 16 Pcs |
Installation Method | Wall / Pole Mounted |
Table 1 Model and configuration
pic1
5、Routing

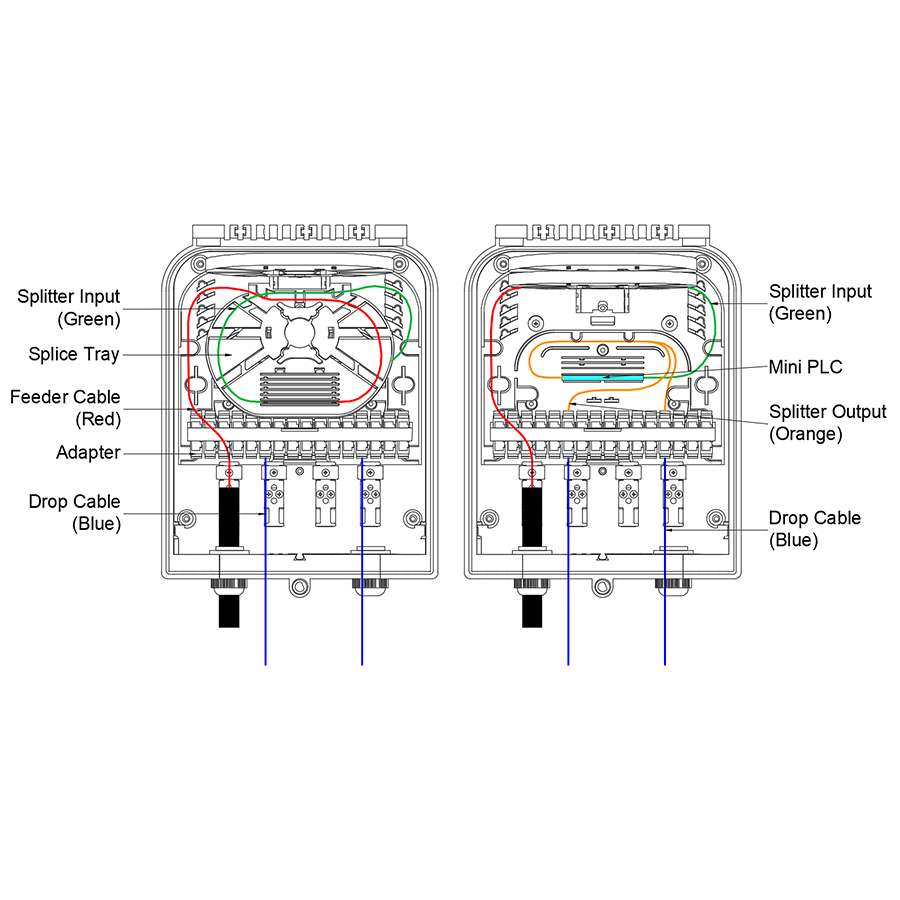

pic2(Remove Door)
Splitter type

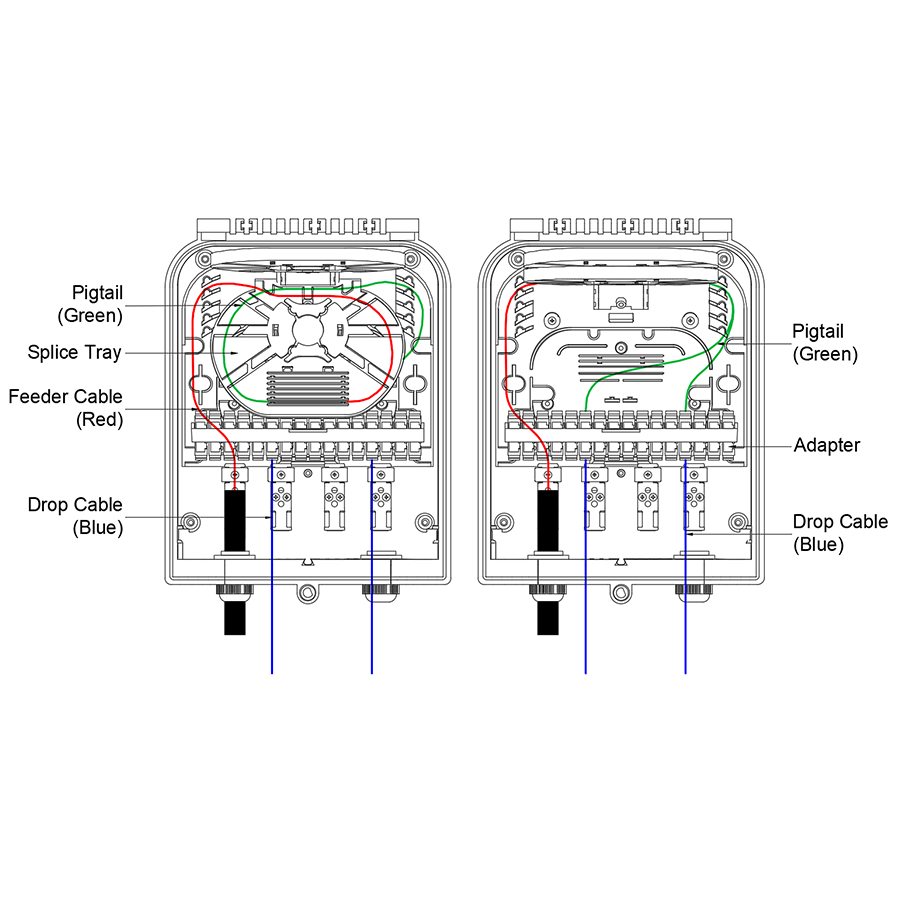

pic3(Remove Door)
Distribution type
6、Installation

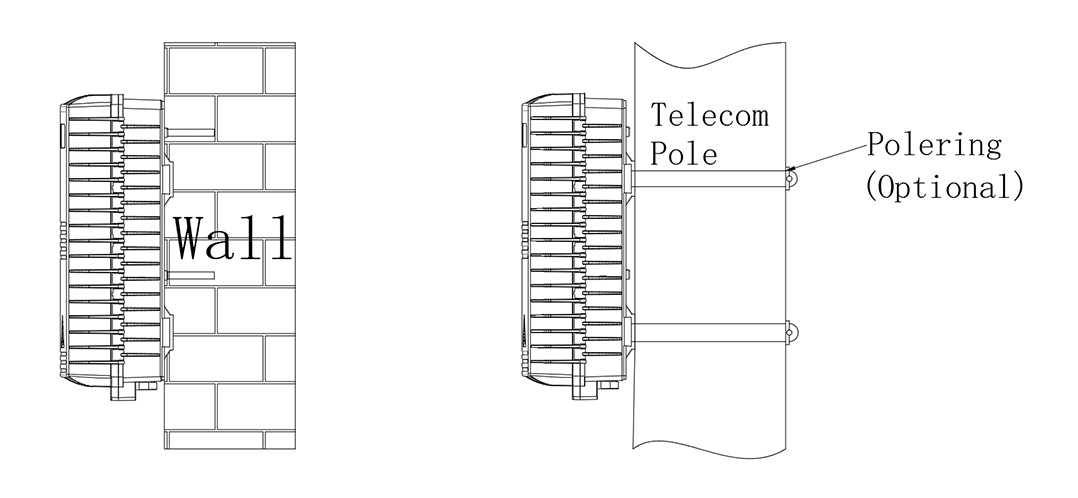

6.1 Wall-mounted installation

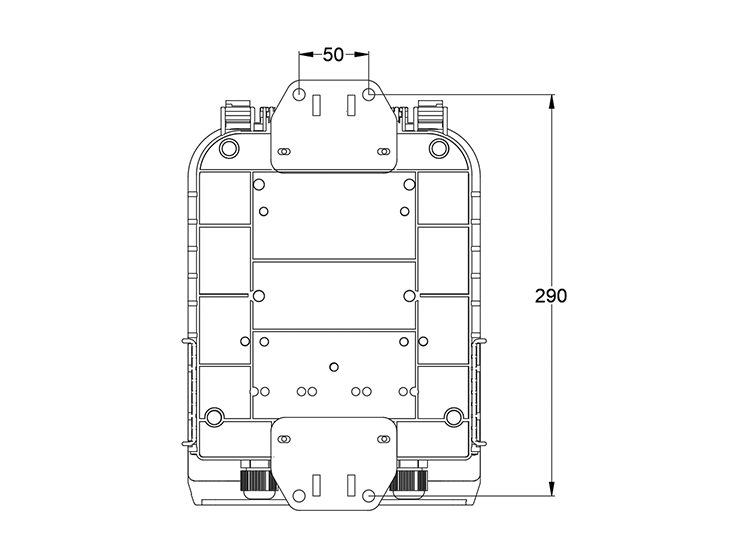

Drill 4 holes in the wall according to the installation size，place the expansion bolt，place the box to match up the holes and use bolt to fasten (Pic 4,5) .
pic 4
6.2 Pole-mounted installation
Fix 2 set of the hose clamps to the telecom pole .（Pic 12）
pic5 pic6
