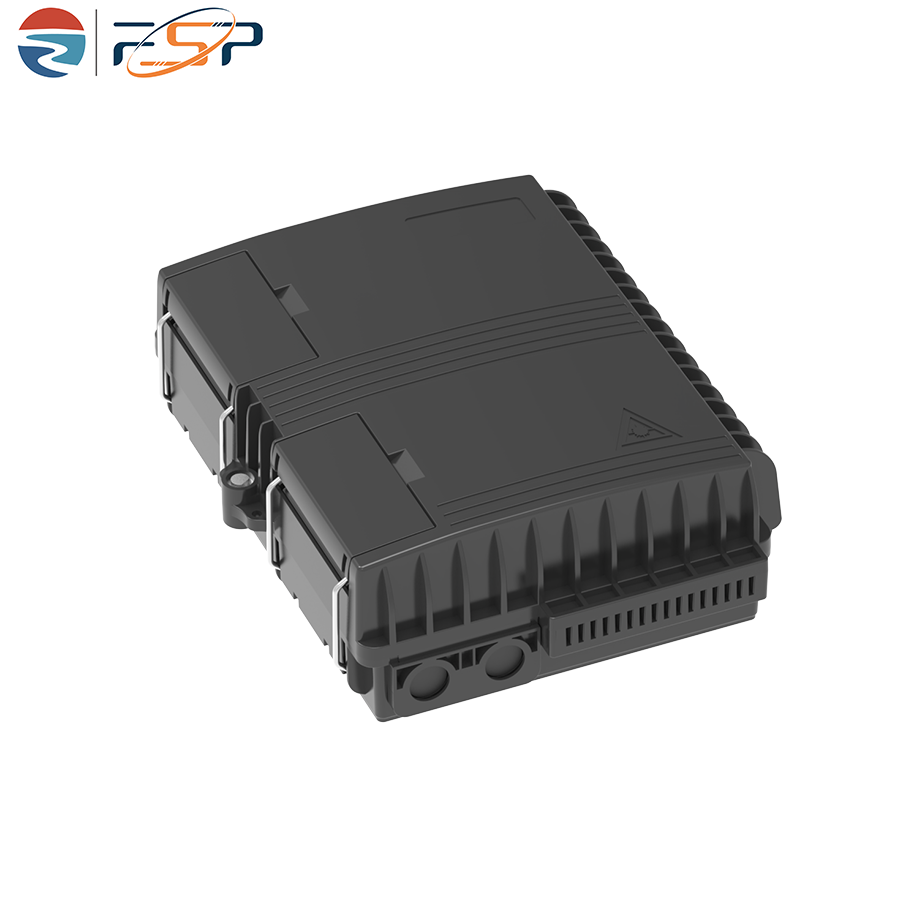

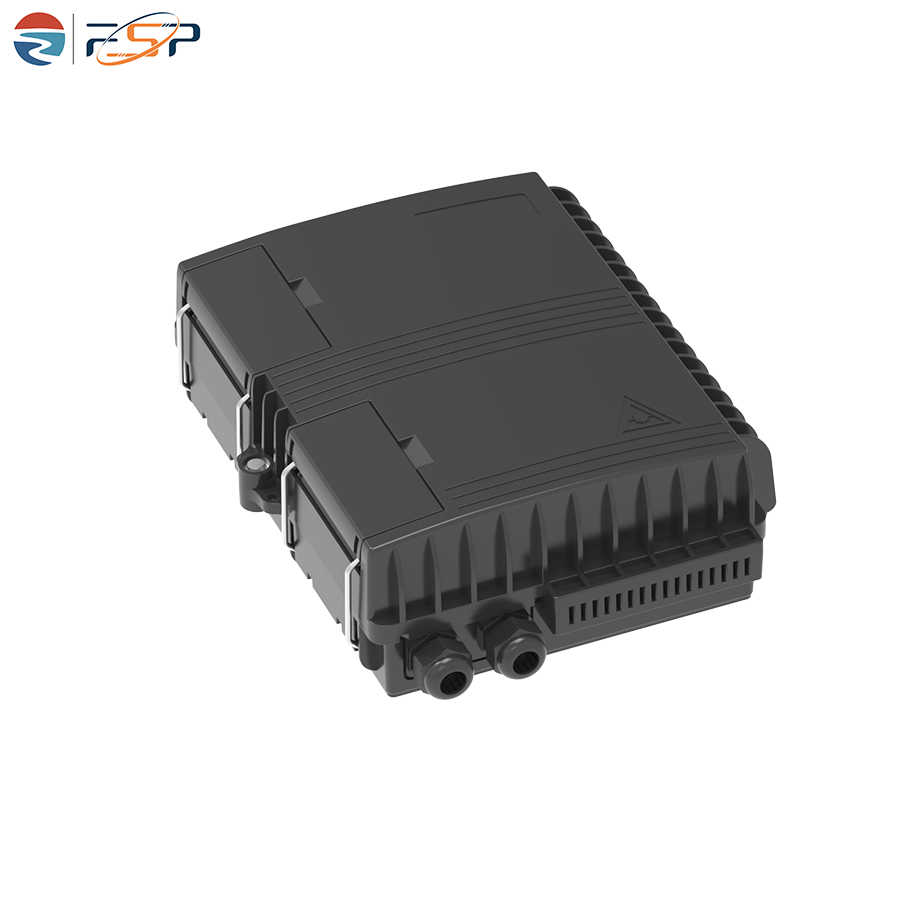

1、Description
FSP-P-16-G2-D Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx
communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides
solid protection and management for the FTTx network building.
2、Specification
1) Anti-UV (Ultraviolet)
2) Total enclosed structure , Ingress protection grade: IP65
3) Fiber optic Cables, pigtails, and dropcables are running through their own paths without disturbing each other,designed for insertion module type splitters , easy for maintenance.

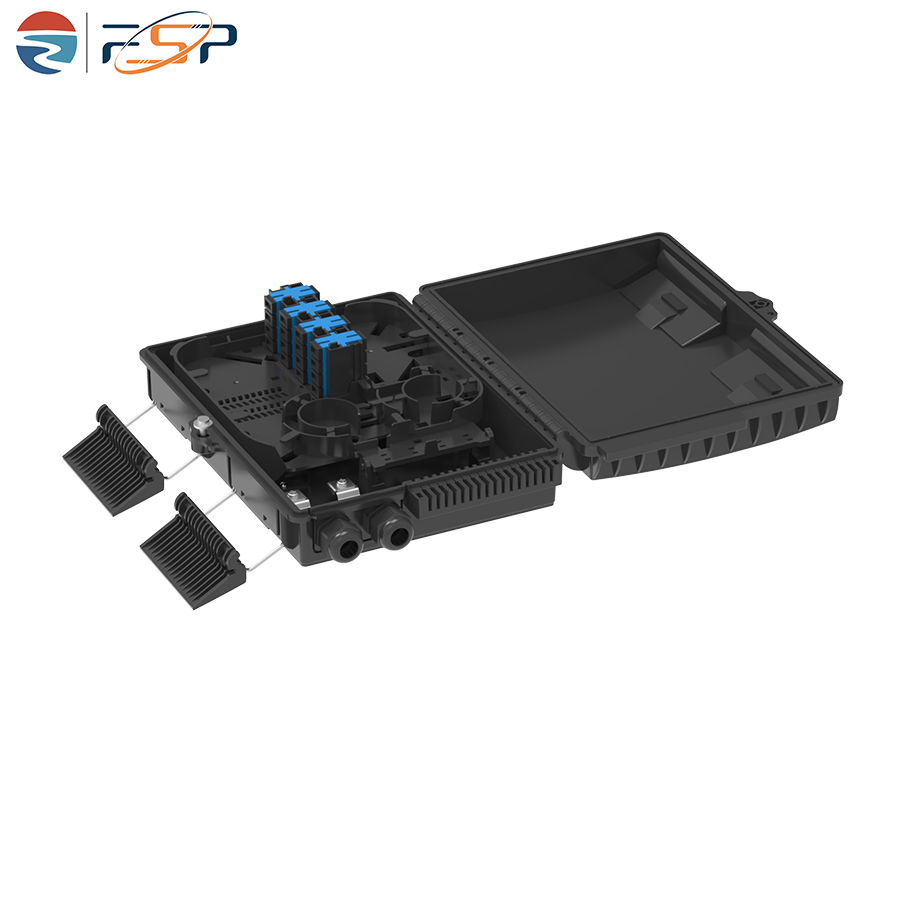

4) Distribution panel can be flipped down, feeder cable can be placed at the back of the inner box, easy for maintenance and installation.
5) Box can be installed by wall-mounting or pole-mounting, suitable for both indoor and outdoor use.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
Model | FSP-P-16-G2-D |
Installation Method | Wall-mounted or pole-mounted |
Color | Black ( or gray) |
Material | PC+ABS |
Cable Ports | 2 Ports (For main cable) + 16 Ports (For drop cable) |
Splice Capacity | 24 Cores |

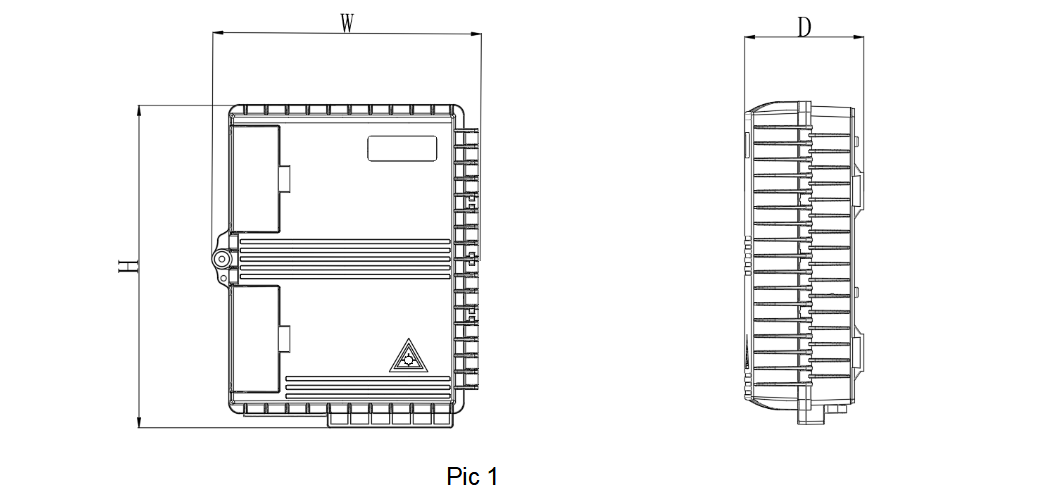

Size: H×W×D (mm) (Pic 1) | 260×215×95 |
Working Temperature | -40℃～+85℃ |
Relative Humidity | ≤85% (+30℃) |
Atmospheric Pressure | 70KPa~106Kpa |
Insertion Loss | ≤0.15dB |
Return Loss | ≥50dB( UPC) ; ≥60dB(APC) |

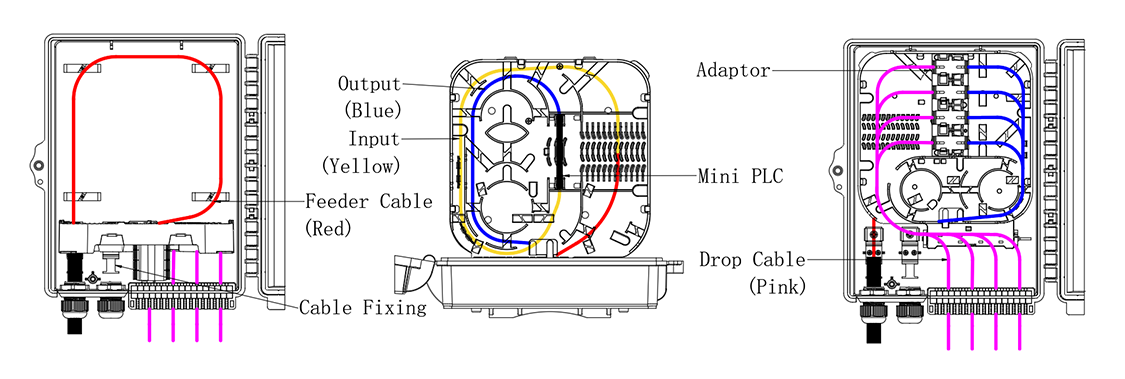

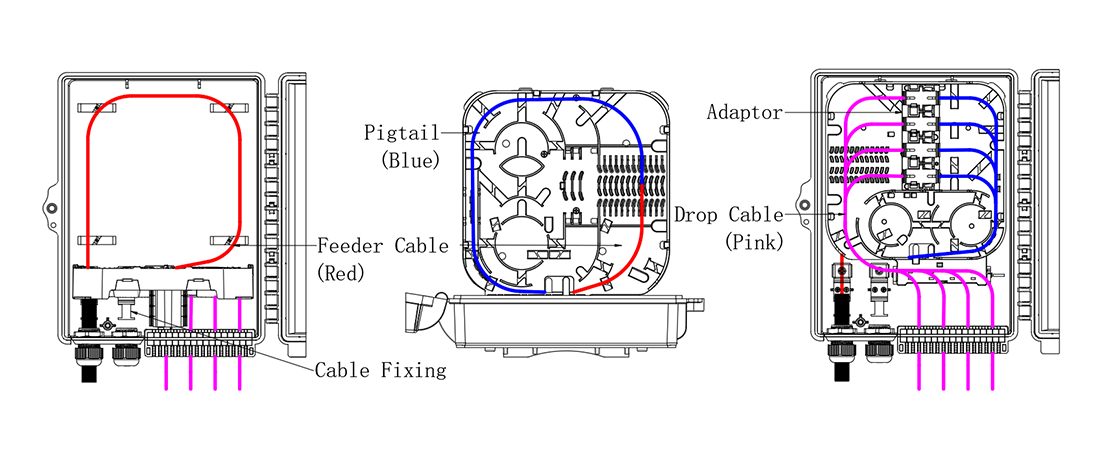

5.Routing（Pic2~3)
Pic2
Pic3
6、Installation
6.1 Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40,
place the box to match up the holes and use bolt to fasten. (Pic 4) .
6.2 Pole-mounted installation

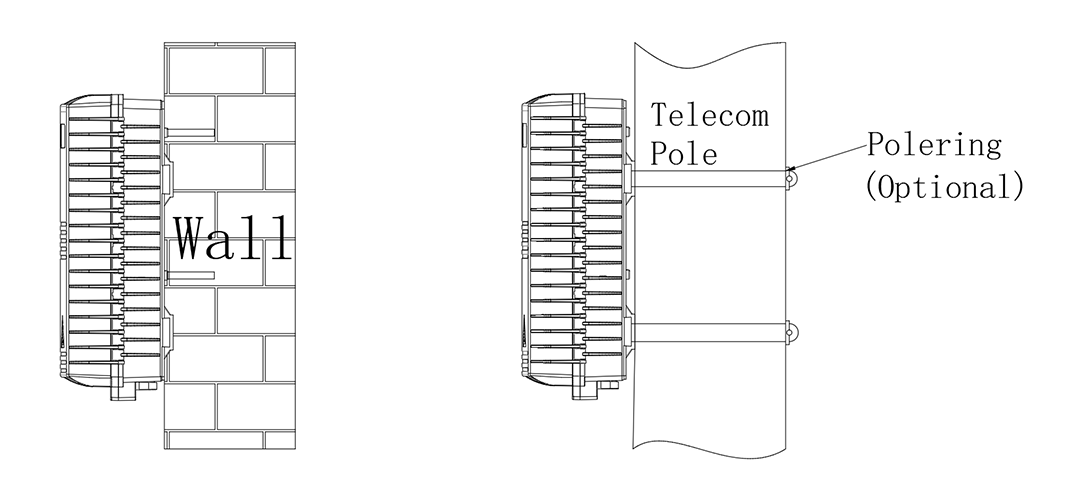

Fix 1 set of the hose clamps to the telecom pole .（Pic 5）
Pic4 Pic5
