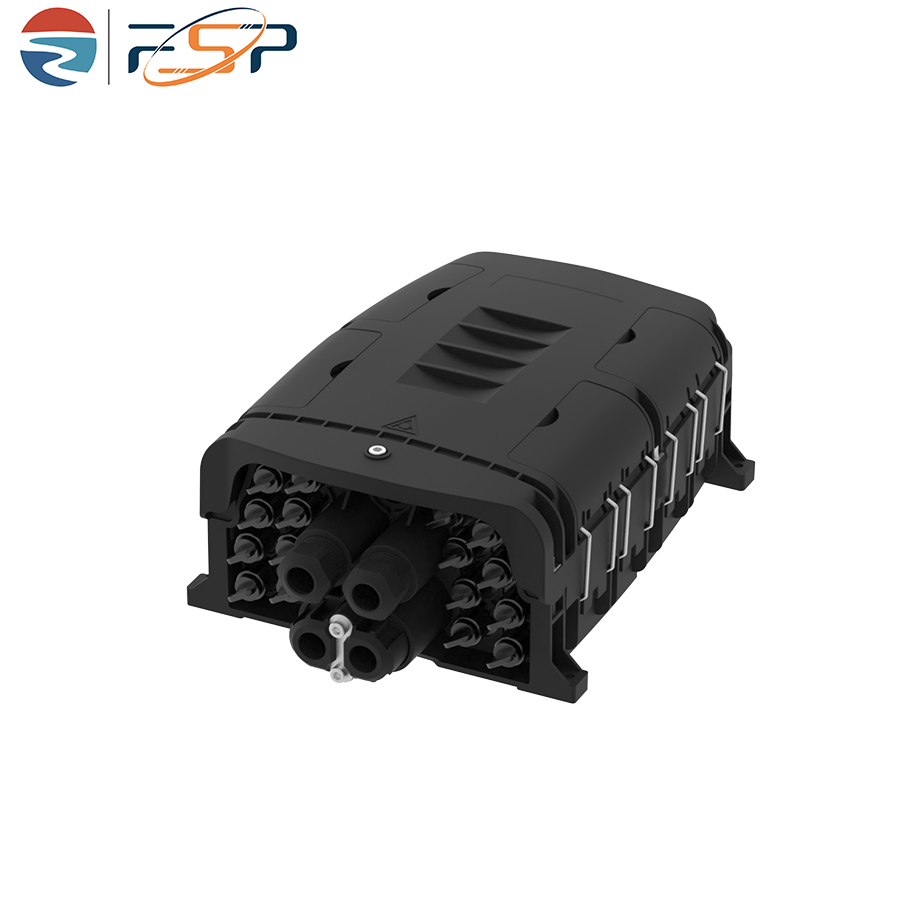

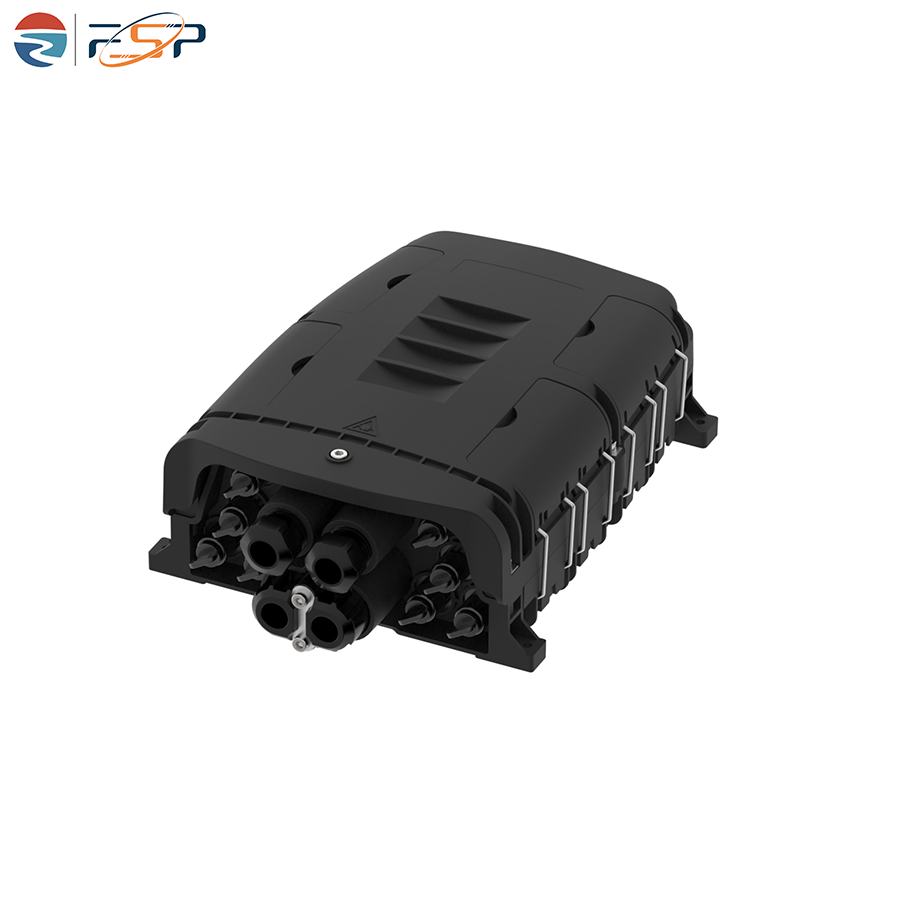

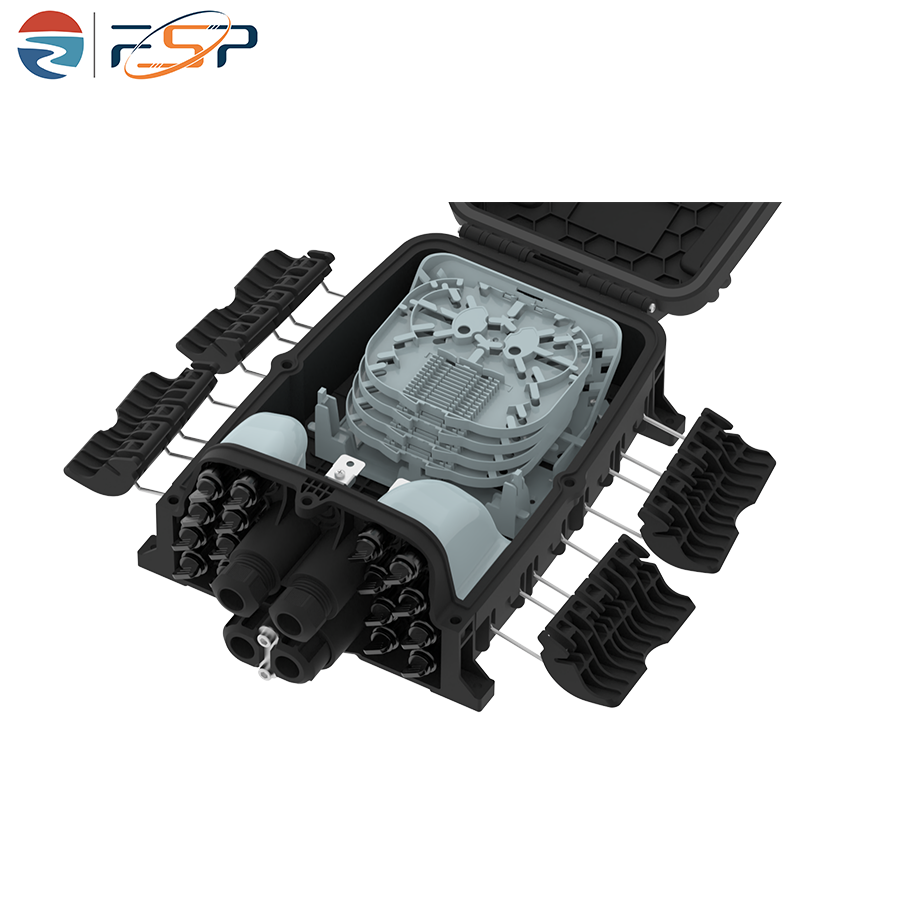

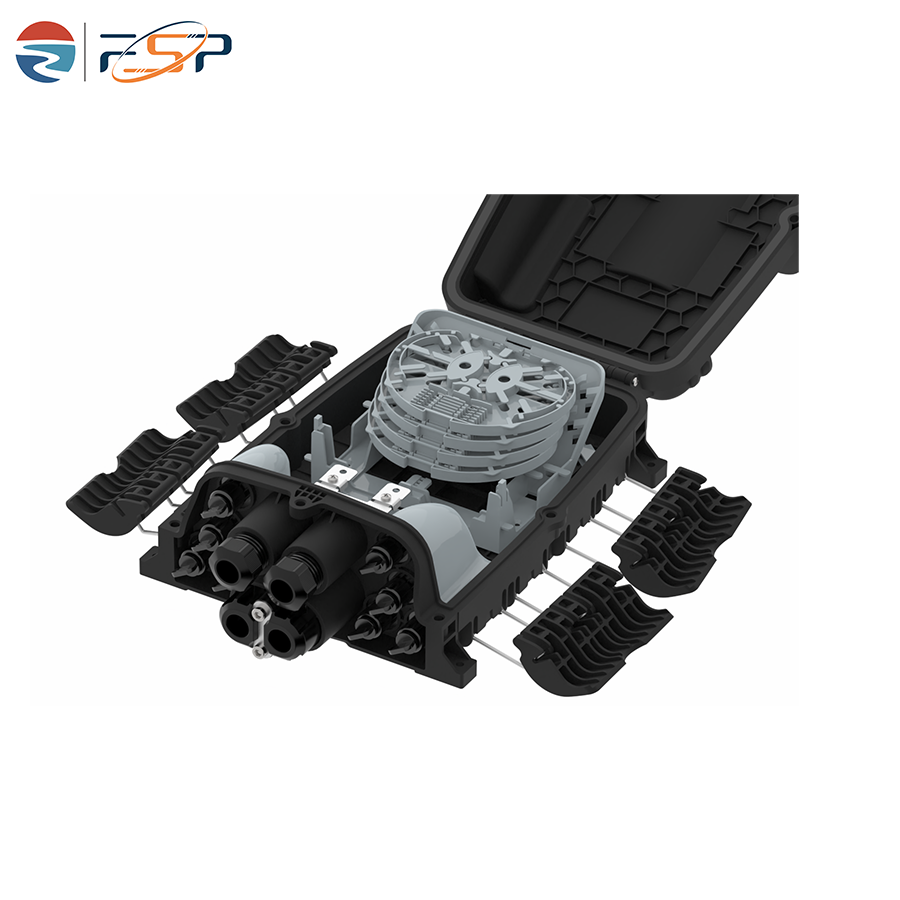

1、Description：

8/16 Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTxtelecommunication network system it can also provide feeder cable for the next splitting box. The optic splitting, distribution can be done in this box,

and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification：

1) Water-proof design with IP65 /IP68 (optional)Protection level.

2) Manage fibers in a reasonable fiber radius condition.

3) Easy to maintain and extend the capacity.

4) Suitable for pre-Connectorized Cable Assemblies.

5) 8/16 ports cable entrance for FTTH drop cable.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

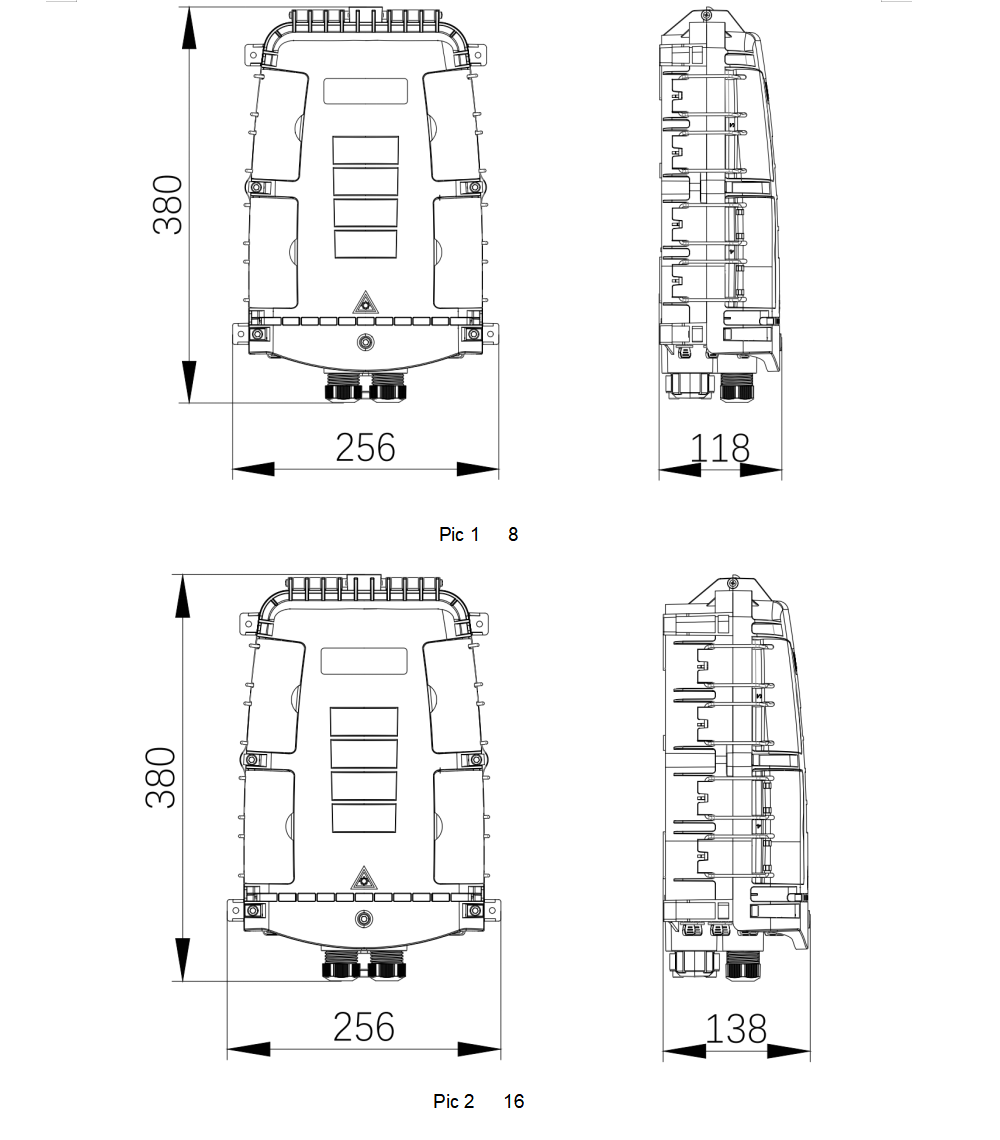

4、Configuration Table

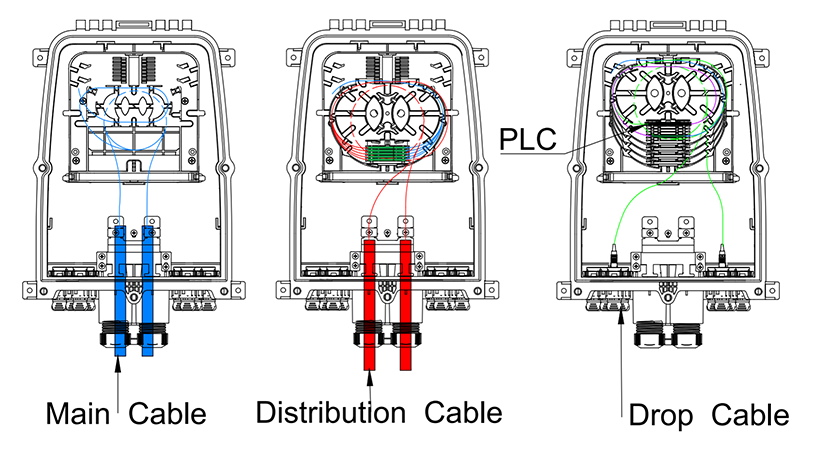

5、Routing（Pic 3）

                                                                                           Pic3

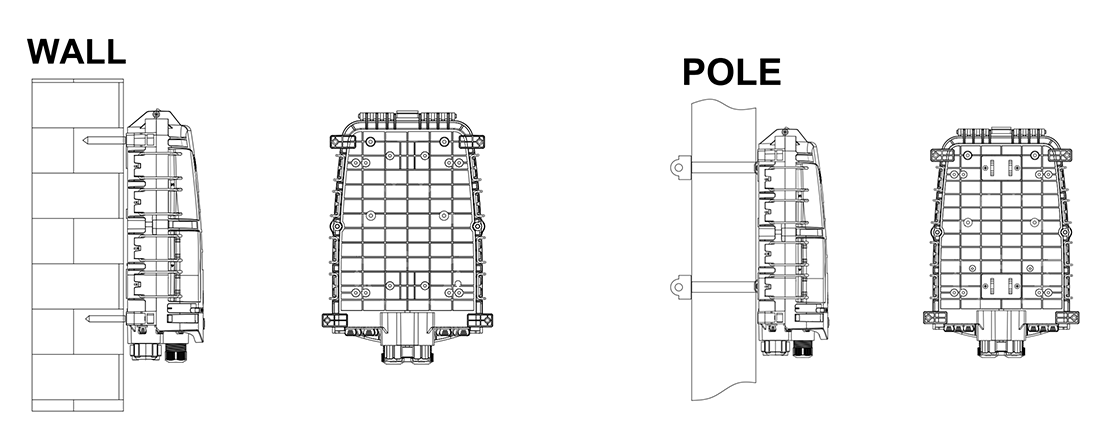

6、Installation

1) Wall-mounted (Pic 4)

Mounting bracket for wall mounting can make the enclosure fixed tightly.

2) Pole-mounted (Pic 5)

 Fix 1 set of the hose clamps to the telecom pole .

                                                                            Pic4                                       Pic5

                                                                                                Pic6
