Fiber Model

G.652D

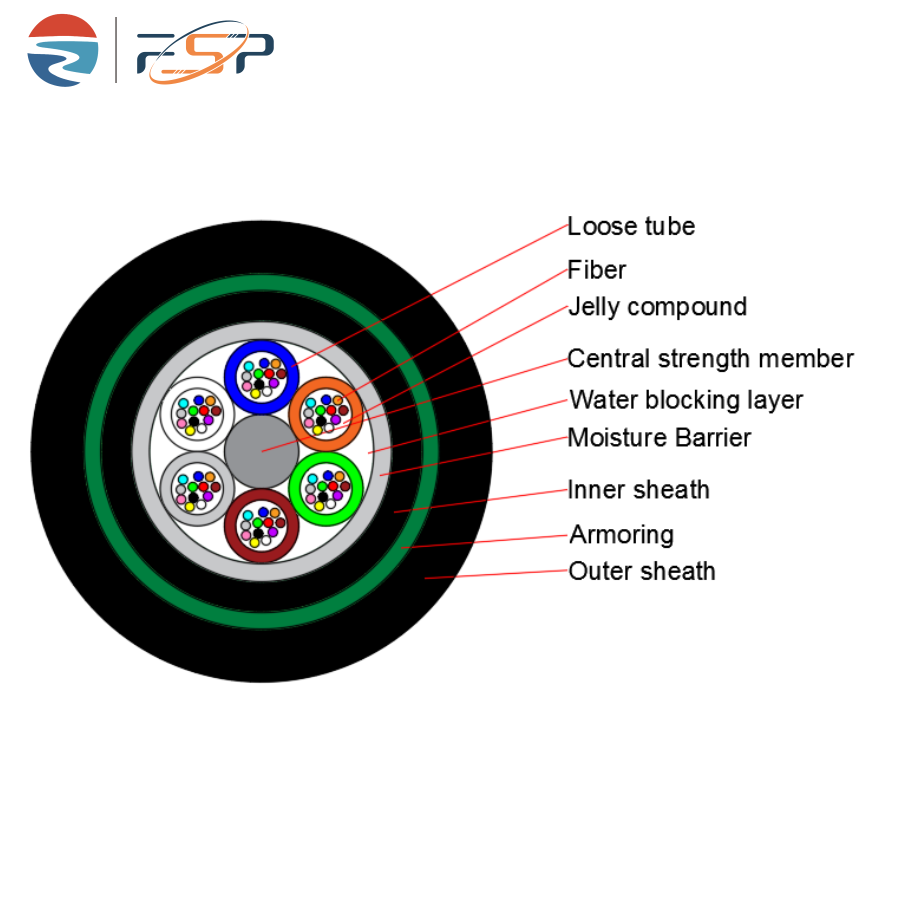

Design(StrengthMember+Tube&Filler)

1+5

1+5

1+6

1+8

1+12

Central Strength Member

Material

Steel wire

Steel wire+PE

Diameter（±0.05）mm

1.4

1.4

2.0

3.2

5.7

Loose Tube

Material

PBT

Diameter（±0.06）mm

1.65

1.9

1.9

1.9

1.9

Thickness（±0.03）mm

0.25

0.3

0.3

0.3

0.3

The Max.Core NO./Tube

6

12

12

12

12

Filler Rope

Material

PP

Colour

White

Diameter（±0.06）mm

1.65

1.9

--

--

--

Water Blocking layer（Material）

Flooding Compound

Moisture   Barrier

Material

Polymer Coated Aluminum Tape

Thickness（+0.03）mm

0.20

Inner sheath

Material

MDPE

Thickness（+0.2）mm

0.8

Armoring

Material

Polymer Coated  Steel Tape

Thickness（+0.03）mm

0.20

Outer Sheath

Material

MDPE

Thickness（±0.2）mm

1.7

Cable Diameter（±0.2）mm

11.7

12.2

12.8

14

16.5

Cable Weight（±10）kg

137

152

178

205

 272

Min. bending radius

Without Tension

12.5.0×Cable-φ

Under Maximum Tension

25.0×Cable-φ

Temperature range

（℃）

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70
