No. of cable
4～24
48
72
96
144
Fiber Model
G.652D

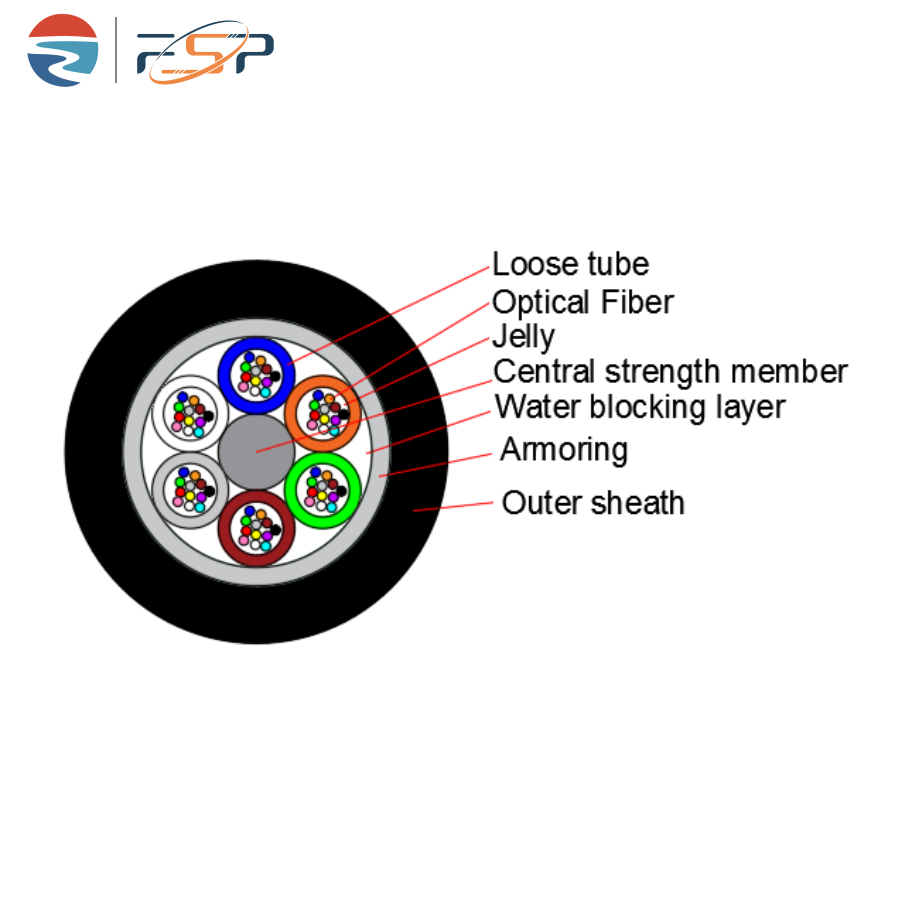

Design(StrengthMember+Tube&Filler)
1+5
1+6
1+8
1+12
Central Strength Member
Material
Steel wire
Steel wire+PE
Diameter（±0.05）mm
1.4
2.0
3.2
5.7
Loose Tube
PBT
Diameter（±0.06）mm
1.65
1.9
Thickness（±0.03）mm
0.25
0.3
The Max.Core NO./Tube
6
12
Filler Rope
PP
Colour
White
--
Water Blocking layer（Material）
Flooding compound
Armoring
Aluminum tape
Thickness（+0.03）mm
0.20
Outer Sheath
MDPE
Thickness（±0.2）mm
1.6
Cable Diameter（±0.2）mm
8.9
9.4
10.0
11.2
13.7
Cable Weight（±10）kg
71
80
100
120
170
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
（℃）
Installation
-20~+60
Transport&Storage
-40~+70
Operation
