Fiber Model

G.652D

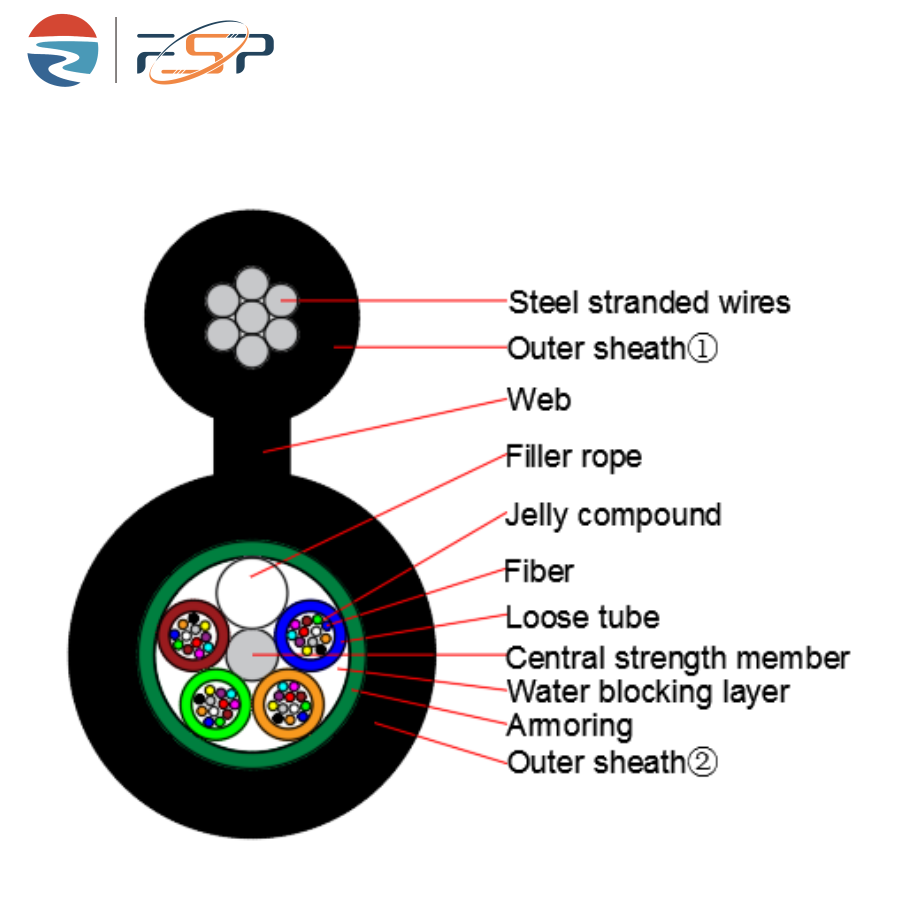

Design(Strength   Member+Tube&Filler)

1+5

1+5

1+6

1+8

1+12

Loose Tube

Material

PBT

Diameter（±0.06）mm

1.65

1.9

1.9

1.9

1.9

Thickness（±0.03）mm

0.25

0.3

0.3

0.3

0.3

The Max.Core NO./Tube

6

12

12

12

12

Central Strength Member

Material

Steel Wire

Steel Wire+PE

Diameter（±0.5）mm

1.4

1.4

2.0

3.2

5.7

Water Blocking Layer(   Material)

Flooding Compound

Armoring

Material

Steel tape

Thickness（±0.2）mm

0.2

Outer Sheath①

Material

MDPE

Thickness（±0.2）mm

1.5

Outer Sheath②

Material

MDPE

Thickness（±0.2）mm

1.6

Web

Material

MDPE

Size（±0.5）mm

2.0*3.0

Messenger Wire

Material

Galvanized steel strand

Size（±0.1）mm

0.9×7

1.0×7

Cable Diameter（±0.5）mm（W×H）

8.9*17.6

9.4*18.1

10*18.7

11.2*20.2

13.7*22.9

Cable Weight（±10）kg/km

145

155

176

208

266

Attenuation

1310nm

0.35dB/ km

1550nm

0.21dB/ km

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

（℃）

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70
