1、Description：

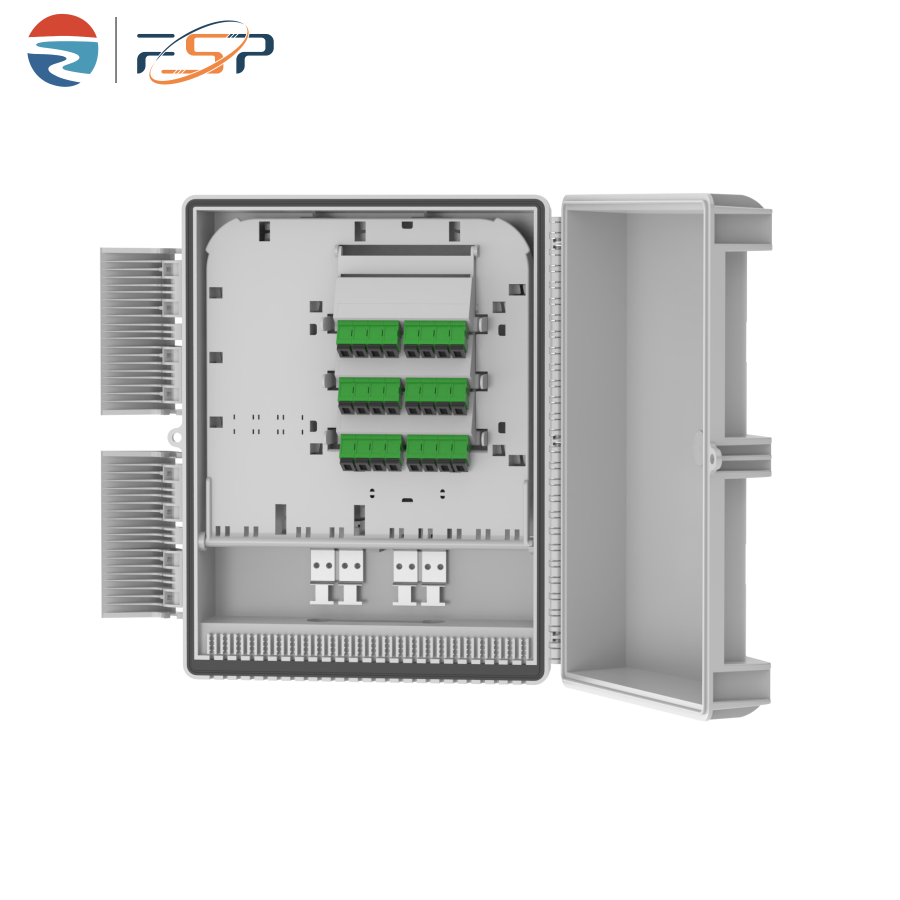

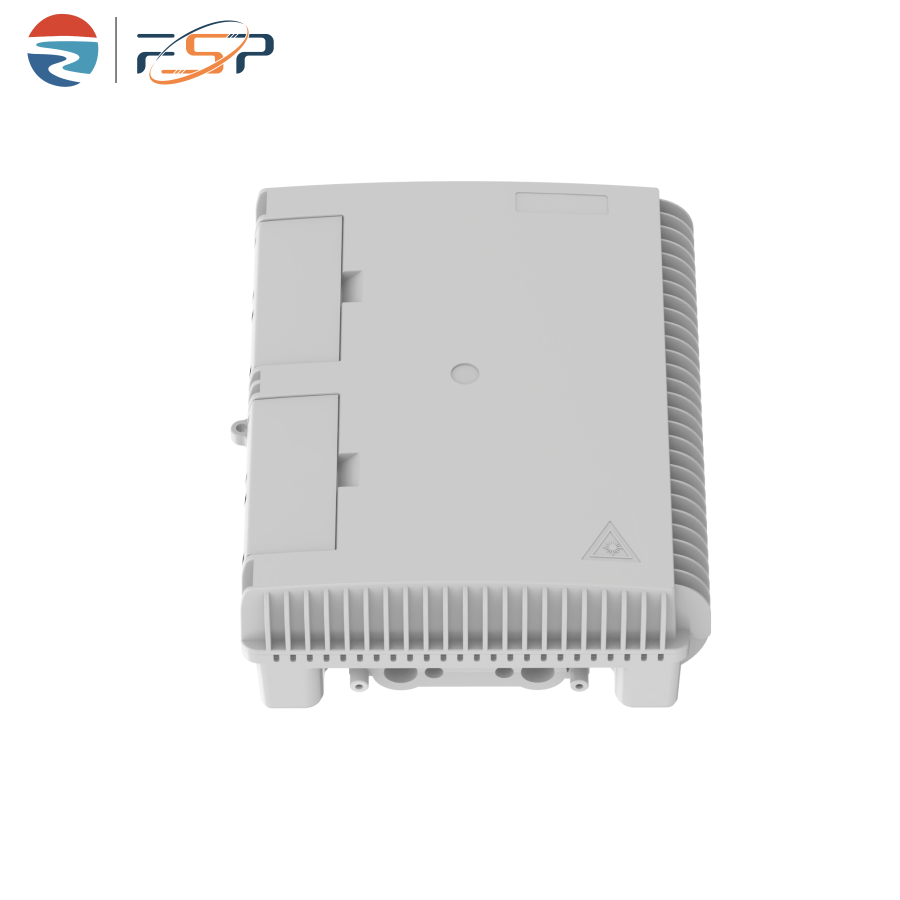

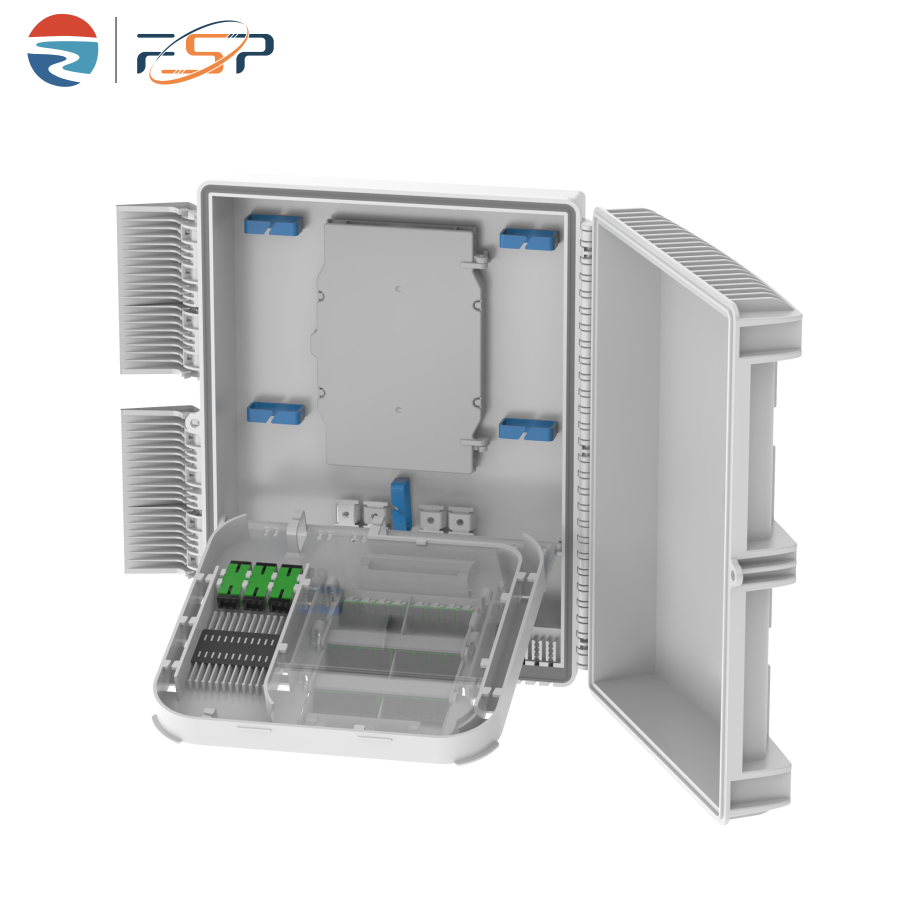

FSP-P-24F Fiber Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building.
2、Specification：
1) Anti-UV (Ultraviolet)
2) 4 inlet ports, 24 outlet ports
3) Economic design with plastic adaptor panel
4) Accommodate SC / LC Adaptor
5) Protection Class: IP65
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
|
Model |
FSP-P-24F |
|
Installation Method |
Wall-mounted or pole-mounted |
|
Color |
Gray |
|
Material |
PC+ABS |
|
Adapter Ports (SC) |
24 Pcs |
|
Capacity Of Splicing |
48 Cores |
|
Cable Ports |
4 Ports (For main cable) + 24 Ports (For drop cable) |
|
Size: H×W×D (mm) (Pic 1) |
330×270×105 |
Table 1 Model and configuration
