1、Description

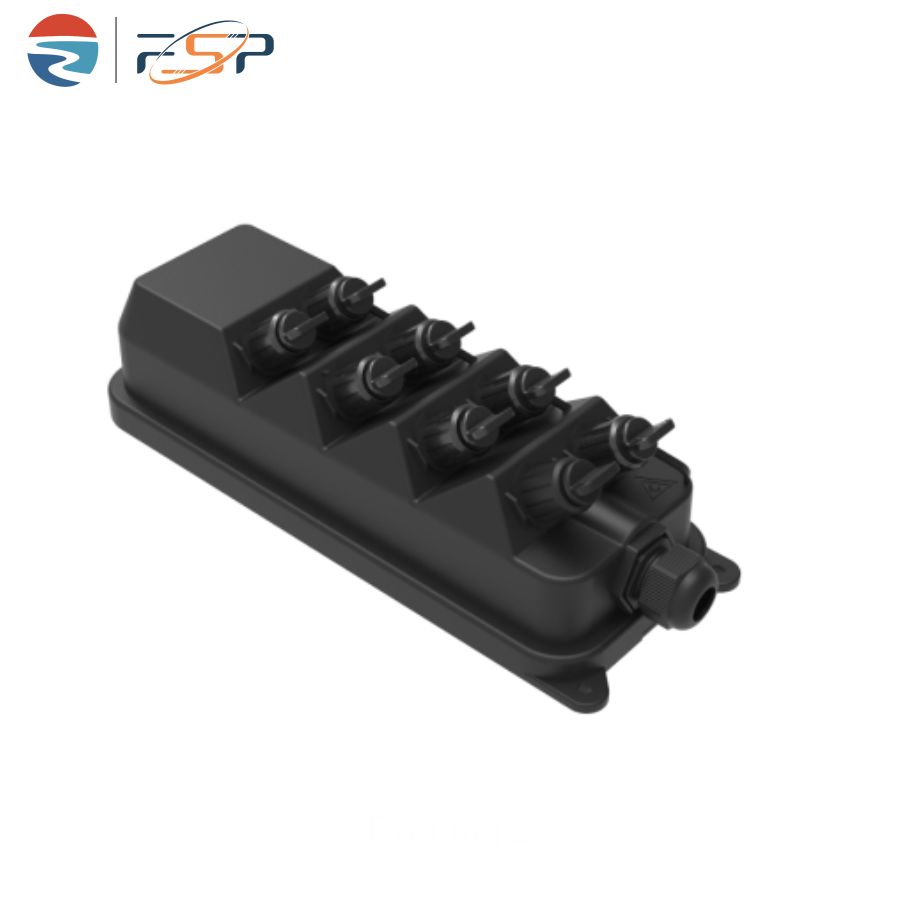

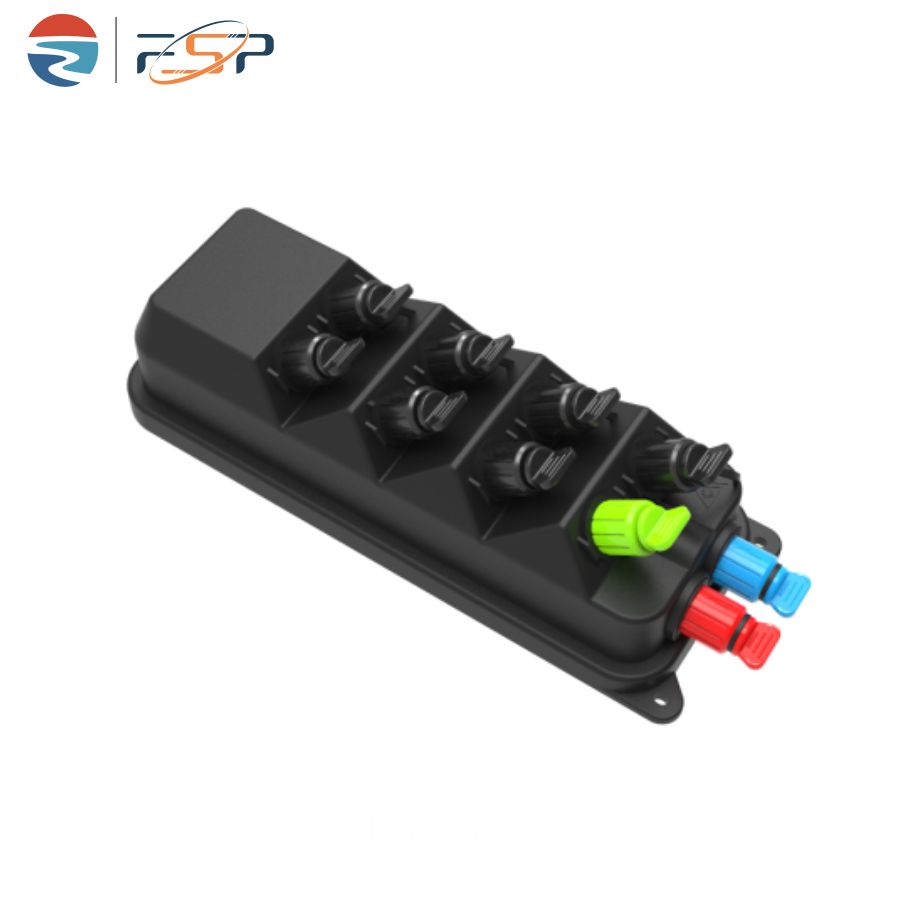

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
2、Applications Environment
|
Item |
Value |
|
Operation temperature |
-40 ºC～+65 ºC |
|
Installation temperature |
-5 ºC～+40 ºC |
|
Storage temperature |
-40ºC～+65 ºC |
|
Atmospheric pressure |
70～106Kpa |
|
Relative humidity |
≤93％(+40℃) |
3、Characteristics

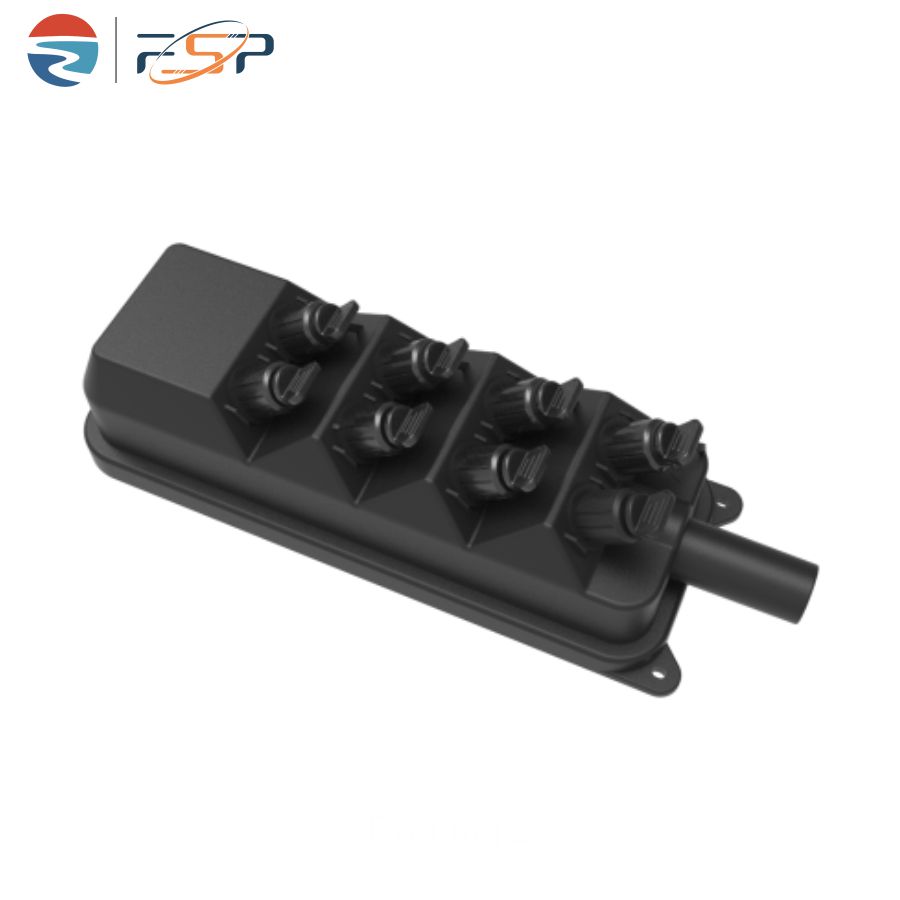

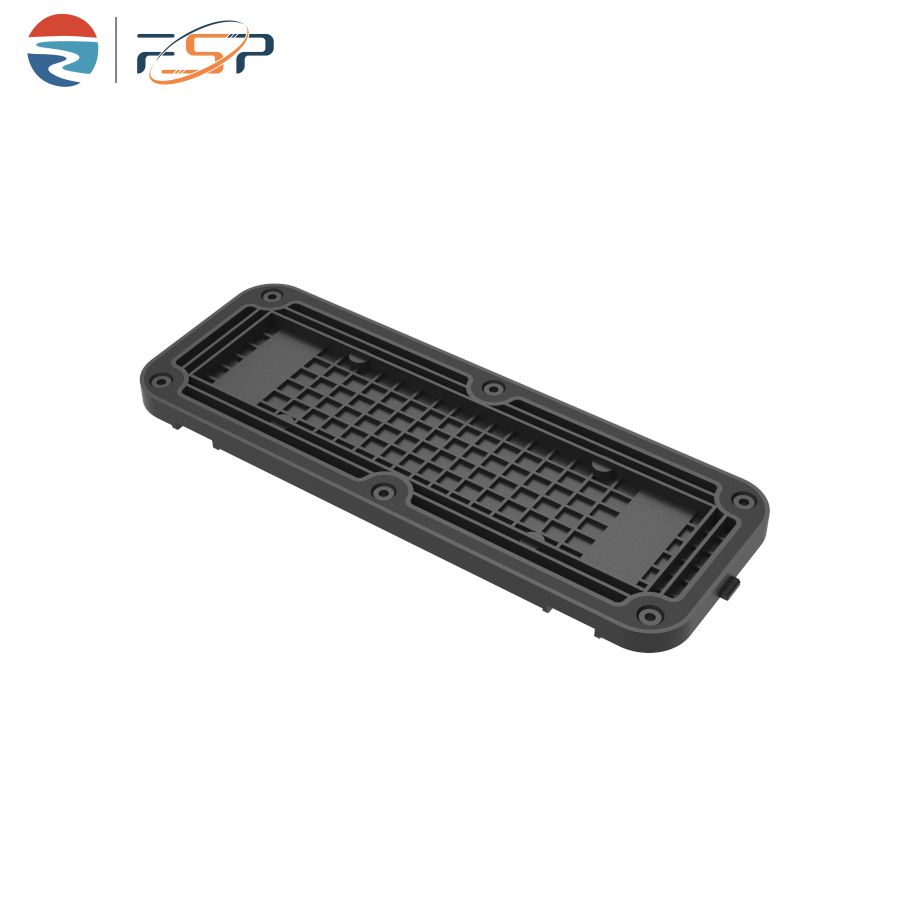

2.1.The bottom shell and the upper cover are fixed with screws,removable.
2.2. Material: PP.
2.3. Moisture proof, waterproof, dust-proof, anti-aging.
2.4. Protection level up to IP68.

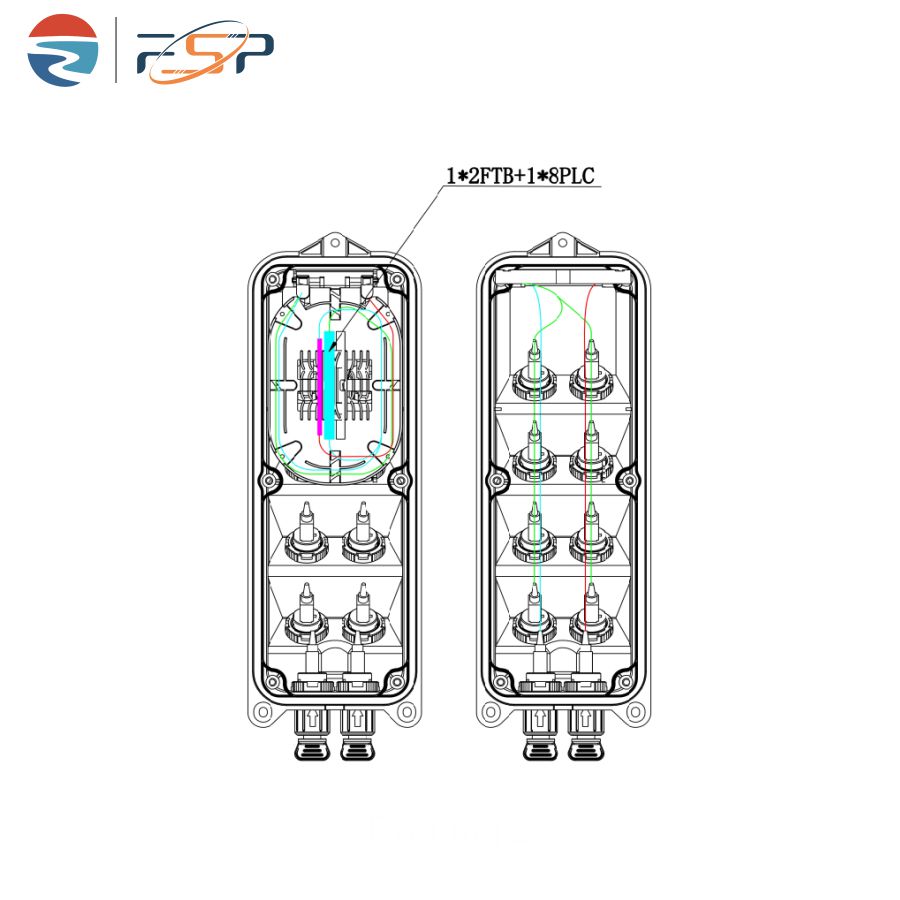

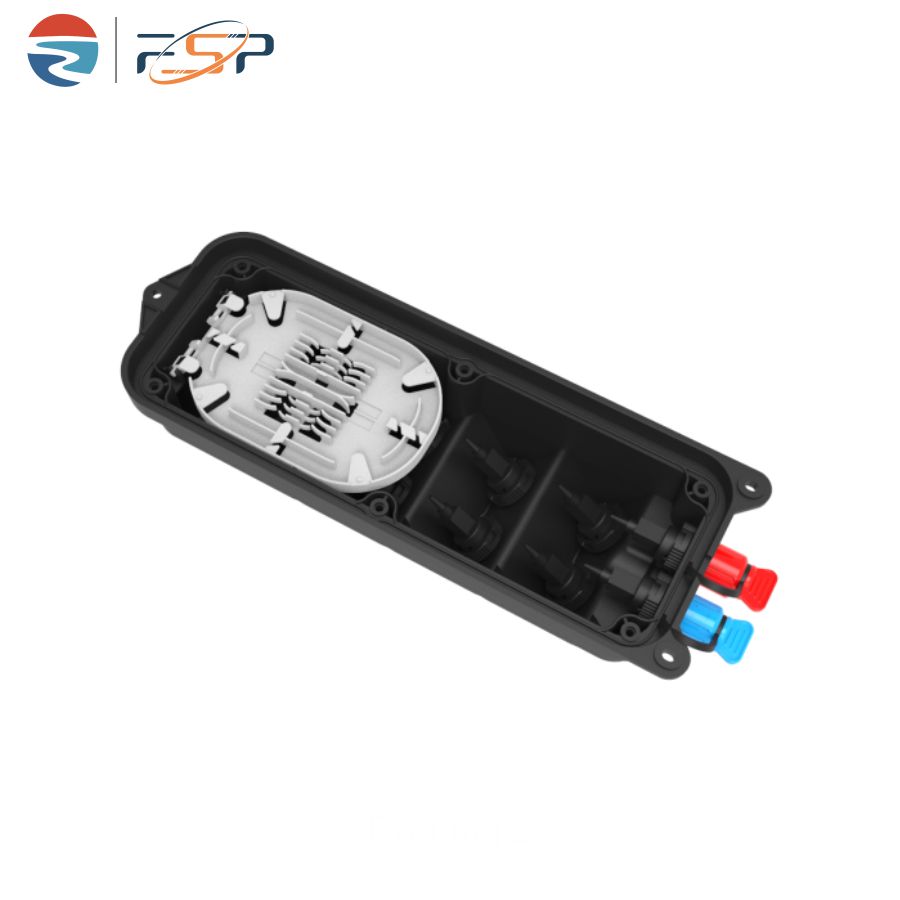

2.5. The interior is equipped with 1x2 FTB splitter+ 1x8 PLC splitter or 1x8 PLC splitter......

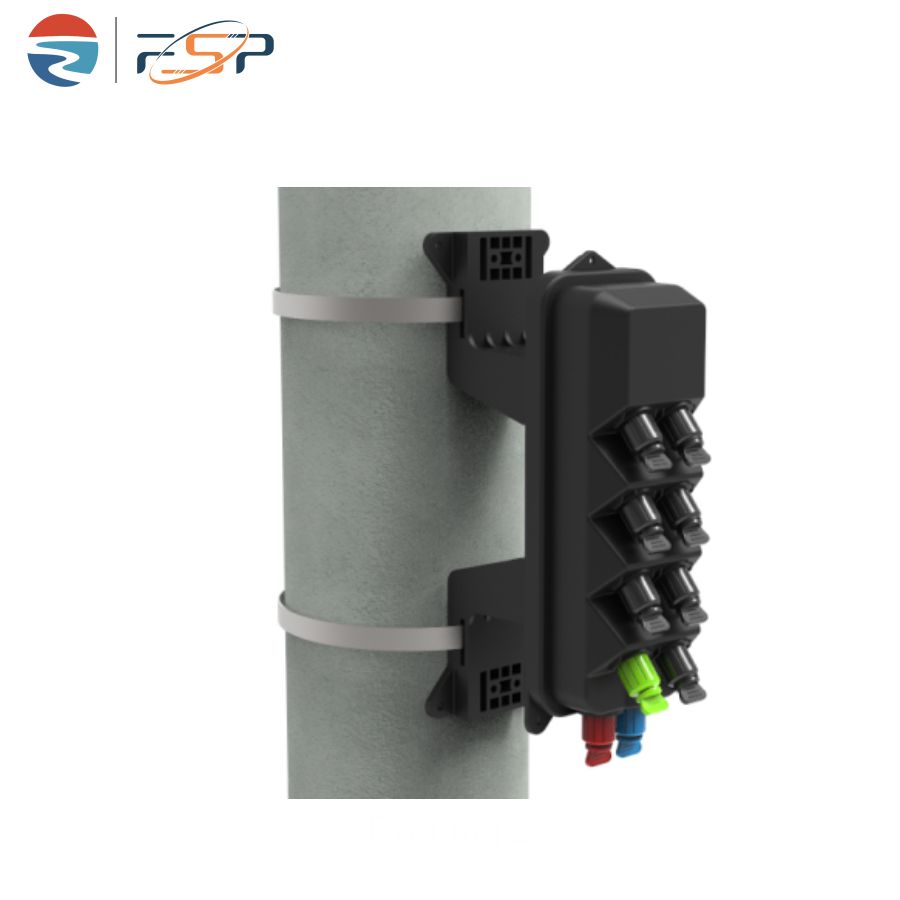

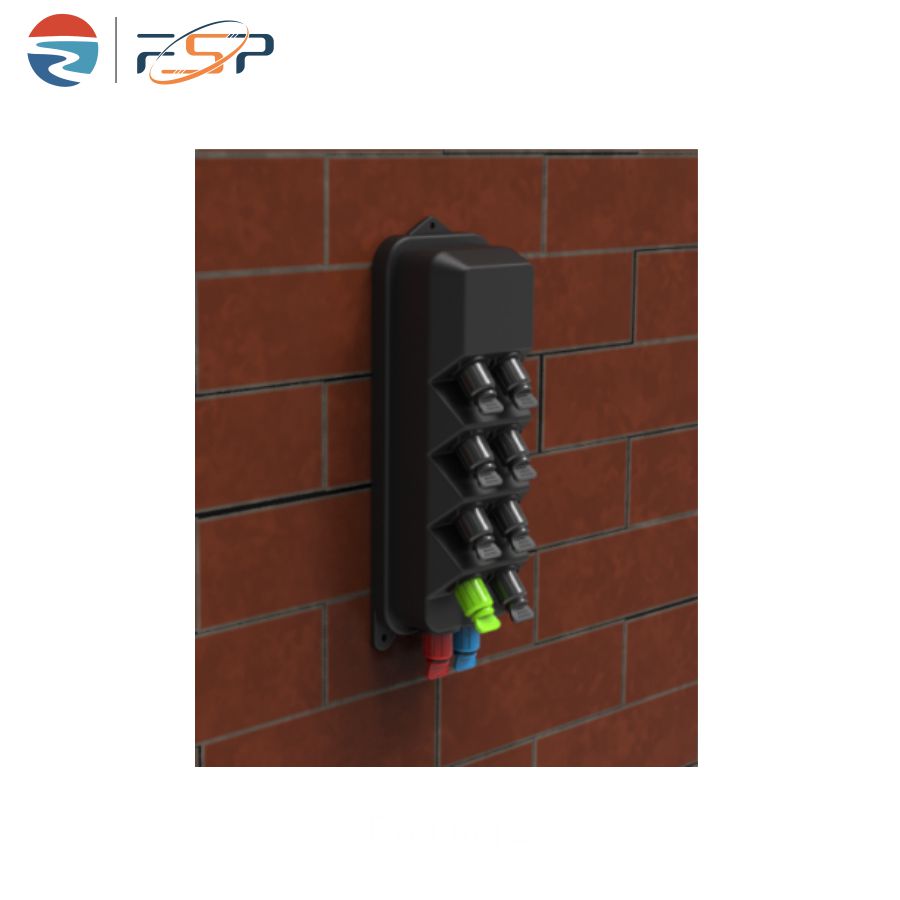

2.6. Installation method: pole-mounted, aerial-mounted, wall-mounted.
4、Mechanical specifications
|
Item |
Specifications |
Remark |
|
Material of housing |
Modified PP plastic |
|
|
Material of internal components |
PC+ABS/ABS |
|
|
Material of metal accessory |
High-quality stainless steel |
|
|

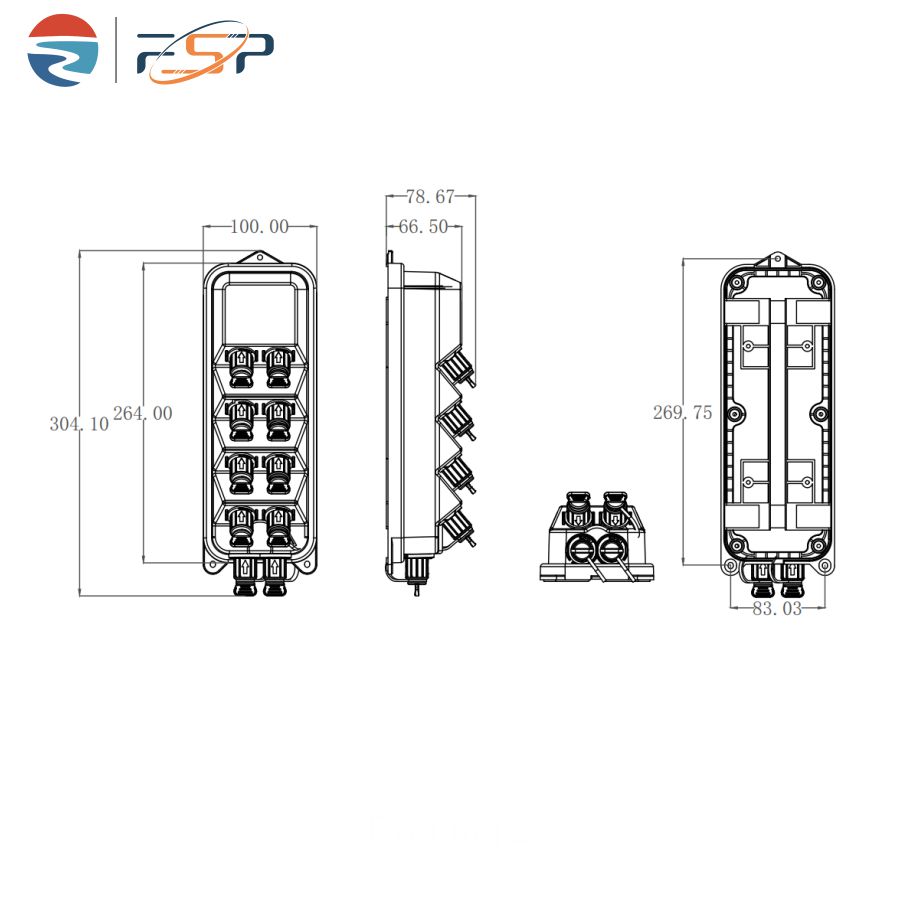

External dimension(mm) |
264*100*66.5mm |
|
|
Color |
Black |
|
|
Installation hole position(mm) |
270*83 |
|
|
Number of Pre-connectorized adaptors |
10 |
FSP-P-08-N(1 red,1blue,1green,7 black) |
|
9 |
FSP-P-08-N(1 red,8 black) |
|
|
8 |
FSP-P-08-N-1(8 black) |
|
|
8 |
FSP-P-08-N-2(8 black) |
|
|
Splitter |
1x2 FTB splitter+ 1x8 PLC splitter |
FSP-P-08-N |
|
1x8 PLC splitter |
FSP-P-08-N |
|
|
FSP-P-08-N-1 |
||
|
FSP-P-08-N-2 |
||
|
IP grade |
IP68 |
|
|
Flammability |
UL94-HB |
Default |
|
Neutral salt spray test (NSS) |
48h |
5、Main optical parameters
|
Splitter |
IL(dB) |
RL(dB) |
IL(dB) |
Test method |
|
|
Splitter |
Distribution box |
||||
|
Pigtail-SC/APC-00-SM-SX(1C1F)-OD0.9MM-PVC-G657A2-Cable Color(Defaults)-Indoor-RoHS-1.5m |
Pigtail |
≤0.3 |
≥55dB |
≤0.5 |
IL: IEC61300-3-4 Method B RL: IEC61300-3-6 Method 1 |
|
1x2 PLC Splitter, with SCAPC connector |
1* 2 PLC |
≤4.0 |
≥55dB |
≤4.2 |
|
|
1x4 PLC Splitter, with SCAPC connector |
1* 4 PLC |
≤7.4 |
≥55dB |
≤7.6 |
|
|
1x 8 PLC Splitter, with SCAPC connector |
1* 8 PLC |
≤10.5 |
≥55dB |
≤10.7 |
|
|
1x2 FTB(90/10) + 1x 8 PLC Splitter , with SCAPC connector |
1x2 FTB(90%) |
≤0.83 |
≥55 |
≤1.03 |
|
|
1x2 FTB (10%) +1x8 PLC |
≤21.7 |
≥55 |
≤21.9 |
||
|
1x2 FTB(80/20) + 1x 8 PLC Splitter , with SCAPC connector |
1x2 FTB(80%) |
≤1.4 |
≥55 |
≤1.6 |
|
|
1x2 FTB(20%) +1x8 PLC |
≤18.3 |
≥55 |
≤18.5 |
||
|
1x2 FTB(70/30) + 1x 8 PLC Splitter , with SCAPC connector |
1x2 FTB(70%) |
≤2.1 |
≥55 |
≤2.3 |
|
|
1x2 FTB(30%) +1x8 PLC |
≤16.5 |
≥55 |
≤16.7 |
||
|
1x2 FTB(60/40) + 1x 8 PLC Splitter , with SCAPC connector |
1x2 FTB(60%) |
≤2.8 |
≥55 |
≤3.0 |
|
|
1x2 FTB(40%) +1x8 PLC |
≤15.2 |
≥55 |
≤15.4 |
||
|
1x2 FTB(50/50) + 1x 8 PLC Splitter , with SCAPC connector |
1x2 FTB(50%) |
≤3.8 |
≥55 |
≤4.0 |
|
|
1x2 FTB (50%) +1x8 PLC |
≤14.3 |
≥55 |
≤14.5 |
||
