1、Description：

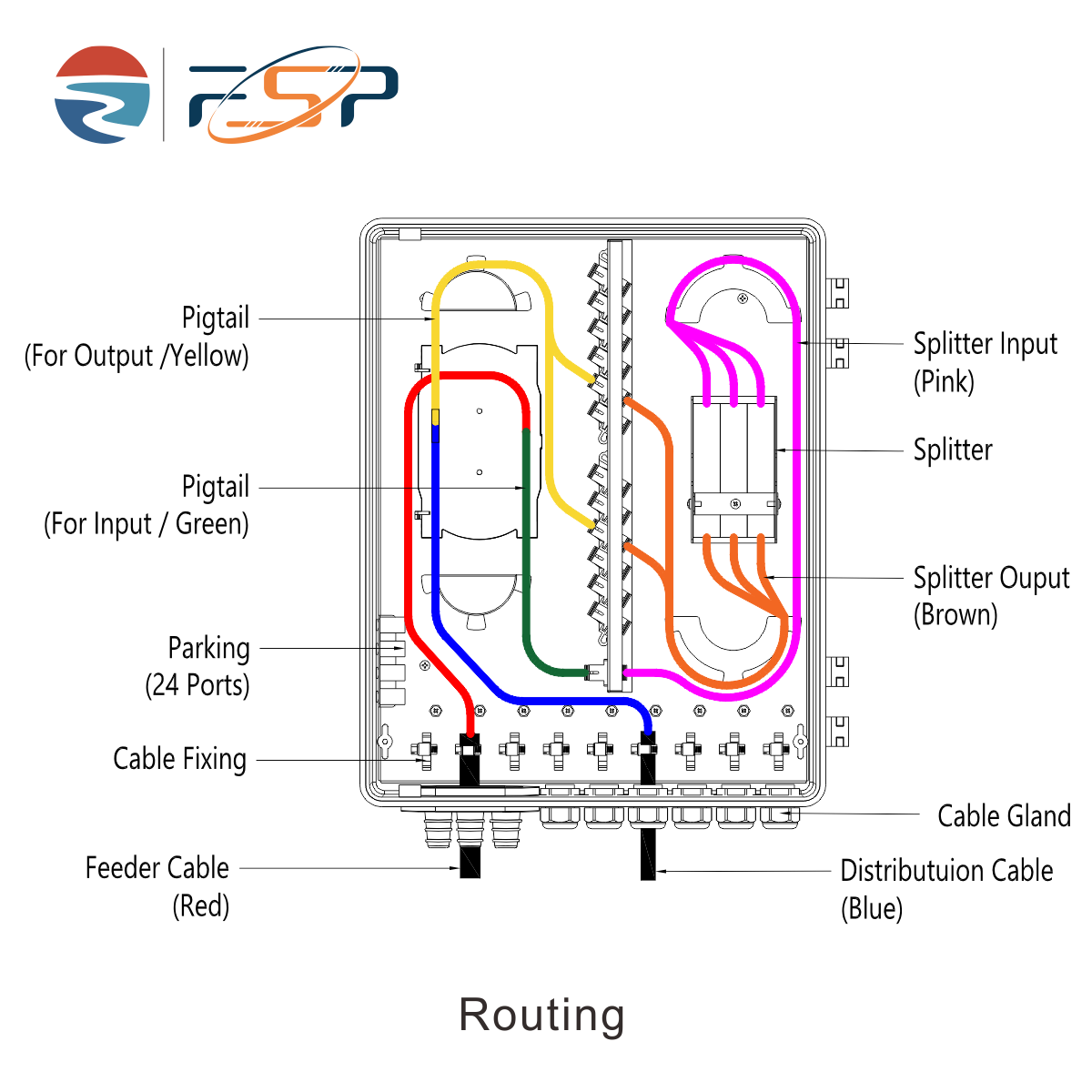

FSP-SM-48A Fiber Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building.
2、Specification：
1) 48 cores fibre termination capacity

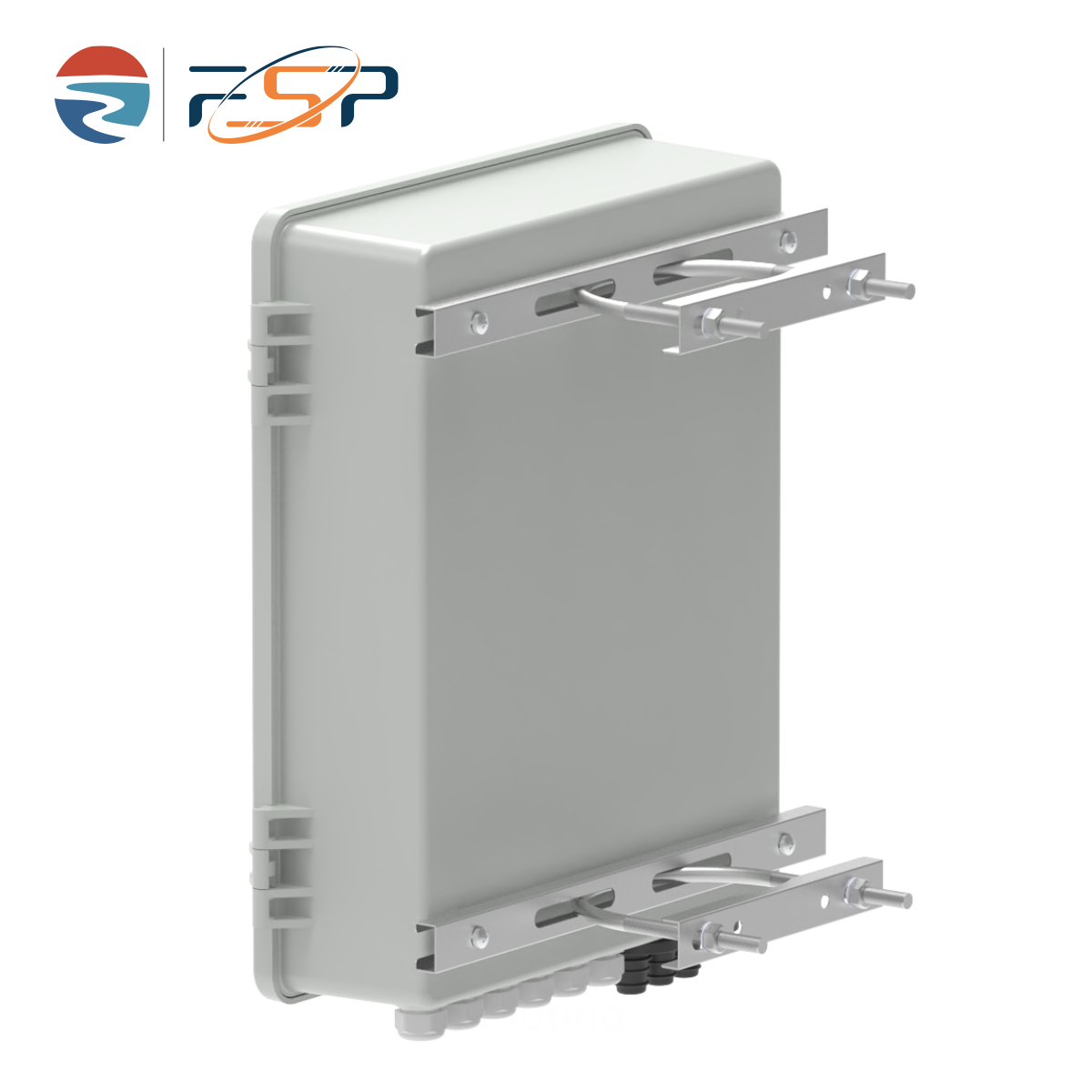

2) Support wall , pole mount.
3) Protection Grade : IP65
4) All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
| Model | FSP-SM-48A |

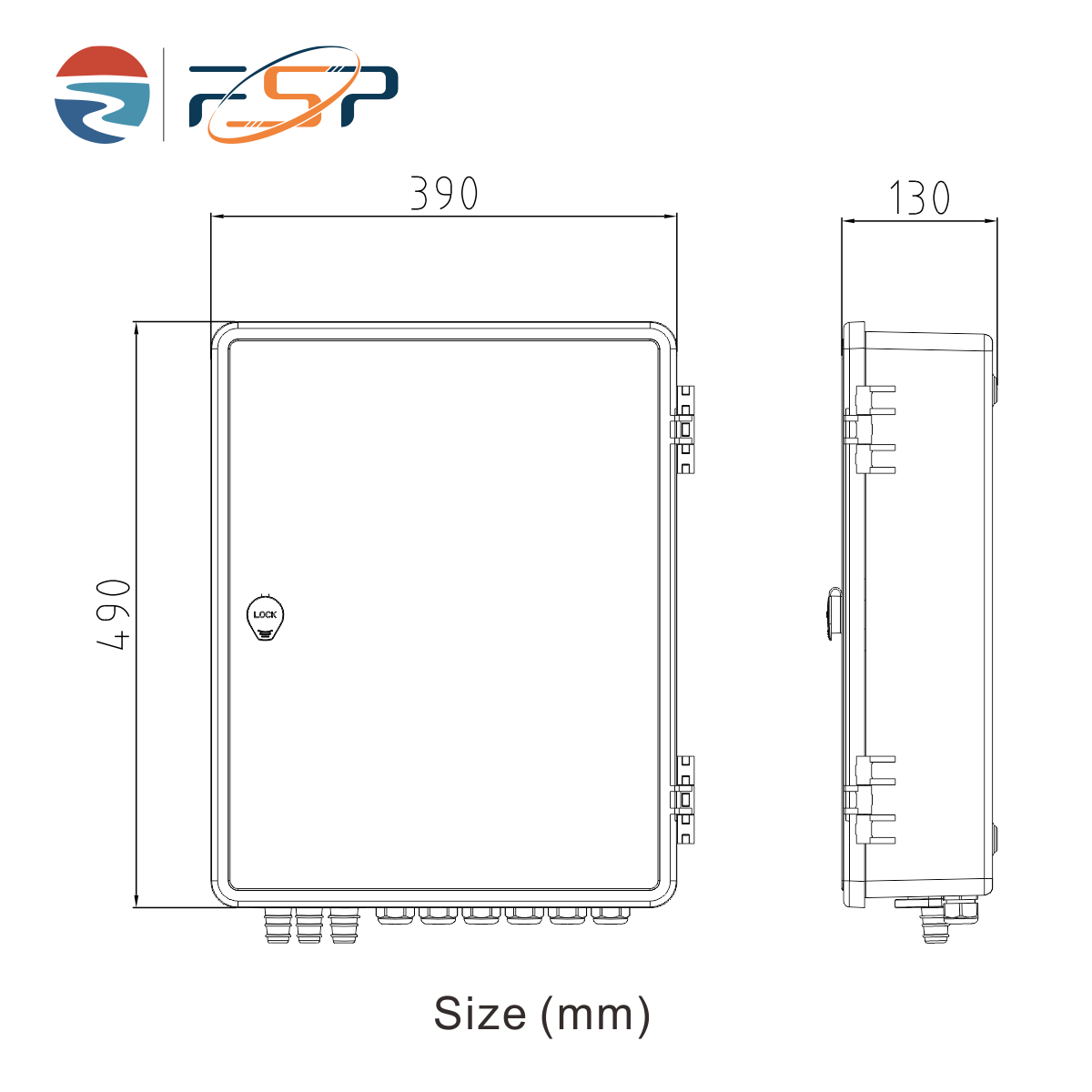

| Size | H×W×D = 490×390×130 (MM) |
| Material | SMC & Stainless Steel |
| Color | Gray (Default 7035 ) |
| Cable Entry | 13 Ports |
| Splice Capacity | 48 Cores （Up to 72 Cores） |
| Adaptor Port | 54 Ports |
| Minimum fiber bending | ≧ 30mm |
| Splitter Type | Box Type |
| Installation Method | Wall / Pole-mounted |
