1、Description

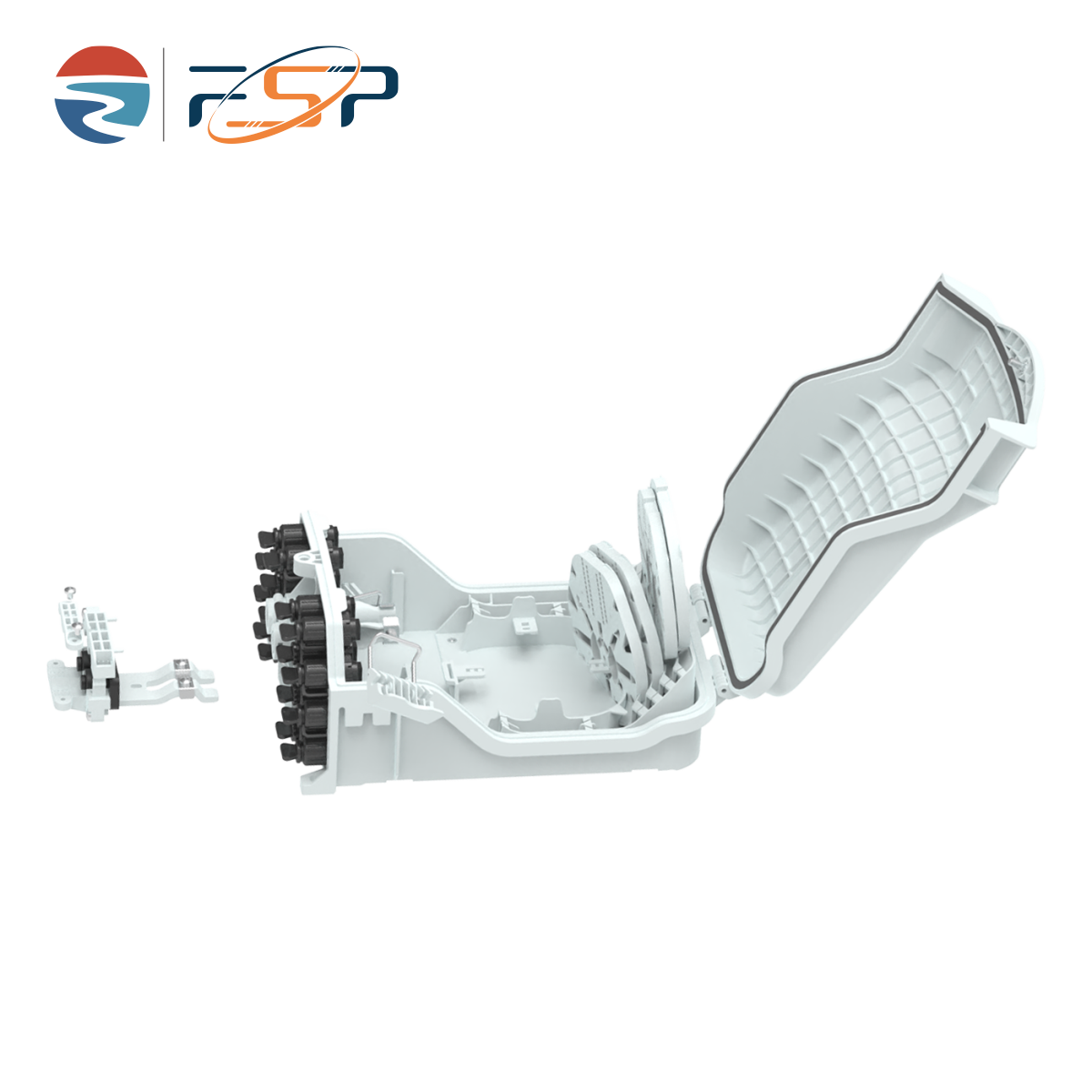

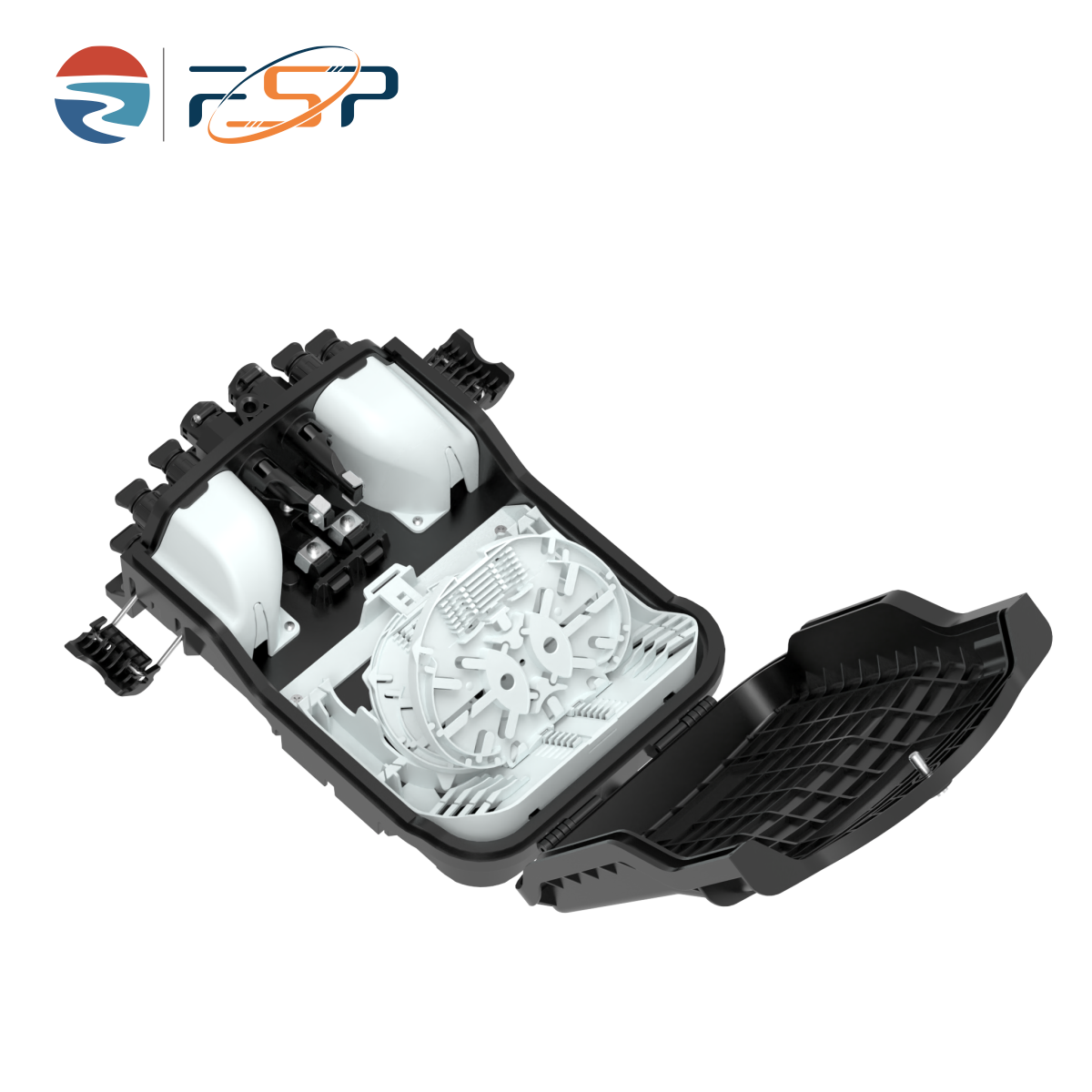

FSP-P-05 Series Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2、Specification
1) Anti-UV (Ultraviolet)
2) Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
3) Total enclosed structure, protection class: IP65
4) Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
| Model | FSP-P-05 Series |
| Installation Method | Wall-mounted or Pole-mounted |
| Color | Black / White / Gray |
| Material | PC+ABS |
| Splitter Type | Mini PLC |
| Working Temperature | -40℃～+85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa~106Kpa |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥50 dB( UPC) ; ≥60 dB(APC) |
| Model | FSP-P-05-8 | FSP-P-05-16 |

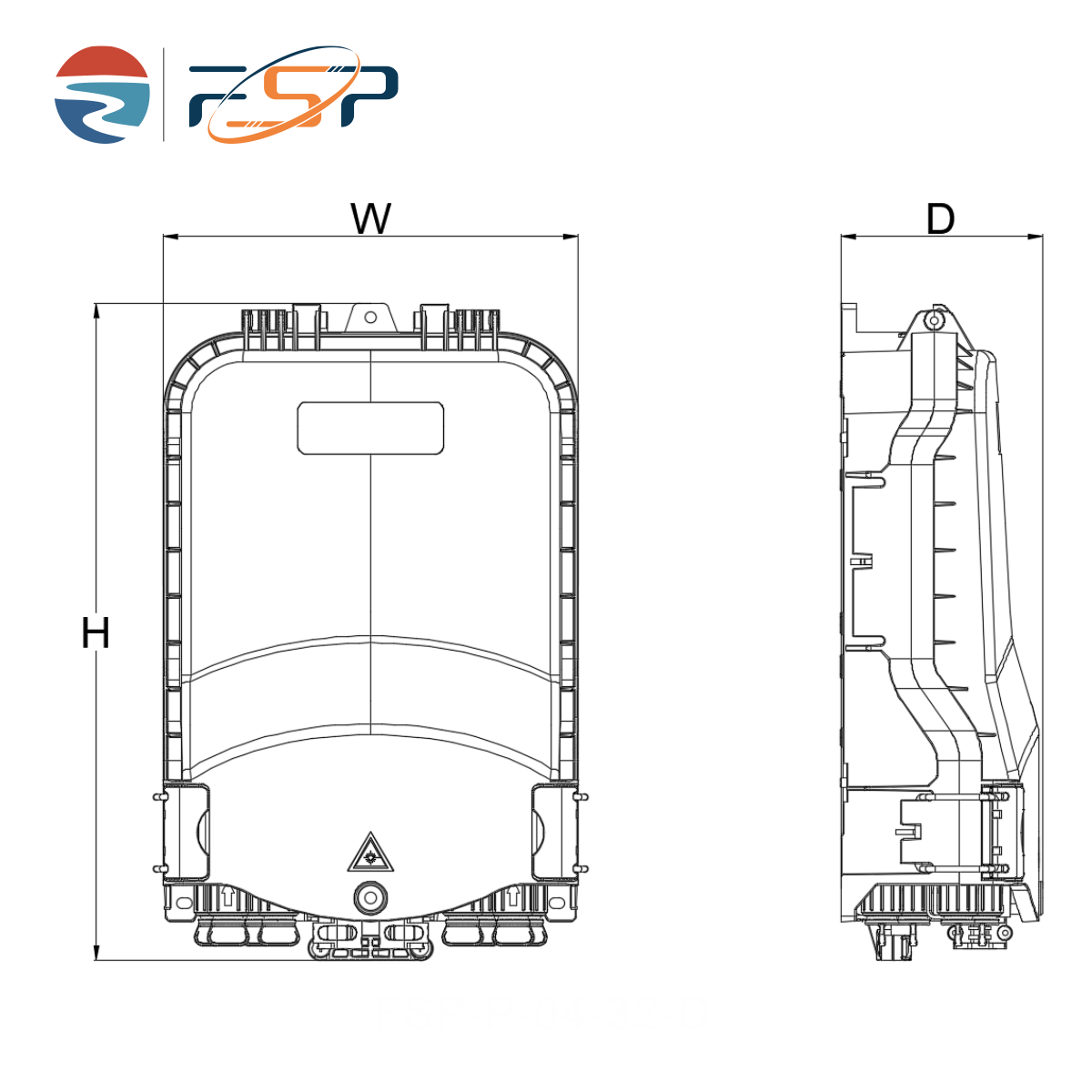

| Size (Pic 1) | 316×200×97 (MM) | 316×214×133 (MM) |
| Splice Capacity | 24 Cores | 36 Cores |
| Adaptor Capacity | 8 Ports | 16 Ports |
| Incoming Cable Port | 4 Ports | 4 Ports |
| Outcoming Cable Port | 8 Ports | 16 Ports |

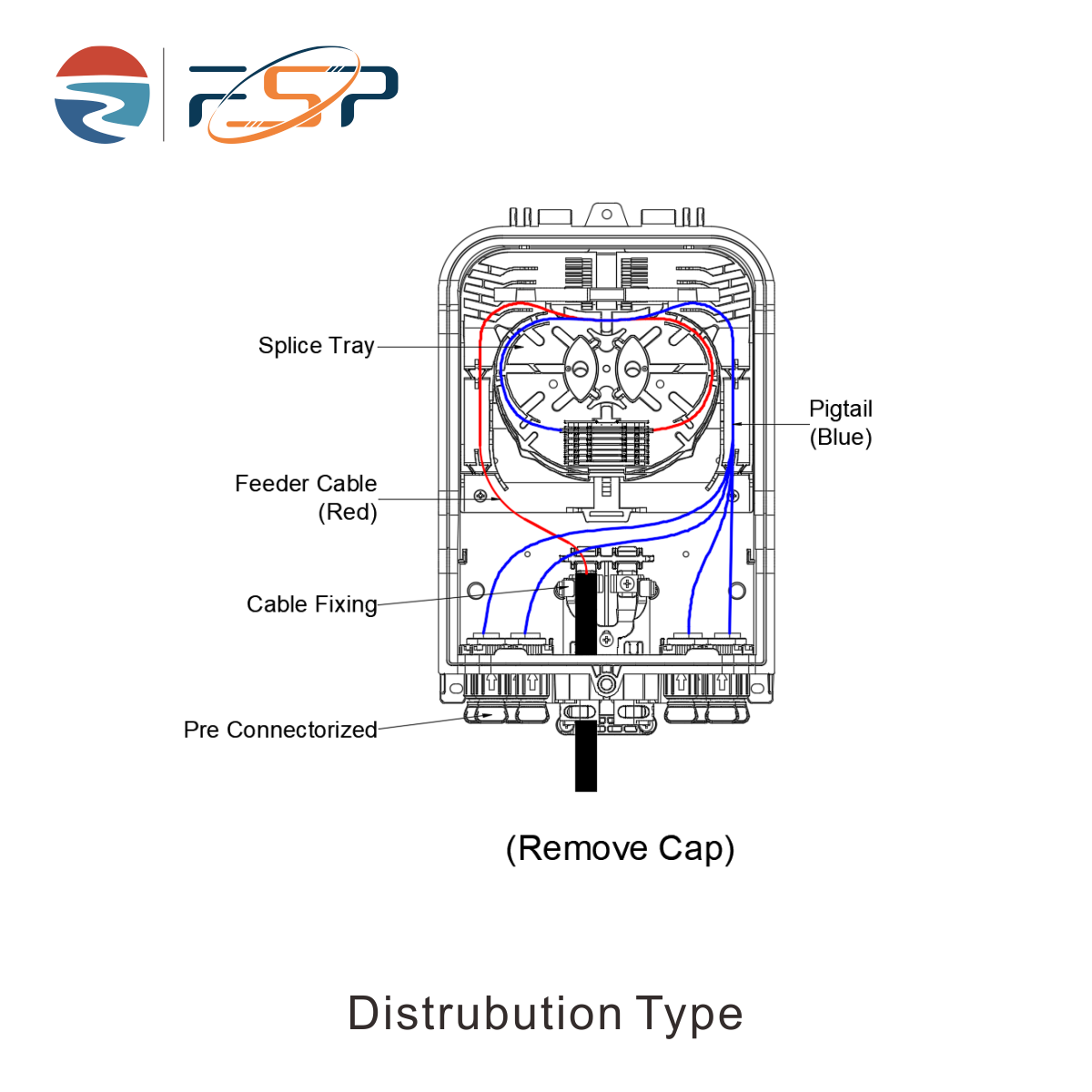

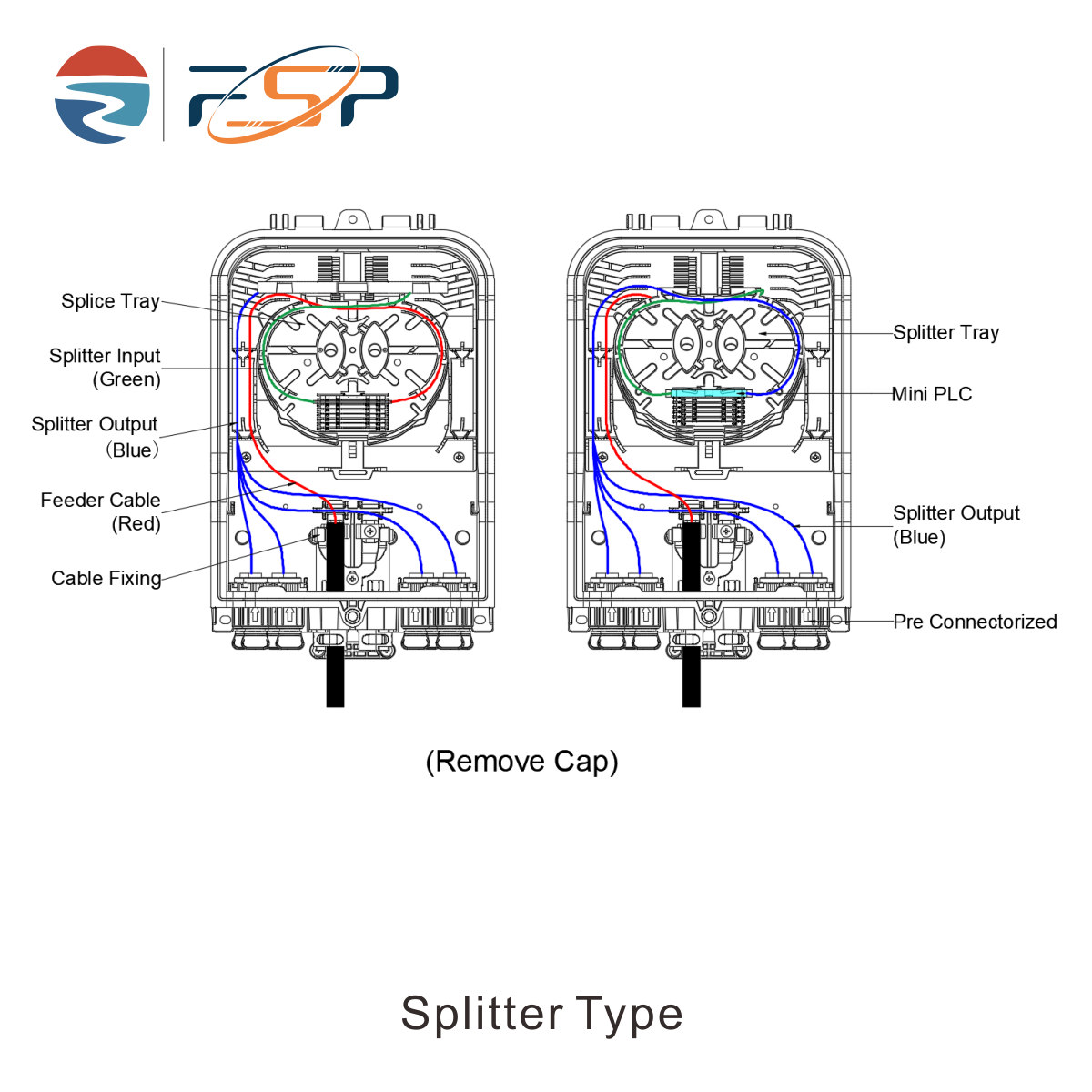

5、Routing
