1、Description

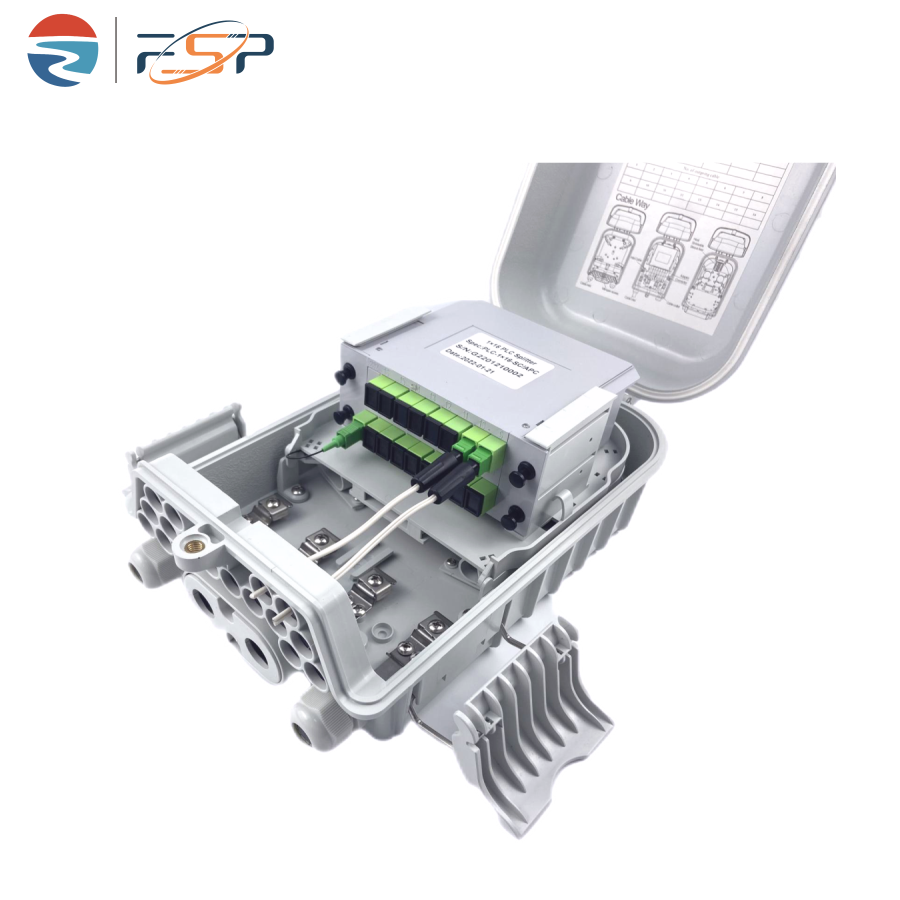

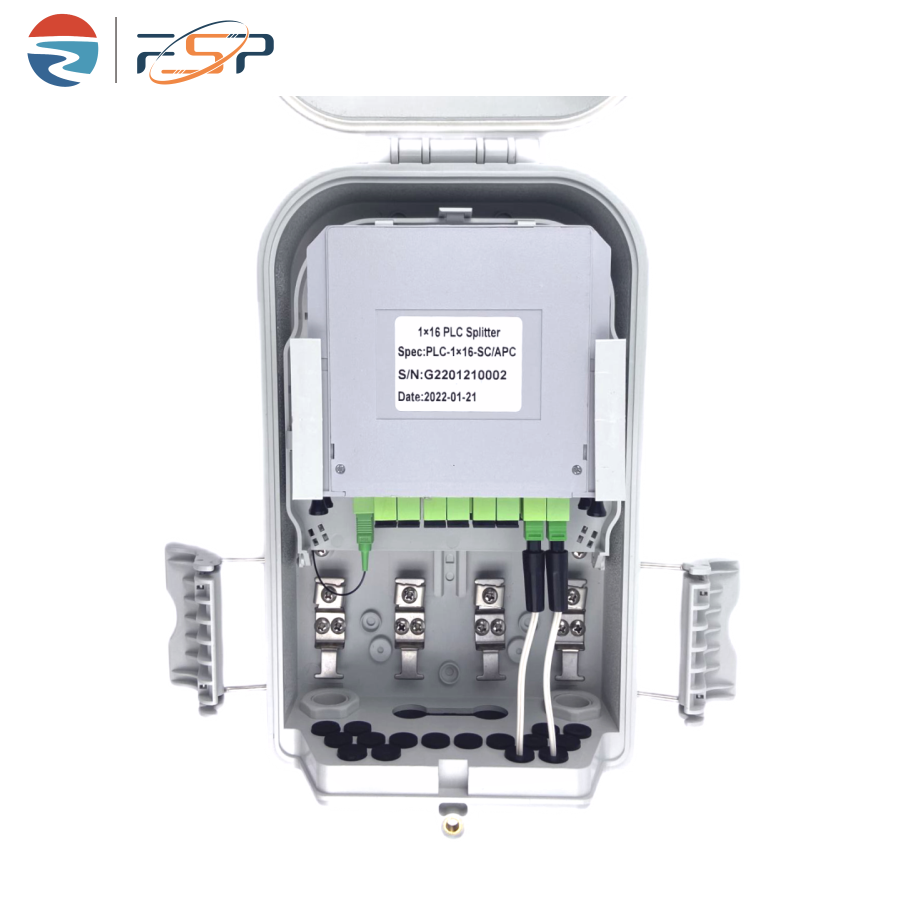

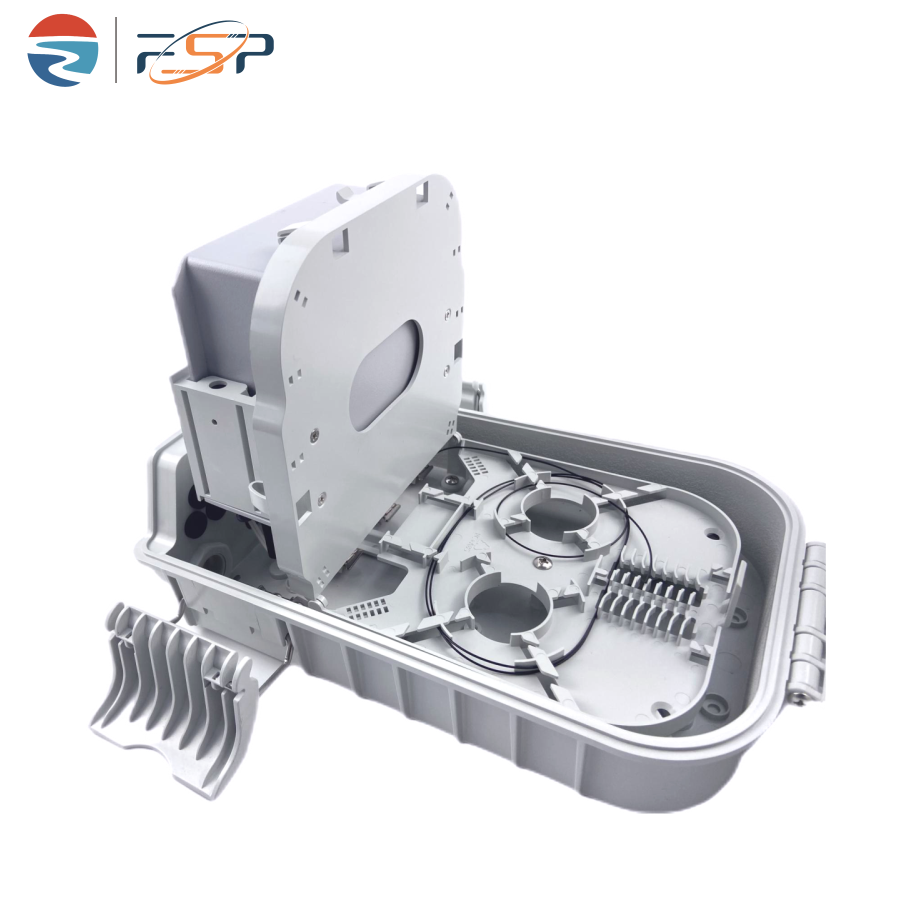

 FSP-P-16-Q Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1) For connection and distribution of fiber optic terminals.

2) Independent routing channels for easy maintenance and management.

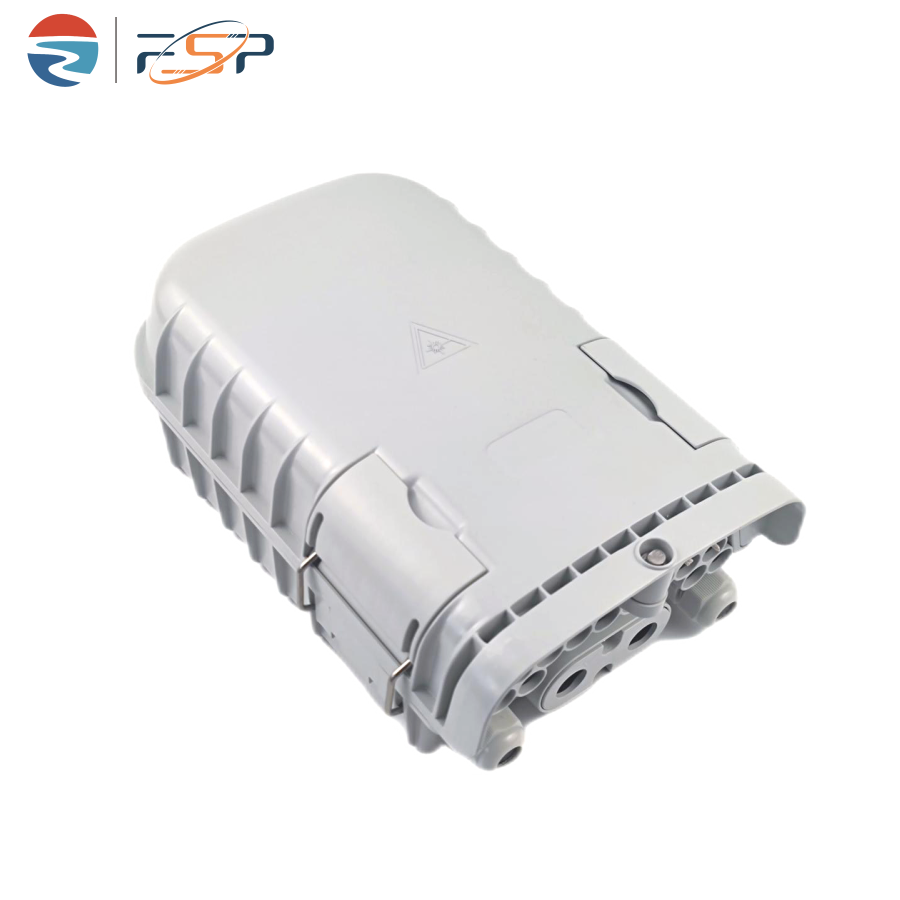

3) Enclosed structure,excelent protection grade(IP65).

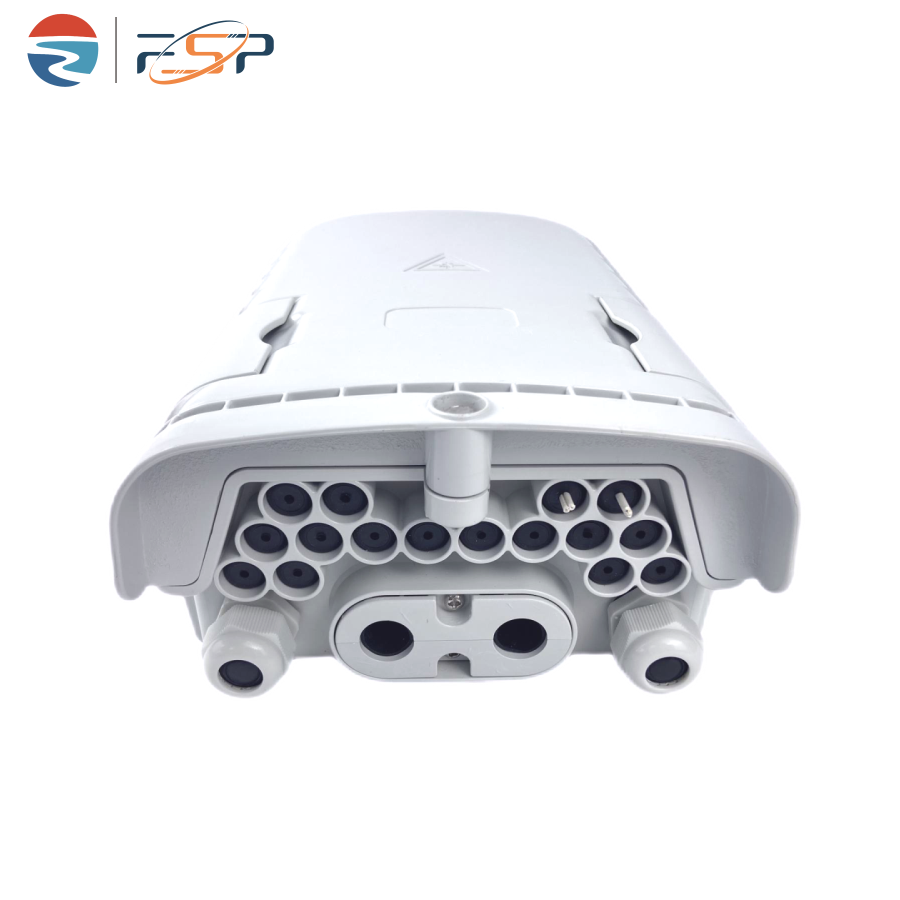

4) Four incoming cable ports,uncut cable is possible,can support cables with  no more than 12mm diameter

5) 16 outgoing dropcable ports,suitable for fast connectors.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

4、Configuration Table

Table 1 Model and configuration
