1、Description

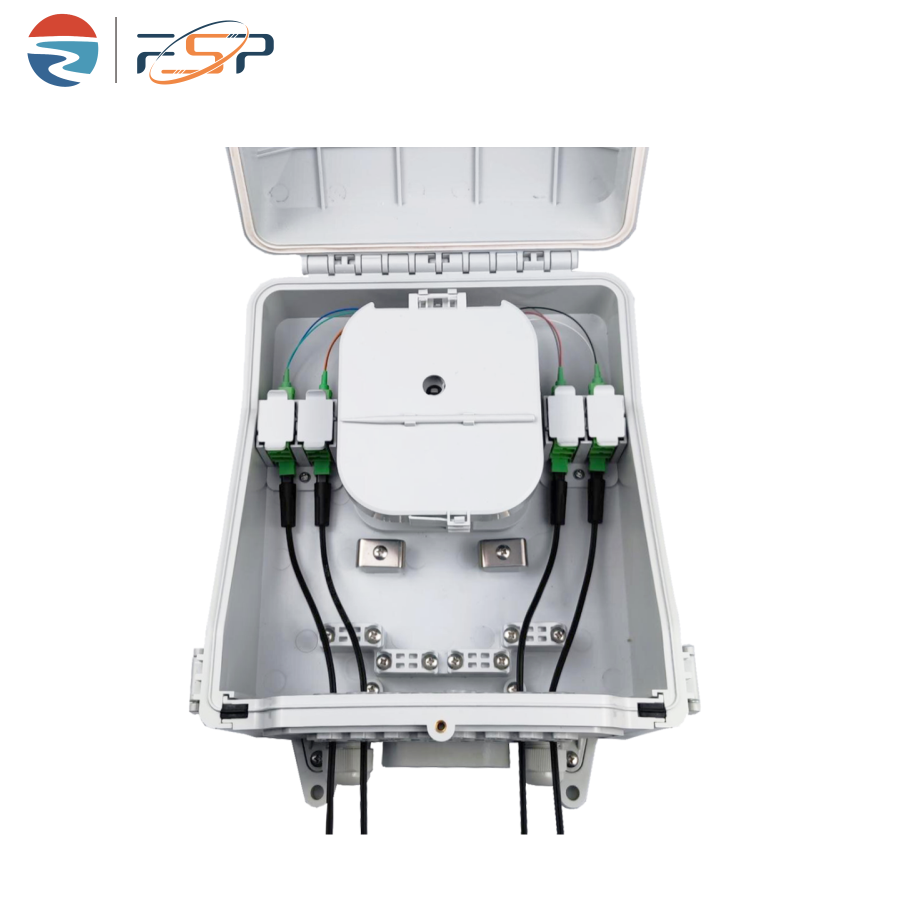

FSP-P-16-M Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1) The cable entry uses cable gland to provide protection at the bottom.

2) 16 cores fibre termination capacity

3) Support wall / pole mount.

4) Protection Grade : IP65

5) All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

4、Configuration Table

Table 1 Model and configuration
