1、Description

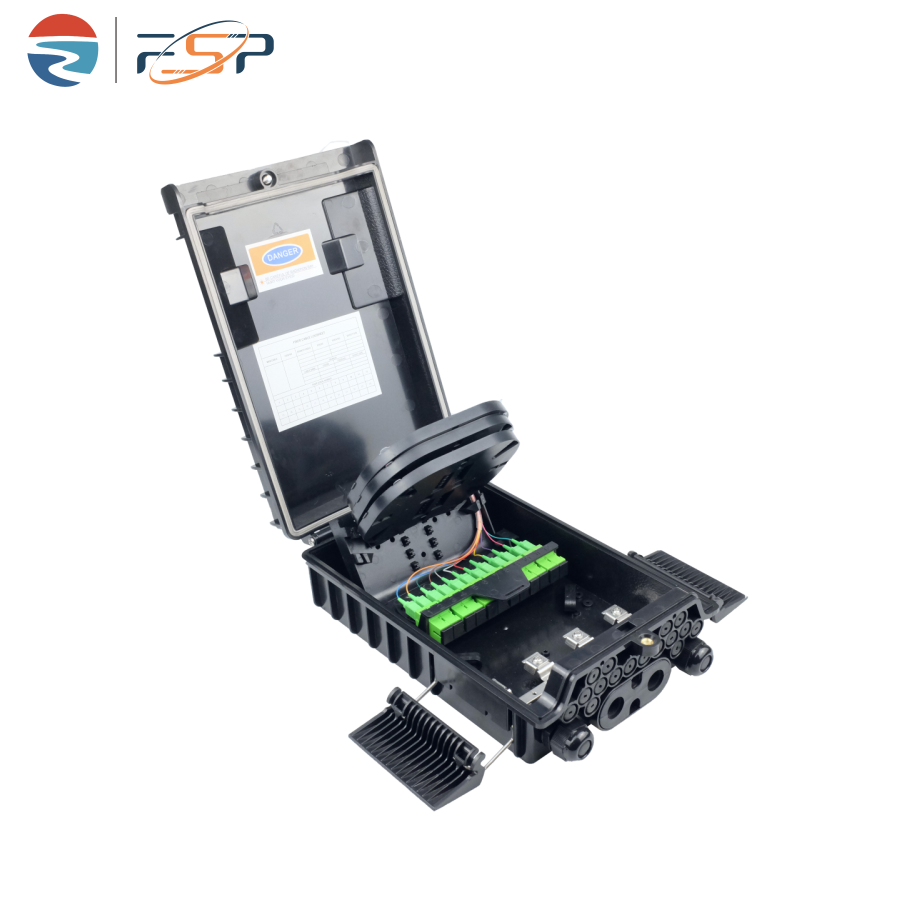

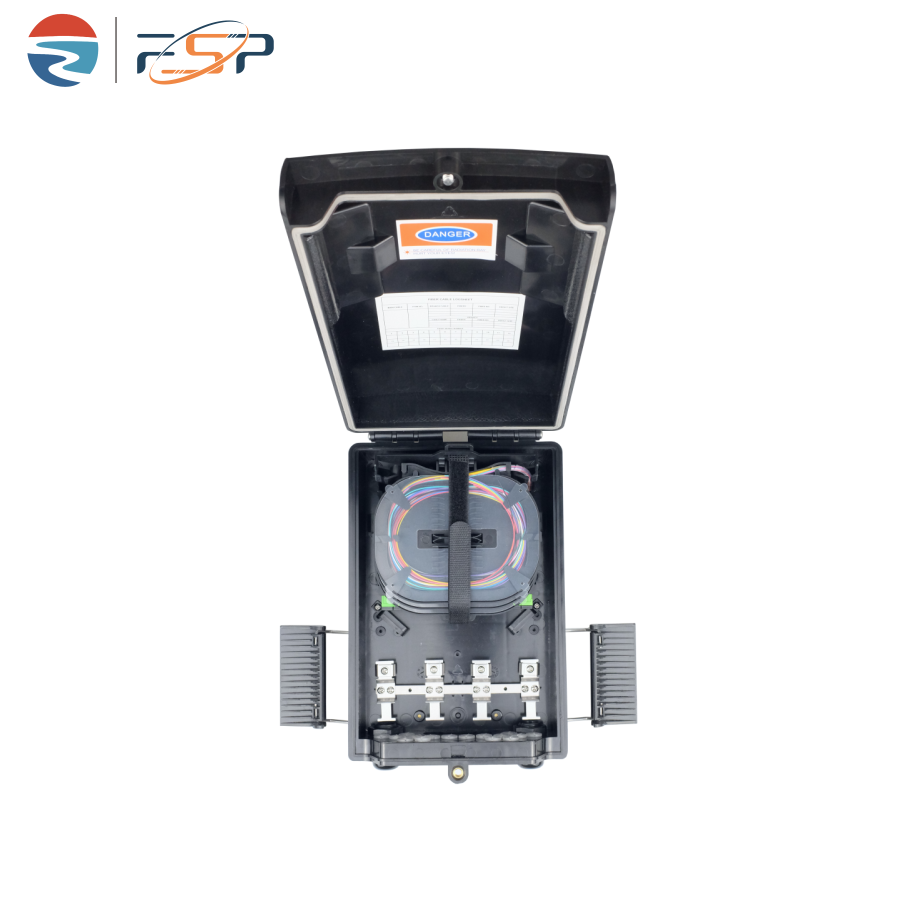

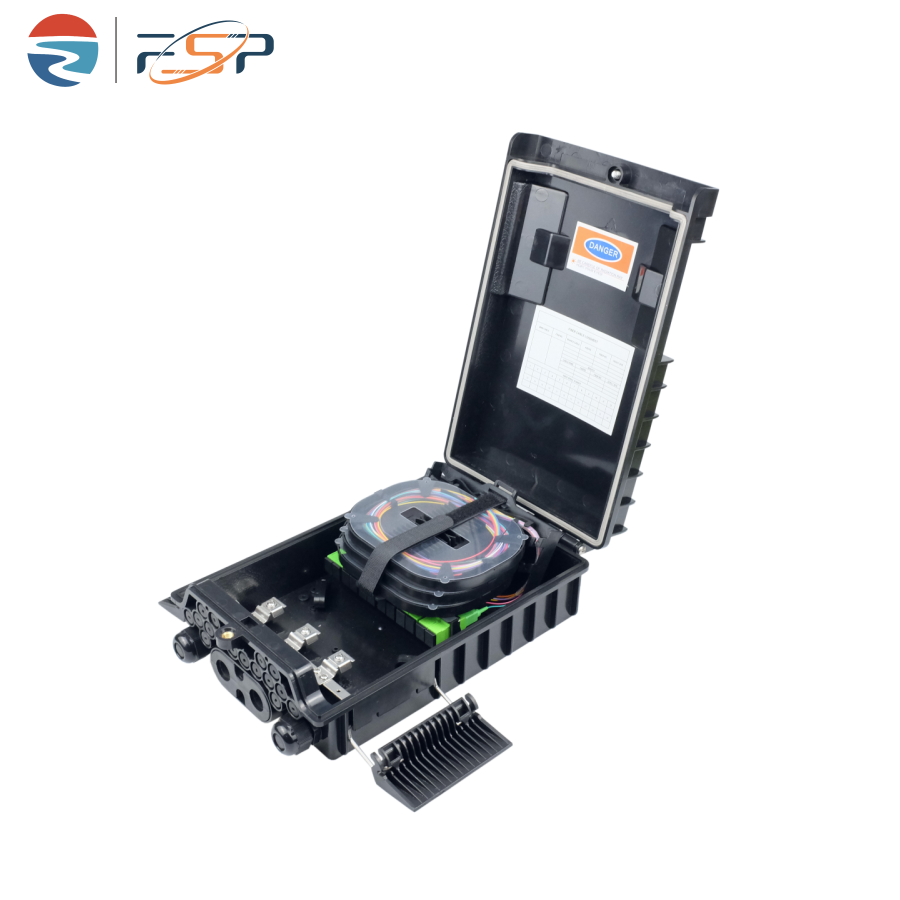

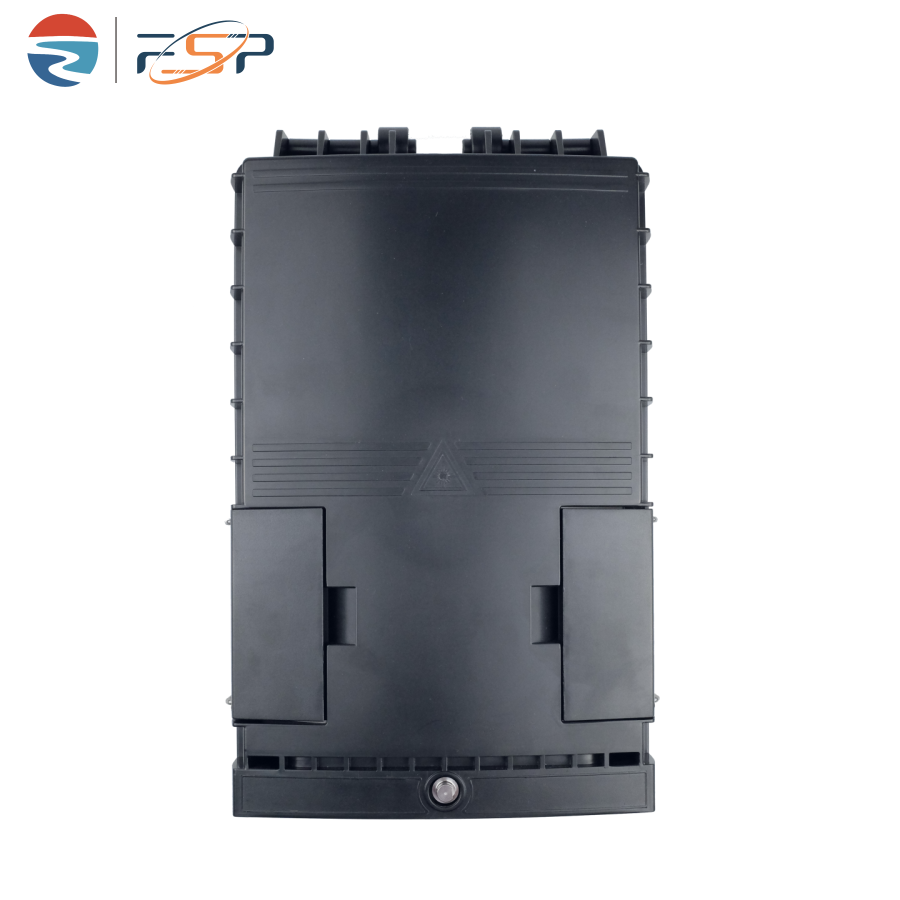

FSP-P-12-C Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1) For connection and distribution of fiber optic terminals.

2) Total enclosed structure,excellent protection effect.

3) Independent routing channels for easy maintenance and management.

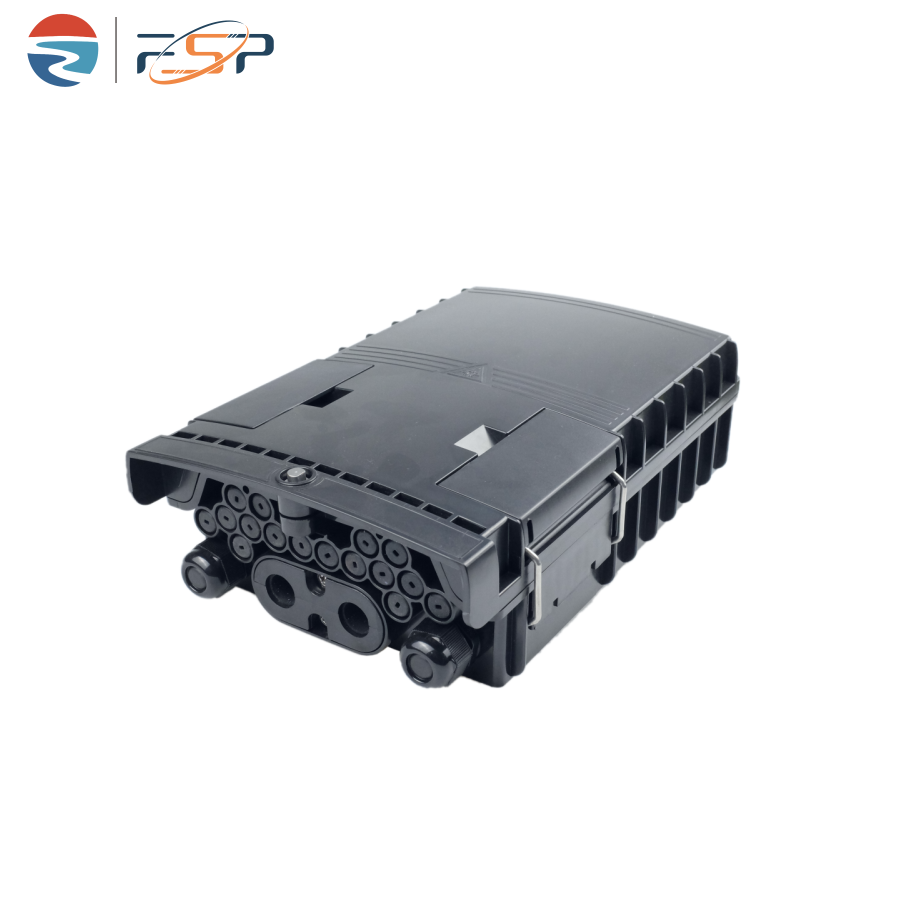

4) Four incoming cable ports, cables can be uncut connected ,compatible with cables with maximum diameter of 16 mm.

5) 12 outcoming cable ports, suitable for connection of fast connector.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

4、Configuration Table

Table 1 Model and configuration
