1、Description

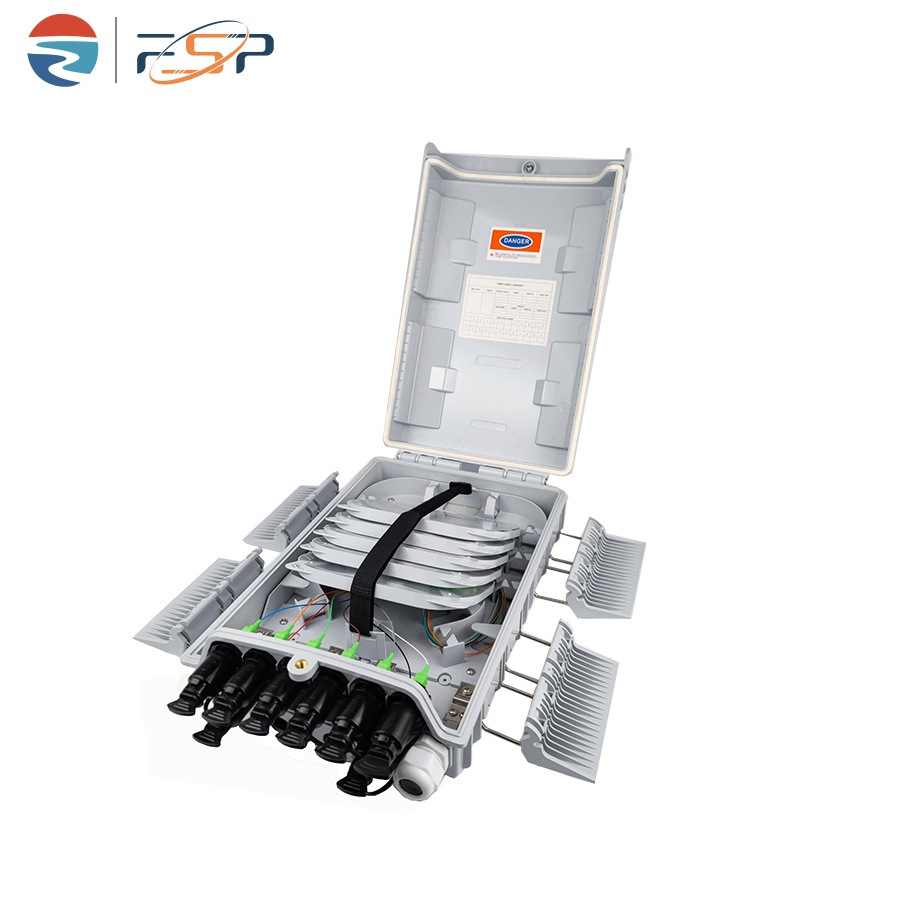

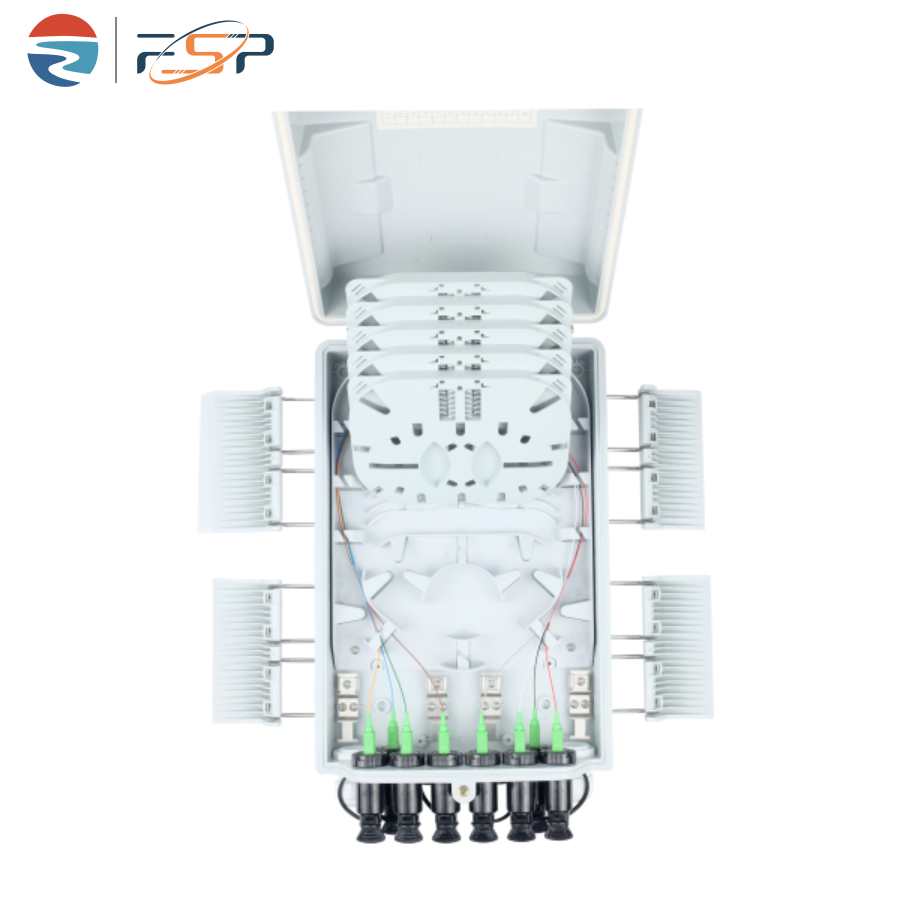

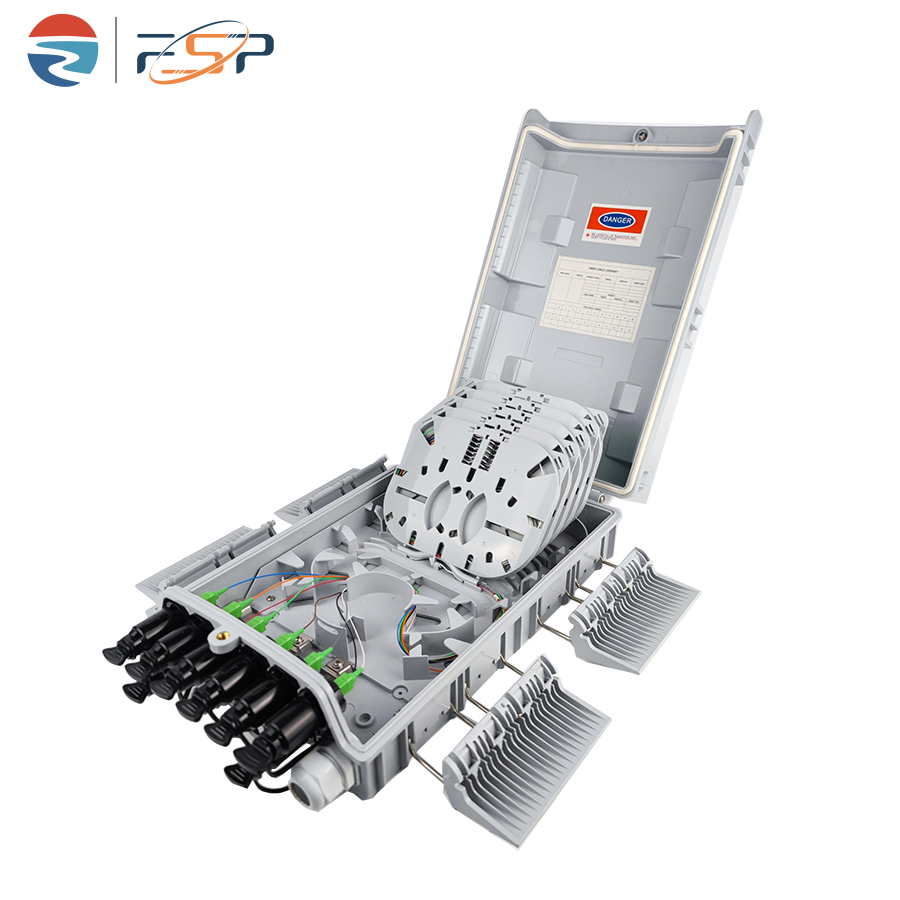

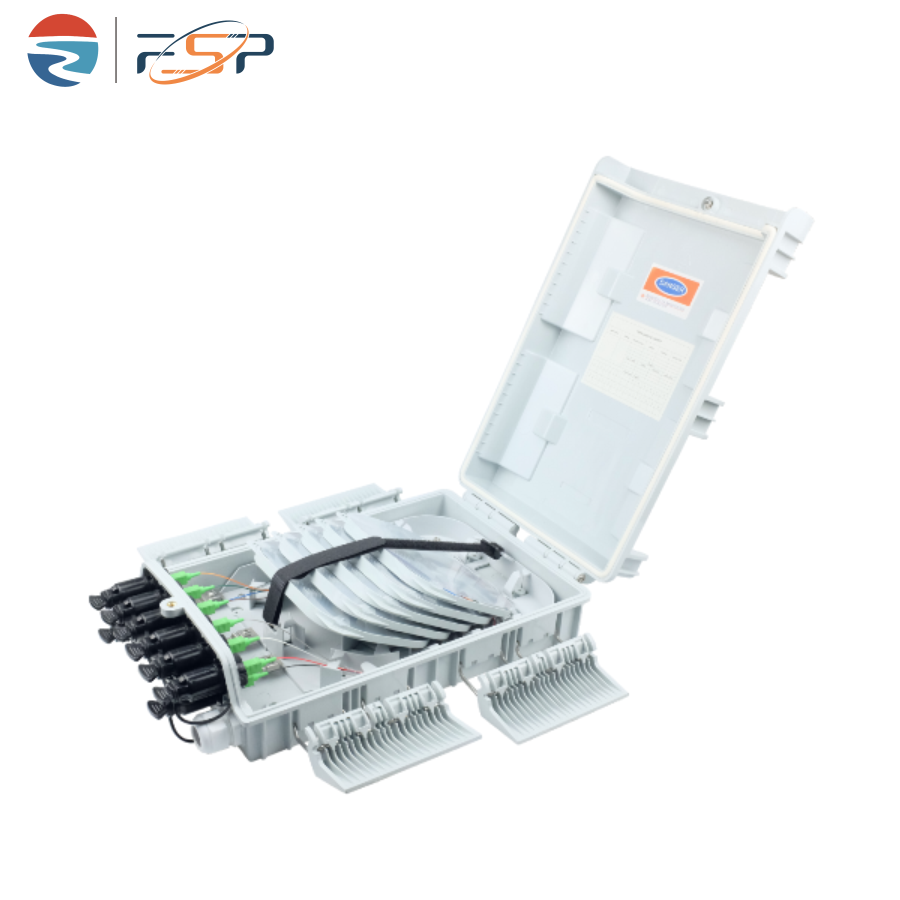

FSP-P-08-H Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1)Split optical connection for fiber optic network terminal.

2)Prefabricated adaptors and splitters , easy maintenance.

3)Large capacity optical cable  connection.

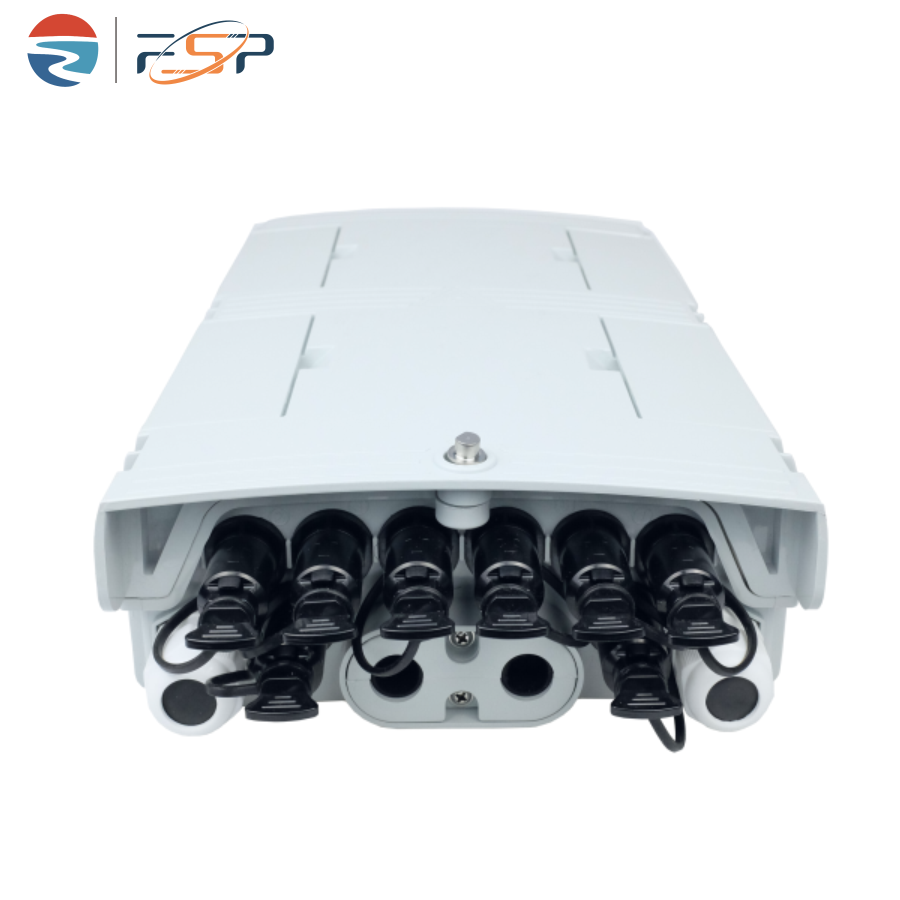

4)4 incoming cable port ,compatible with cables with maximum diameter of 16 mm.

5)8 outcoming cable ports ( prefabricated connector).

3、Applications

1) FTTHaccess network

2) Telecommunication network

3) CATV networks

4) Datacommunications network

5) Localarea networks

4、Configuration Table

Table 1 Model and configuration
