1、Description

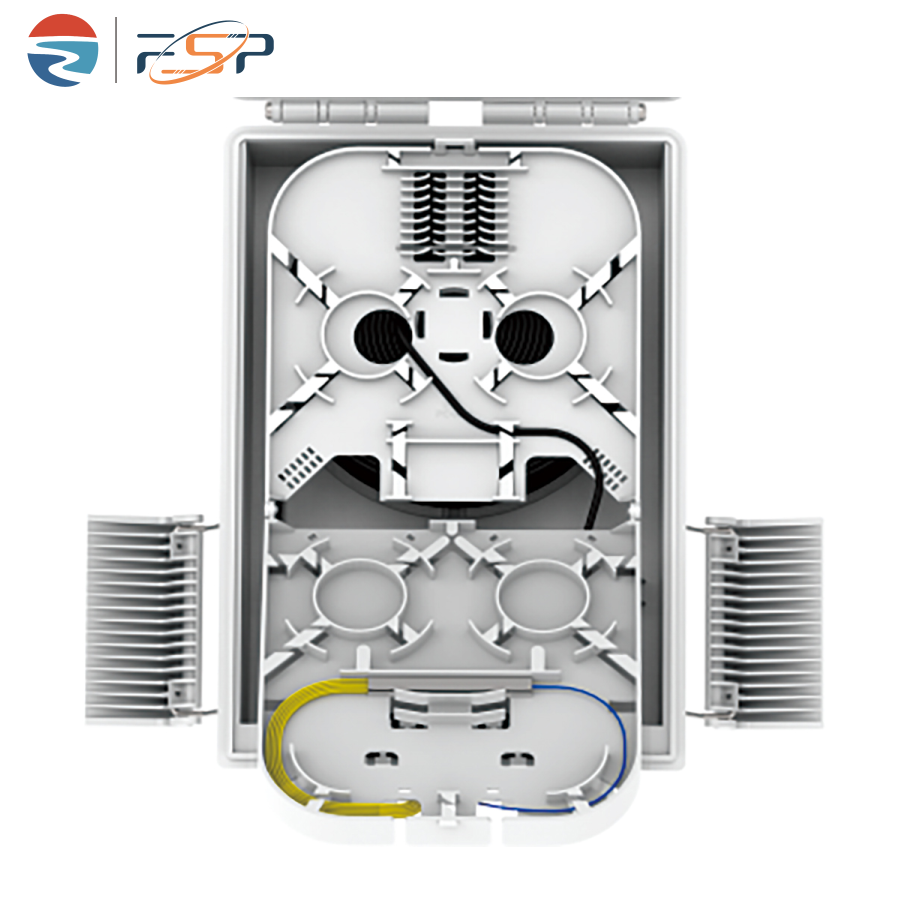

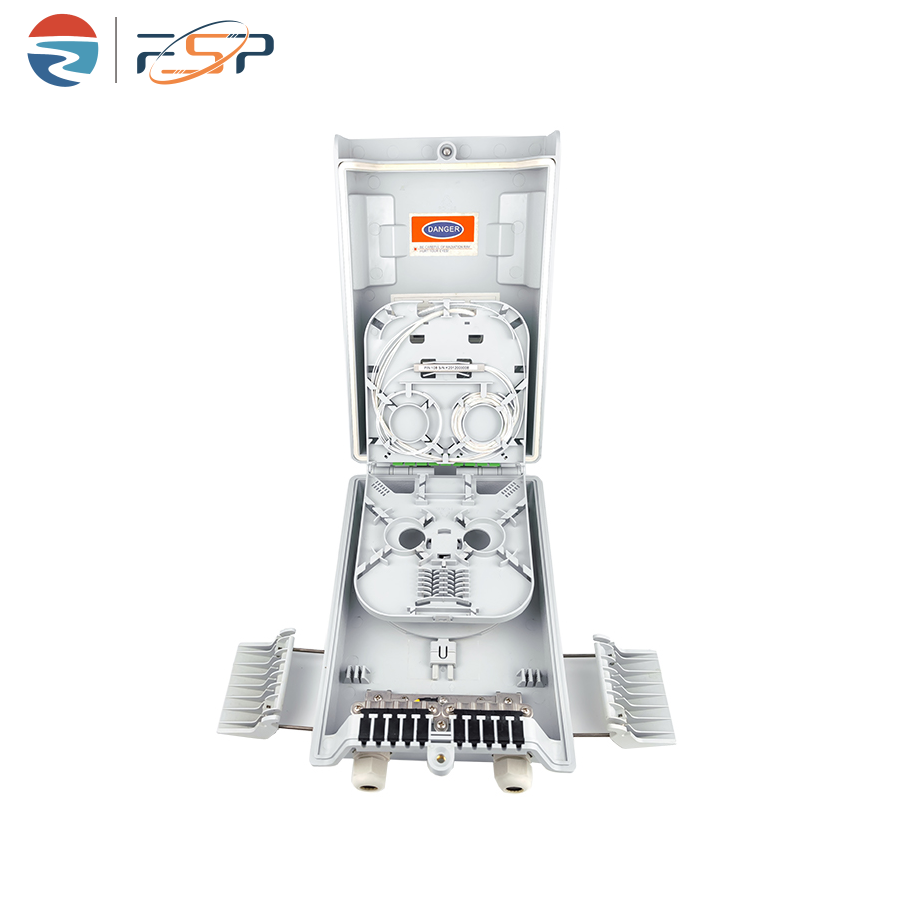

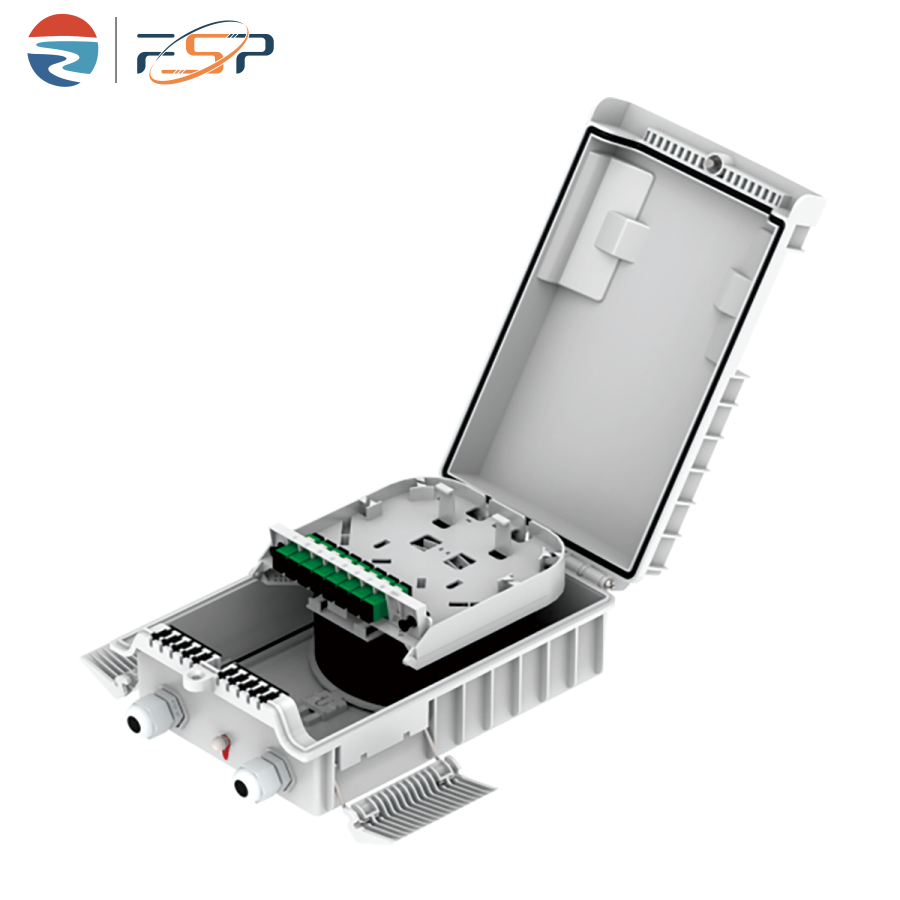

FSP-P-08-F Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1) Split optical connection for fiber optic network terminal.

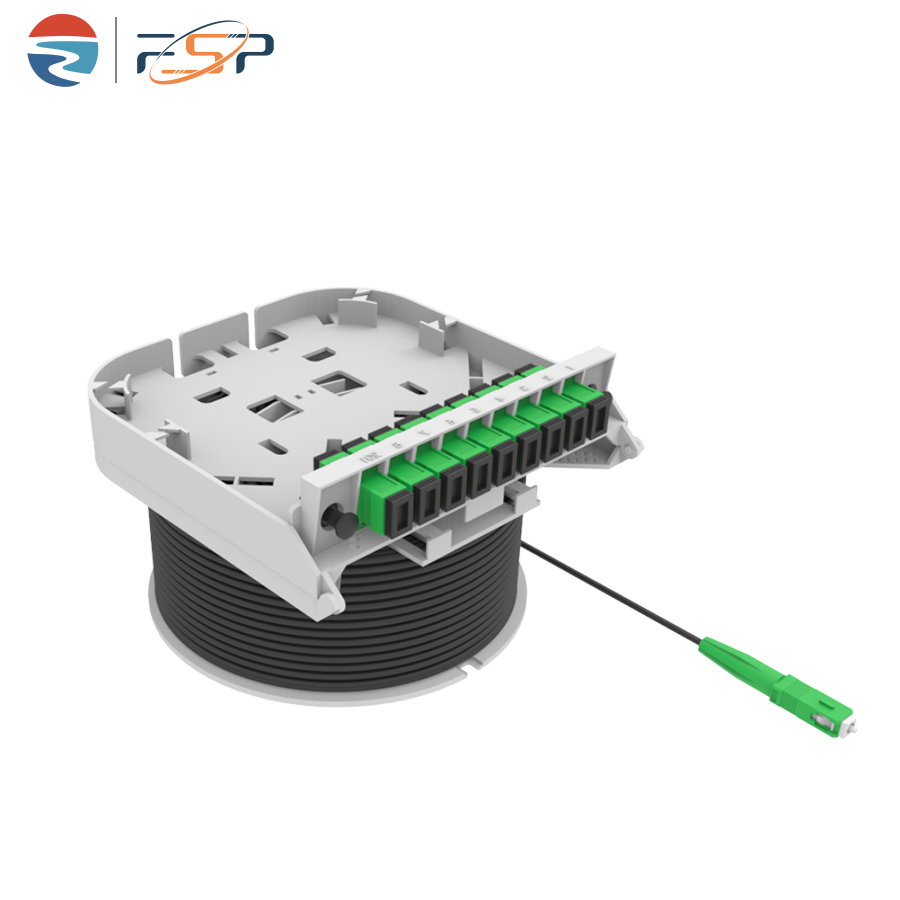

2) Prefabricated storage input cable ,the maximum length is 30 meters.

3) Support mini PLC and cassette PLC .

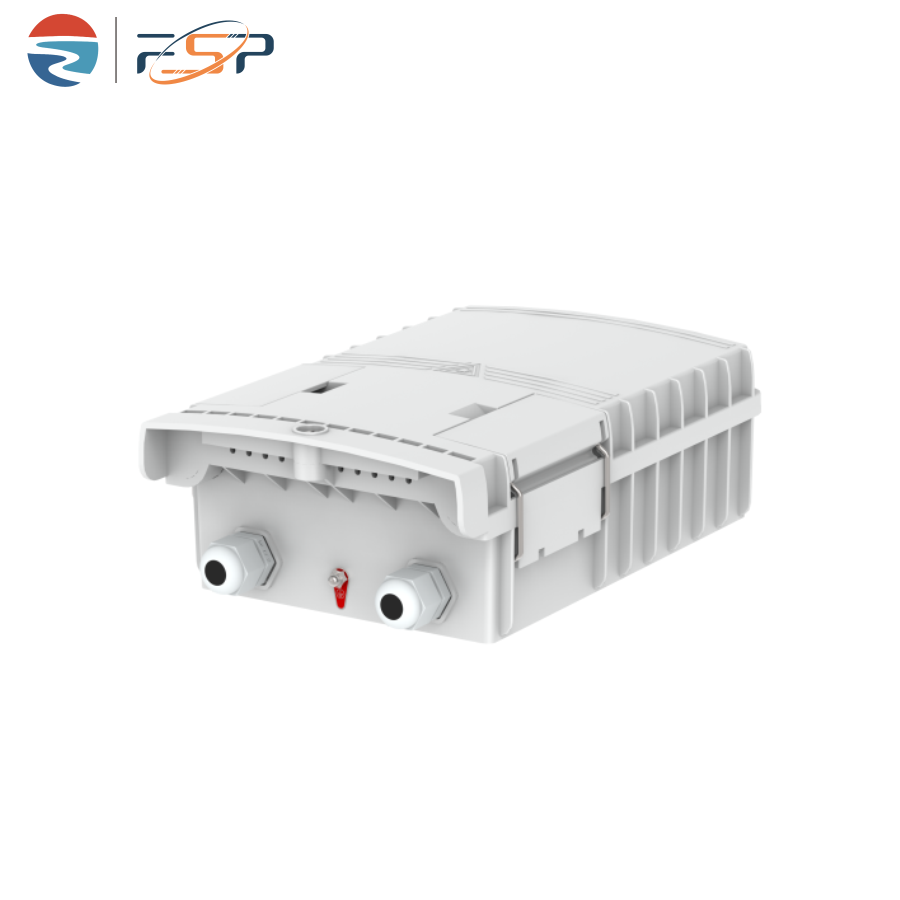

4) Two incoming cable ports,compatible with cables with maximum diameter of 11 mm.

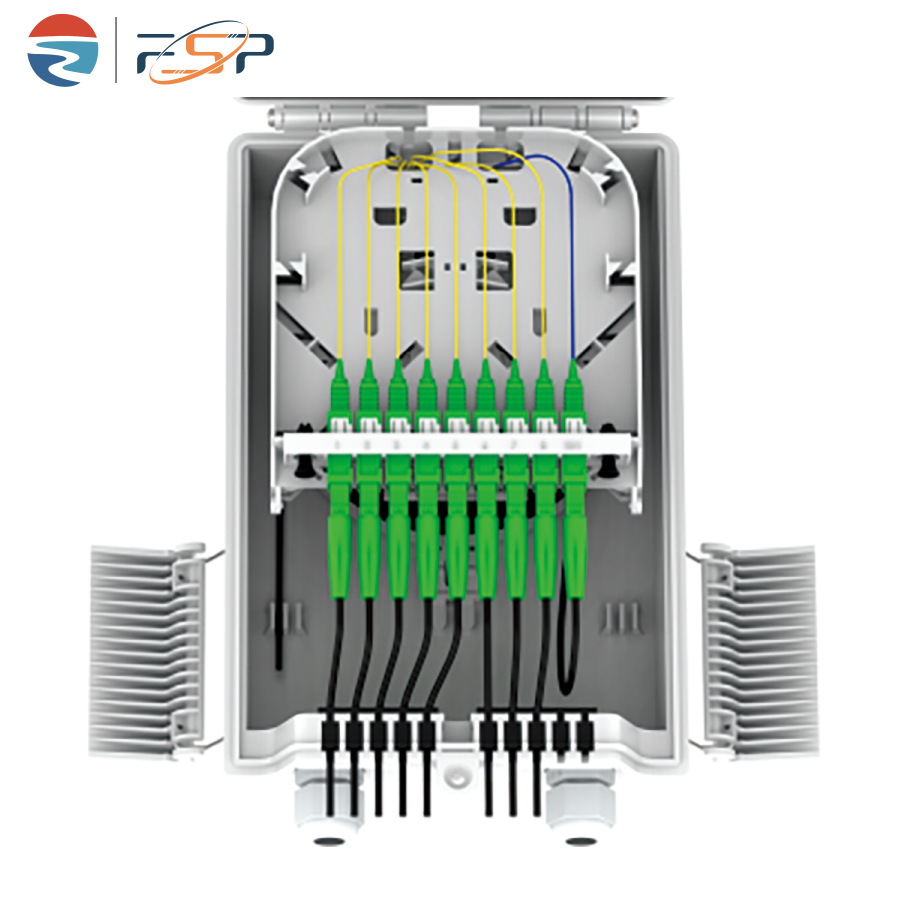

5) Eight outcoming cable ports, suitable for connection of fast connector.

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

4、Configuration Table

Table 1 Model and configuration
