1、Description

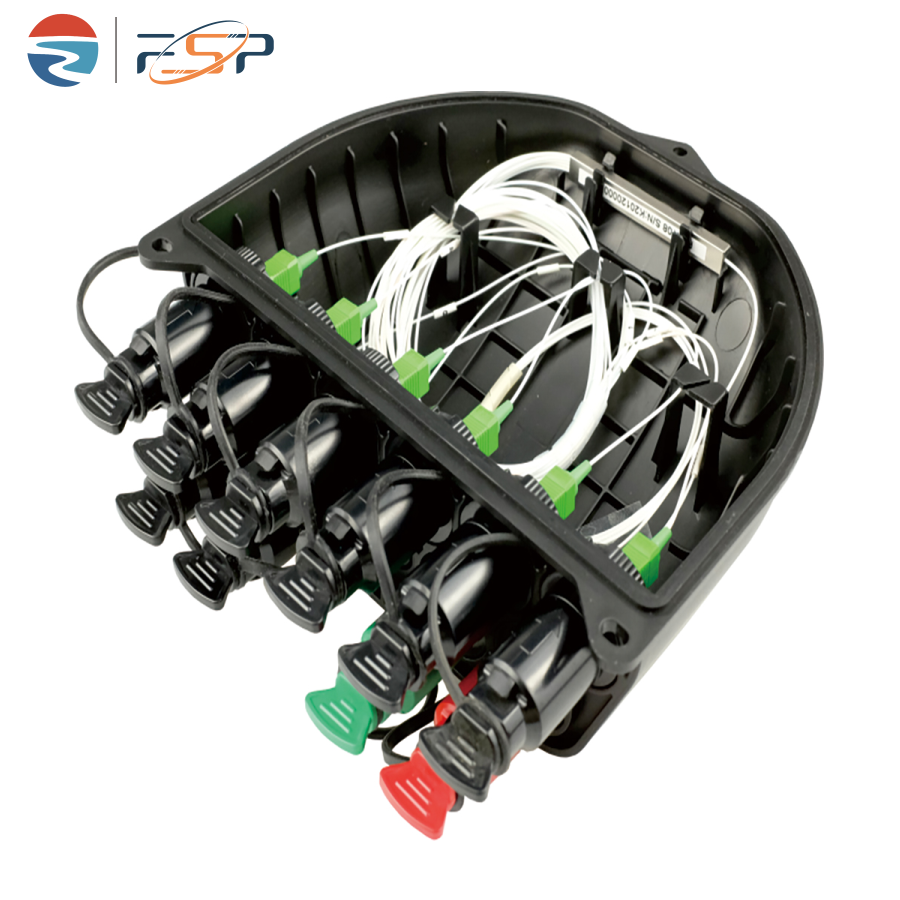

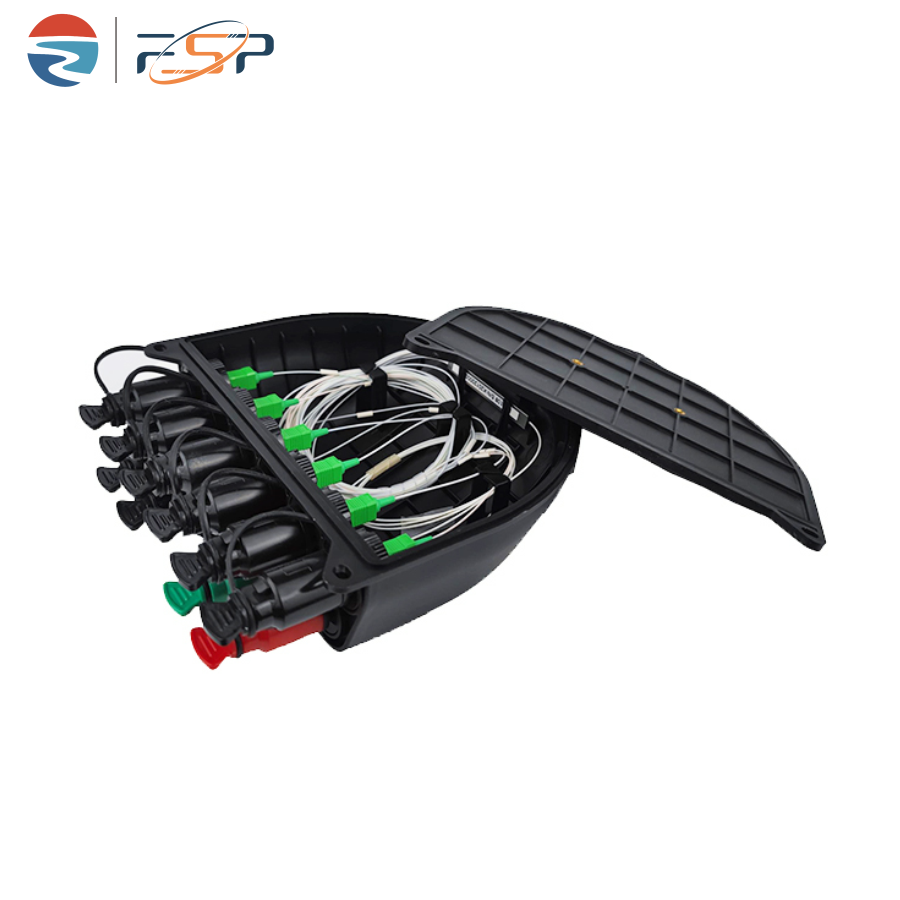

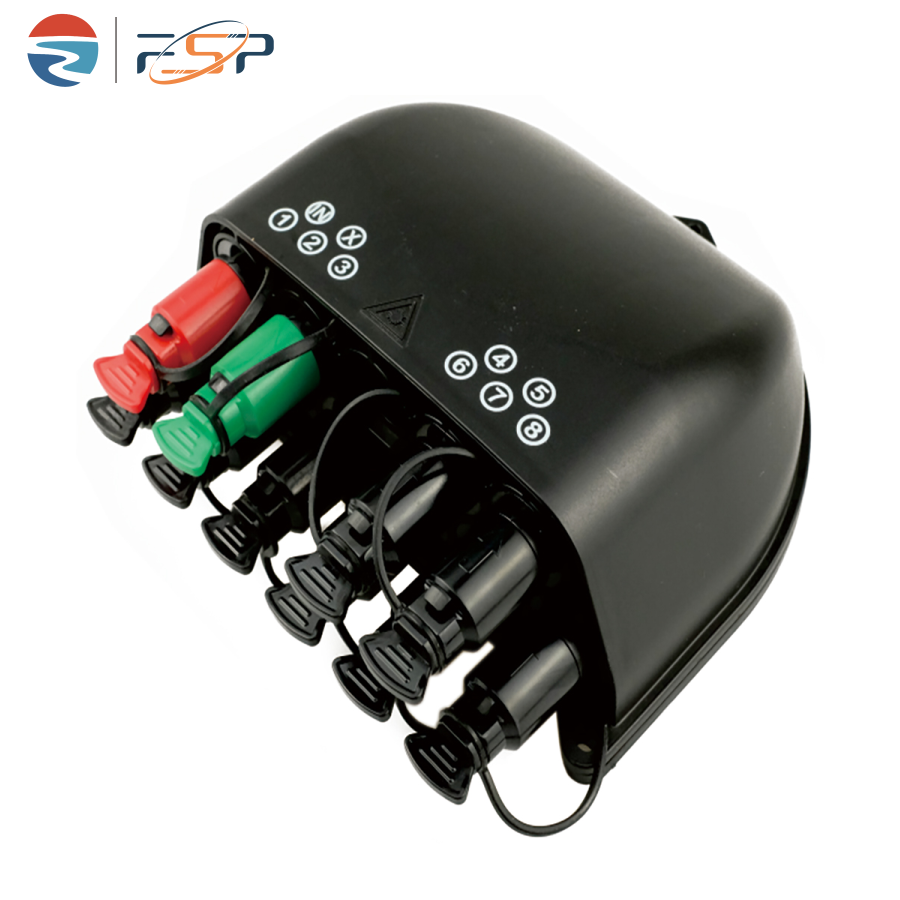

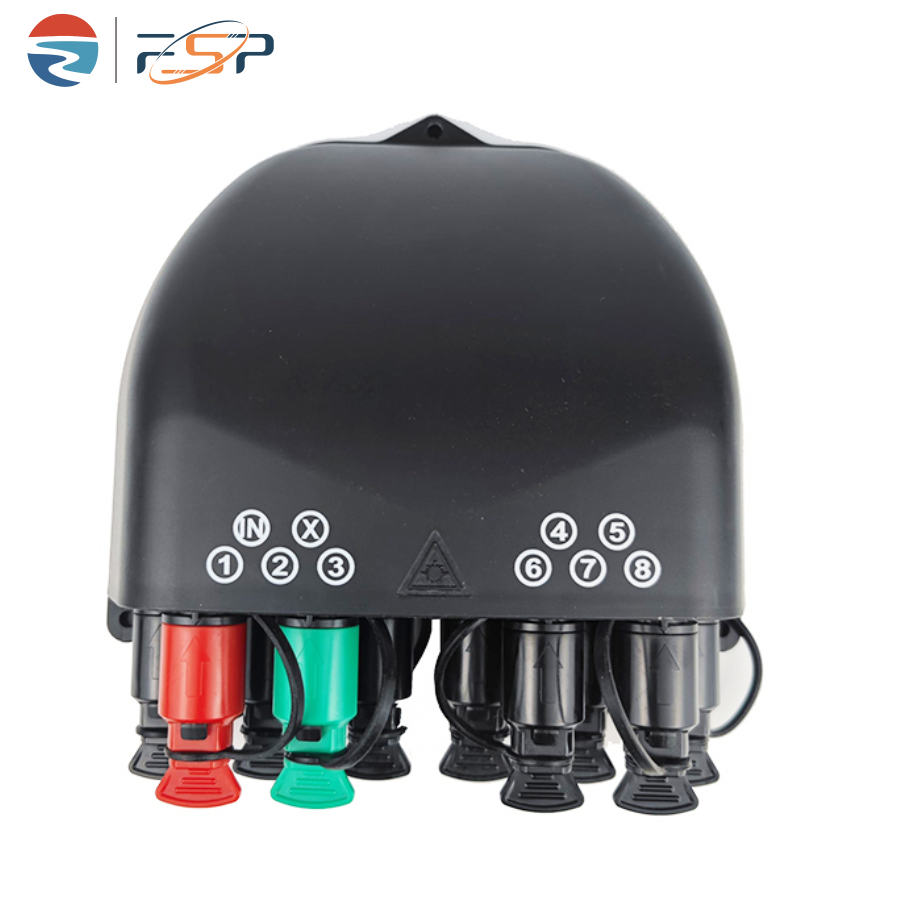

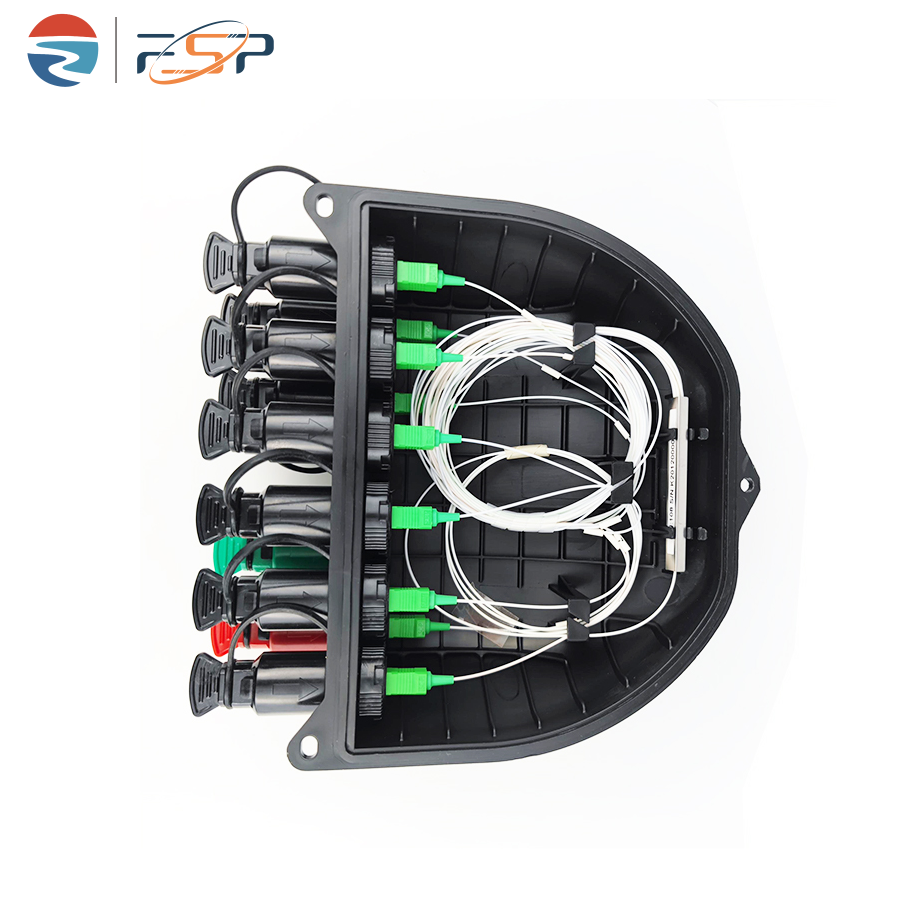

FSP-P-08-D Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Specification

1) Split optical connection for fiber optic network terminal.

2) Prefabricated adaptors and splitters ,no need to open the box.

3) The pre-assembled adaptor can be replaced according to the specified specifications

4) Two incoming cable ports( prefabricated connector).

5) Eight outcoming cable ports ( prefabricated connector).

3、Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

4、Configuration Table

Table 1 Model and configuration
