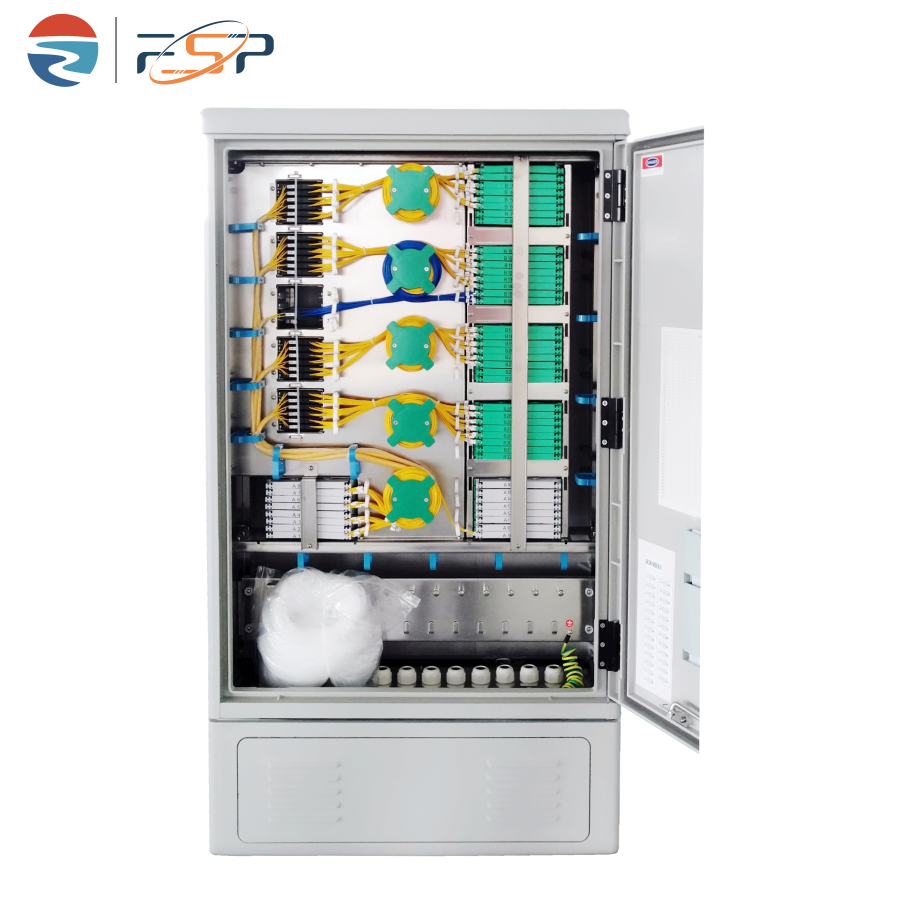

1、Description:
The outdoor Fiber Optic Distribution Cabinet (FSP-FDC-288B) is designed to handle fiber optic cross connections and accommodate passive optical splitters in PON FTTx networks, but can also be used for by pass splicing applications or combinations of the both. The FDC is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. It has the functions of fiber cable fixation and protection, optical cable termination function, splitting one core fiber into multiple cores and cross connection. There are also some other tags for this kind of products:FDP fiber optic, fiber distribution cabinet,FTTH cabinet,ODF cabinet, outdoor fiber optic distribution cabinet, outdoor ODF cabinet,fiber distribution hub,fiber cabinet.
FSP-FDC-288B Fiber Optic Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for communication network.
2、Features:
1. The FDC is made of SMC polymer materials or high-quality steel for achieving the excellent insulation performance. Its protection rate is IP65.
2. Single Front door operation with detachable door structure.
3. The passive components are operated in a same integration enclosure with pre-installed design for simple and easy installation.
4. Suitable for ribbon, bundle and non-ribbon cable.
5. Reliable cable introducing, fixing, protection, grounding devices.
6. Various fusion splicing and wire markings are available for easy splicing and wiring recording.
7. Optical fiber management available for splice tray and fiber cord cable to ensure the fiber bend radius is more than 30mm.
8. Support 12 cable input/output port with reusable cable gland.
9. Passed IEC 60068-2-6 vibration test.
10. Passed IEC 61753-1 impact test.
3、Specifications:
Housing Material | SMC |
Installation Method | Ground-mounted |
Applicable Environment | outdoor |
Protection Grade | IP65 |
Color | gray |
Quantity Of Splice Tray | 48 Pcs |
Capacity Of Splitter | 24 Pcs Max (1:4) |
Capacity Of Splicing | 576 Cores |

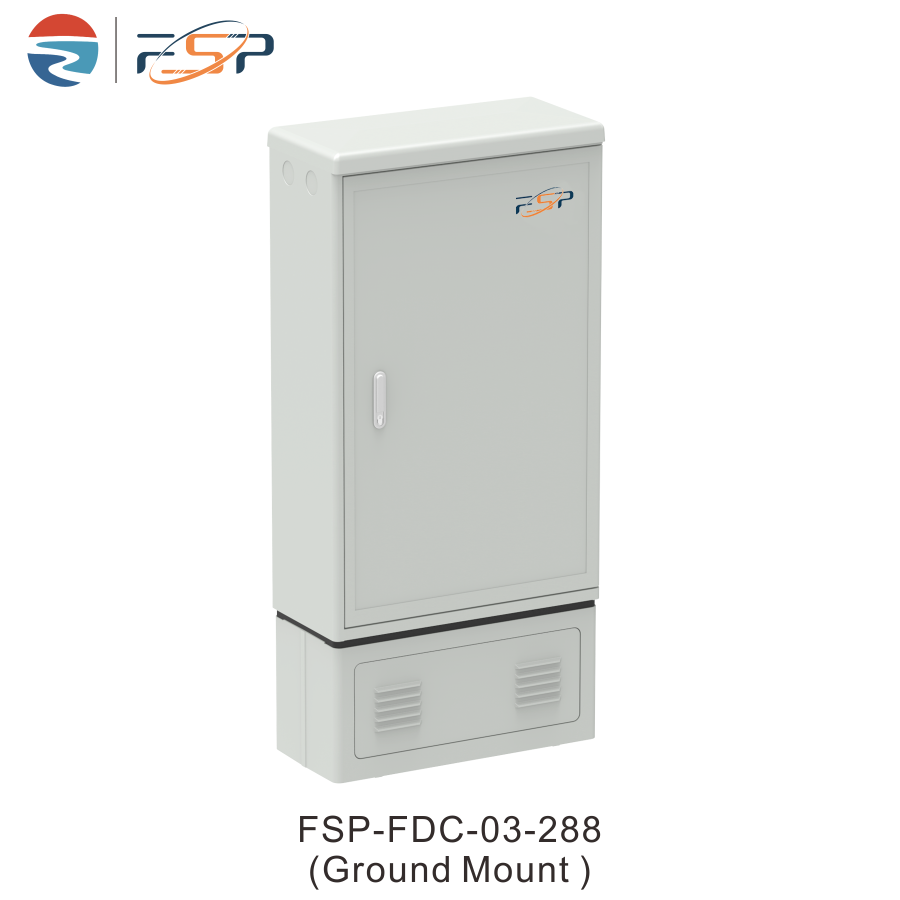

Dimension(Pic 1) | H×W×D=1345×752×322mm |
4、Technical Parameters:
Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
Cable Bending Radius | >15 times of cable diameter |
Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
Insertion Loss | ≤0.2dB |
Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
Durability | >1,000 times |
Insulation Resistance | ≥1,000MΩ/500V(DC) |
Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
Vertical Pressure | >980N |
Atmospheric Pressure | 70~106KPa |
Relative Humidity | ≤95% (+40°C) |
Operating Temperature | -40°C~+60°C |
Storage Temperature | -40°C~+60°C |

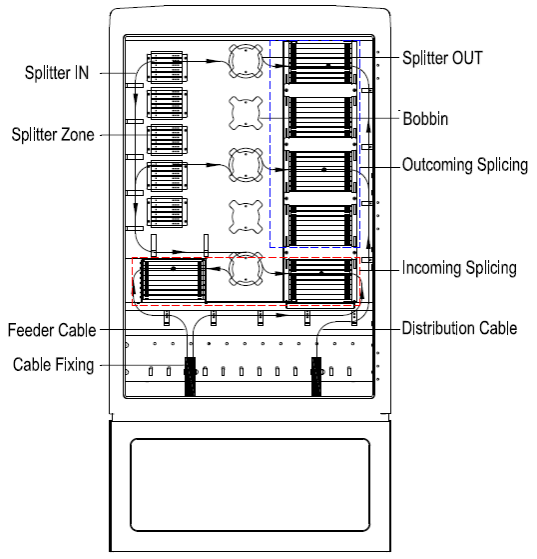

5、Cable Ways(Pic 2):
