1、Description：

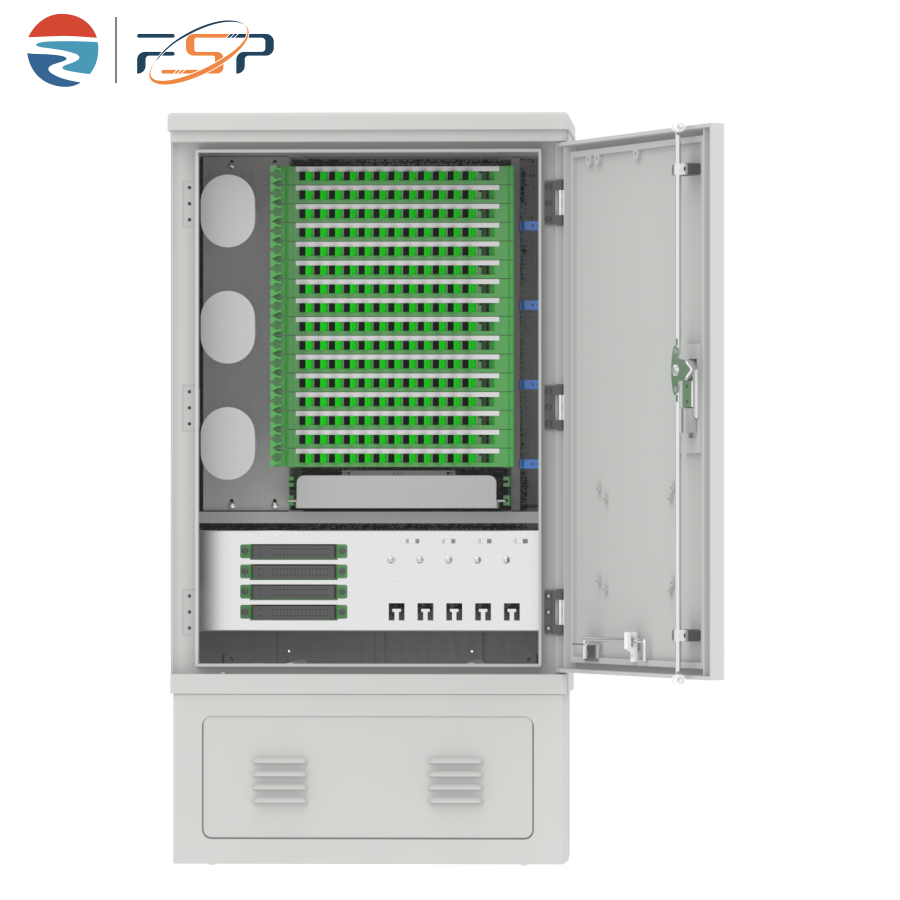

The outdoor Fiber Optic Distribution Cabinet (FSP-FDC-144A) is designed to handle fiber optic cross connections and accommodate passive optical splitters in PON FTTx networks, but can also be used for by pass splicing applications or combinations of the both. The FDC is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. It has the functions of fiber cable fixation and protection, optical cable termination function, splitting one core fiber into multiple cores and cross connection. There are also some other tags for this kind of products:FDP fiber optic, fiber distribution cabinet,FTTH cabinet,ODF cabinet, outdoor fiber optic distribution cabinet, outdoor ODF cabinet,fiber distribution hub,fiber cabinet.
FSP-FDC-144A Fiber Distribution Cabinet is used for connecting, allocation and dispatching of communication optical cables to each optical distribution node, providing safe, reliable and flexible management equipment of optical fiber and cable for telecommunication network.
2、Specification：
1) Anti-UV (Ultraviolet)
2) Grounding device included
3) Protection Class: IP65
4) Flexible configuration changes
3、Applications
1) FTTH Access Network
2) Telecommunication Network
3) Data Communications Network
4) Local Area Networks
5) Ground-mounted or Pole-mounted
4、Configuration Table：
Model | FSP-FDC-144A |
Installation Method | Ground-mounted Or Pole-mounted |
Protection Grade | IP65 |
Color | Gray (Default RAL 7035) |
Shell Material | SMC |
Structure material | Cold rolled steel |
Splice Tray Maximum Capacity | 16 Pcs (12 Cores) |
Splitter Capacity | 4 Pcs (1*32 Box Type) |

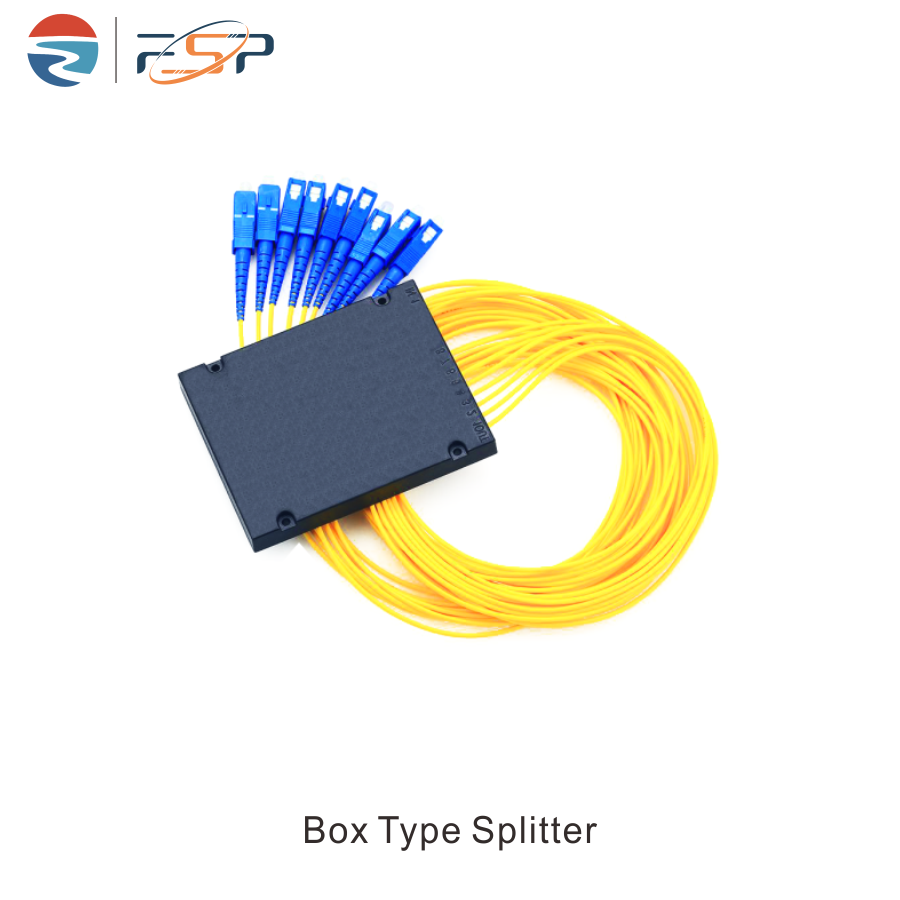

Splitter Type | 1×32 Box Type Splitter |

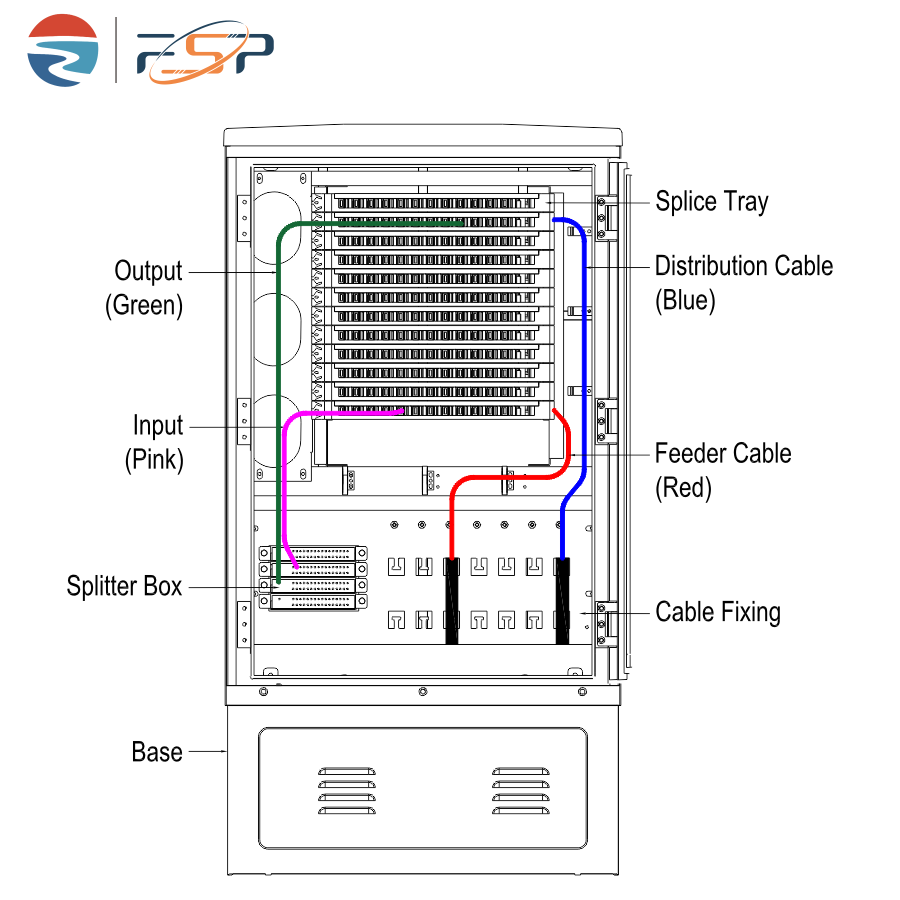

5、Fiber Routing （Pic 2）
