1、Description

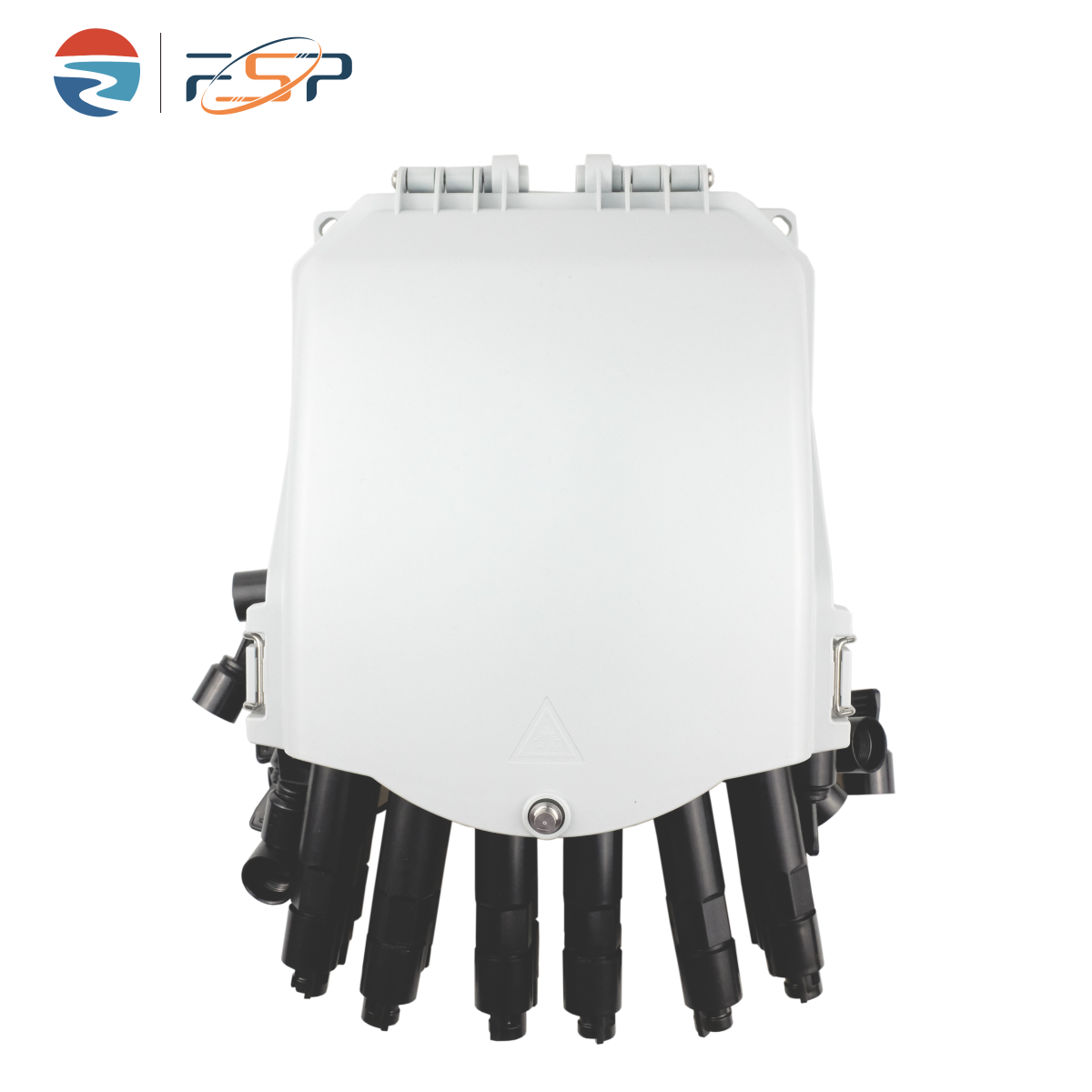

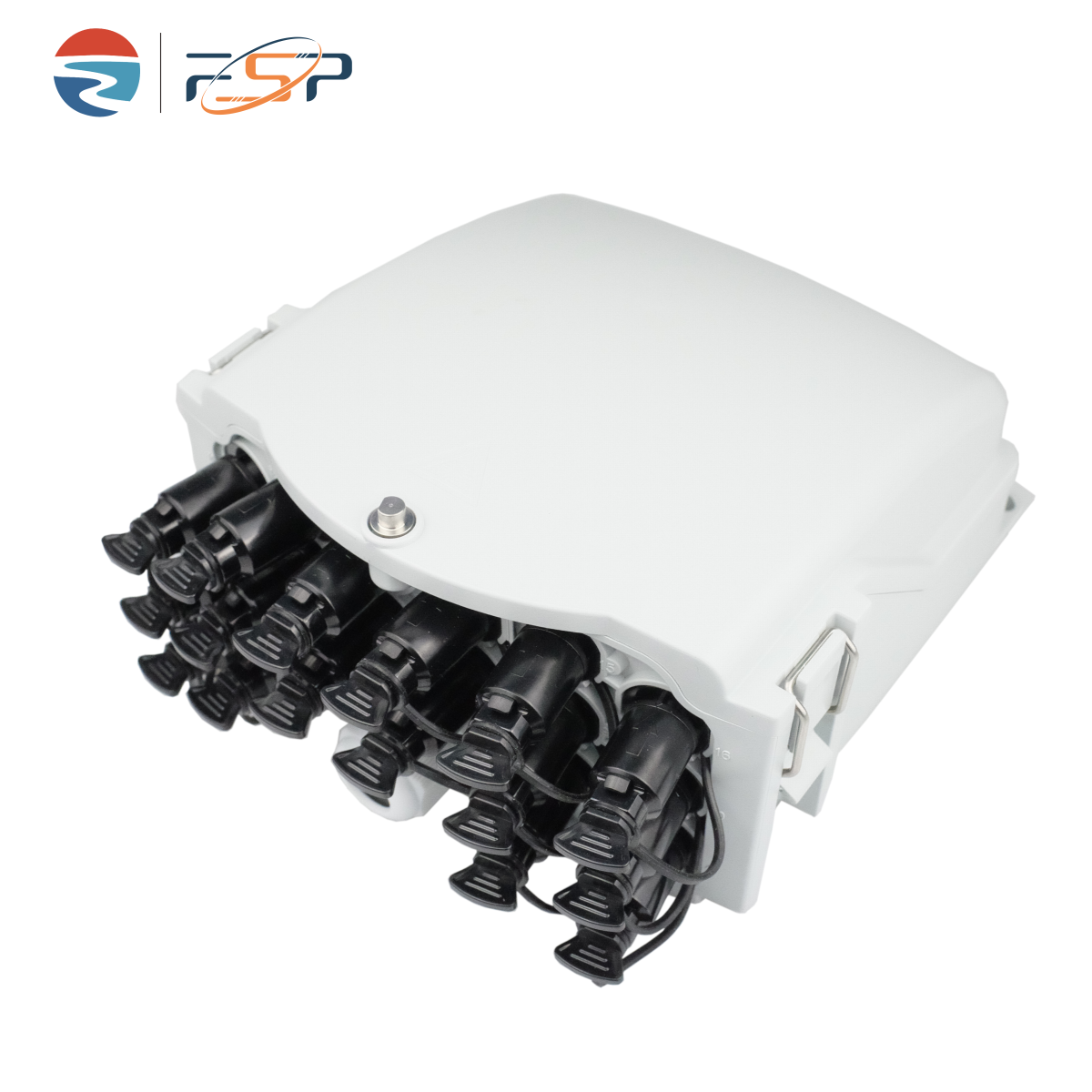

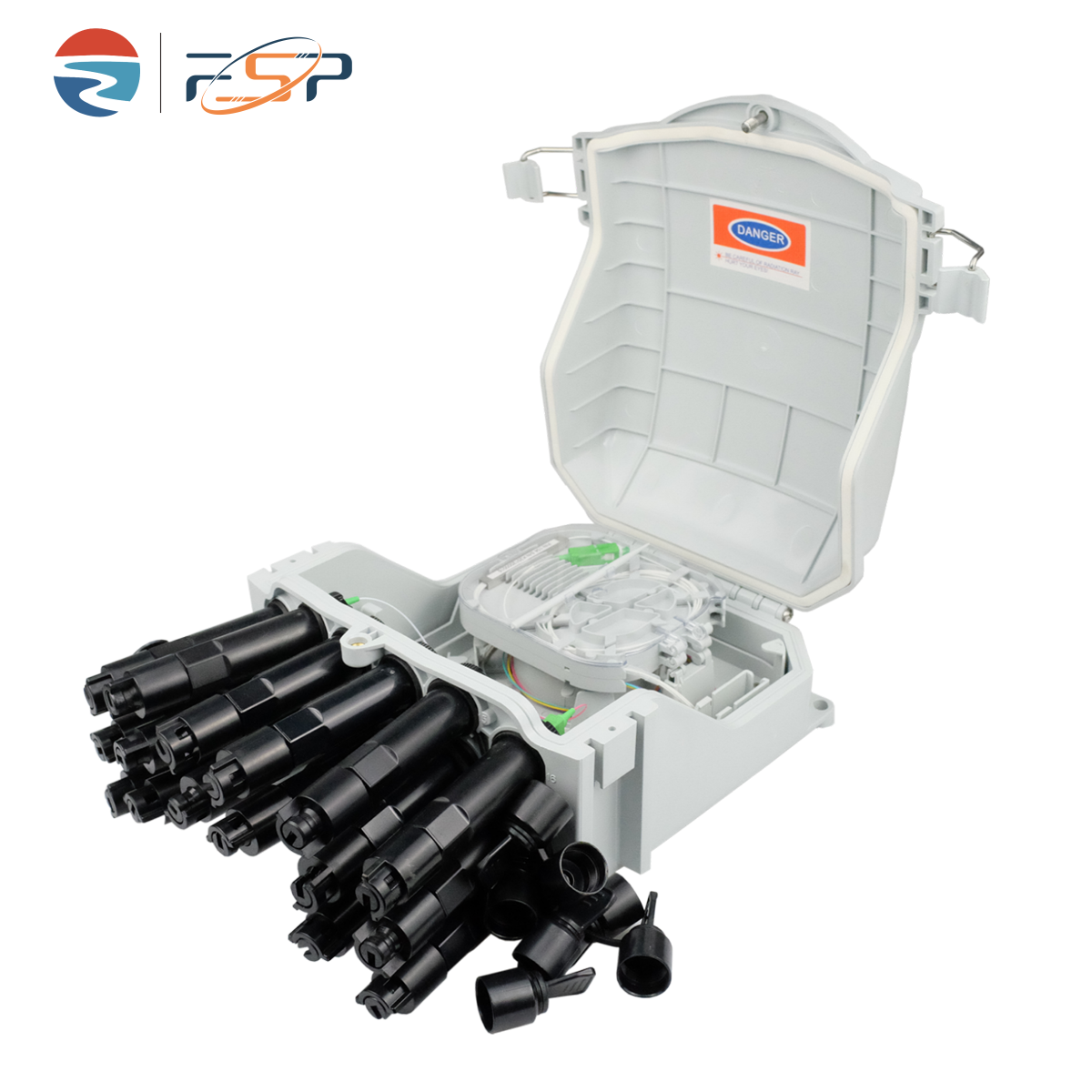

FSP-P-16-A Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2、Specification
1) Anti-UV (Ultraviolet)
2) Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
3) Total enclosed structure, protection class: IP65

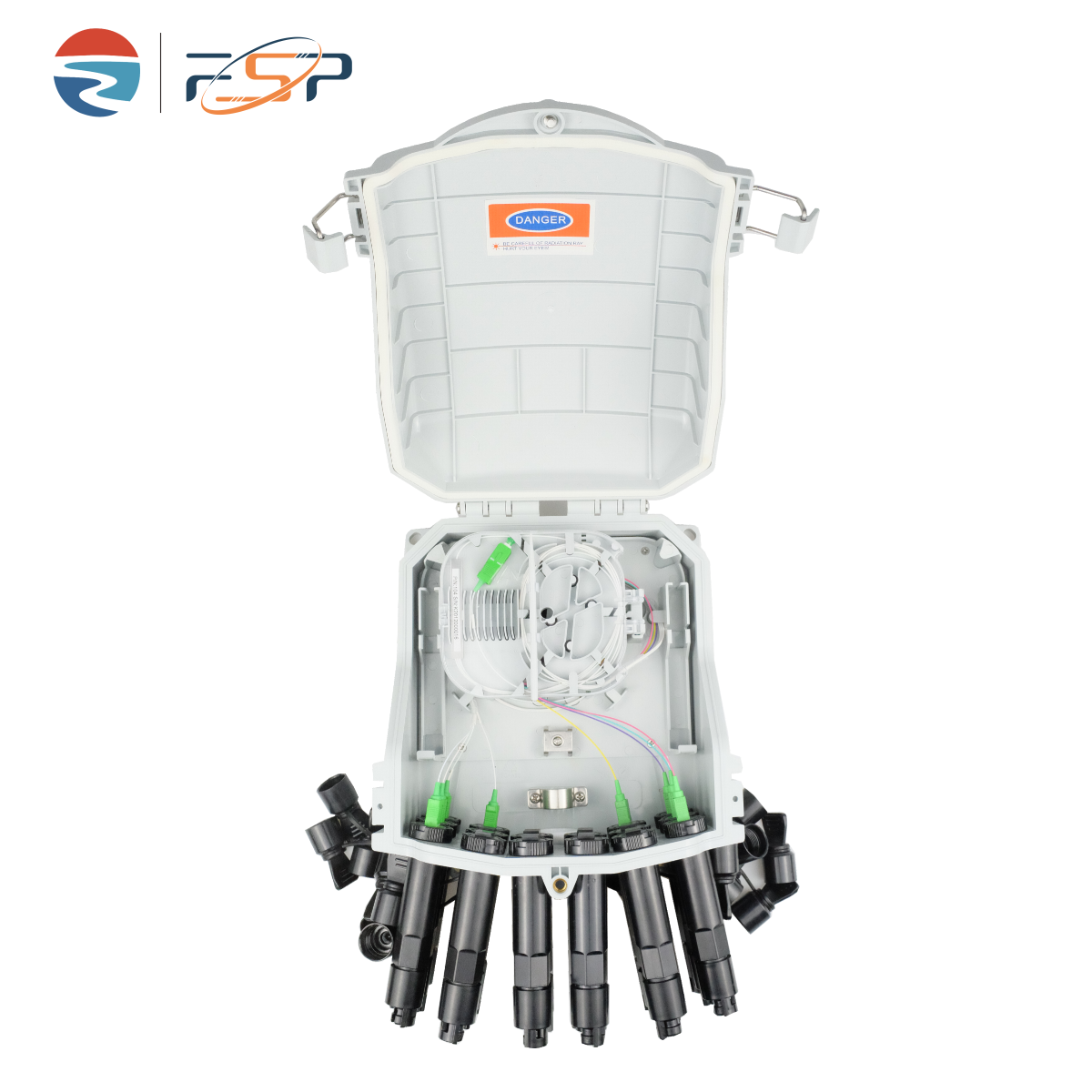

4) Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5）Directly activate services through pre-connected components, without opening the box for internal operations.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table
|
Model |
FSP-P-16-A |
|
Installation Method |
Wall-mounted or Pole-mounted |
|
Color |
White |
|
Material |
PC+ABS |
|
Cable Ports |
2 Ports (For main cable) + 16 Ports (For drop cable) |
|
Capacity Of Splice Tray (8 Cores) |
2 Pcs |
|
Adapter Ports (SC) |
16 Pcs |
|
Splitter Type |
1:8 Mini PLC (2 Pcs) |
|
Size: H×W×D (mm) |
240×210×120 |
|
Working Temperature |
-40℃～+85℃ |
|
Relative Humidity |
≤85% (+30℃) |
|
Atmospheric Pressure |
70KPa~106Kpa |
|
Insertion Loss |
≤0.2dB |
|
Return Loss |
≥50dB( UPC) ; ≥60dB(APC) |
Table 1 Model and configuration

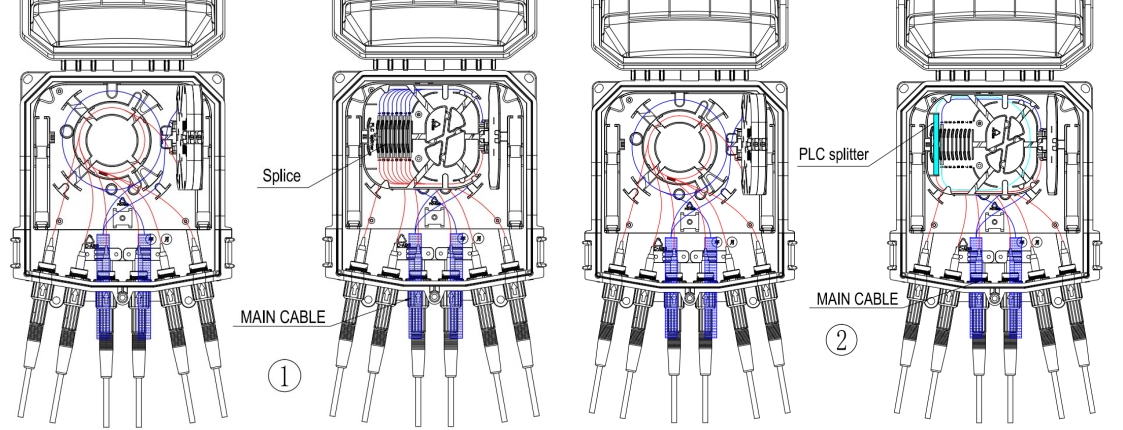

5、Routing (Pic 2)
Pic 2

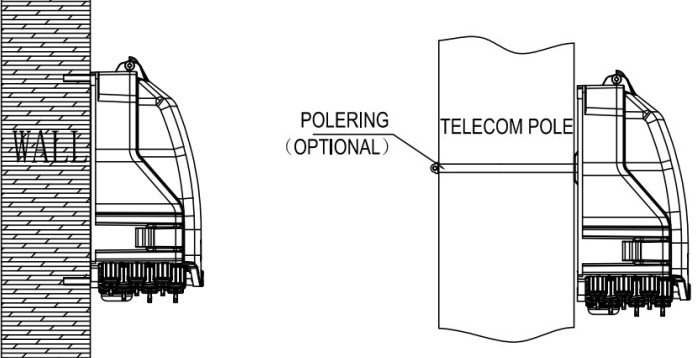

6、Installation
6.1 Wall-mounted installation
Drill three holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40,
place the box to match up the holes and use bolt to fasten. (Pic 3) .
6.2 Pole-mounted installation
Fix one set of the hose clamps to the telecom pole .（Pic 4）
Pic 3 Pic 4
