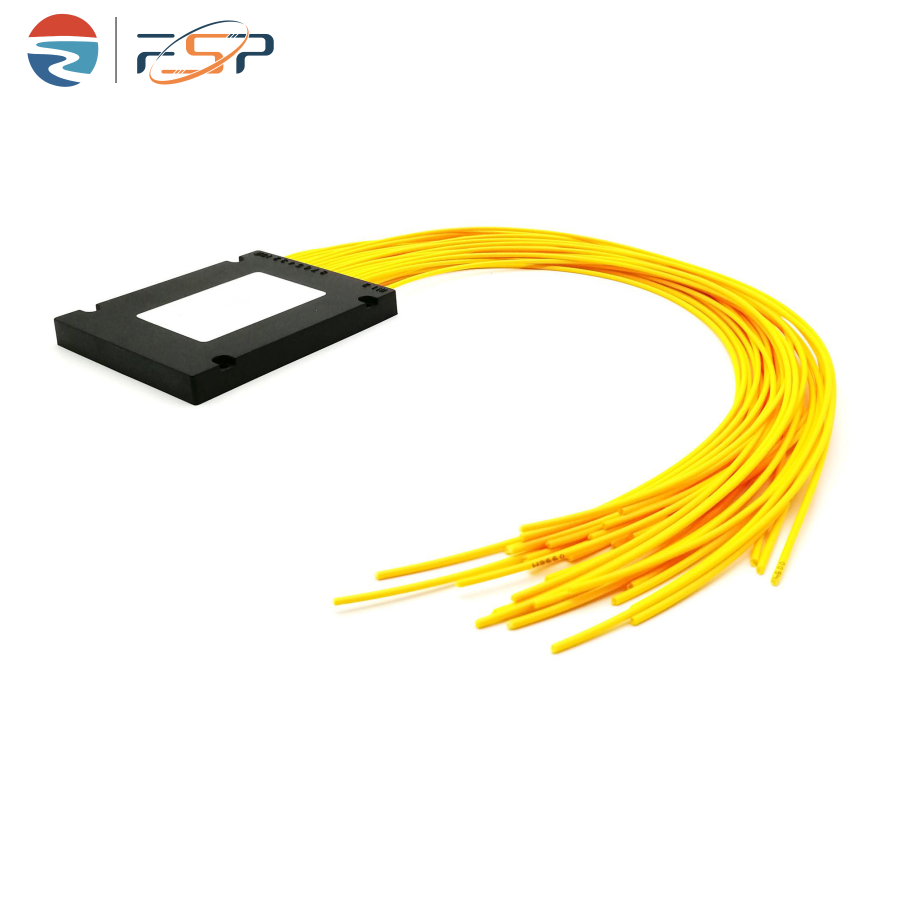

Cassette Type PLC Splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide working wavelength range, high reliability, and good splitting uniformity. It is especially suitable for passive The optical network (EPON, BPON, GPON, etc.) connects the central office and terminal equipment and realizes the branching of optical signals.
Features:
l Compact design
l Low insertion loss and low PDL
l High reliability
l High channel counts
l Wide wavelength range
l Large operating and temperature range
l Customized packaging and configuration
l Full Telcordia GR1209/1221 qualifications
Specifications:
|
1×N(N>2)PLCS(With connector) Optical parameters |
||||||
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operation wavelength(nm) |
1260~1650 |
|||||
|
Insertion loss(dB) Max |
4.1 |
7.4 |
10.5 |
13.6 |
17.1 |
20.4 |
|
Loss uniformity(dB) Max |
0.4 |
0.5 |
0.6 |
1.0 |
1.3 |
1.9 |
|
Return loss(dB) APC Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Return loss(dB) UPC Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL(dB) Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Directivity(dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Operation temperature(℃) |
-20~65 |
|||||
|
Storage temperature(℃) |
-40~85 |
|||||
|
Dimension(L×W×H) (mm) |
100×80×10 |
120×80×18 |
140×114×18 |
|||
|
2×N(N>2)PLCS(With connector) Optical parameters |
||||||
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operation wavelength(nm) |
1260~1650 |
|||||
|
Insertion loss(dB) Max |
4.4 |
7.7 |
10.8 |
14.1 |
17.4 |
20.7 |
|
Loss uniformity(dB) Max |
0.6 |
1.2 |
1.5 |
1.8 |
2.0 |
2.0 |
|
Return loss(dB) APC Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Return loss(dB) UPC Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL(dB) Max |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
Directivity(dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Operation temperature(℃) |
-20~65 |
|||||
|
Storage temperature(℃) |
-40~85 |
|||||
|
Dimension(L×W×H) (mm) |
100×80×10 |
120×80×18 |
140×114×18 |
|||
