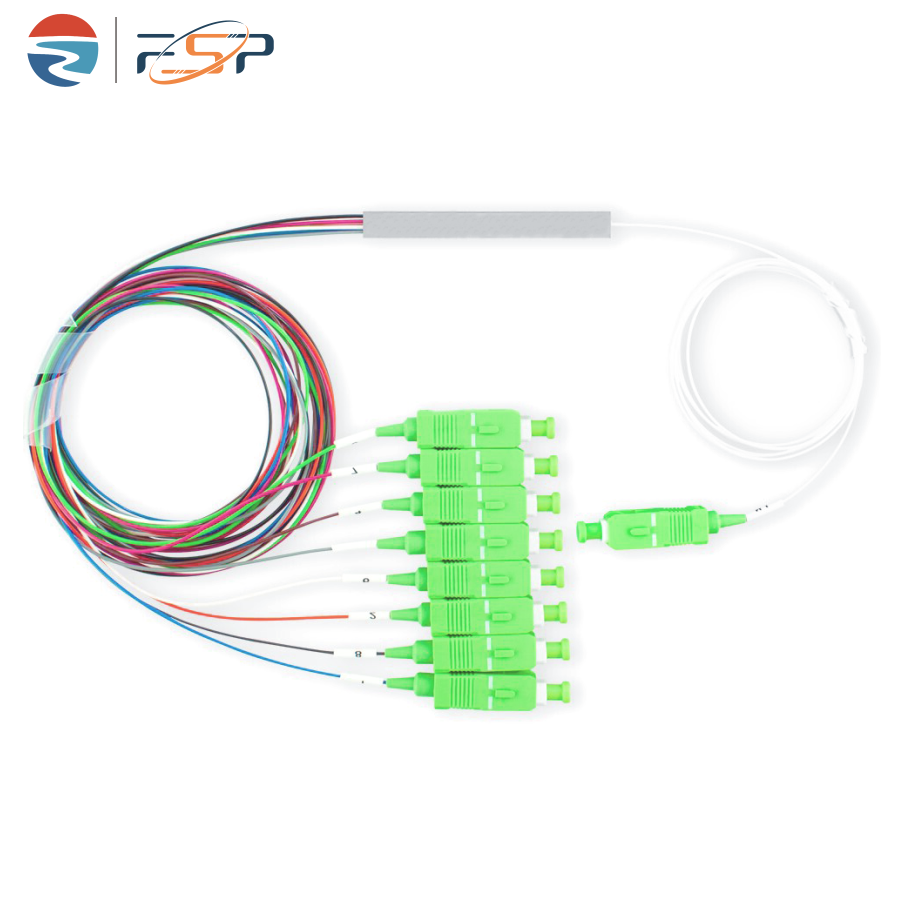

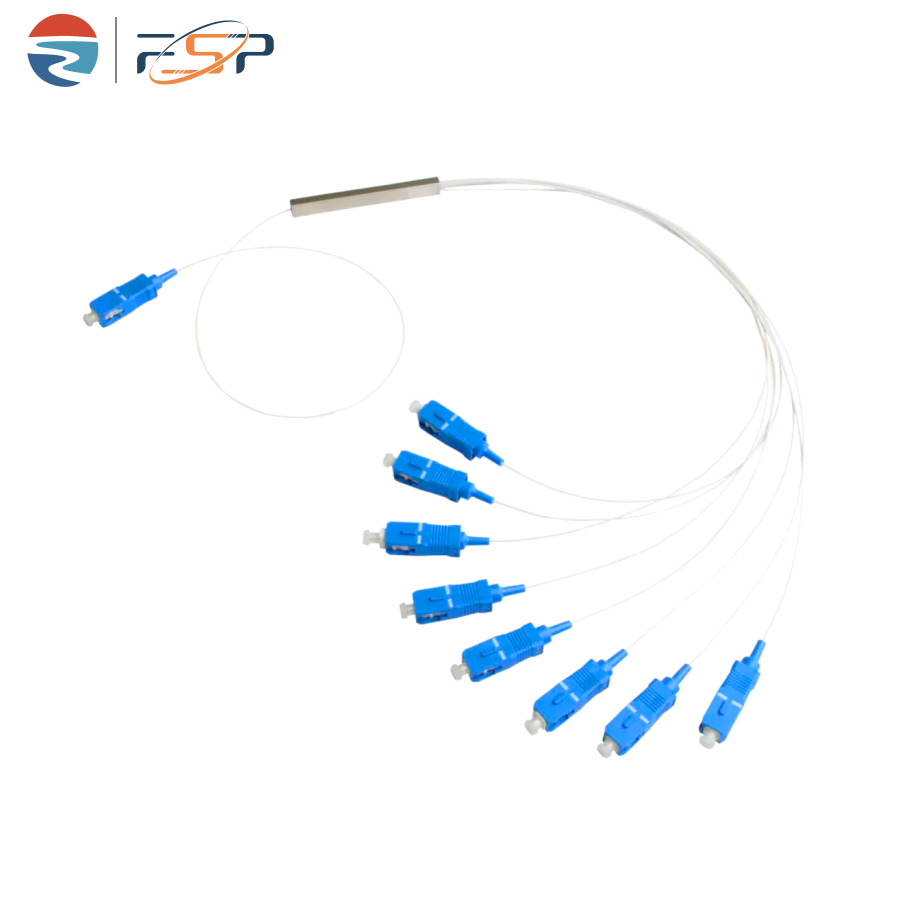

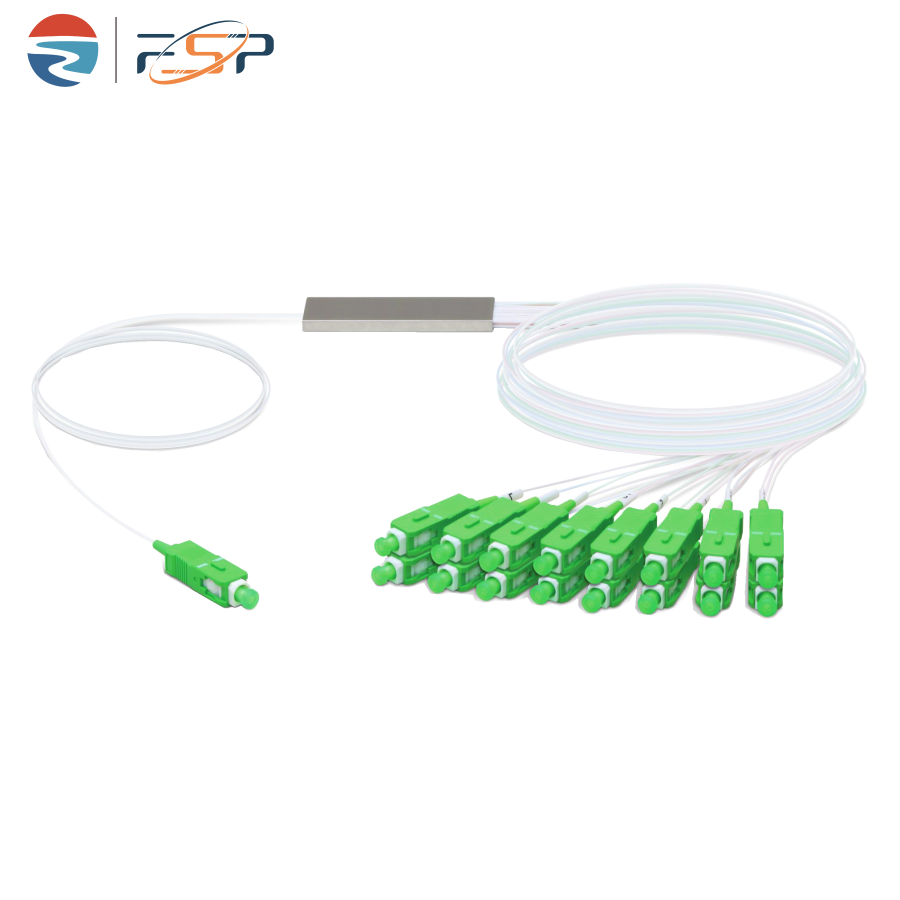

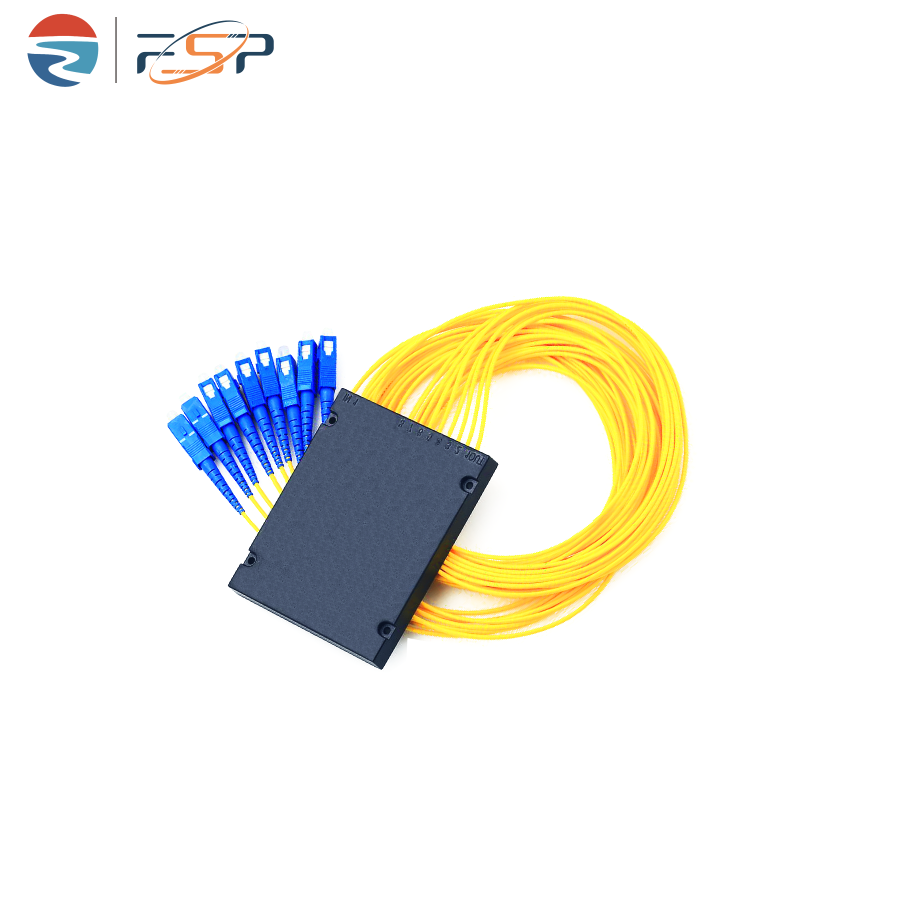

FSP-PLC-M Mini Type PLC Splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide working wavelength range, high reliability, and good splitting uniformity. It is especially suitable for passive The optical network (EPON, BPON, GPON, etc.) connects the central office and terminal equipment and realizes the branching of optical signals.
1. Features
l Low insertion loss and low PDL.
l High reliability and channel counts.
l Uniform power splitting
l Wide wavelength range.
l Excellent environmental stability.
l Customized packaging and configuration.
2. Technical Data：
|
Characteristics |
Values |
|
Model |
FSP-PLC-M |
|
Adaptor type |
SC / LC / FC |
|
Shell Material |
Stainless steel |
|
Color Of Fiber |
Color (Default) |
|
Length Of Fiber |
1M (Customizable ) |
|
1×N(N>2)PLCS(With connector) Optical parameters |
||||||
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operation wavelength(nm) |
1260~1650 |
|||||
|
Insertion loss(dB) Max |
4.1 |
7.4 |
10.5 |
13.6 |
17.1 |
20.4 |
|
Loss uniformity(dB) Max |
0.4 |
0.5 |
0.6 |
1.0 |
1.3 |
1.9 |
|
Return loss(dB) APC Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Return loss(dB) UPC Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL(dB) Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Directivity(dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Operation temperature(℃) |
-20~65 |
|||||
|
Storage temperature(℃) |
-40~85 |
|||||
|
Dimension(L×W×H) (mm) |
100×80×10 |
120×80×18 |
140×114×18 |
|||
|
2×N(N>2)PLCS(With connector) Optical parameters |
||||||
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operation wavelength(nm) |
1260~1650 |
|||||
|
Insertion loss(dB) Max |
4.4 |
7.7 |
10.8 |
14.1 |
17.4 |
20.7 |
|
Loss uniformity(dB) Max |
0.6 |
1.2 |
1.5 |
1.8 |
2.0 |
2.0 |
|
Return loss(dB) APC Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Return loss(dB) UPC Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL(dB) Max |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
Directivity(dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Operation temperature(℃) |
-20~65 |
|||||
|
Storage temperature(℃) |
-40~85 |
|||||
|
Dimension(L×W×H) (mm) |
100×80×10 |
120×80×18 |
140×114×18 |
|||
|
Characteristics |
Values |
|
RoHS compliant |
Yes |
|
REACH compliant |
Yes |
|
UV resistant |
Yes |
|
Free of halogen |
Yes |
