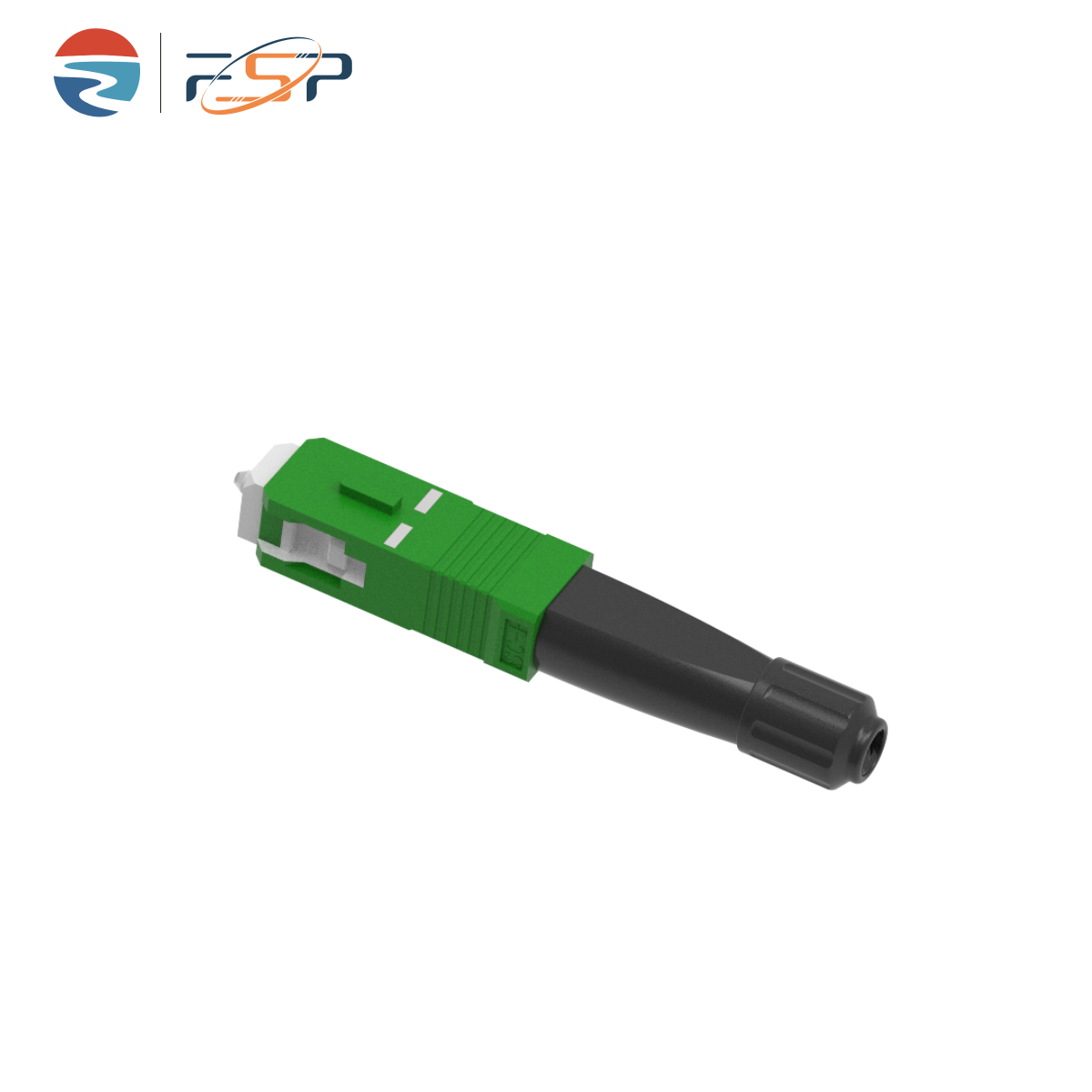

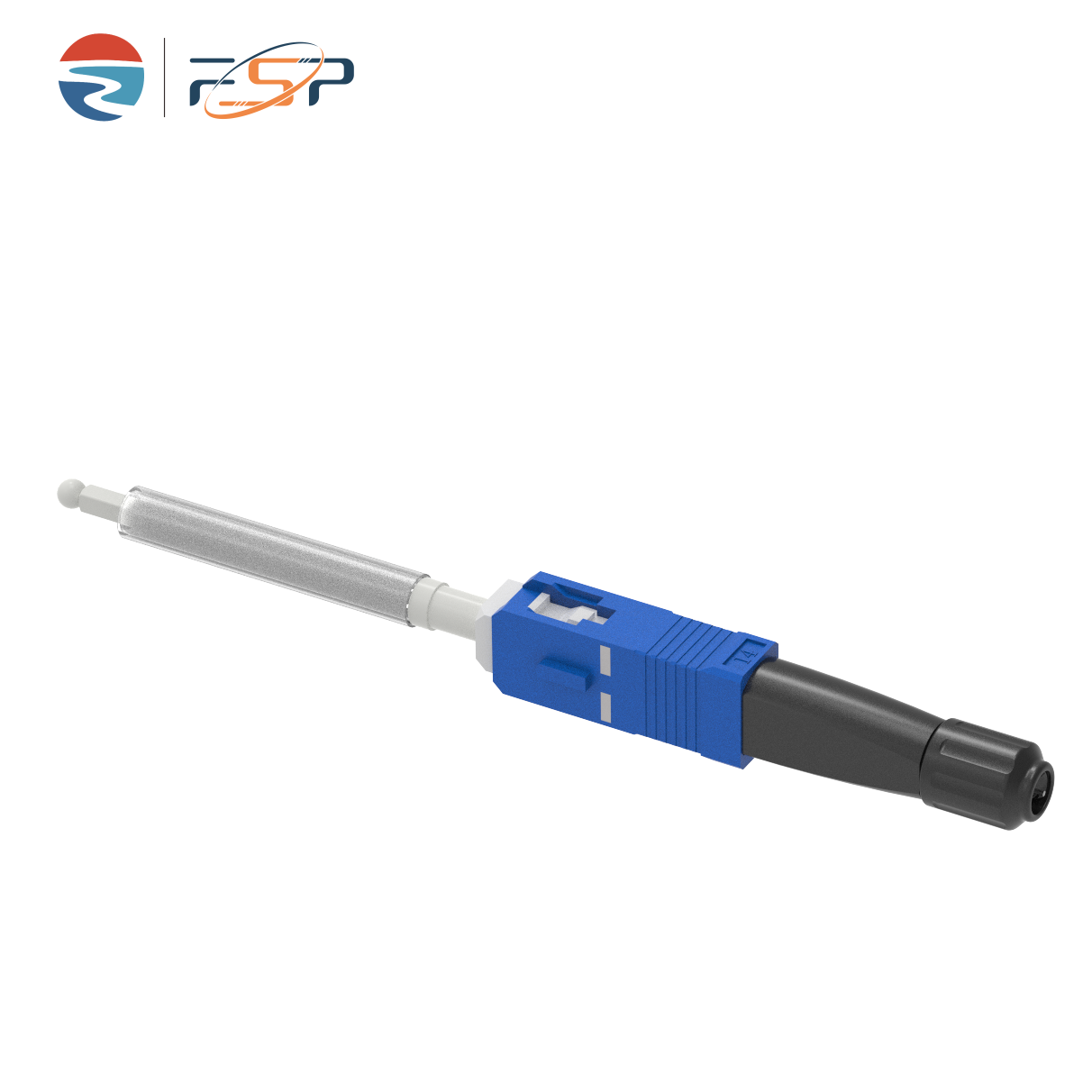

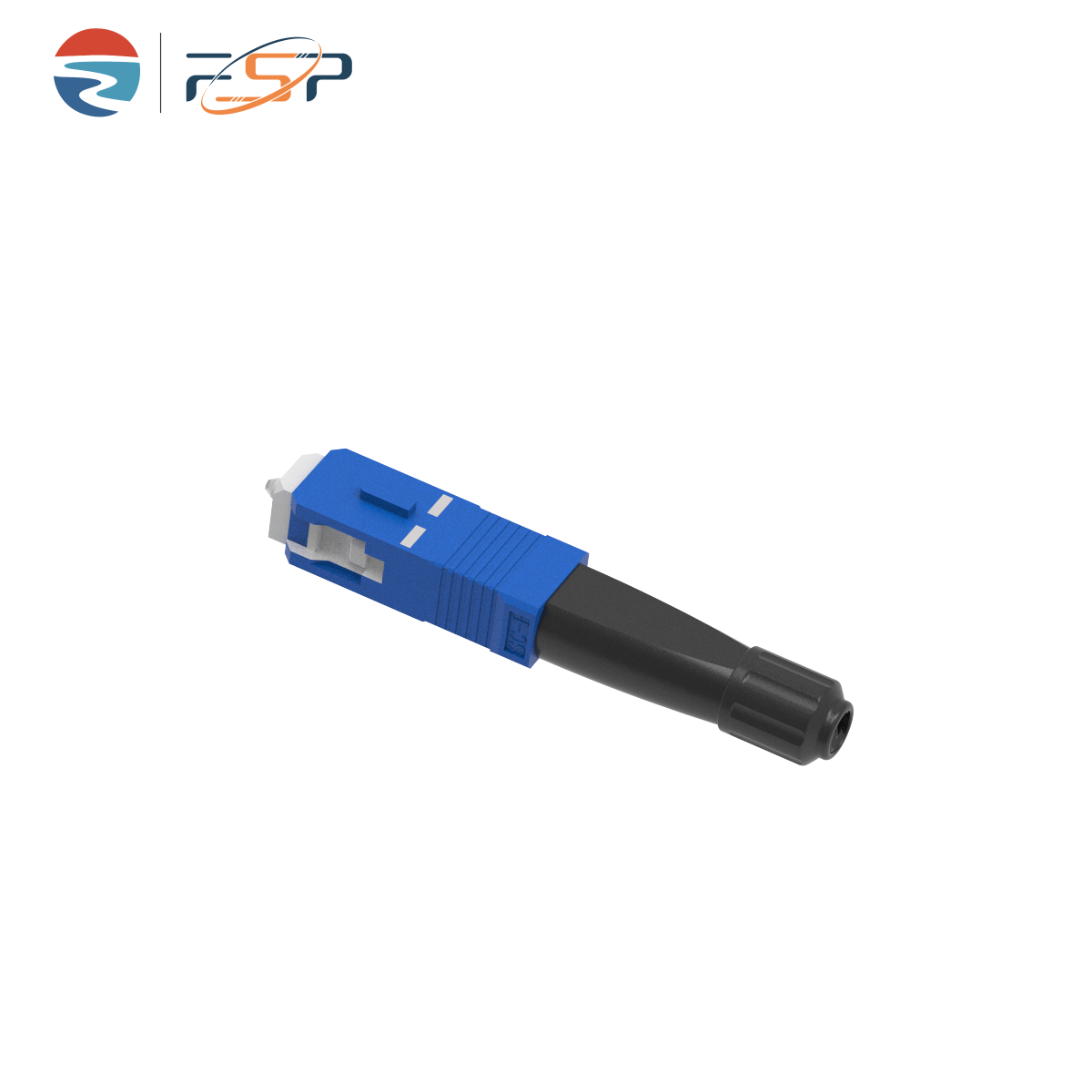

                                                                FSP-SMFC-04-SC details


Features:
1. Suitable for FTTx butterfly type cable (both flat and circle shape are available).
2. Low insertion loss.
3. Easy to open and close.
4. Preset fiber and matching-fluid design ensure the performance.
5. Clamping mechanism ensure long-term reliable connection .
6. Compact size, easy to operate, durable.

Configuration Table:
|

                        Connection Type

                 |


                    SC

             |

|

                        Polishing Mode

                 |


                    APC/UPC/PC

             |

|

                        Cable Fixing Method

                 |


                    Fusion Splice

             |

|

                        Cable Diameter

                 |


                    2×3 mm

             |

|

                        Insertion Loss

                 |


                    ≤ 0.3 dB

             |

|

                        Return Loss

                 |


                    ≥ 50 dB (UPC / PC)
            ≥ 55 dB(APC)  |

|

                        Tensile Strength

                 |


                    ≥ 30N

             |

|

                        Operating temperature

                 |


                    -40℃ ~ 75℃

             |

|

                        Storage temperature

                 |


                    -40℃ ~ 85℃

             |
