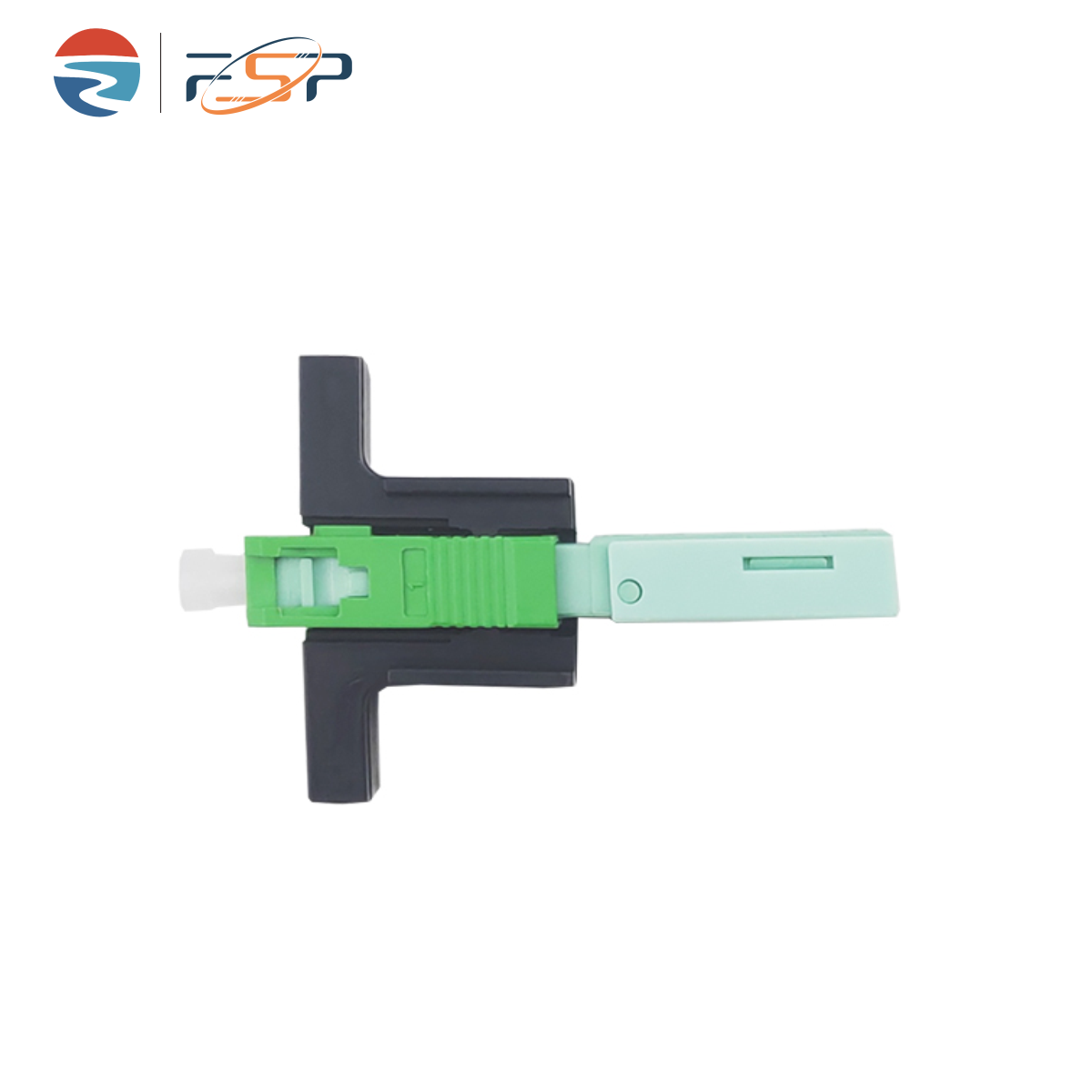

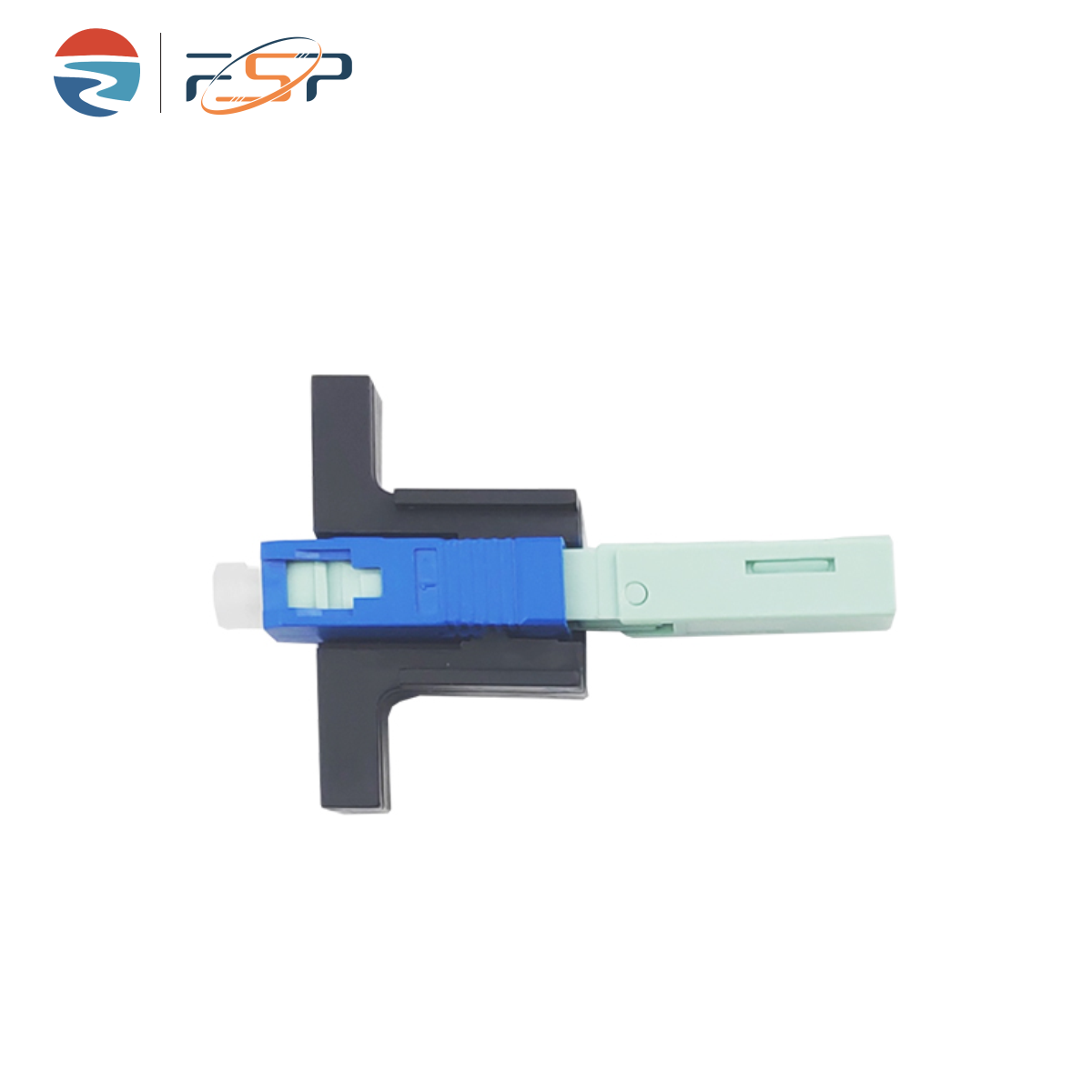

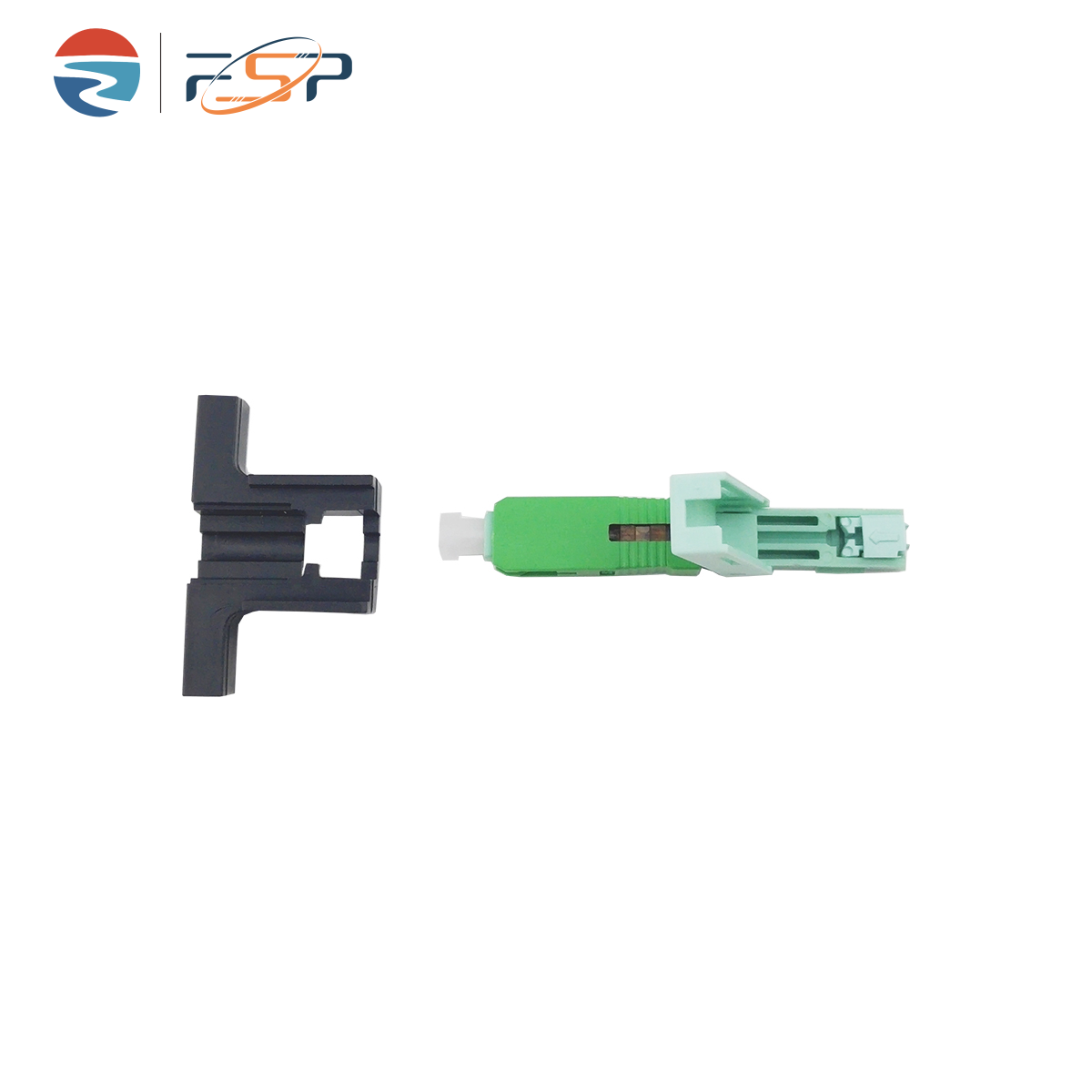

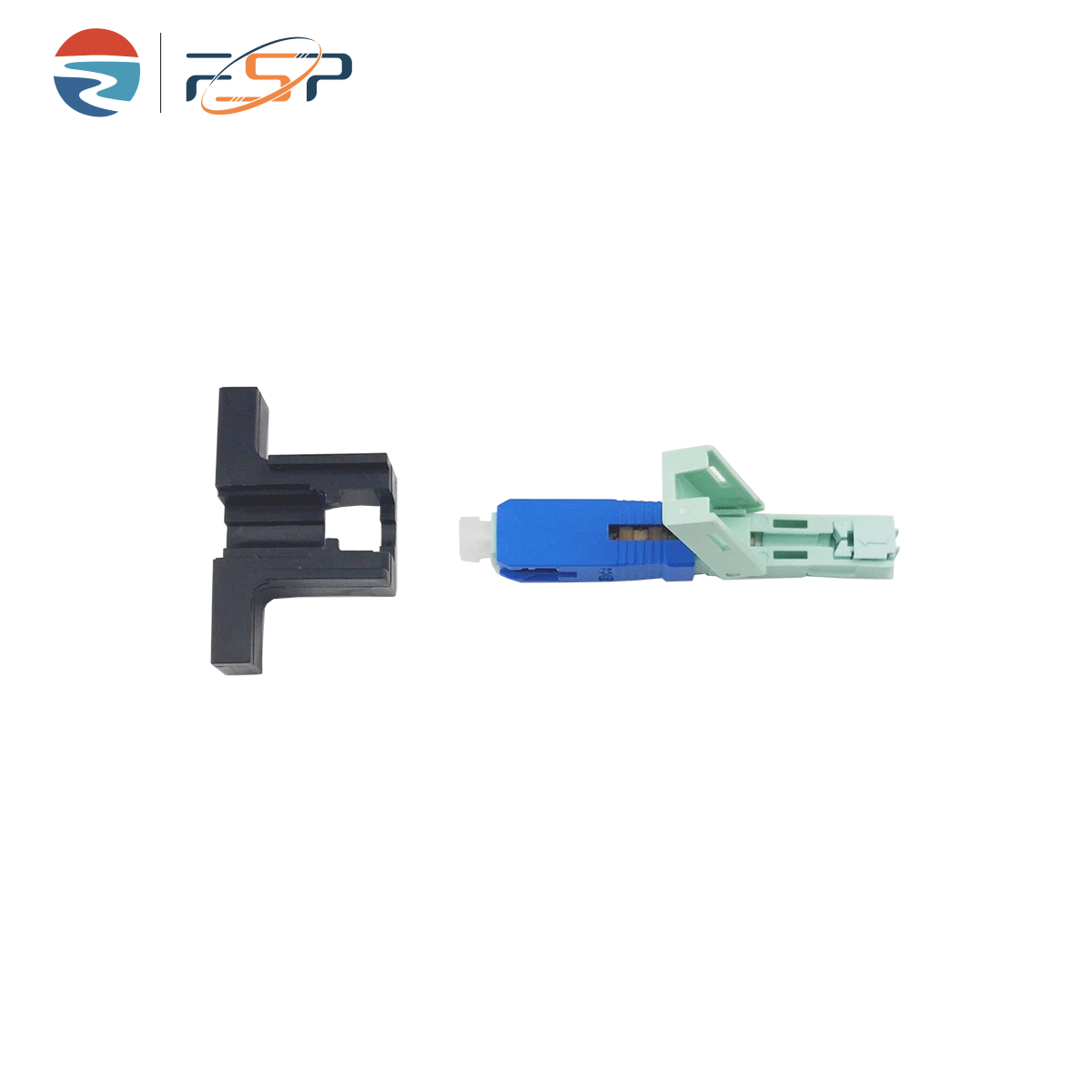

                                                                FSP-SMFC-02-SC details


Features:
1. Fiber embeded ,the end face of the fiber can be polished into APC or UPC mode;
2. Excellent mechanical endurance;
3. Applied to 2x3mm drop cable, applicable to FTTH field assembly;
4. Strict testing standards and methods for quality;
5. Pre-terminated fiber in the ferrule, no epoxy, curing and polishing;
6. Cost effective and user friendly, termination time with Tripping and cutting tool;
7. Clamping joints for cable fixing.

Configuration Table:
|

                        Connection Type

                 |


                    SC

             |

|

                        Polishing Mode

                 |


                    APC/UPC/PC

             |

|

                        Cable Fixing Method

                 |


                    Side Clamping

             |

|

                        Cable Diameter

                 |


                    2×3 mm

             |

|

                        Insertion Loss

                 |


                    ≤ 0.3 dB

             |

|

                        Return Loss

                 |


                    ≥ 50 dB (UPC / PC)
            ≥ 55 dB(APC)  |

|

                        Tensile Strength

                 |


                    ≥ 30N

             |

|

                        Operating temperature

                 |


                    -40℃ ~ 75℃

             |

|

                        Storage temperature

                 |


                    -40℃ ~ 85℃

             |
