1、Description：

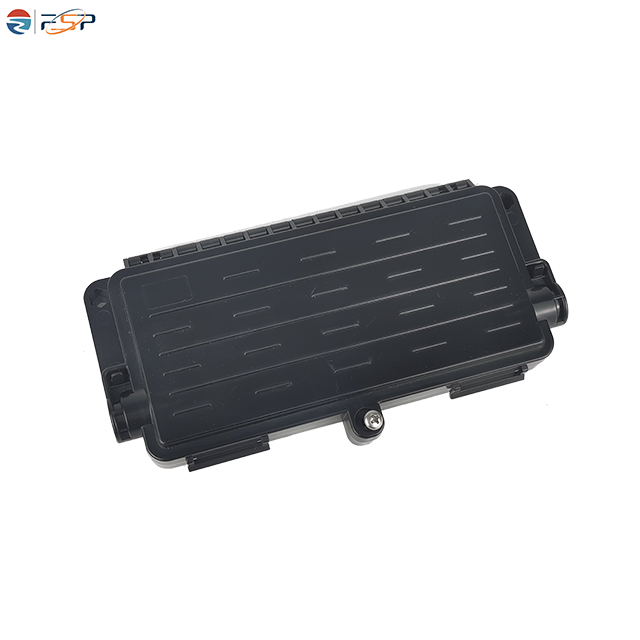

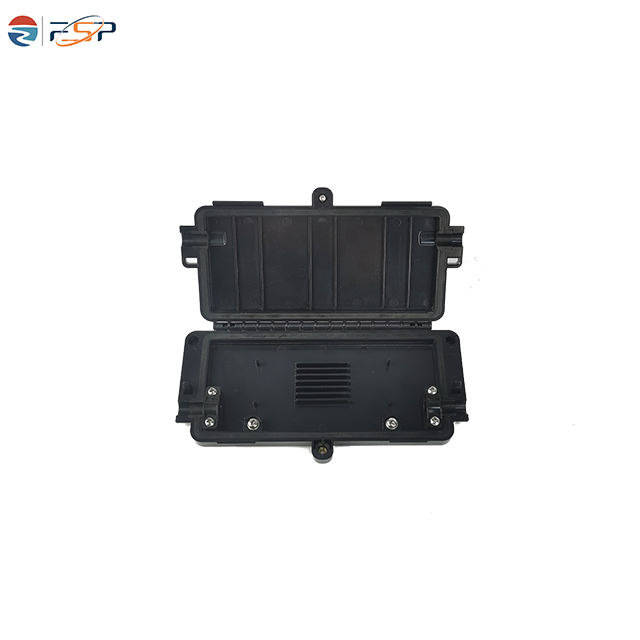

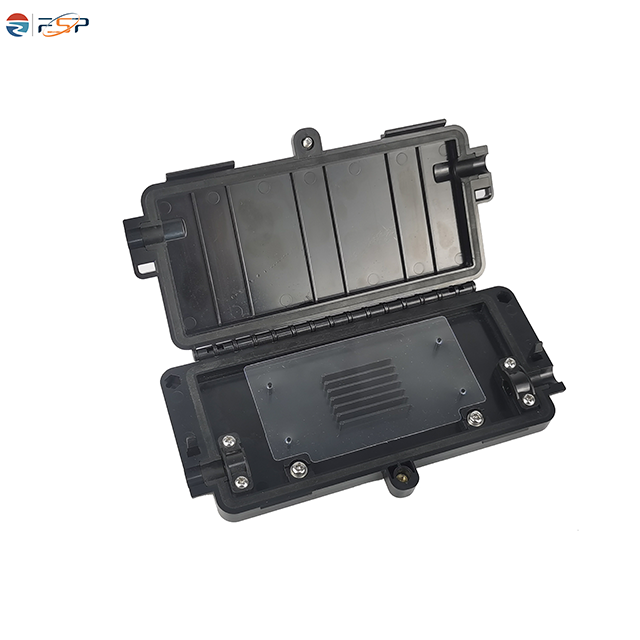

FSP-P-12S Fiber spling Box is used for optic fiber connection. Maximum 12pcs splicing sleeves can be accommodated in the
box and meanwhile it provides solid protection and management for the splicing point.
2、Specification：
1) Water-proof design with IP65 Protection level.
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
3,Configuration Table
Model | FSP-P-12S |

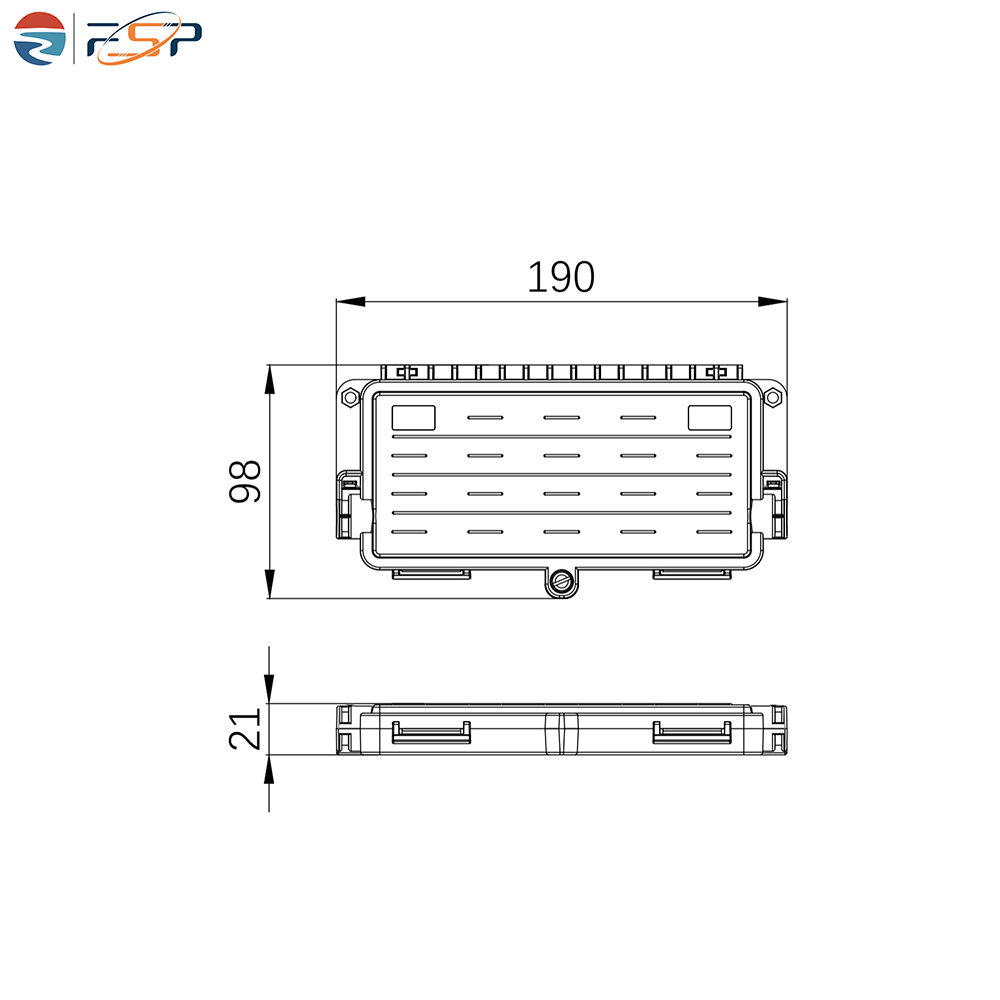

Size (Pic 1) | H×W×D = 21×190×98 (mm) |
Material | PC+ABS (Anti UV) |
Color | Black |
Splicing Capacity | 6/12 cores |
Installation Way | Wall Mounting |
pic1

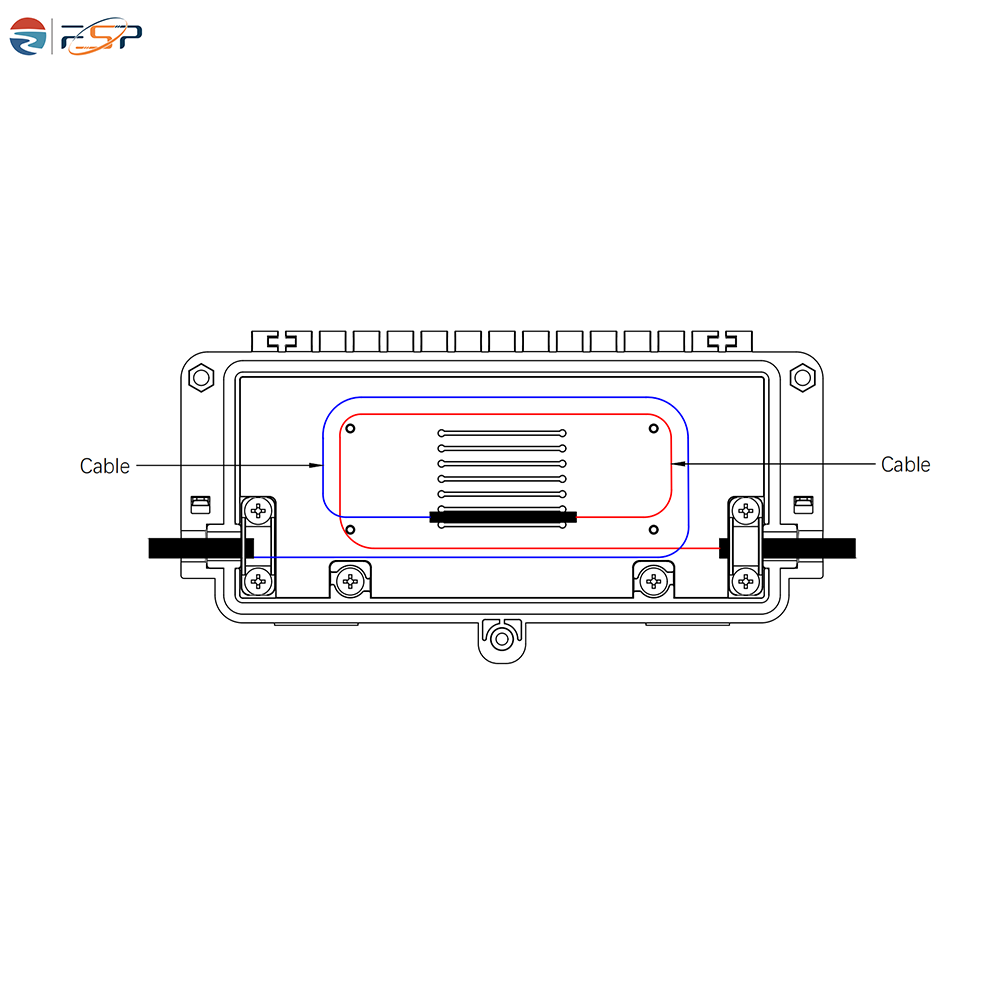

5.Routing
pic2
6、Installation

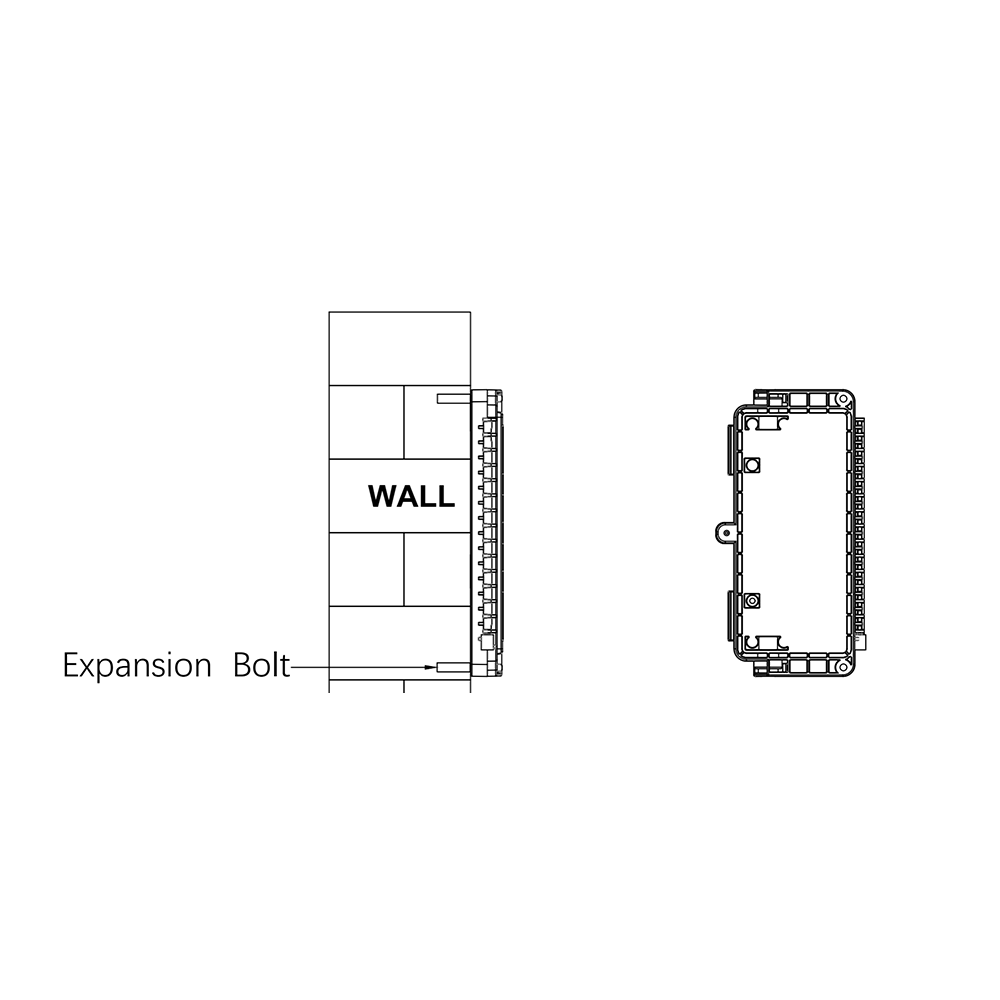

1) Wall-mounting (Pic 3)
Like below to use 2 expansion bolts to fix the box directly.
pic3
