Type

Inline type

Number of Inlet/Outlet ports

6 ports

Cable Diameter

2 ports×13mm, 2 ports×20mm, 2 ports×23mm

Maximum Capacity

Bunchy: 96 fibers;

Ribbon: 288 fiber

Capacity per Splice Tray

Bunchy: single layer: 12 fibers; dual layers: 24 fibers;

Ribbon: 6pcs

Quantity of Splice Tray

4pcs

Body Material

PC

Sealing Material

Thermoplastic rubber

Assembling method

Aerial, direct buried, pipelined, wall mounting, manhole

Dimension

450(L)×220(W)×110(H)mm

Net Weight

2.75~3.2KG

Temperature

-40℃~65℃

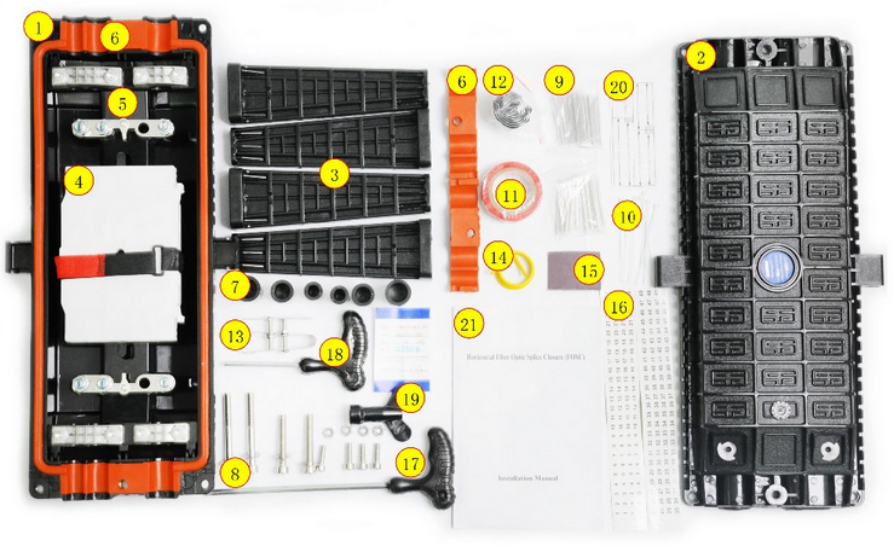

1

Housing (Bottom)

To protect splices of fiber optic cables

1pc

2

Housing (Cover)

To protect splices of fiber optic cables

1pc

3

Insertion Plate

To fix the housings

2 pairs

4

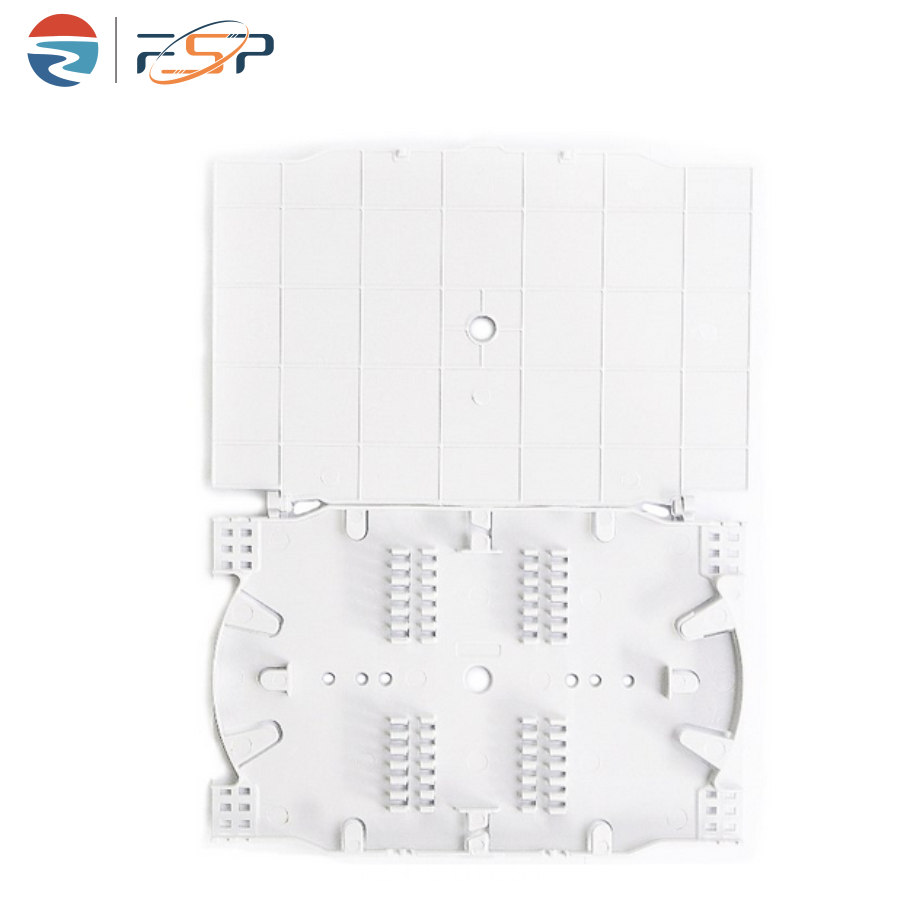

Splice Tray

To fix Fiber Splice Protective Sleeves

Max. 4pcs

5

Foundation

To fix fiber cable, strength member and splice trays

1pc

6

Sealing Grommet

To seal bottom and cover

1 set

7

Plug

To seal empty ports

6pcs

8

Bolt

To fix bottom and cover

1 set

9

Fiber Splice Protective Sleeves

To protect fiber splices

Same as capacity

10

Nylon Tie

To fix buffer tubes with fibers inside

8pcs

11

Insulation Tape

To enlarge cable diameter for fixation

1 roll

12

Sealing Tape

To enlarge cable diameter for sealing grommet

1 roll

13

Hanging Hook

For aerial installation

2pcs

14

Grounding Wire

To connect with grounding device

1pc

15

Abrasive Cloth

To polish fiber optic cable

1pc

16

Labelling Paper

To label fibers

1 set

17

M8 Wrench

To screw bolts of housing and insertion plates

1pc

18

M6 Wrench

To screw small bolts of housing

1pc

19

M10 Wrench

To screw nuts for strength member

1pc

20

Measuring Paper

To measure perimeter of fiber cable

1pc

21

User Manual

To instruct installation

1pc

1

Valve

To perform pressure and sealing testing

1pc

2

Grounding Device

To derive metallic components of fiber cable

1 set

3

Buffer Tube

To protect fibers and be fixed on splice trays

specified

4

Desiccant

To desiccate air in FOSC after sealing

1 bag
