Fiber Model

G652D

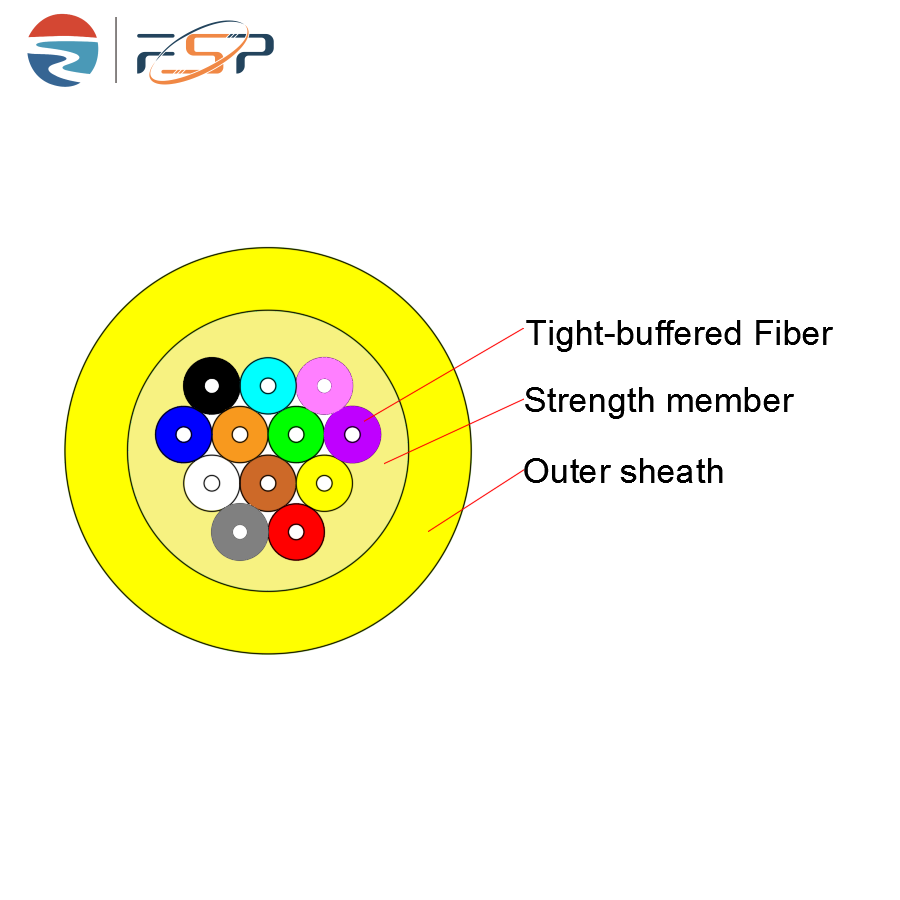

Tight lines

Material

PVC

Thickness（±0.03）mm

0.32

Diameter（±0.06）mm

0.9

Strength Member

Material

Aramid Yarn

Outer Sheath

Material

LSZH

Thickness（±0.2）mm

0.55

0.65

0.8

0.9

1.0

Colour

Yellow/Black

Cable   Diameter（±0.2）mm

5.0

5.5

5.8

6.2

8.5

Cable Weight（±5）kg/km

17

21

28

36

60

Max Attenuation

1310nm

dB/km

0.36

1550nm

0.22

Allowable Tensile Strength

Short Term

N

440

Long Term

200

Allowable Crush Resistance

Short Term

N/100mm

1000

Long Term

200

Min.bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

（℃）

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70
