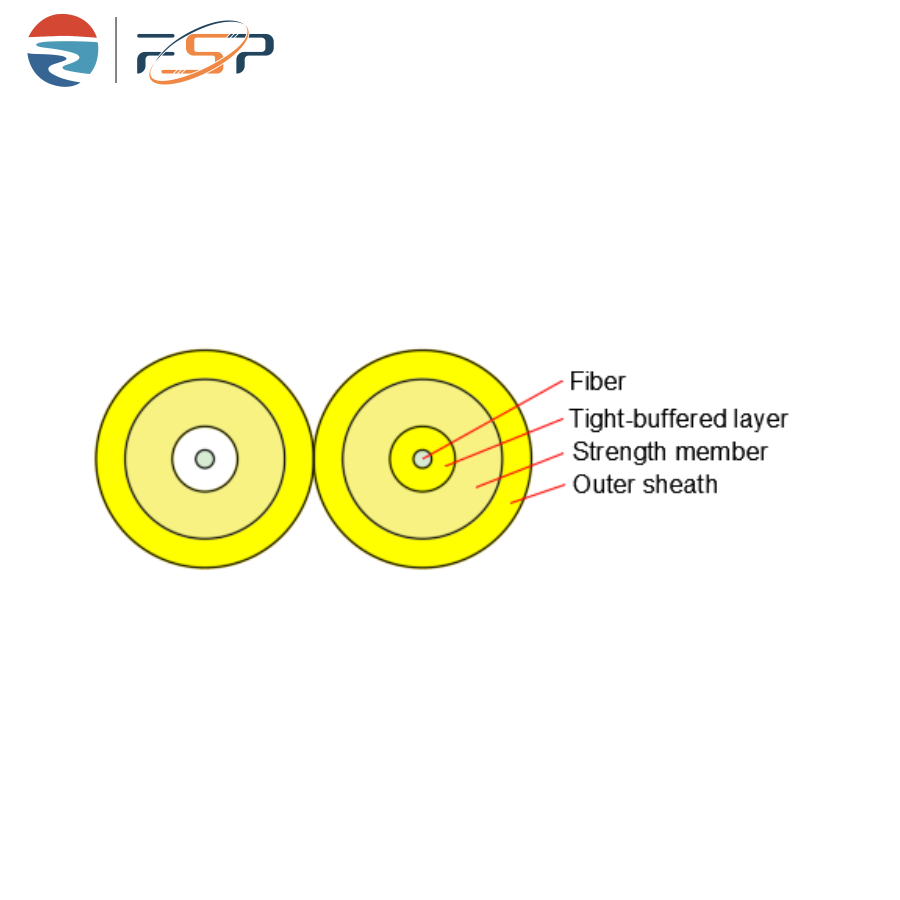

Fiber Model

G.652D

Tight lines

Material

PVC

Thickness（±0.03）mm

0.32

Diameter（±0.06）mm

0.9

Colour

White、Yellow

Strength Member

Material

Aramid Yarn

Outer Sheath

Material

LSZH

Thickness（±0.05）mm

0.45

Colour

Yellow

（According to customer needs）

Cable Diameter（±0.2）mm

3.0*6.0

Cable Weight（±2）kg/km

12

Attenuation

1310nm

dB/km

≤0.35

1550nm

≤0.21

Allowable Tensile Strength

Short Term

N

230

Long Term

120

Allowable Crush Resistance

Short Term

N/100mm

500

Long Term

100

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range

（℃）

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70
