Description:

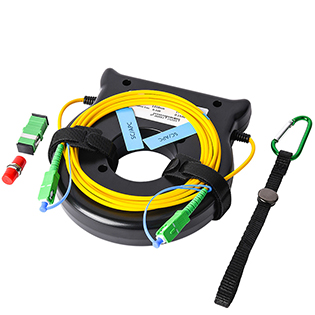

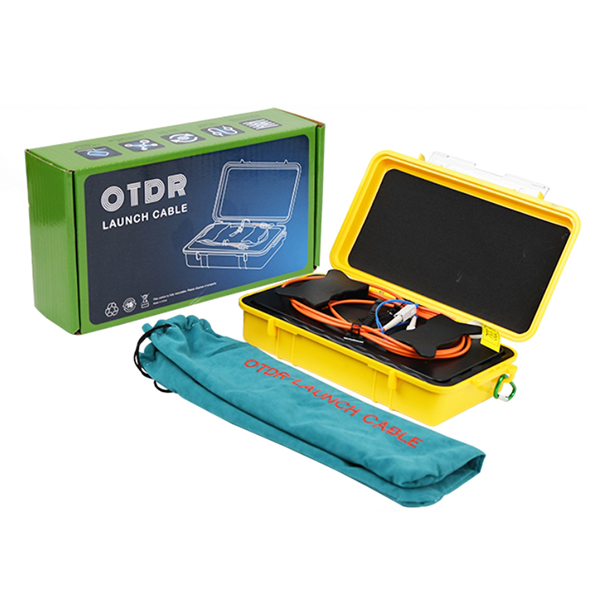

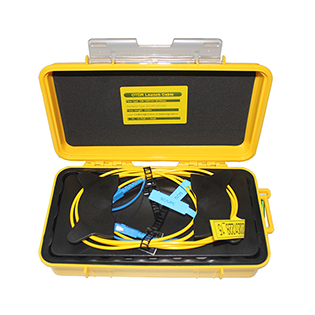

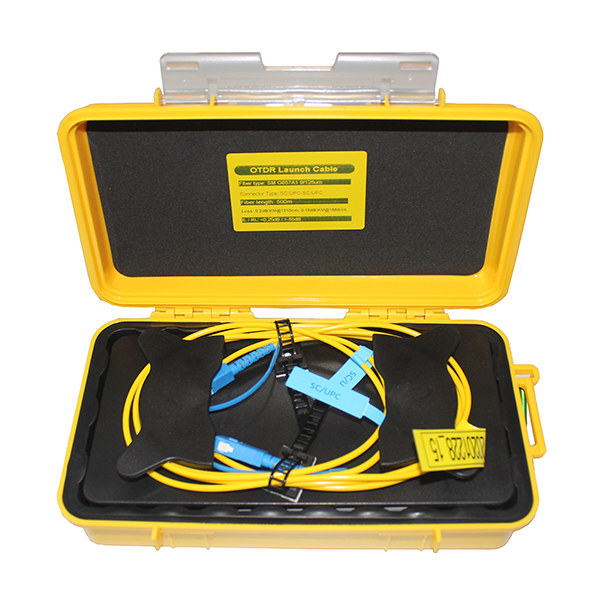

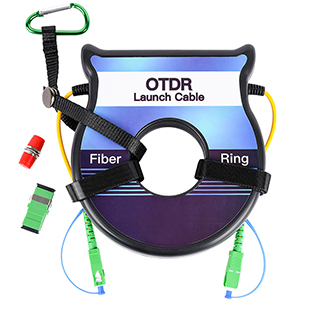

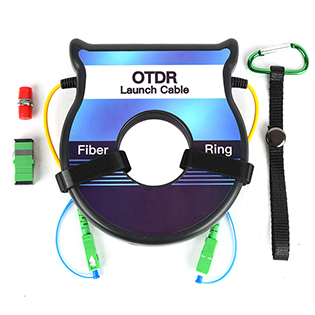

Fiber Rings are often a necessity when testing with an OTDR. Fiber Rings are compact launch / receive cables designed to measure the insertion loss of the near-end and/or far-end connection of a fiber optic link using an OTDR. Both a launch and receive cable are required to measure complete link loss of a fiber with an OTDR. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which connects to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. Launch and receive test cables can range from 150 m to 1 km (or longer) in length. Because very long test cables are impractical to transport and use, we offer coiled lengths of 50 µm multimode, 62.5 µm multimode, or single-mode fiber conveniently packaged in compact rings.

Fiber Rings with150 m of fiber are ideal for premises fiber network test applications. Fiber Rings with 500 m or 1 km of single-mode fiber are designed for broadband, long-haul fiber network test applications. Fiber Rings are compact and fit easily in many OTDR carry cases and test kits. Fiber Rings are available in a variety of standard angled and non-angled connector styles including SC, ST, LC, and FC.

Features:

1. Compact, rugged, lightweight

2. 150, 500, and 1000 m lengths standard

3. Available with a variety of connector styles

4. Compact! Fits easily in OTDR cases or kits

Application:

1. For use as OTDR launch cable

2. For use as OTDR receive cable

3. Measure insertion loss and reflectance of near- and far-end connections of a fiber optic link using an OTDR

4. Use to test link loss with an OTDR

Ordering Information:
