OTDR Launch Fiber Cable is used with Optical Time Domain Reflectometers (OTDR) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.

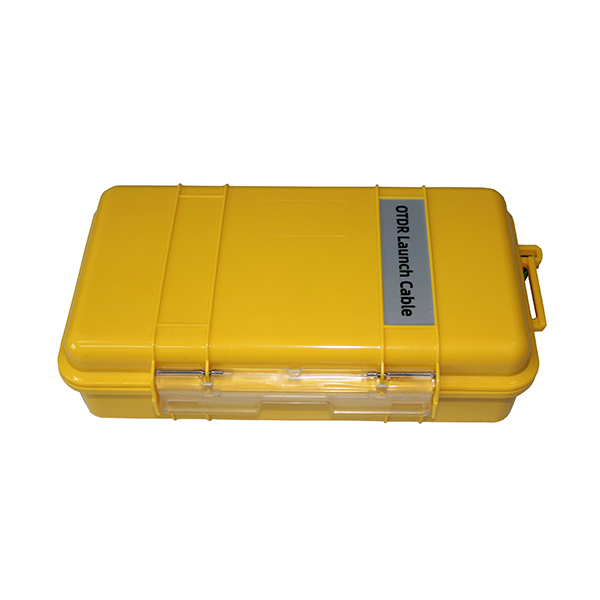

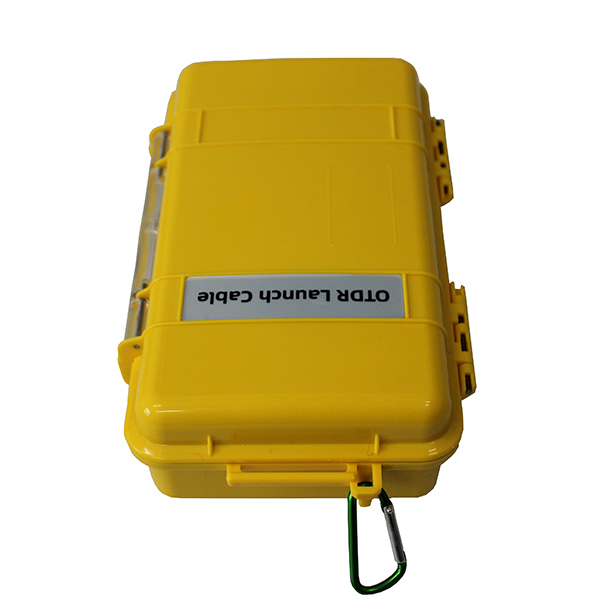

We provide high performance Launch Fiber Cable with a high density anti-corrosion box. SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode.It is available in many different configurations and fiber lengths.
Features:
l Compact and ruggedized, easy to carry
l Excellent waterproof and dustproof performance
l Auto Purge Valve for changes in altitude and temperature
l Non-metal construction will not corrode or conduce electricity
Applications:
l Training and calibration

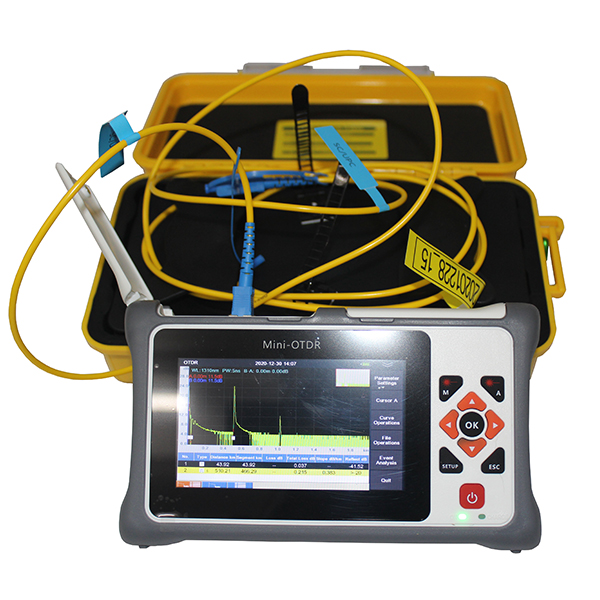

l Installation and testing by OTDR
Specifications:
|
Dimension |
22(L) x 12(W) x 6.5(H)cm |
|
Fiber Type |
G.657A/G.652D (MM can be customized) |
|
Typical Loss |
<0.5dB @ 1310nm for 1,000 meters |
|
Connector Type |
FC/SC/LC selectable |
|
Polishing Type |
APC/UPC selectable |
|
Box Material |
SR Polypropylene |
|
Color |
yellow |
|
Weight |
0.75kg / 0.35kg (without fiber) |
|
Packing Box |
27(L) x 15(W) x 7.5(H)cm |
|
Operating Temperature |
-40~+55°C |
|
Accessories |

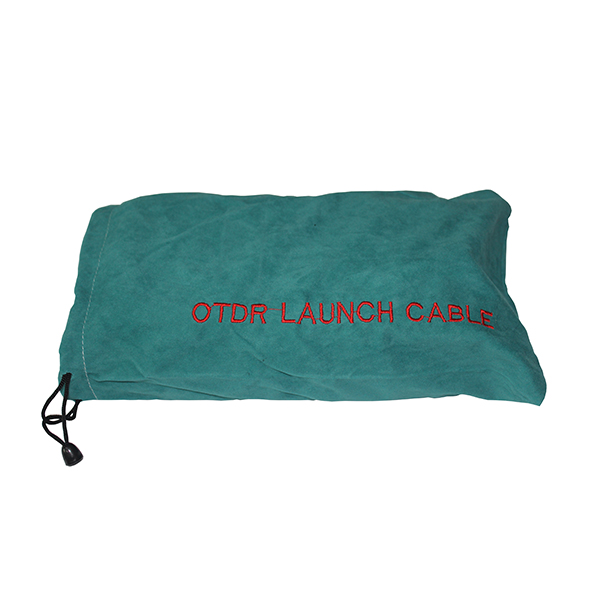

OTDR Launch Fiber Cable, Nylon bag, OTDR test report, Packing Box |
Ordering Information:
|
Brand |
MAY |
|
Name |
LFC: Launch Fiber Cable |
|
Connector 1 |
SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC |
|
Connector 2 |
SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC |
|
Fiber Type |
7A1: SM G.657.A1 2D: SM G.652.D OM1: MM 62.5/125um OM2: MM 50/125um OM3: MM 50/125um 10G OM4: MM 50/125um 10/40/100G |
|
Cable Length |
0.5: 0.5km 1: 1km 2: 2km |
