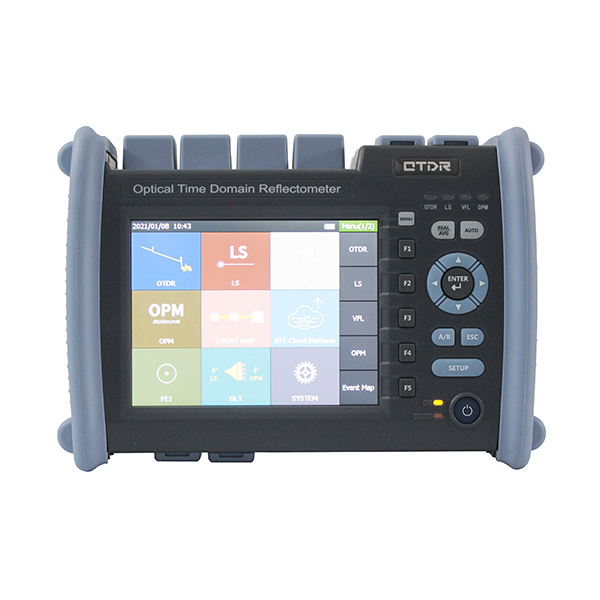

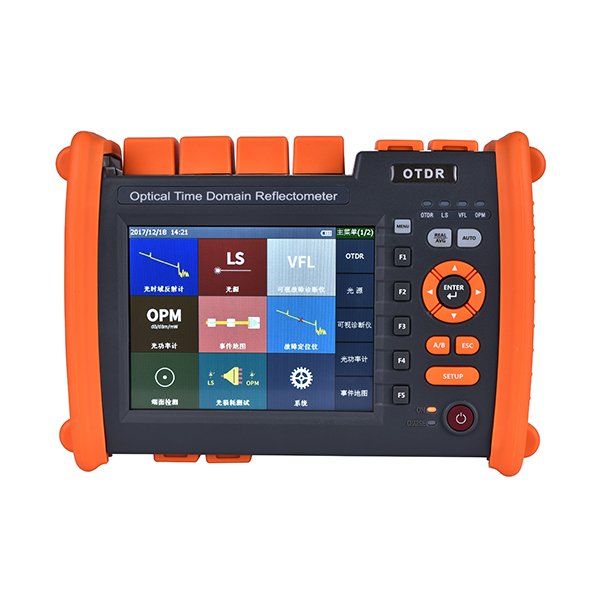

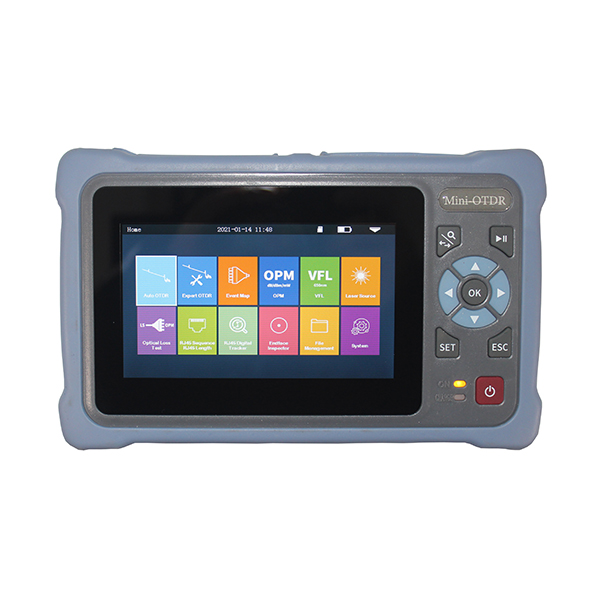

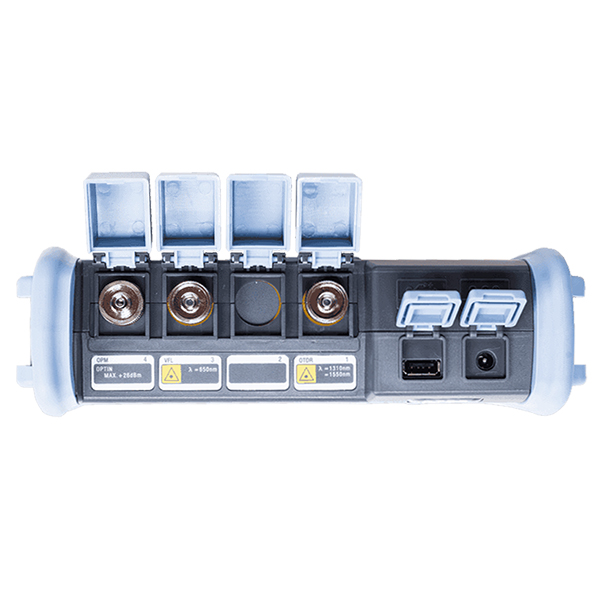

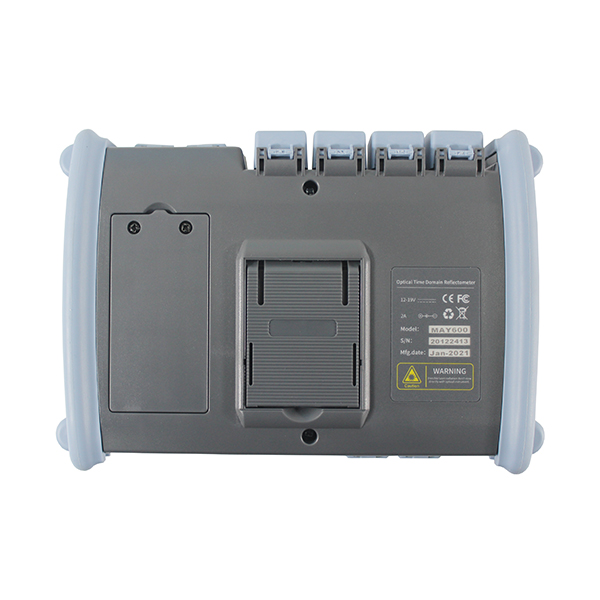

MAY600 PON OTDR is a new generation of portable and intelligent measuring instrument for testing fiber optic communication system. It adopts 5.6 inch color touch screen, button/touch operation, internal integration of eight major functional modules, intelligent power-saving management, and 20 hours long standby, which help customers effectively solve the field testing and maintenance.
It is mainly used to measure the length, loss and connection quality of optical fibers and cables, and can be widely used in engineering construction, network maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
1625nm or 1650nm PON OTDR can penetrate optical splitters easily for online PON network testing without distributing the service.
The design concept of multi-functional integration, precision testing and convenient operation makes the field testing simple.
Features:
l Integrated design, smart and rugged
l Shockproof, outdoor enhancement

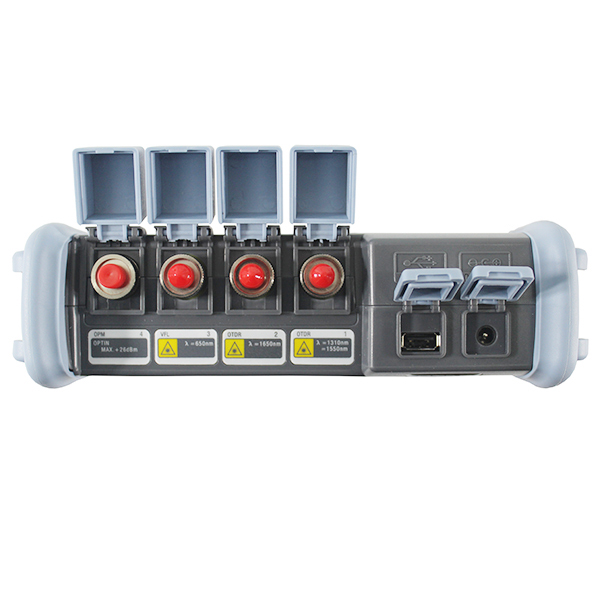

l FC/SC/ST connectors interchangeable
l Automatic and manual test function
l Visual Fault Locator (VFL) function
l OTDR Viewer software for data analysis
Applications:
l FTTX testing with PON networks
l CATV network testing
l Access network testing
l LAN network testing
l Metro network testing
l Lab and Factory testing
l Live fiber troubleshooting
l FTTA troubleshooting

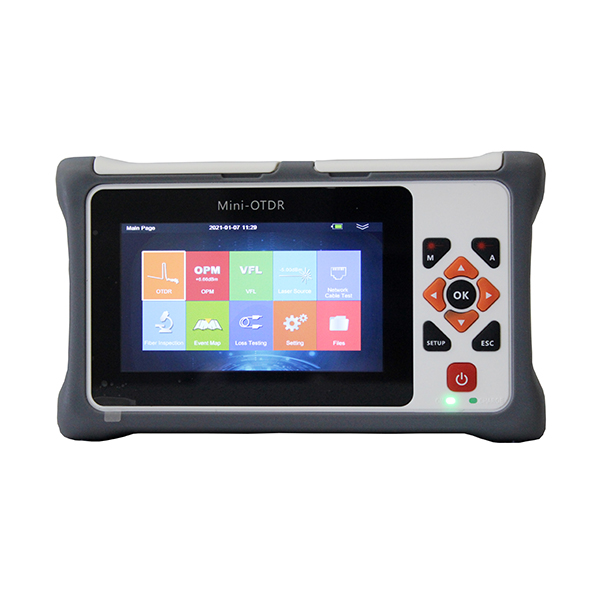

Multi-functions:
1. OTDR
2. Optical Power Meter (OPM)
3. Optical Light Source (OLS)
4. Visual Fault Locator (VFL)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
5. Fiber Optic Microscope (FIM)
Fiber Optic Microscope is used to check fiber optic connector endface. The inspection probe is sold seperately.
6. Event Map
Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.
7. IL Testing
OPM and OLS can be opened at the same time to test insertion loss.
8. Report Print
PC software helps print out OTDR test reports.
Specification:
1. OTDR
|
Model |
TP32 |
TP37 |
T38 |
T40 |
T42 |
P38 |
C38 |
TC38 |
|
Wavelength |
1310/1490/1550 nm |
1310/1550±20, 1625±15nm (filtered) |
1310/1550±20, 1625±15nm (filtered) |
1310/1550±20, 1625±15nm (filtered) |
1625±20 nm(filtered) |
1650±15nm (filtered) |
1310/1550±20, 1650±15nm (filtered) |
|
|
Filter |
/ |
/ |
High pass>1595nm, (1270~1585nm) |
High pass>1595nm, (1270~1585nm) |
High pass>1595nm, (1270~1585nm) |
High pass>1595nm, (1270~1585nm) |
Band pass 1650±7nm (1650±10nm) |
Band pass 1650±7nm (1650±10nm) |
|
Isolation |
/ |
/ |
>50dB |
>50dB |
>50dB |
>50dB |
>50dB |
>50dB |
|
Dynamic Range ① |
32/30/30dB |
37/35/35dB |
38/36/36dB |
40/38/38dB |
42/40/40dB |
38dB |
38dB |
38/36/36dB |
|
Event Dead Zone② |
0.8m |
0.8m |
0.8m |
0.8m |
0.8m |
0.8m |
0.8m |
0.8m |
|
Attenuation Dead Zone |
6m |
6m |
6m |
6m |
6m |
6m |
6m |
6m |
|
PON Dead Zone |
/ |
/ |
30m |
30m |
30m |
30m |
30m |
30m |
|
Fiber Type |
SMF |
|||||||
|
Measurement Range |
0.5/1/2/4/8/16/32/64/128/256km |
|||||||
|
Measurement Pulse Width |
3/5/10/30/50/80/160/320/500/800/1000/3000/5000/8000/10000/20000ns |
|||||||
|
Ranging Accuracy |
±(0.75+Sampling interval+0.005%*Test distance) |
|||||||
|
Loss Precision |
±0.001dB/dB |
|||||||
|
Sampling Points |
Max. 256,000 points |
|||||||
|
Sampling Resolution |
0.05~16m |
|||||||
|
File Format |
SOR standard file format |
|||||||
|
Loss Analysis |
4-point method / 5-point method |
|||||||
|
Laser Safety Level |
Class II |
|||||||
|
Adapter |
FC/UPC (Interchangeable SC, ST adapter) |
|||||||
|
Refresh Rate |
3Hz (Typ.) |
|||||||
|
Reflection Accuracy |
±3dB |
|||||||
|
Signal Detection |
Effective protection of APD |
|||||||
Note:
①Testing temperature is 25°C±2°C, maximum pulse width, average time is more than 30s.
②Test conditions of Event Dead Zone are minimum range, minimum pulse width, reflection loss of optical fiber end surface (>45dB), typical value.
2. Optical Power Meter
|
Wavelength Range (±20nm) |
800~1700nm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
-50~+26dBm |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Connector |
FC (SC, ST interchangeable) |
3. Optical Light Source
|
Working Wavelength |
Same as OTDR output wavelength |
|
Output Power |
≥-5dBm |
|
Accuracy |
CW, ±0.5dB/15min (Test after 15 minutes of boot-up preheating) |
|
Connector |
FC/UPC (SC, ST interchangeable) |
4. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
≥2mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
FC (SC, ST interchangeable) |
5. Fiber Optic Microscope (FIM) (Optional ):
|
Magnification |
400X |
|
Resolution |
0.5µm |
|
Focus Control |
manual |
|
Dimension |
155×44×40mm |
|
Weight |
187g |
|
USB |
1.1/2.0 |
|
Adapter |
SC-PC-F (For SC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5mm-PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) 1.25mm-PC-M (For 1.25mm connector, LC/PC) |
Optional Tips for Fiber Optic Microscope (FIM):
|
Name |
Quantity |
|
2.5mm-APC-M Tip (For 2.5mm APC connector, SC/APC, FC/APC, ST/APC) |
1pc |
|
1.25mm-APC-M (For 1.25mm APC connector, LC/APC) |
1pc |
|
SC-APC-F Tip (For SC/APC adaptor) |
1pc |
|
FC-APC-F Tip (For FC/APC adaptor) |
1pc |
|
LC-APC-F Tip (For LC/APC adaptor) |
1pc |
Other Specification:
|
Display |
5.6 inch color LCD with touch screen |
|
Power Supply |
AC/DC adapter: AC: 100~240V, 50/60Hz, 0.6A; Lithium battery: 7.4V 5200mAh |
|
Battery Working Hours |
≥10h |
|
Communication |
USB, mini USB, 10/100M Ethernet |
|
Data Storage |
Internal: 100M (3,000 curves); External: 4G |
|
Weight |
1.2kg |
|
Size |
227*160*70mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
< 95% Non-condensation |
|
Language |
English, Russian, Portuguese, Spanish, Korean, simplified Chinese, traditional Chinese |

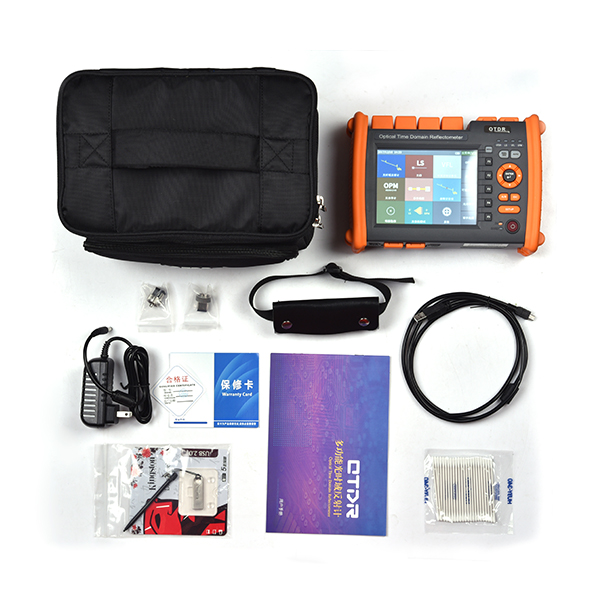

Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC adapters |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
Wrist Strap |
1pc |
|
4 |
U disk (including simulation analysis software) |
1pc |
|
5 |
Touch pen |
1pc |
|
6 |
Data line |
1pc |
|
7 |
OTDR SC adapter |
1pc |
|
8 |
OPM SC adapter |
1pc |
|
9 |
User manual |
1pc |
|
10 |
Calibration Certificate |
1pc |
|
11 |
Carrying bag |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |
SC Adapter for VFL Port |
1pc |
|
2 |
LC Adapter for OTDR Port, VFL Port and OPM Port |
1~4pcs |
|
3 |
ST Adapter for OTDR Port, VFL Port and OPM Port |
1~4pcs |
Ordering Information:
|
Model |
MAY600 |
|
Wavelength and Dynamic Range |
TP32: 1310/1490/1550nm, 32/30/30dB TP37: 1310/1490/1550nm, 37/35/35dB T38: 1310/1550/1625nm, 38/36/36dB T40: 1310/1550/1625nm, 40/38/38dB T42: 1310/1550/1625nm, 42/40/40dB P38: 1625nm, 38dB
C38: 1650nm, 38dB |
|
Connector |
None: FC/UPC and SC/UPC (default) A: FC/APC and SC/APC |
