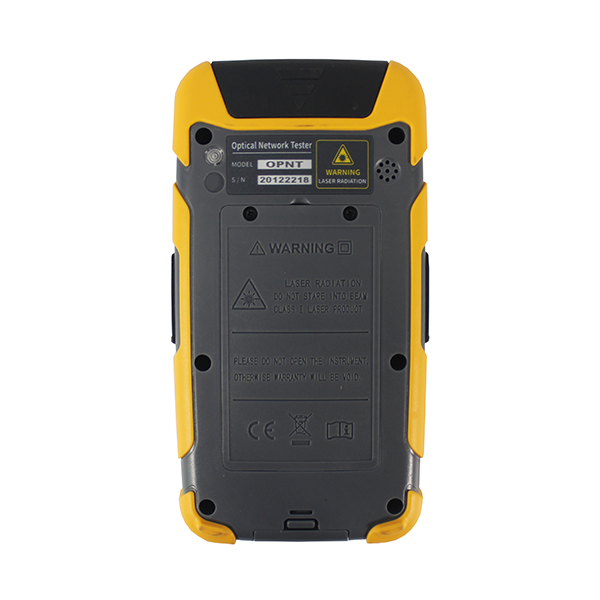

MAY430 Optical Network Tester is a powerful tester, widely used in Metropolitan area network construction, network maintenance and emergency repair of fiber optic network. It is used to measure fiber length, loss, connection quality, RJ45 Ethernet cable sequence, length and tracking.
Features:
l Integrated design, smart and rugged

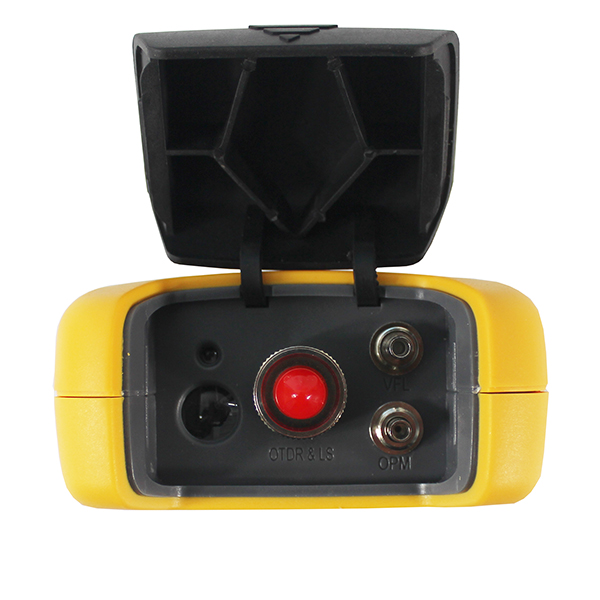

l FC/SC/ST connectors interchangeable
l Automatic and expert test function
l OTDR Viewer software for data analysis
l Support USB Type C export data protection
l Intelligent power saving management
Applications:
l CATV network testing
l Access network testing
l LAN network testing
l Lab and Factory testing
l FTTA troubleshooting
Multi-functions:
1. Auto OTDR
There is no need to do complicated settings, one button operation.
2. Expert OTDR
It provides professional measurement and displays curve, list and map simultaneously.
3. Event Map
Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.
4. Optical Power Meter (OPM)
5. Visual Fault Locator (VFL)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
6. Optical Light Source (Laser Source)

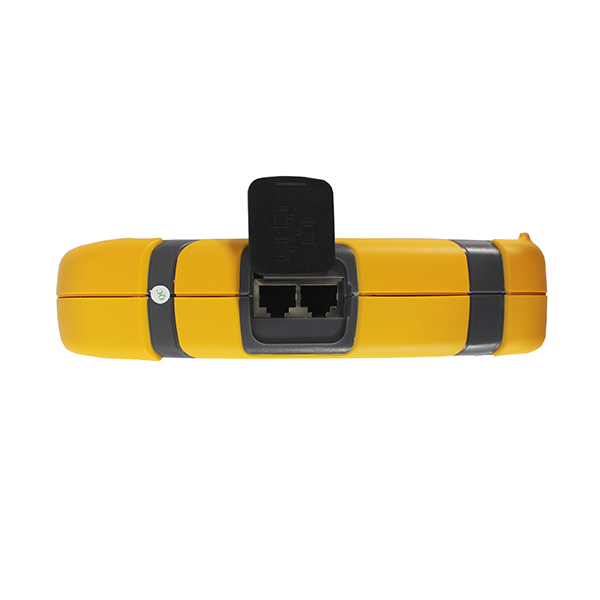

7. RJ45 Tracker
It can trace and locate the RJ45 network cable.
8. RJ45 Sequene
It can check wire map of RJ45 cable.
9. RJ45 Length
It can measure the length of RJ45 cable.
10. Laser Distance Meters
It includes 12 functions: Single, Continuous, Addition, Subtraction, Angle, Hypotenuse, Height (1), Height (2), Triangle Area, Rectangle Area, Volume, and Speed.
11. Optical Loss Test
Optical Light Source (OLS) can run in the background. Open OLS first and then open OPM to test insertion loss.
When OLS and OPM are used together, TWINS function can be opened to identify the wavelength and frequency of the tester laser source.
Specification:
1. OTDR
|
Model |
MAY430-D28 |
MAY430-D30 |
MAY430-D32 |
MAY430-P26 |
MAY430-P28 |
MAY430-C26 |
MAY430-C28 |
MAY430-MD22 |
MAY430-MD26 |
|
Wavelength |
1310/1550nm |
1625nm |
1650nm |
850/1300nm |
|||||
|
Dynamic Range |
28/26dB |
30/28dB |
32/30dB |
26dB |
28dB |
26dB |
28dB |
20/22dB |
24/26dB |
|
Fiber Type |
SMF |
MMF |
|||||||
|
Event Dead Zone |
1.2m |
||||||||
|
Attenuation Dead Zone |
5m |
||||||||
|
Measurement Range |
500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km, 100km |
||||||||
|
Measurement Pulse Width |
3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 800ns, 1us, 2us, 3us, 5us, 8us, 10us, 20us |
||||||||
|
Ranging Accuracy |
±(1m + Sample interval + 0.005%×Test distance) |
||||||||
|
Sampling Resolution |
0.05m~8m |
||||||||
|
Samping Points |
256,000 points |
||||||||
|
Linearity |
≤0.05dB/dB |
||||||||
|
Loss Threshold |
0.01dB |
||||||||
|
Loss Resolution |
0.001dB |
||||||||
|
Range Resolution |
0.001m |
||||||||
|
Refraction Setting |
1.00000~2.00000, 0.00001 step |
||||||||
|
Refraction Accuracy |
±3dB |
||||||||
|
File Format |
SOR standard file format |
||||||||
|
Laser Safety Level |
Class II |
||||||||
|
Adapter |
FC/UPC (Interchangeable SC adapter) |
||||||||
2. Optical Power Meter
|
Wavelength Range (±20nm) |
800~1700nm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
-50~+26dBm |
|
Tone Detection |
CW, 270, 330, 1k, 2kHz |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Auto Wavelength Recoginition |
Support |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
3. Optical Light Source
|
Emitter Type |
FP-LD |
|
Working Wavelength |
Same as OTDR |
|
Output Power |
≥-5dBm |
|
Modulation Frequency |
CW/270/330/1k/2kHz |
|
Accuracy |
CW, ±0.5dB/15min (Test after 15 minutes of preheating) |
|
Auto Wavelength Recoginition |
Support |
|
Connector |
FC/UPC (Interchangeable SC adapter) |
Note:
3.1. The wavelength of Optical Light Source is the same as OTDR wavelength.
3.2. Optical Light Source shares the same fiber port as OTDR port.
3.3. Optical Light Source can run in the background, but will shut off during OTDR testing.
4. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Laser Safety Level |
Class III |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
Note: Visual Fault Locator can run in the background.
5. RJ45 Sequene, RJ45 Length
|
Test Range |
300m |
6. RJ45 Tracker
|
Mode |
Digital tracking |
|
Online/Line Pair Tracking |
Support |
|
Test Range |
300m |
7. Laser Distance Meters
|
Test Range |
0.05~40m |
|
Accuracy |
±2.0mm |
|
Laser Type |
620~690nm |
|
Laser Safety Level |
Class II, <1nW |
Other Specification:
|
Display |
4.3 inch full-view capacitive touch screen, support multi-touch, TFT 800x480 resolution |
|
Power Supply |
AC/DC adapter: AC: 100~240V, 50/60Hz, 5V, 2A; Lithium battery: 3.7V 4,000mAh |
|
Battery Standby Life |
≥20h |
|
Battery Working Hours |
≥10h (under high brightness) |
|
Data Interface |

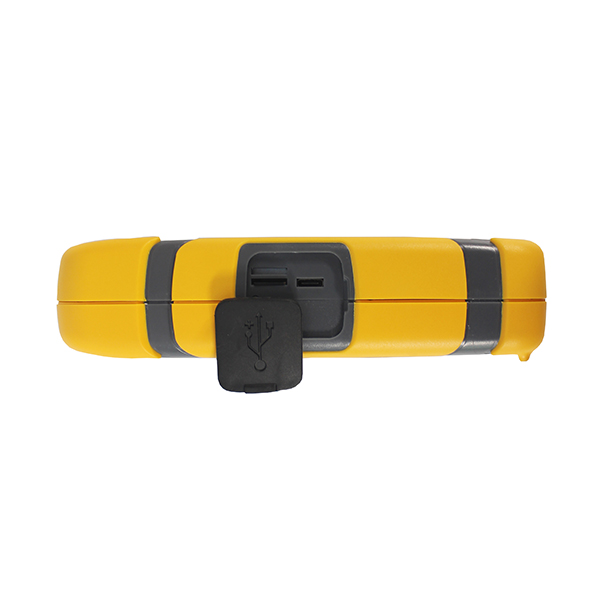

USB Type C |
|
Data Storage |
100,000 curves; 8G internal storage |
|
Weight |
400g (including battery) |
|
Size |
174*92*45mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
< 95% Non-condensation |

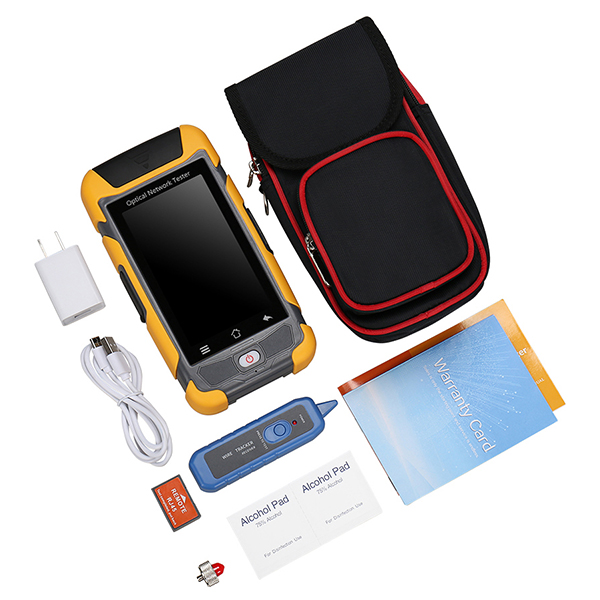

Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC adapter for OTDR/LS port and Lithium battery |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
Data line |
1pc |
|
4 |
SC Adapter for OTDR port |
1pc |
|
5 |
User manual |
1pc |
|
6 |
Calibration Certificate |
1pc |
|
7 |
Soft Bag with shoulder strap |
1pc |
|
8 |
Network Cable Tracker |
1pc |
|
9 |
Warranty card |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |
LC Adapter for OTDR port |
1pc |
|
2 |
ST Adapter for OTDR port |
1pc |
Ordering Information:
|
Model |
MAY430 |
|
Wavelength and Dynamic Range |
D28: 1310/1550nm, 28/26dB D30: 1310/1550nm, 30/28dB D32: 1310/1550nm, 32/30dB P26: 1625nm, 26dB P28: 1625nm, 28dB C26: 1650nm, 26dB C28: 1650nm, 28dB MD22: 850/1300nm, 20/22dB MD26: 850/1300nm, 24/26dB |
|
Connector |
None: FC/UPC and SC/UPC (default) A: FC/APC and SC/APC |
