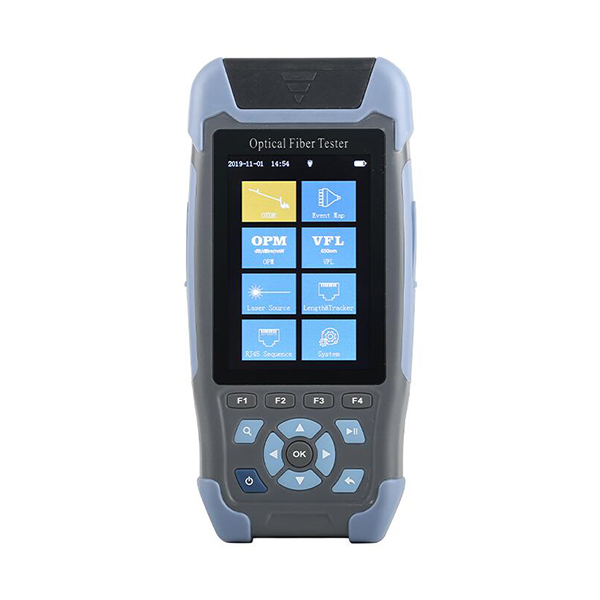

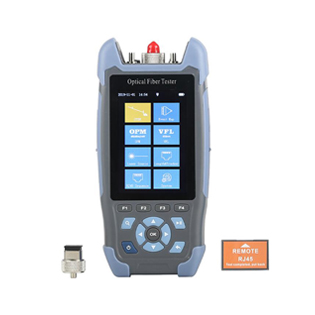

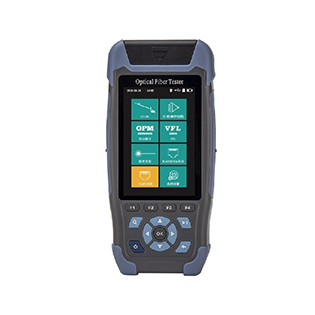

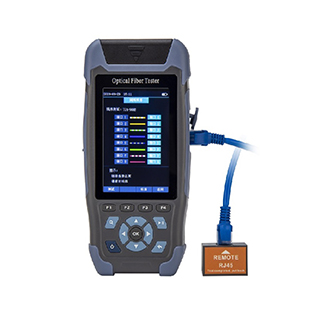

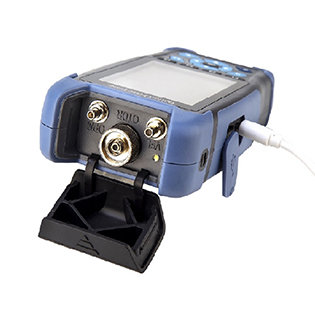

MAY400 MINI PRO Multi-functional OTDR integrates fiber cable and Ethernet cable testing in one unit. It is a powerful tester for installers of fiber cable and network cable.
Features:
l Integrated design, smart and rugged

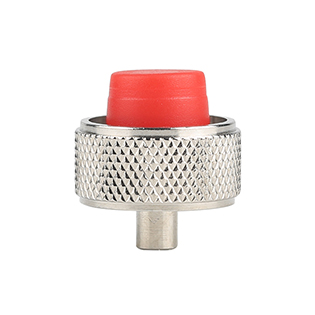

l FC/SC/ST connectors interchangeable
l Automatic and manual test function
l Visual Fault Locator (VFL) function
l OTDR Viewer software for data analysis
Applications:
l CATV network testing
l Access network testing
l LAN network testing
l Lab and Factory testing
l Live fiber troubleshooting
l FTTA troubleshooting
Multi-functions:
1. OTDR
2. Optical Power Meter (OPM)
3. Optical Light Source (OLS)
4. Visual Fault Locator (VFL)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
5. Event Map
Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.

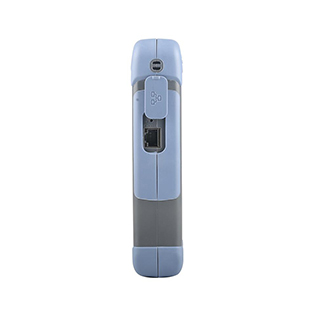

6. RJ45 Sequene, Length and Tracker

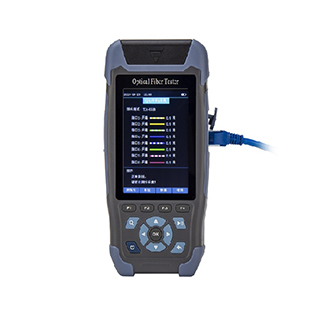

It can check wire map, measure the length of RJ45 cable, and trace and locate the RJ45 network cable (when Network Cable Tracker is ordered).
7. Flashlight
8. Report Print
PC software helps print out OTDR test reports.
Specification:
1. OTDR
|
Model |
MAY400D |
|
Wavelength |
1310/1550nm±20nm |
|
Dynamic Range① |
24/22dB |
|
Fiber Type |
SMF |
|
Event Dead Zone② |
3m |
|
Attenuation Dead Zone |
8m |
|
Measurement Range |
500m/1km/2km/4km/8km/16km/32km/64km |
|
Pulse Width |
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us |
|
Ranging Accuracy |
±(1+Sampling interval+0.005%*Test distance) |
|
Linearity |
±0.2dB/dB |
|
Sampling Resolution |
0.05~8m |
|
Samping Points |
16~128K |
|
Loss Resolution |
0.001dB |
|
Loss Threshold |
0.2dB |
|
Range Resolution |
0.001m |
|
Refractive Index |
1.00000~2.00000 |
|
Reflection Accuracy |
±3dB |
|
File Format |
SOR standard file format |
|
Loss Analysis |
4-point method / 5-point method |
|
Laser Safety Level |
Class II |
|
Adapter |
FC (Interchangeable SC adapter) |
|
Language |
Chinese, English, Russian, Portuguese, Spanish, Vietnamese (Select one language) |
Note:
①Testing temperature is 25°C±2°C, maximum pulse width, average time is more than 3 minutes.
②Test conditions of Event Dead Zone are minimum range, minimum pulse width, reflection loss of optical fiber end surface (>45dB), typical value.
2. Optical Power Meter
|
Wavelength Range (±20nm) |
800~1700nm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
-50~+26dBm |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
3. Optical Light Source
|
Emitter Type |
FP-LD |
|
Working Wavelength |
1310/1550nm±20nm |
|
Output Power |
≥-5dBm |
|
Modulation Frequency |
CW/270Hz/330Hz/1kHz/2kHz |
|
Accuracy |
CW, ±0.5dB/15min (Test after 15 minutes of preheating) |
|
Connector |
FC (Interchangeable SC adapter) |
Note:
3.1. The wavelength of Optical Light Source is the same as OTDR wavelength.
3.2. Optical Light Source shares the same fiber port as OTDR port.
4. Visual Fault Locator
|
Wavelength |
650nm±20nm |
|
Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
5. RJ45 Sequene, Length and Tracker
|
Test Range |
300m |
Other Specification:
|
Display |
3.5 inch color LCD |
|
Power Supply |
AC/DC adapter: Input: 100~240VAC, 50/60Hz, 0.4A; Output: 5V, 2.0A; Lithium battery: 3.7V, 4000mAh |
|
Battery Standby Life |
≥20h |
|
Battery Working Hours |
≥12h |
|
Communication |
Micro USB |
|
Data Storage |
Internal: 600 curves; External: TF card |
|
Weight |
0.35kg |
|
Size |
173*82*37mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
0~95% Non-condensing |
|
Warranty |
2 years |

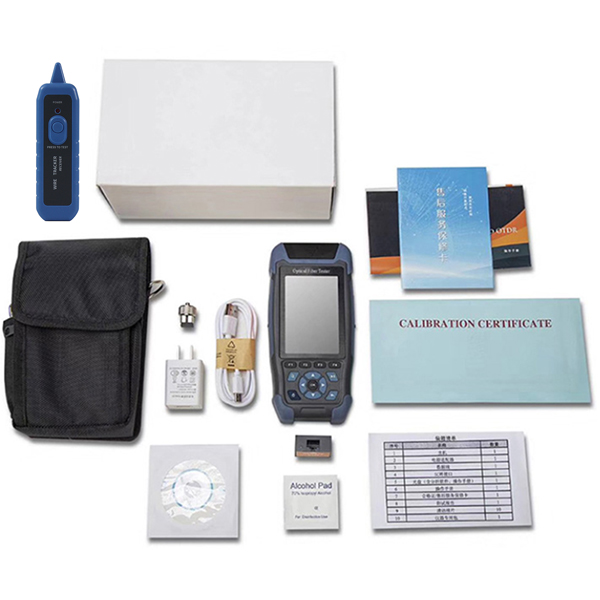

Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC Adapter |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
CD (including simulation analysis software) |
1pc |
|
4 |
Data line |
1pc |
|
5 |

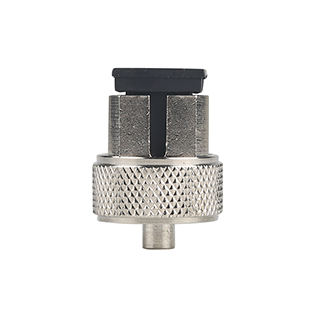

SC adapter for OTDR port |
1pc |
|
6 |
User manual |
1pc |
|
7 |
Calibration Certificate |
1pc |
|
8 |
Carrying bag |
1pc |
|
9 |
Warranty Card |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |

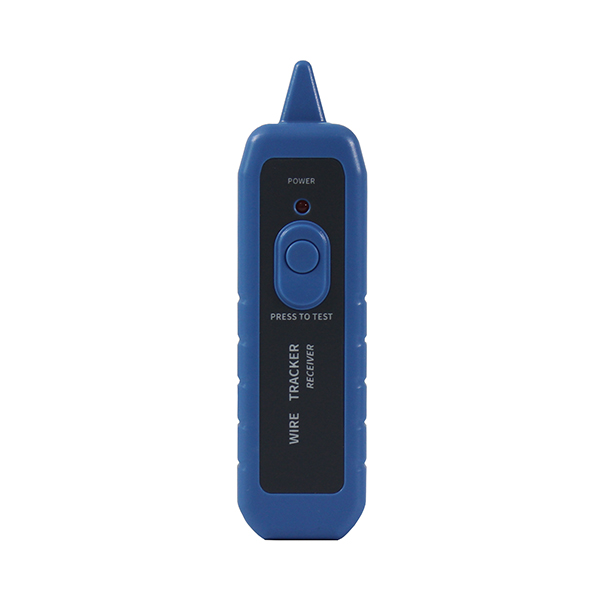

Network Cable Tracker |
1pc |
|
2 |

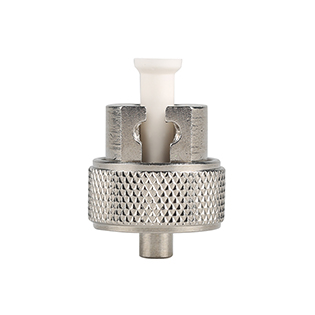

LC Adapter |
1pc |
|
3 |

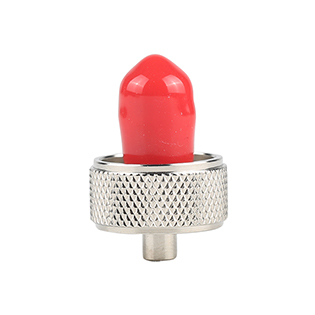

ST Adapter |
1pc |
Ordering Information:
|
Model |
MAY400D |
|
Connector |
None: FC/UPC and SC/UPC (default) A: FC/APC and SC/APC |
|
Network Cable Tracker |
None: without Network Cable Tracker (default) T: with Network Cable Tracker |
