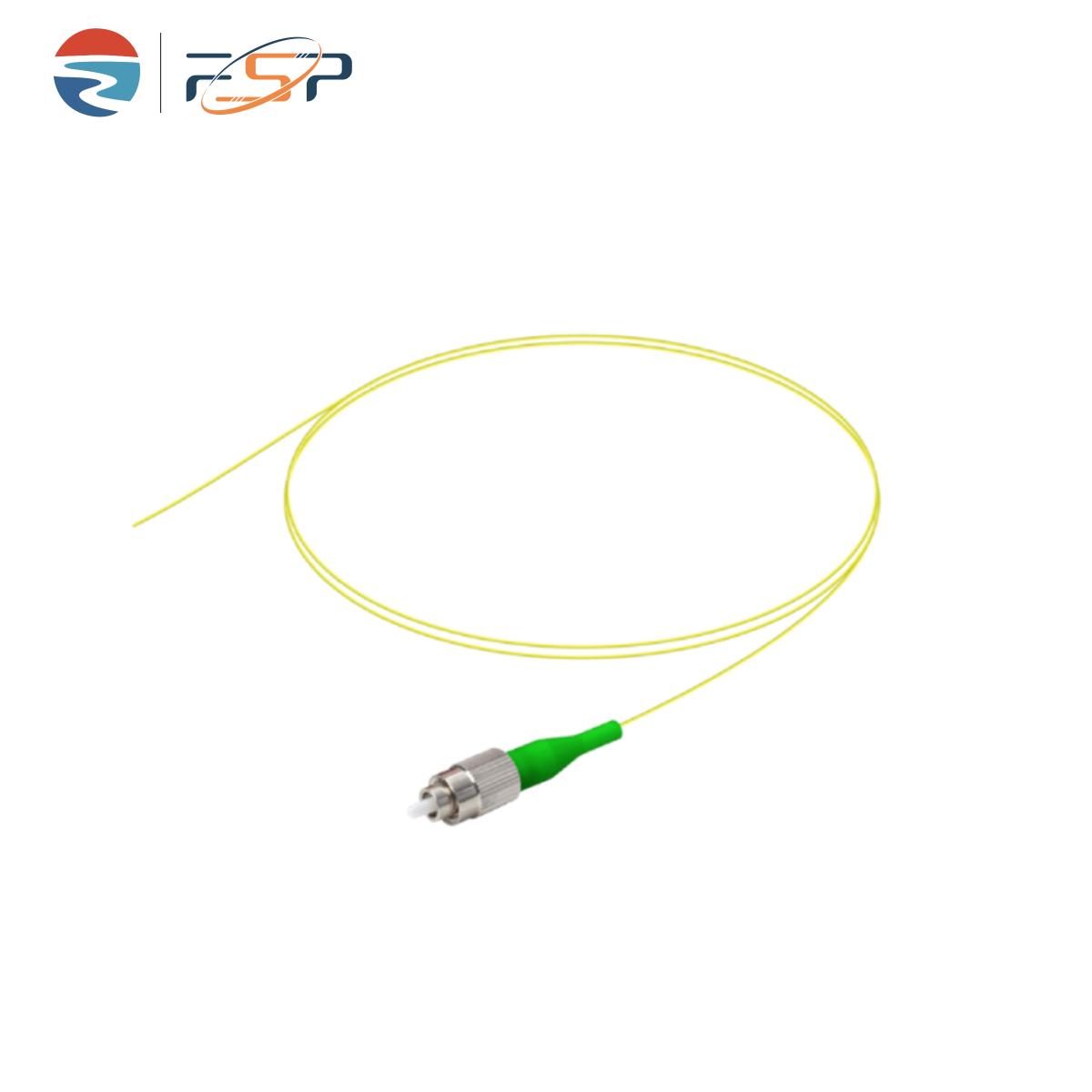

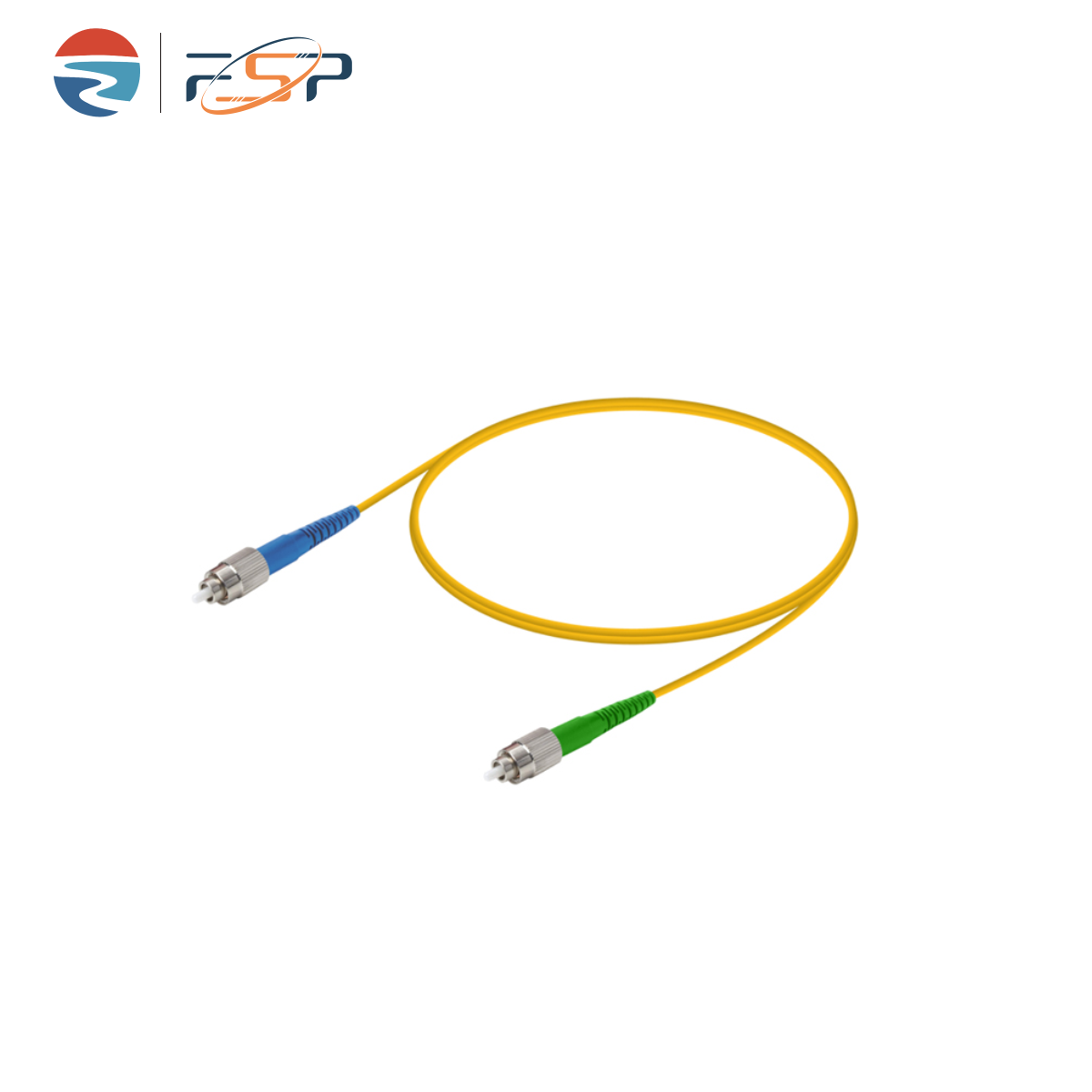

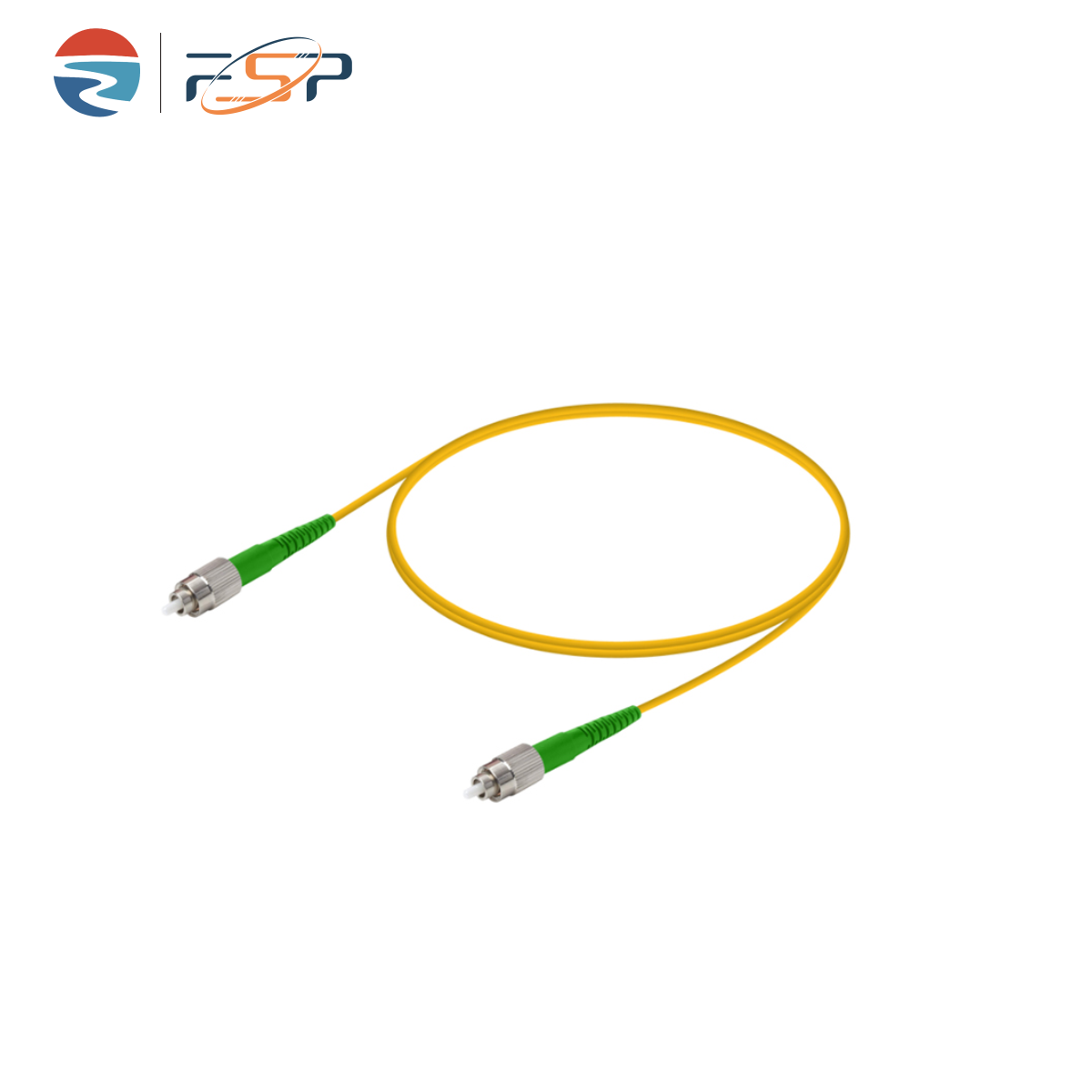

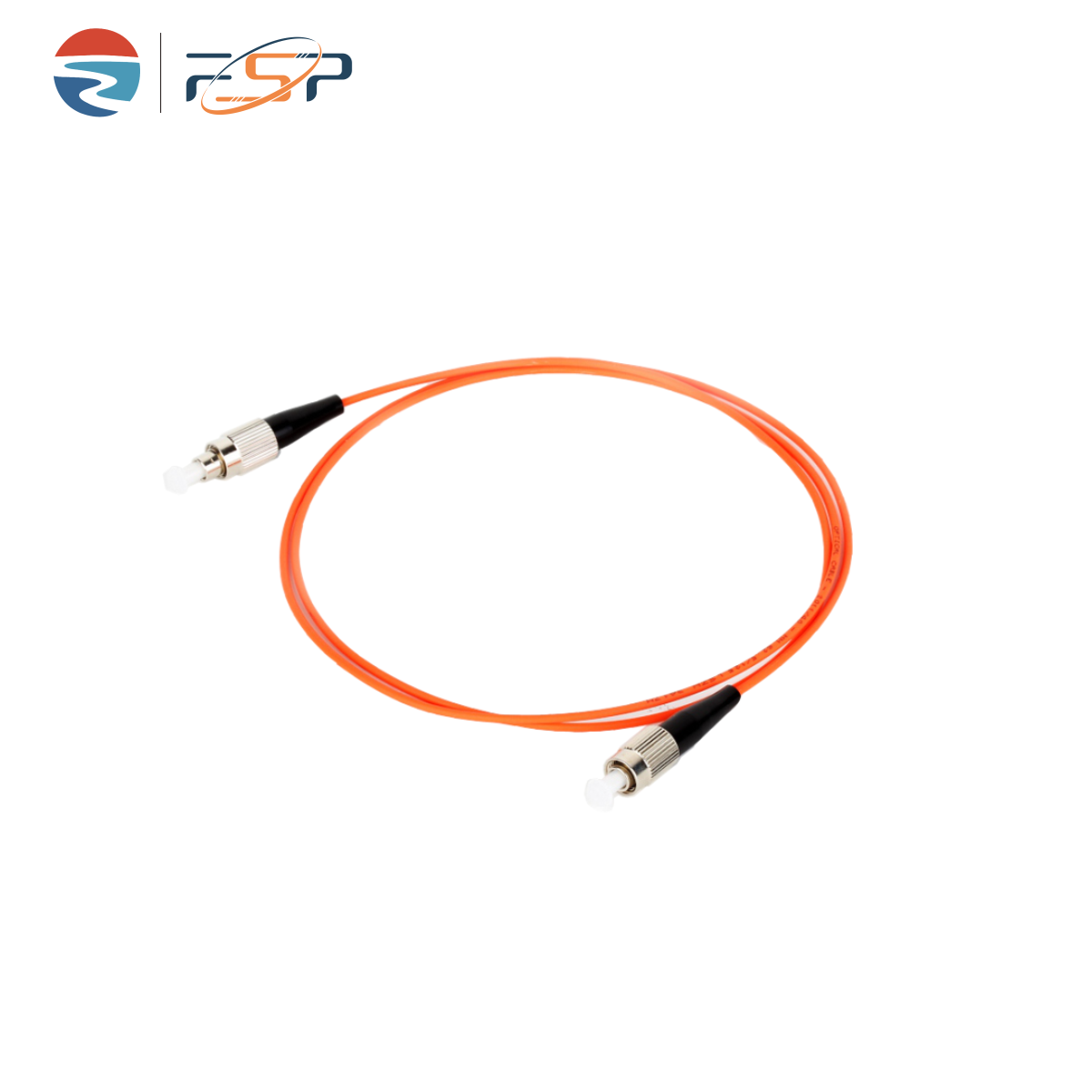

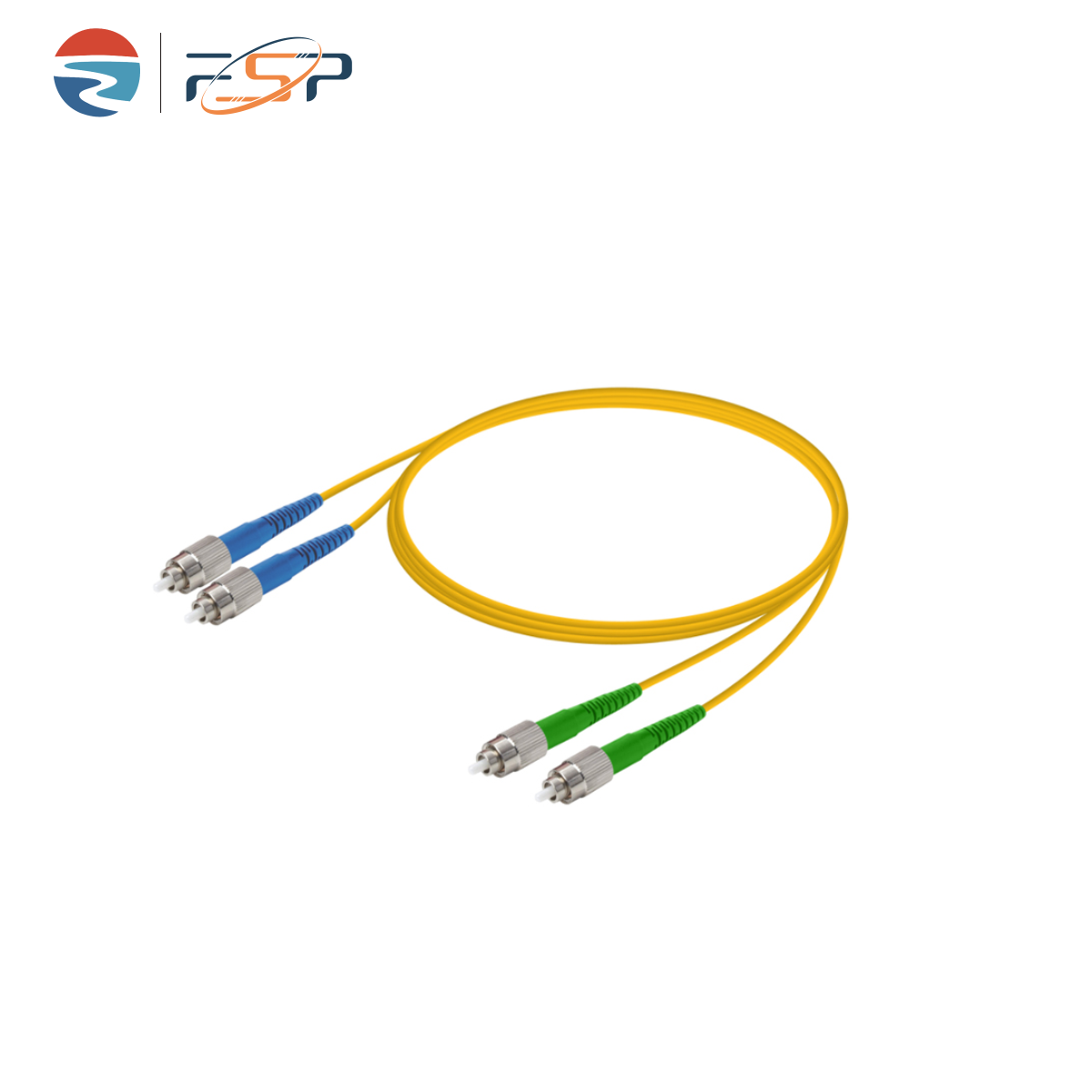

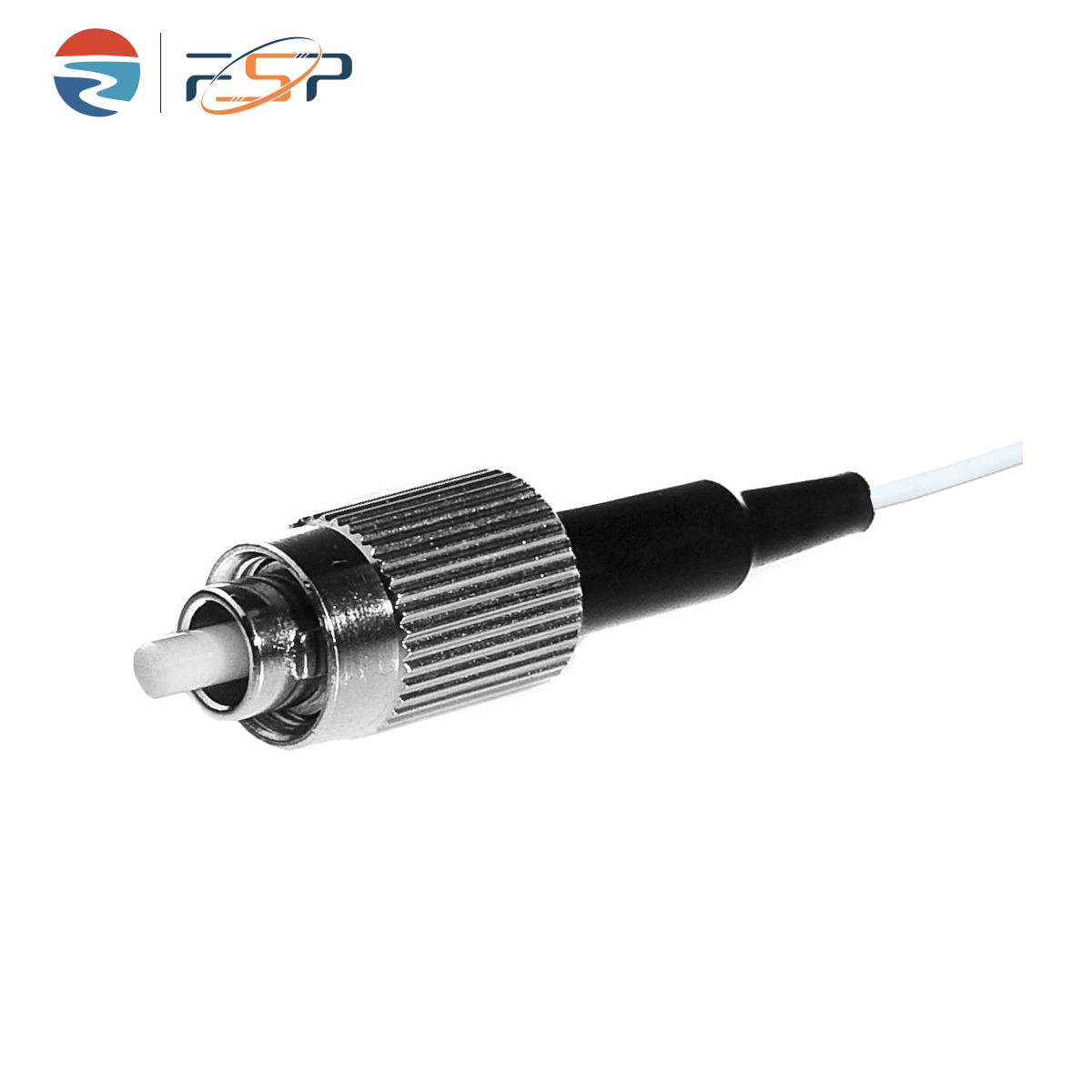

FC Fiber Optic Pigtail Patchcord details
Features:
1. Low insertion loss,high return loss
2. Excellent Temperature stability
3. Good repeatability and exchangeability
4. Excellent mechanical endurance
5. Strict curing time and temperature control
6. Strict testing standards and methods for quality
7. Environment protection (ROHS Compliance)
6. The fiber optical patch cord can be customized according to customers'specific requirements (Customized Connector/Length/package.)
7. 100% NEW raw material and well quality control so as to ensure the best life time.
Configuration Table:
Connection Type
|
FC
|
Polishing Mode
|
APC/UPC/PC
|
Cable length
|
Customized
|
Number Of Cord
|
1 / 2 / 4 / 8 / 12 Cords
|
Diameter
|
0.9MM / 2.0MM / 3.0MM
|
Material
|
LSZH / PVC
|
Return loss
|
≤ 0.25 dB
|
Return loss
|
≥50 dB (UPC / PC)
≥55 dB(APC)
|
Exchangeability
|
≤ 0.2 dB
|
Vibration
|
≤ 0.2 dB
|
Operating Wavelength
|
1310~1550 nm
|
Operating temperature
|
-40℃ ~ 75℃
|
Storage temperature
|
-40℃ ~ 85℃
|
