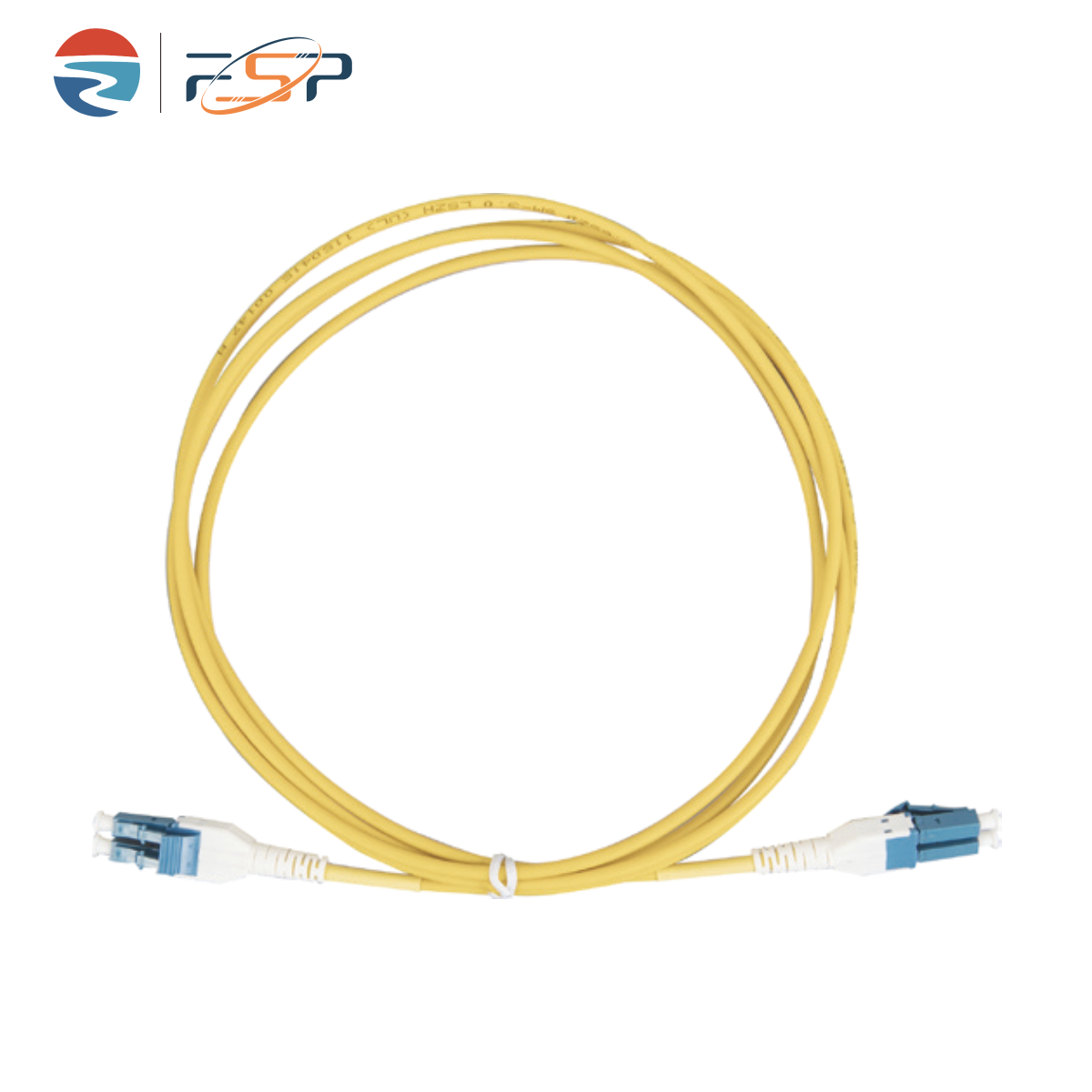

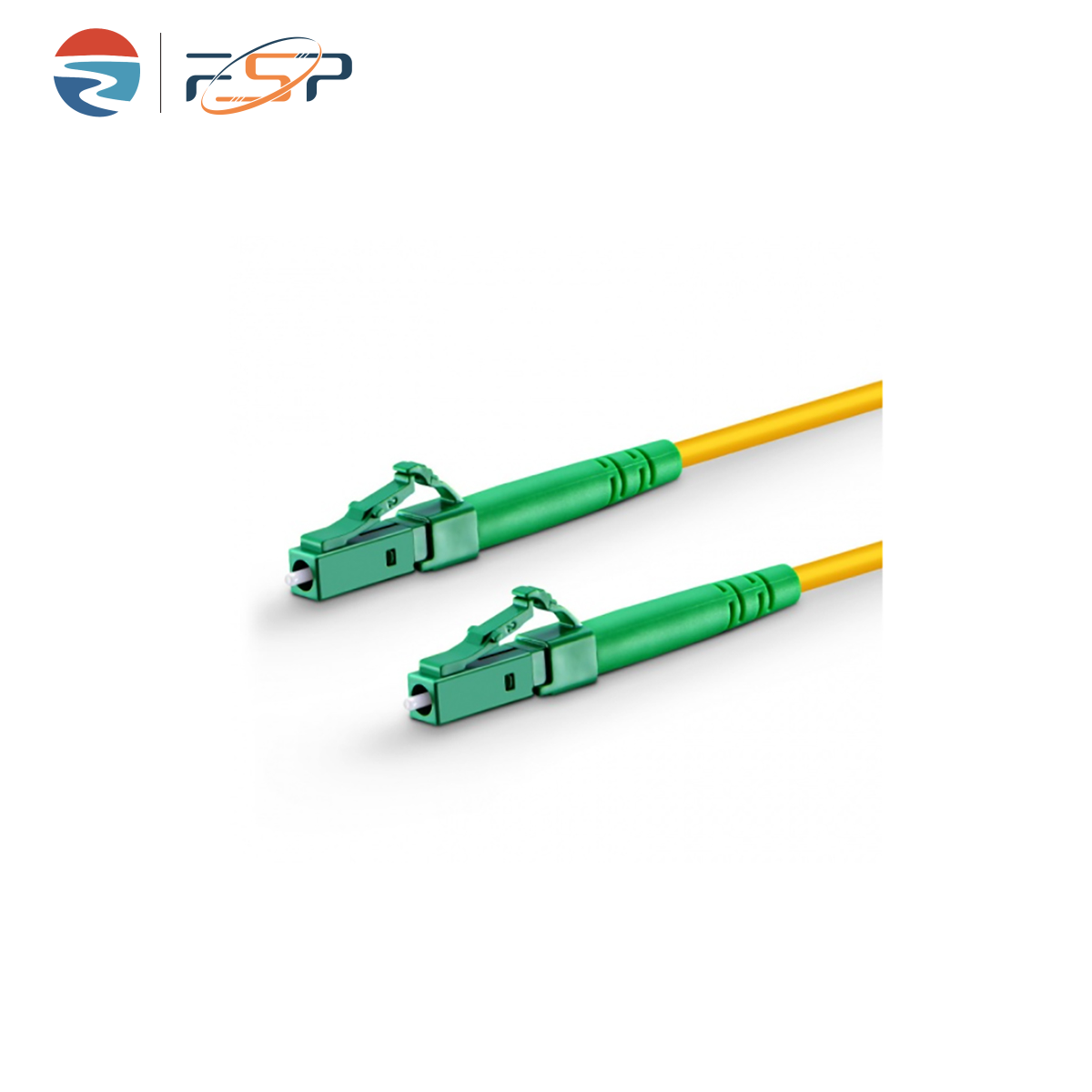

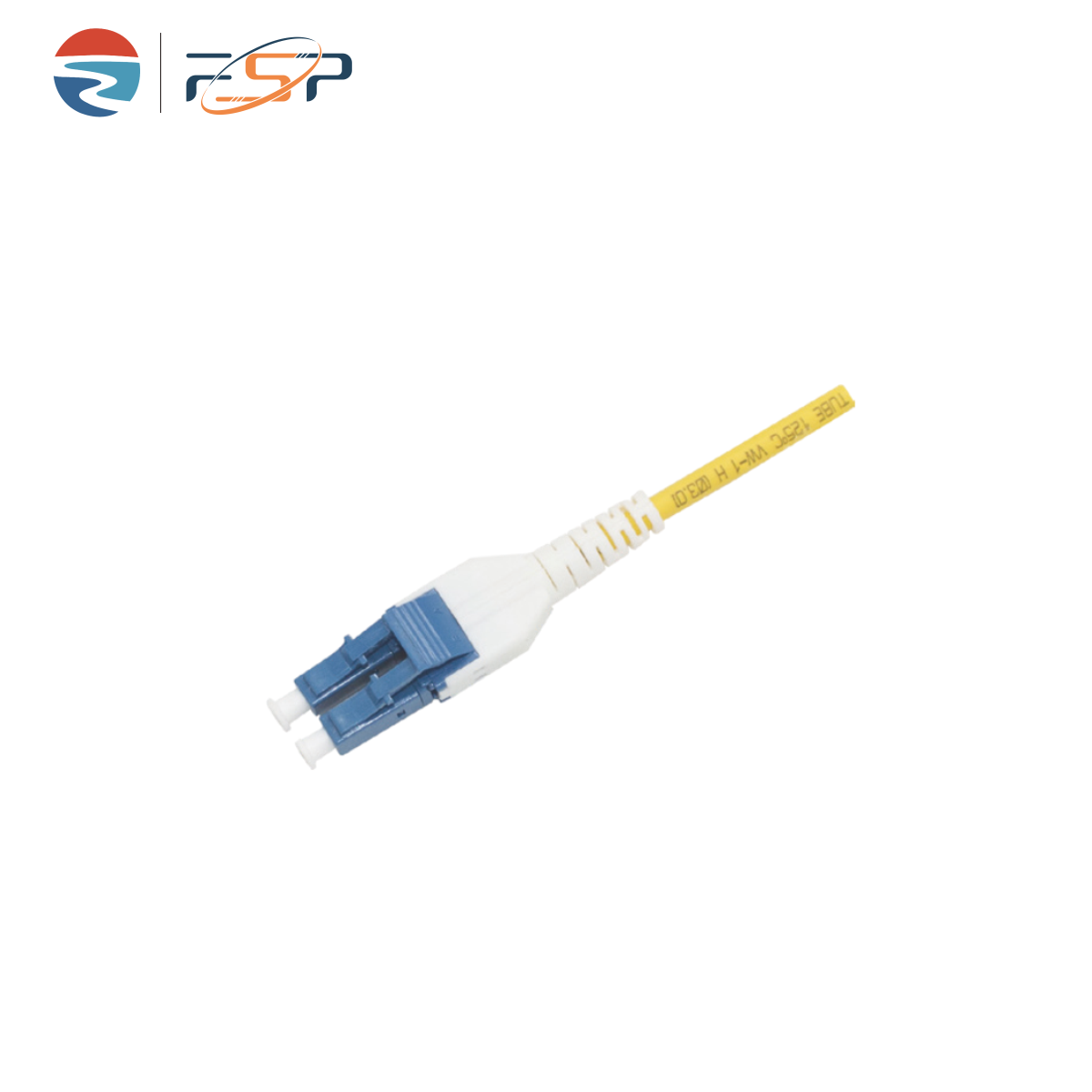

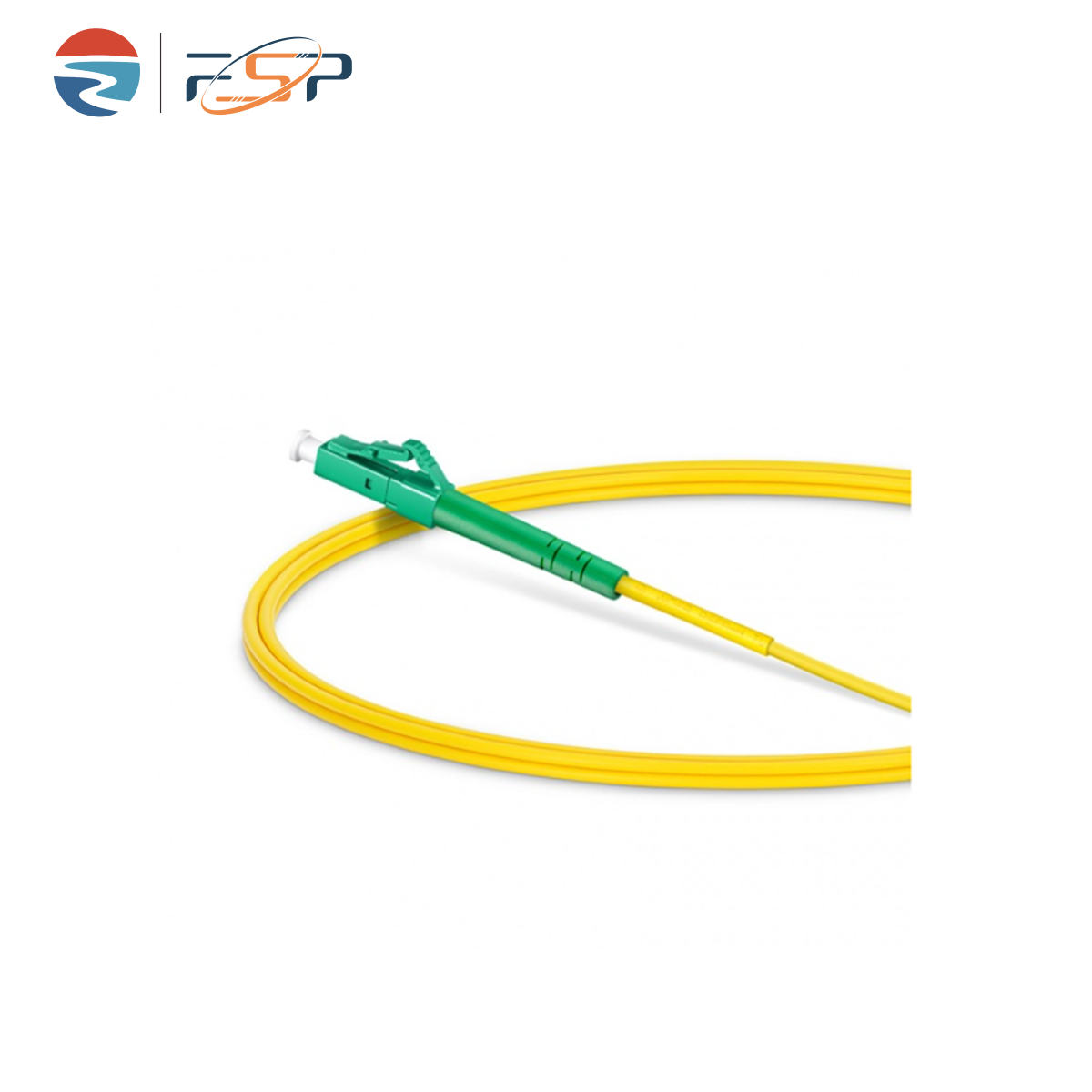

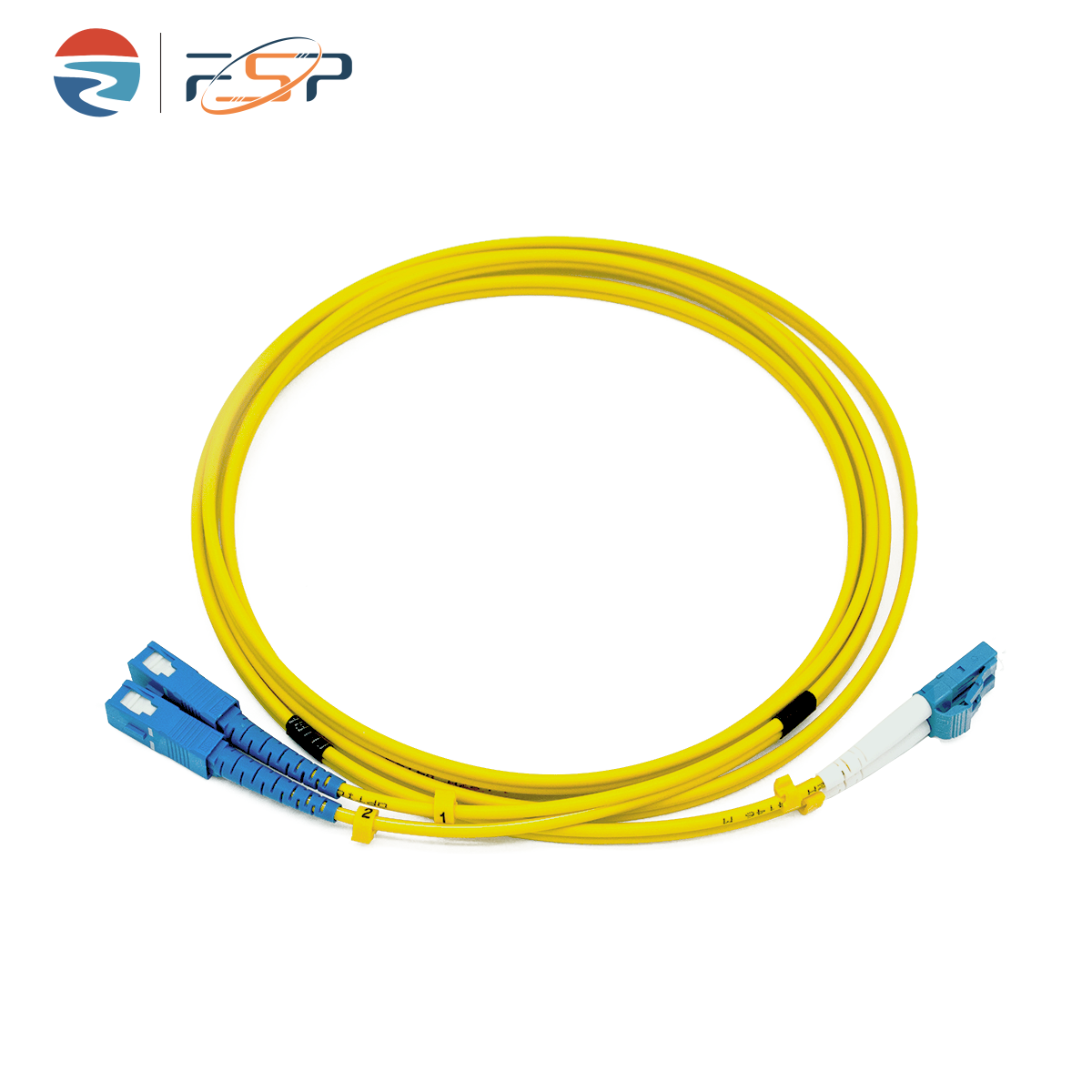

LC Fiber Optic Pigtail Patchcord details

Features:

1. Low insertion loss,high return loss

2Excellent Temperature stability

3. Good repeatability and exchangeability

4. Excellent mechanical endurance

5. Strict curing time and temperature control

6. Strict testing standards and methods for quality

7. Environment protection (ROHS Compliance)

6. The fiber optical patch cord can be customized according to customers'specific requirements (Customized Connector/Length/package.)

7. 100% NEW raw material and well quality control so as to ensure the best life time.


Configuration Table:


Connection Type
LC
Polishing Mode
APC/UPC/PC
Cable length
Customized
Number Of Cord
1 / 2 / 4 / 8 / 12 Cords
Diameter
0.9MM / 2.0MM / 3.0MM
Material
LSZH / PVC
Return loss
≤ 0.25 dB
Return loss
≥50 dB (UPC / PC)
≥55 dB(APC)
Exchangeability
≤ 0.2 dB
Vibration
≤ 0.2 dB
Operating Wavelength
1310~1550 nm
Operating temperature
-40℃ ~ 75℃
Storage temperature
-40℃ ~ 85℃
