1、Description：

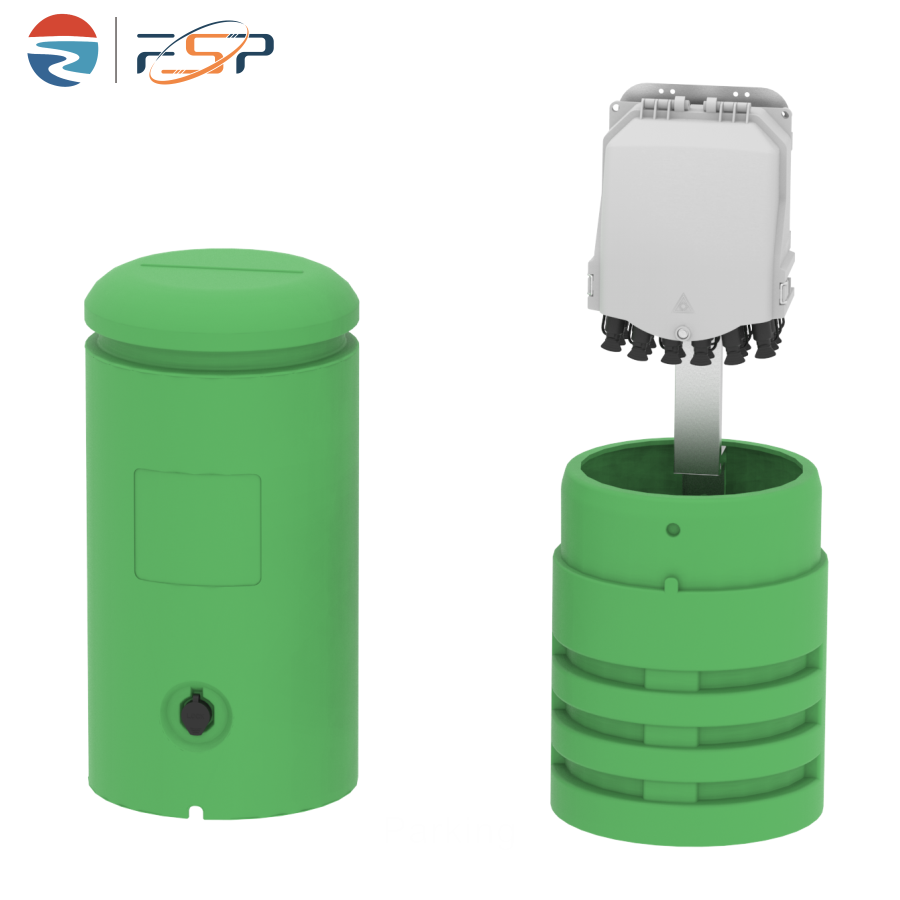

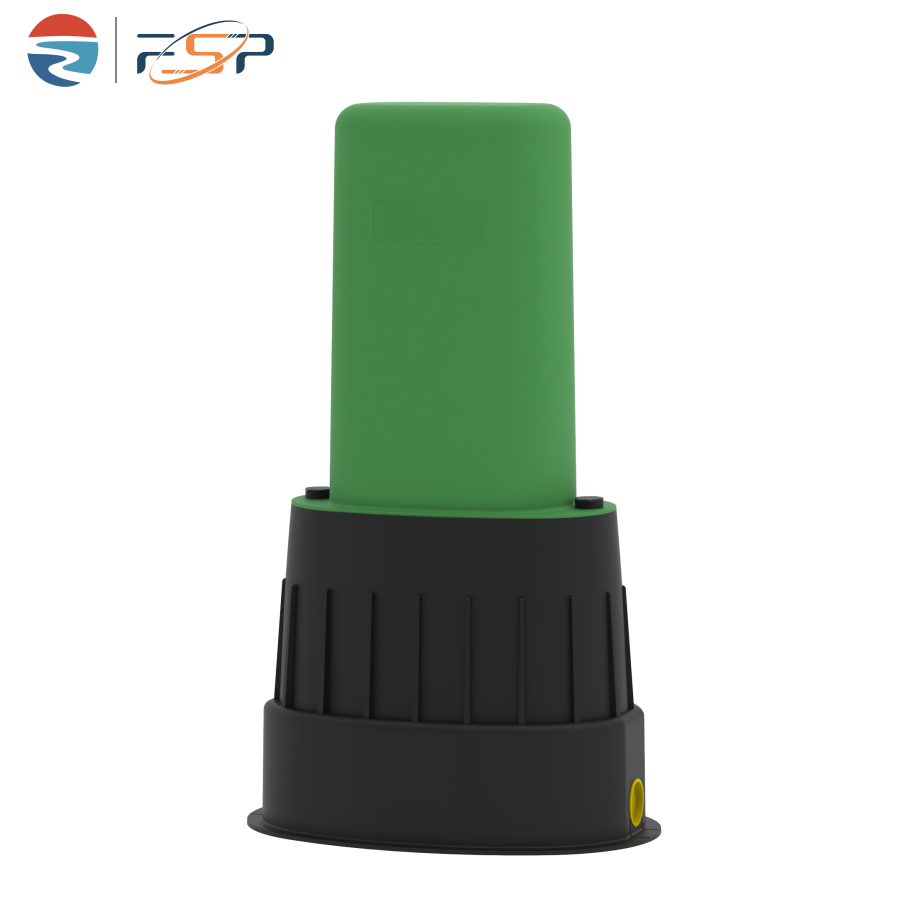

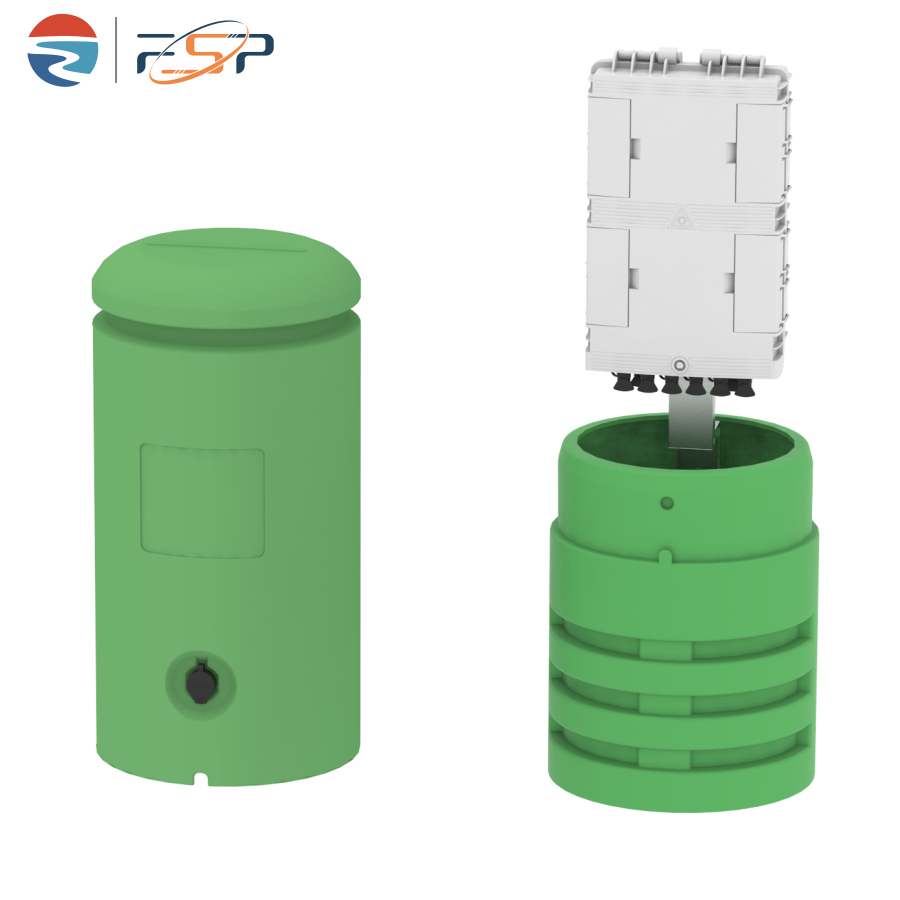

FSP-PD-4 Pedestal is used to protect and install the terminal point in telecommunication network system. The fiber splicing, splitting, distribution can be done in the terminal point , and meanwhile it provides protection and management for the FTTx network building.
2、Specification：
1) Strong but light
2) Concise
3) Resistant to impact
4) Resistant to UV rays
5) Multidirectional access space (360°)
6) Anti-rust construction materials
7) Wide base design
8) Self drainage system
9) Equipped with cable hangers

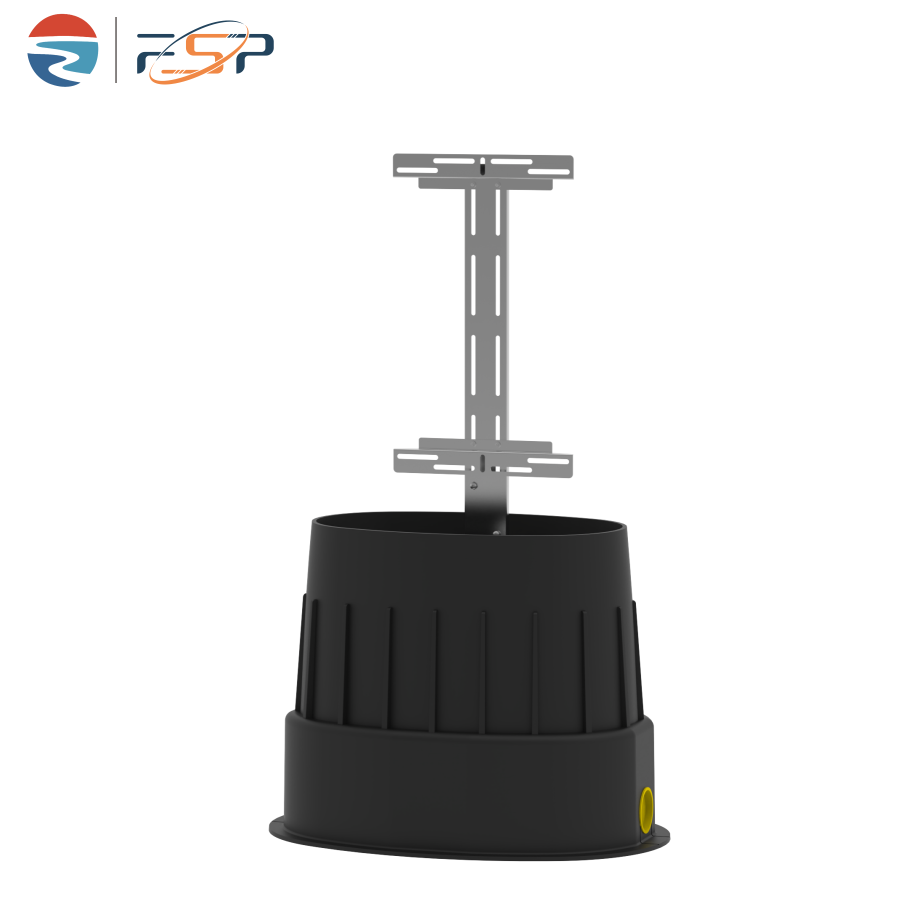

10) Universal Mounting Bracket
11) Cable entry from the side or bottom
12) Display company logo and cover color can be ordered
3、Material Table：
| Cover | Polypropylene |
| Base | HDPE |
| Frame and Hardware | Stainless Steel |
| Standard Colour | Light Green Cover/Black Base |
| Standard Lock | Bolt-Down Socket HD |
| Nominal Weight | 8 KG |

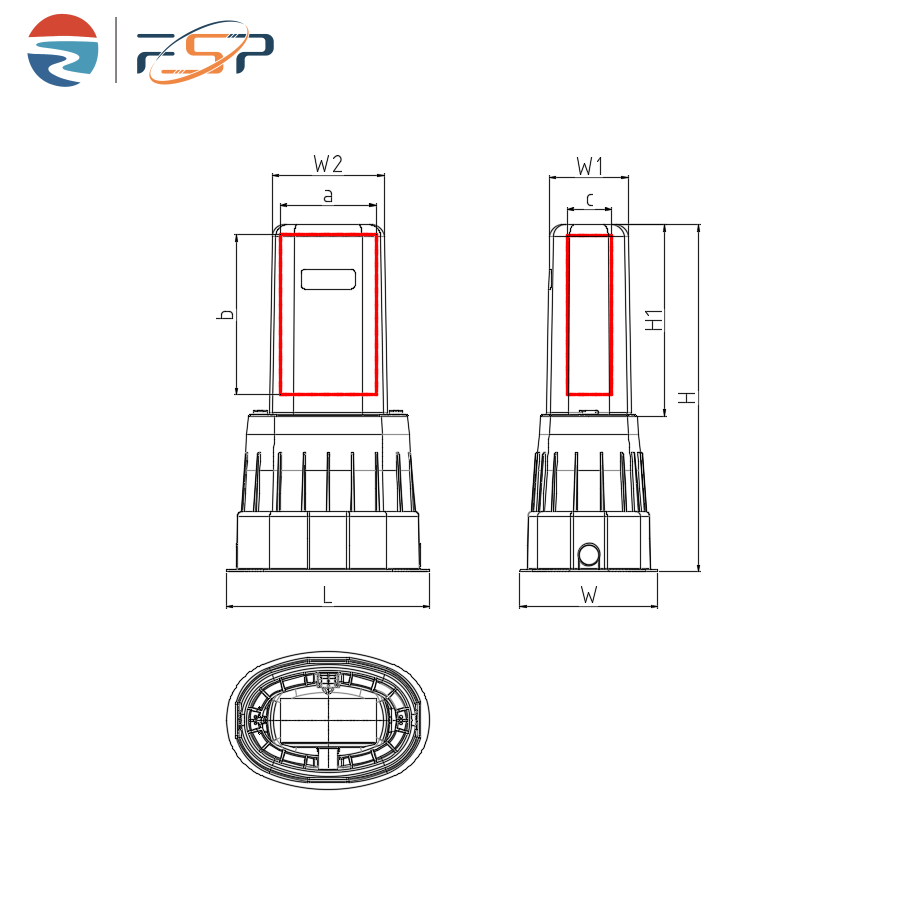

4、Dimension Table （Pic 1）：
| Dimension | Value (mm) |
| Overall Height (H) | 870 |
| Overall Size (L x W) | 510 x 345 |
| Pedestal Cover Height | 480 |
| Pedestal Cover – W 1 x W2 (top) | 200 x 280 |
| DP Enclosure Max. Size (a x b x c) | 240 x 400 x 110 |
Notice：Telecordia GR-13-CORE Compliant

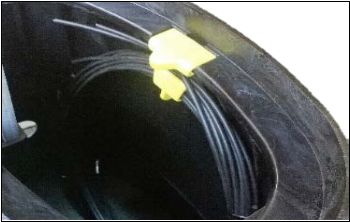

5、Cable Hanger
