1、Description：

FSP-PD-1 Pedestal is used to protect and install the terminal point in telecommunication network system. The fiber splicing, splitting, distribution can be done in the terminal point , and meanwhile it provides protection and management for the FTTx network building.

2、Specification：

1) Anti-UV (Ultraviolet)

2) Integrated with splice cassette and cable management system

3) Applicable for ground-mounted, outdoor

4) Durable HDPE dome housing offers excellent protection and long lifespan

5) Stainless steel mounting bracket provides perfect anti-rust and anti-corrosion

6) Protection grade: IP65

3、Applications

1) FTTH Access Network

2) Telecommunication Network

3) CATV Networks

4) Data Communications Network

5) Local Area Networks

6) Ground-mounted

4、Configuration Table：

5、Installation：

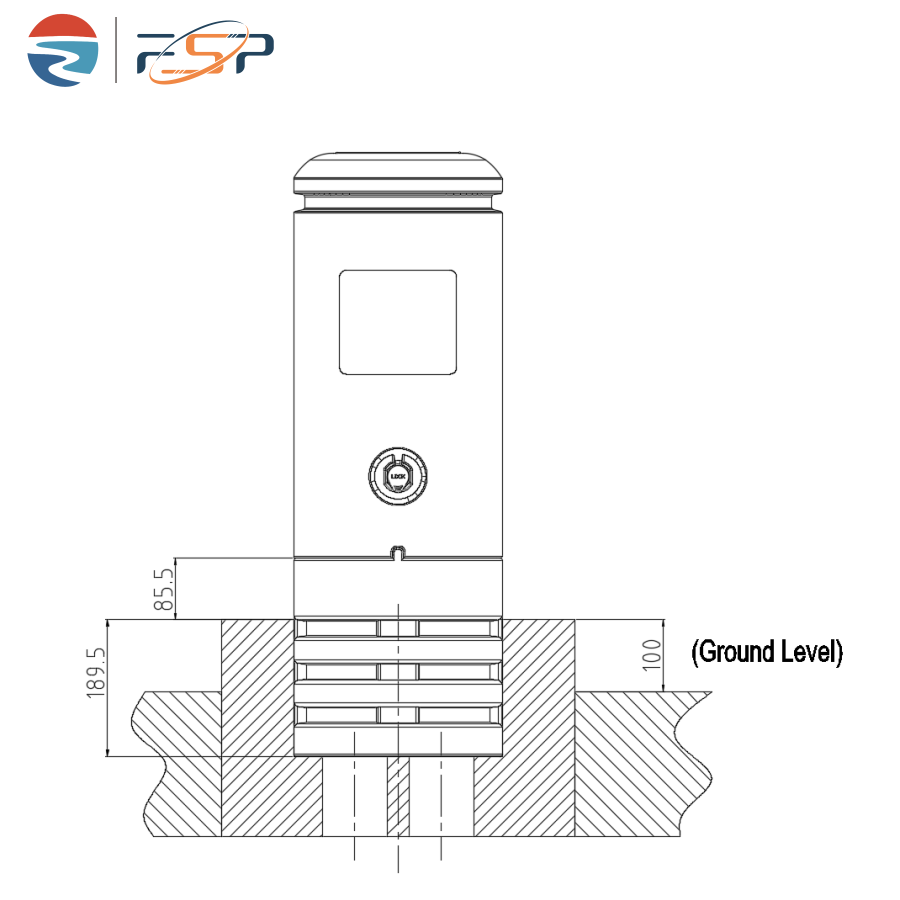

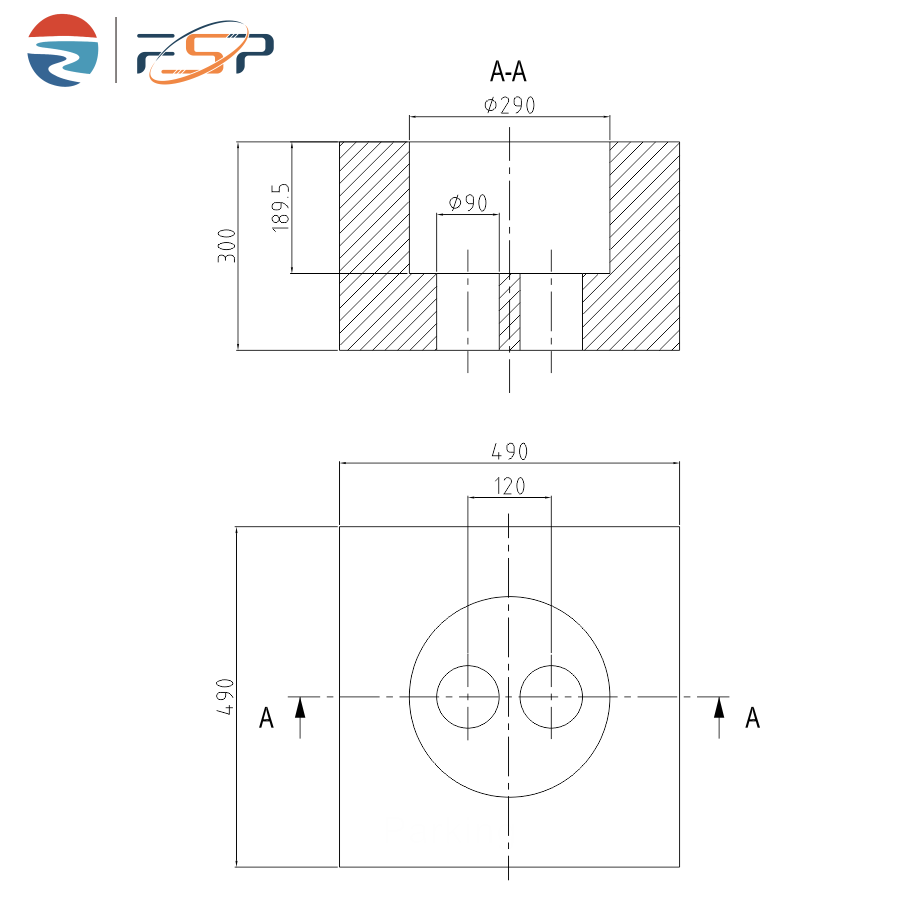

1) Make foundation holes on the ground concrete according to the size of the above picture(Pic 2)

2) Pour the bucket with concrete on the ground（Pic 3）
