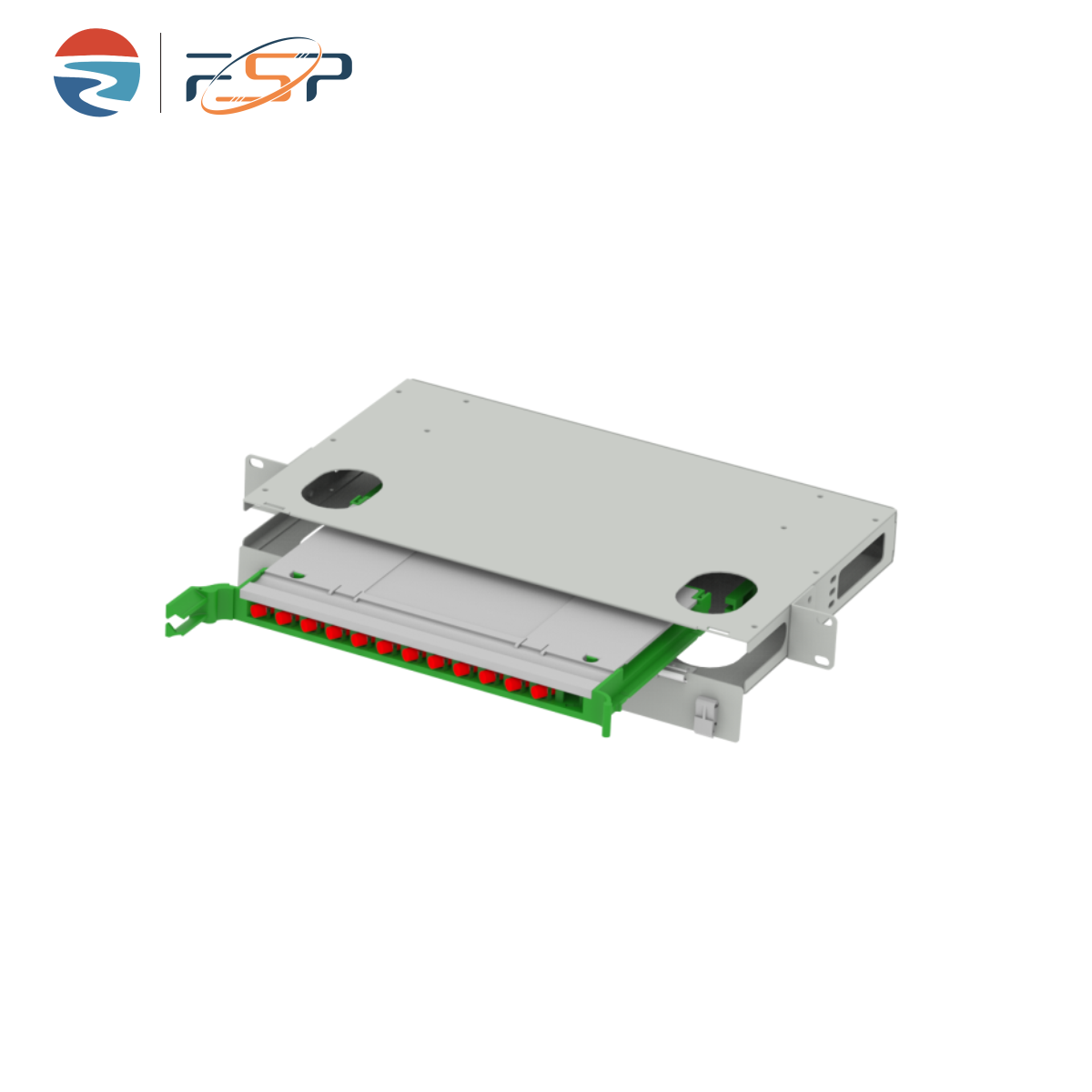

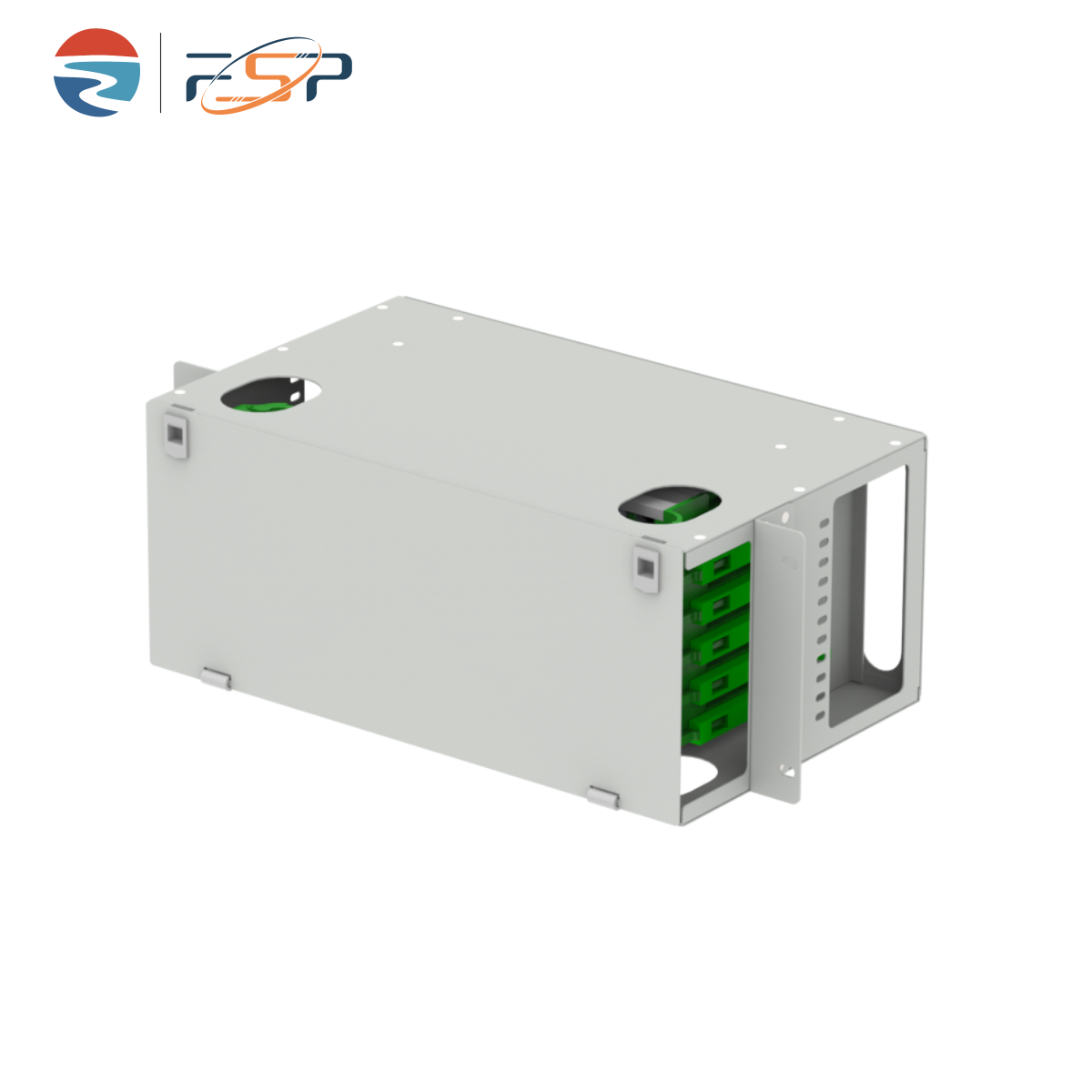

FSP-S6 Series details
Features:
1.Compatible with industry standard equipment frame.Suitable for 19" to 23" Rack with proper interchangeable mounting bracket.
2.Removable front door for allowing easy access to patch and fiber trays.

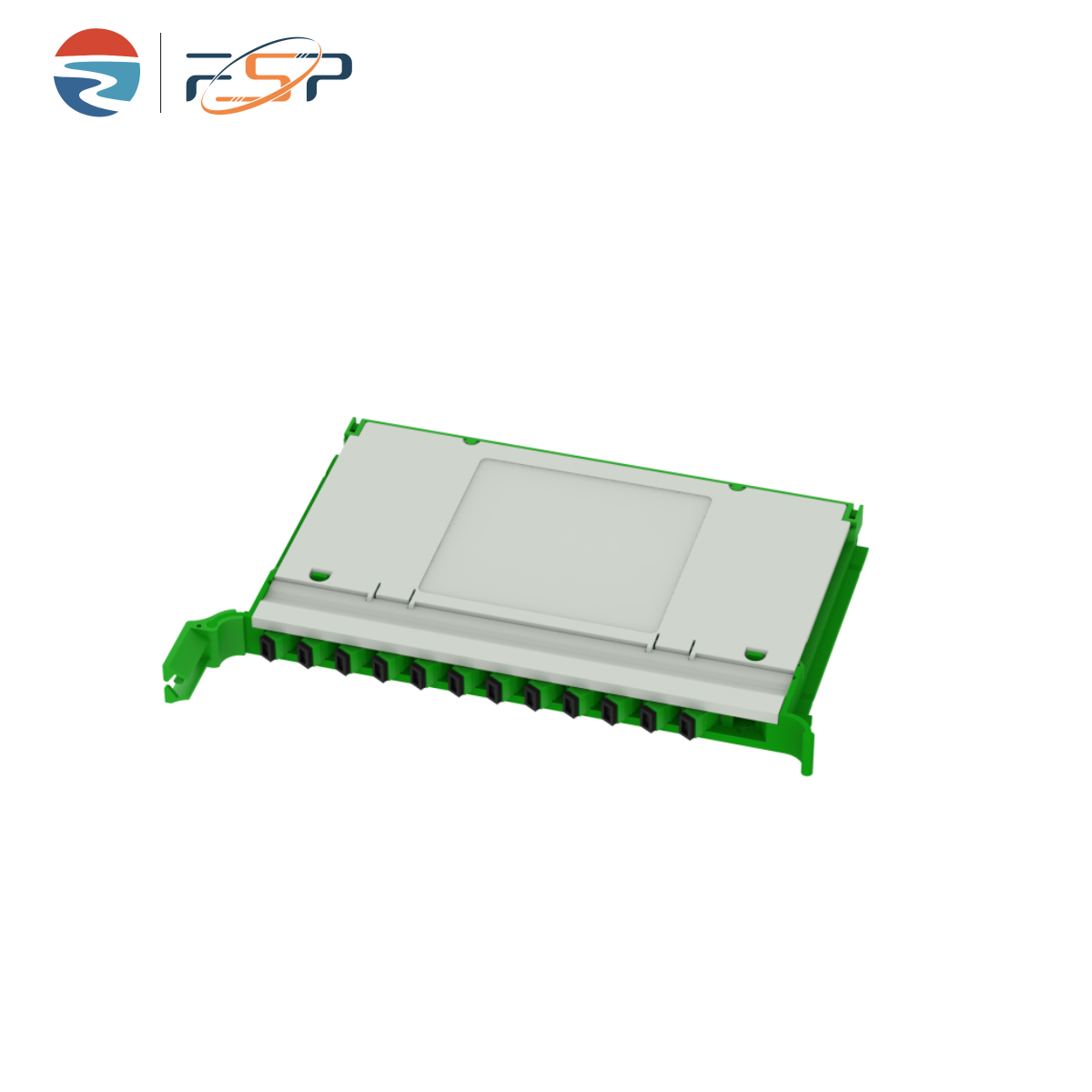

3.The tray is compatible with the installation of a variety of adapters (SC,FC,E2000 & etc).The Splice and patch are in one tray.
4.Double layer tray design to provide space for pigtail coiling.

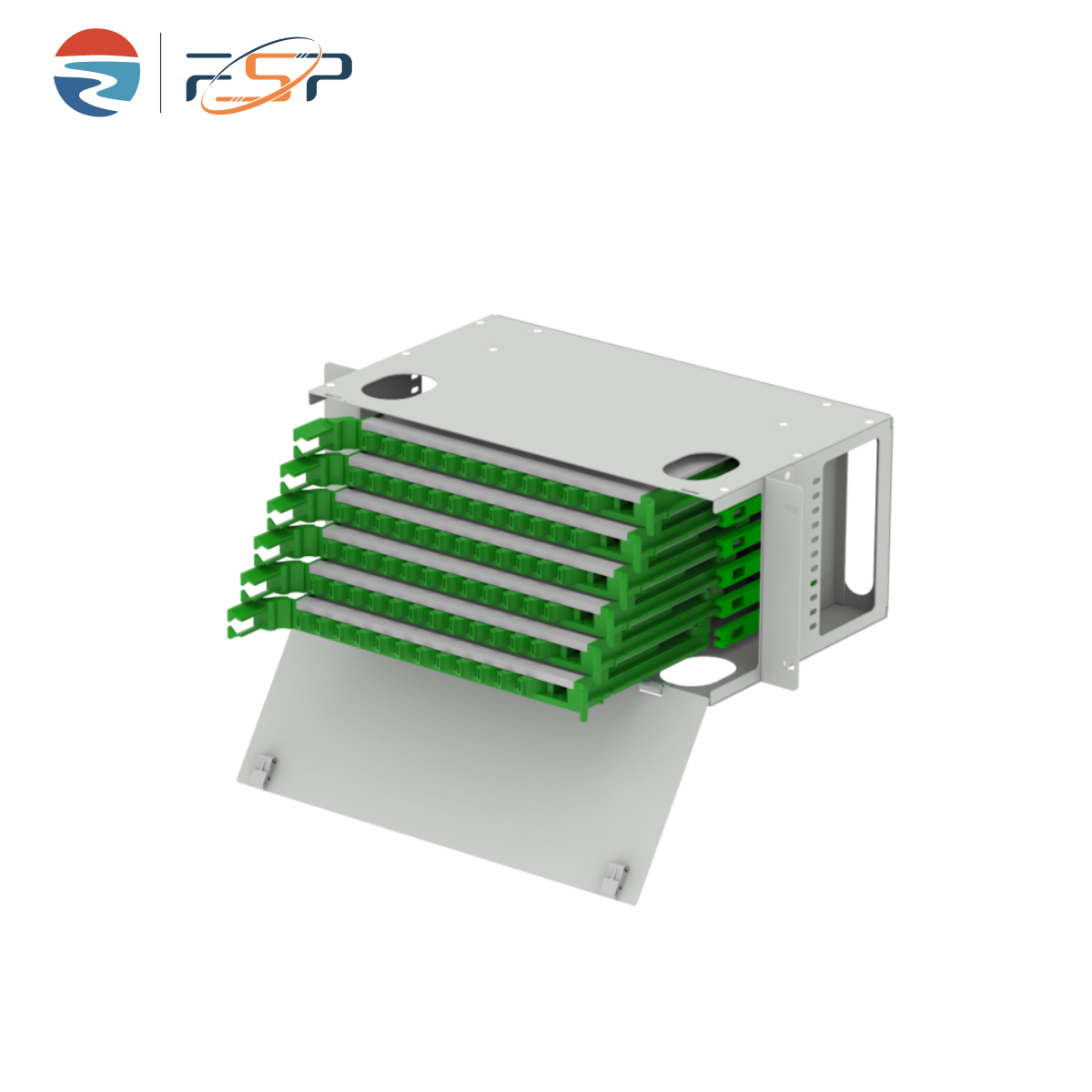

5.Individual slide out splice organizer trays to provide easy access.
6.The tray provides maximum protection of optical components.
Specifications:
| Model | FSP-S6 Series |

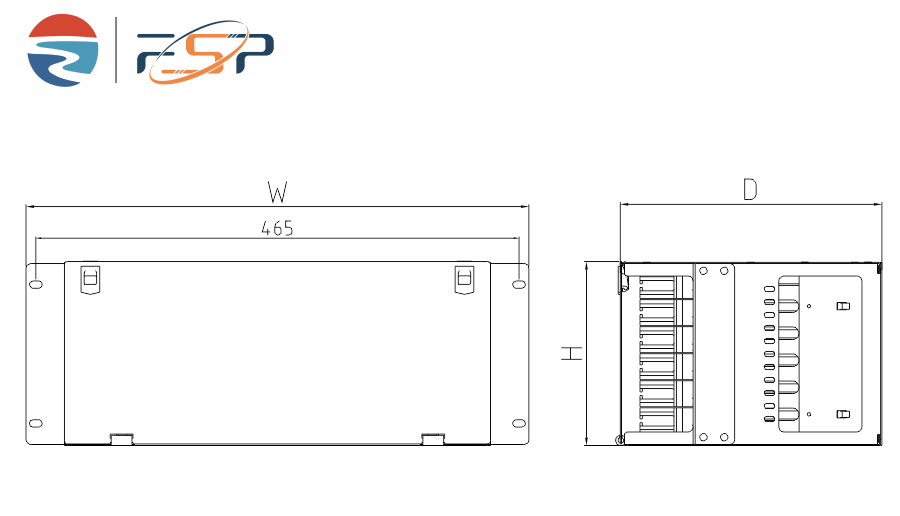

| Size | 12 Port: H×W×D = 44 × 482 × 255(MM) |
| 24 Port: H×W×D = 70 × 482 × 255(MM) | |
| 48 Port: H×W×D = 122 × 482 × 255(MM) | |
| 72 Port: H×W×D = 174 × 482 × 255(MM) | |
| 96 Port: H×W×D = 266 × 482 × 255(MM) | |
| 144 Port: H×W×D = 330 × 482 × 255(MM) | |
| Material | Cold Rolled Steel |
| Color | Gray (Default RAL 7035) |
| Splice Capacity | 12~144 Cores |
| Adapter Type | ST / FC / SC / LC / E2K etc. |
| Adaptor Capacity | 12~144 Ports |
| Installation Method | Standard 19" Rack Mount |
