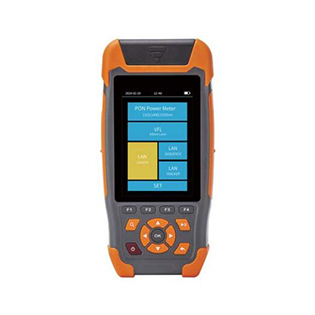

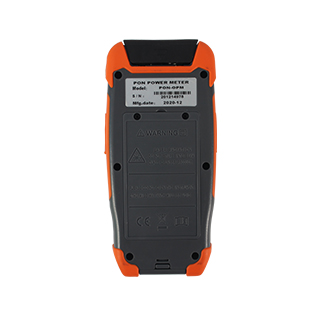

Features:
l It can carry out synchronous measurement of voice, data and video signal in BPON/EPON/GPON.
l Providing simultaneous measurement for all three wavelengths in the fiber (1310nm, 1490nm, and 1550nm)
l Used in burst mode measurement of 1310nm upstream.
l Pass/Fail thresholds for 1310/1490/1550nm can be set seperately
l User calibration for 1310/1490/1550nm respectively
l High definition TFT true color screen
l Auto-off function (close, 10min, 30min and 1 hour) and backlight (25%, 50%, 75% and 100%) can be set
l 1,000 measurement items can be saved in PON power meter for data review.
Multi-functions:
1. PON Power Meter
2. Visual Fault Locator (VFL)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
3. LAN Length
It can measure the length of RJ45 cable.
4. LAN Sequene
It can check wire map of RJ45 cable.
5. LAN Tracker
It can trace and locate the RJ45 cable.
Specification:
1. PON Power Meter
|
Wavelength |
1310nm |
1490nm |
1550nm |
|
Pass Zone |
1260~1360nm |
1475~1505nm |
1540~1560nm |
|
Isolation @ 1310nm |
/ |
>40dB |
>40dB |
|
Isolation @ 1490nm |
>40dB |
/ |
>40dB |
|
Isolation @ 1550nm |
>40dB |
>40dB |
/ |
|
Measurement Range |
-35dBm~+10dBm |
-40dBm~+12dBm |
-40dBm~+25dBm |
|
Uncertainty |
≤0.5dB |
||
|
Insertion Loss |
≤1.5dB |
||
|
Detetor Type |
InGaAs |
||
|
Display Resolution |
0.01dB |
||
|
Fiber Type |
SM 9/125um |
||
|
Adapter |
FC/SC |
||
2. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
3. LAN Length
|
Test Range |
300m |
4. LAN Sequence
|
Test Range |
300m |
5. LAN Tracker
|
Test Range |
300m |
Other Specification:
|
Display |
3.5 inch color LCD |
|
Power Supply |
AC/DC adapter: AC: 100~240V, 5V, 2A; Lithium battery: 3.7V 4000mAh |
|
Battery Standby Life |
≥20h |
|
Battery Working Hours |
≥12h |
|
Data Storage |
1,000 |
|
Weight |
0.35kg |
|
Size |
173*82*37mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
0~95% non-condensing |
Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |

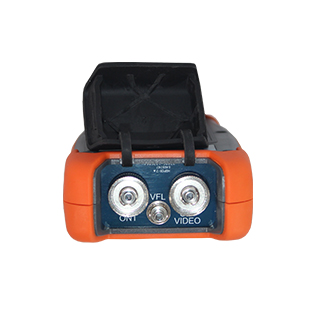

PON Power Meter with SC Adapters for OLT/VIDEO and ONT |
1pc |
|
2 |
FC Adapters |
2pcs |
|
3 |
AC/DC power adapter |
1pc |
|
4 |
USB cable |
1pc |
|
5 |
User manual |
1pc |
|
6 |
Network Cable Tracker |
1pc |
|
7 |
Soft bag |
1pc |
Ordering Information:
Model: MAY55X-X
|
Model |
X: Polish Type |
|
MAY55 |
U: UPC |
|
A: APC |
