Description:

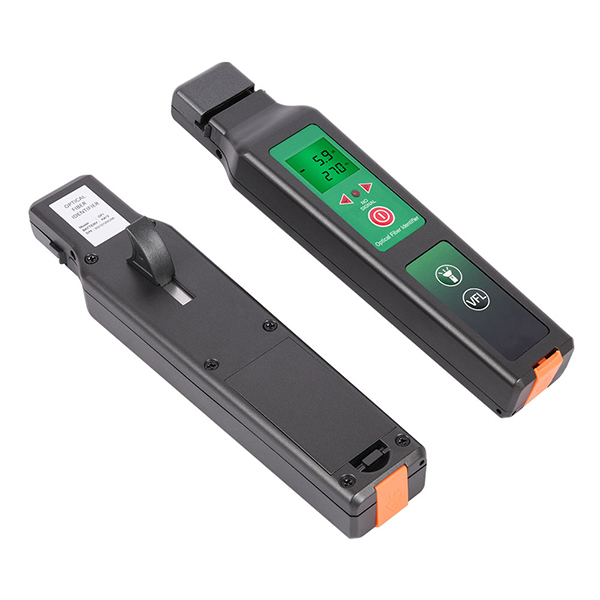

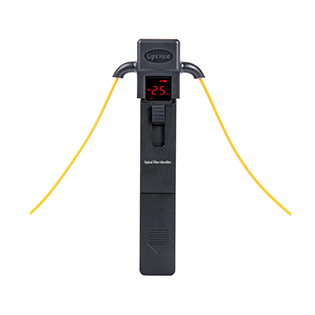

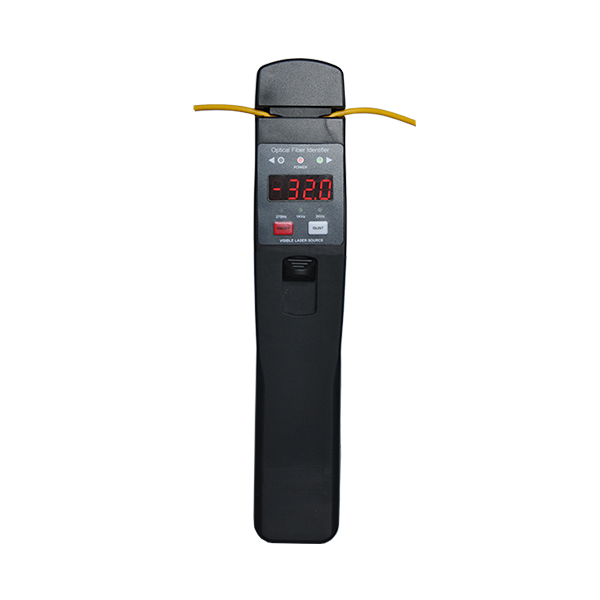

MAY41 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative power without any damages to the bending fiber. When the traffic is present, the intermittently audible tone is activated.
MAY41 Optical Fiber Identifier, using macro-bending technology on line for non-destructive testing, can measure the signal direction and power, and avoid mis-operation result in interrupted lines.

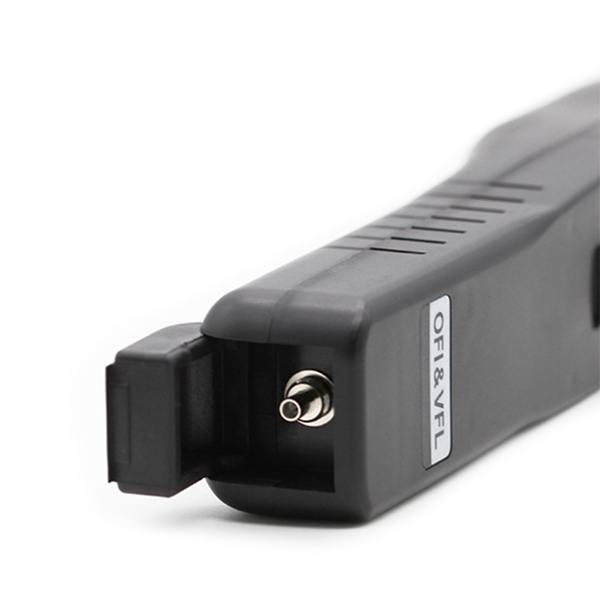

It has Visual Fault Locator integrated with MAY41 Optical Fiber Identifier, for broken fiber location.
Features:
l VFL included
l Lower power indication
l Displays the relative power
l No need to replace adapter
l Indicate signal presence or absence
l Indicate singal direction and power in fiber
l Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
Specification:
|
Recognizable Wavelength Range |
750 to 1700nm |
|
Insertion Loss |
1.0dB |
|
Fiber Type |
<3mm fiber |
|
Recognizable Signal Type |
2kHz, 1kHz, 270Hz |
|
Display Type |
LED |
|
Detector Type |
Ø1mm InGaAs |
|
Minimum Detection Power |
-30dBm (1310nm); -35dBm (1550nm) |
|
VFL Wavelength |
650nm |
|
VFL Output Power |
10mW |
|
VFL Mode |
CW/2Hz |
|
Alkaline Battery |
2*AA |
|
Battery Life |
60H |
|
Power Measurement |
yes |
|
Auto Off Function |
yes |
|
Operating Temperature |
0 to +50℃ |
|
Storage Temperature |
-20 to +60℃ |
|
Dimension |
230*43*48mm |
|
Weight |
200g |

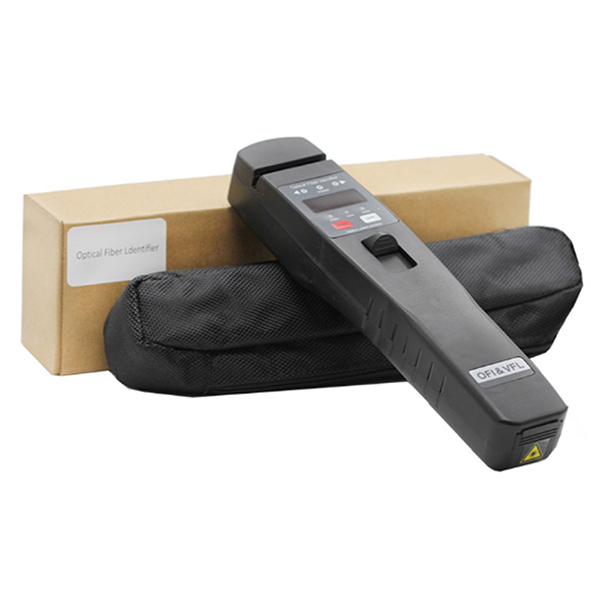

Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
MAY41 Optical Fiber Identifier with VFL |
1pc |
|
2 |
AA Alkaline Battery |
2pcs |
|
3 |
User Manual |
1pc |
|
4 |
Soft Bag |
1pc |
